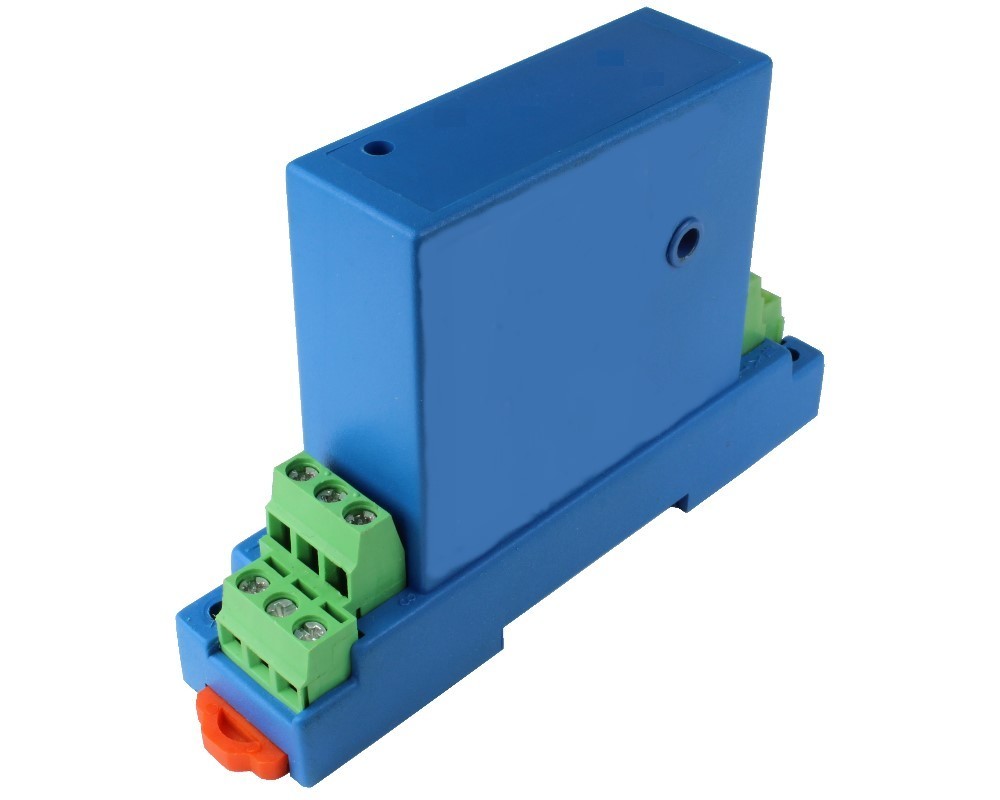

AC Current Sensor CYCS11A-xnWS9

The CYCS11A-xnWS9 AC current Sensor/Transducer works according electro-magnetic induction and is designed for applications to measurement and monitoring of single phase AC current. The output current of this transducer is proportional to the rectified value (absolute average value) of input AC current or reflects the input current wave. They are suitable for general applications such as fixed frequency voltage supplies etc.

Nominal Input Current: 0-5A, 0-10A, 0-15A, 0-20A, 0-25A, 0-30A, 0-35A, 0-40A, 0-45A, 0-50A
Isolation voltage: 1.5-2.5kV DC, 1min, 2.5 kV DC, 1min
Power Supply: +12 V DC, +24 V DC, 230V - 360VDC, 165V - 265VAC
Thermal drift: 300ppm/°C, 350ppm/°C
Accuracy: 0.5%
Measuring range: 0 - 1.2 times of rated input current
Operating Temperature: -10°C ~ +60°C
Output Signal: 0-20 mA DC, 4-20 mA DC
Current Type: AC
Response Time: 300-350ms
