Linear Hall Sensor ICs

We are dedicated to providing you with the highest quality products suited to your needs.

To find the Linear Hall Sensor ICs that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter
Linear Hall Effect Sensors Ics CYL8405, Max. Sensitivity: 49.0-51.0 (mV/mT) , Measuring range: 64mT

Serial: CYL840X

Max. Sensitivity: 49.0 ~ 51.0 mV/mT
Linearity: 1.0%
Measuring range: 0 ~ 64 mT, 0 ~ 640 Gs
Operating temperature: -40°C ~ +125°C
Package/Size: TO92/4.06x3.1x1.5mm
Linear Hall Effect Sensosr Ics CYL8403, Max. Sensitivity: 30.5-32.0 (mV/mT) , Measuring range: 64mT

Serial: CYL840X

Max. Sensitivity: 30.5 ~ 32.0 mV/mT
Linearity: 1.0%
Measuring range: 0 ~ 64 mT, 0 ~ 640 Gs
Operating temperature: -40°C ~ +125°C
Package/Size: TO92/4.06x3.1x1.5mm
Linear Hall Effect Sensors Ics CYL3503, Max. Sensitivity: 7.5-25 (mV/mT) , Measuring range: 80mT

Serial: CYL3503

Max. Sensitivity: 7.50 ~ 25 mV/mT
Max. Supply current/voltage: 14mA/8V
Measuring range: 0 ~ 80 mT, 0 ~ 800 Gs
Operating temperature: -20°C ~ +85°C
Package/Size: TO92/4.06x3.1x1.5mm
Linear Hall Effect Sensors Ics CYL49E, Max. Sensitivity: 14-18 (mV/mT) , Measuring range: 100mT

Serial: CYL49E

Max. Sensitivity: 14.0 ~ 18.0 mV/mT
Max. Supply current/voltage: 8mA/9V
Measuring range: 0 ~ 100 mT, 0 ~ 1000 Gs
Operating temperature: -40°C ~ +85°C
Package/Size: TO92/4.06x3.1x1.5mm
Linear Hall Effect Sensors Ics CYL49F, Max. Sensitivity: 17-24 (mV/mT) , Measuring range: 100mT

Serial: CYL49F

Max. Sensitivity: 17.0 ~ 24.0 mV/mT
Max. Supply current/voltage: 8mA/10V
Measuring range: 0 ~ 100 mT, 0 ~ 1000 Gs
Operating temperature: -40°C ~ +105°C
Package/Size: TO92/4.0x3.0x1.5mm
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

Serial: CYLF50

Max. Sensitivity: 10.0 ~ 14.0 mV/mT
Linearity: 0.7 %
Measuring range: 0 ~ 100 mT, 0 ~ 1000 Gs
Operating temperature: -20°C ~ +85°C
Package/Size: SIP3L/4.1x3.05x1.50mm

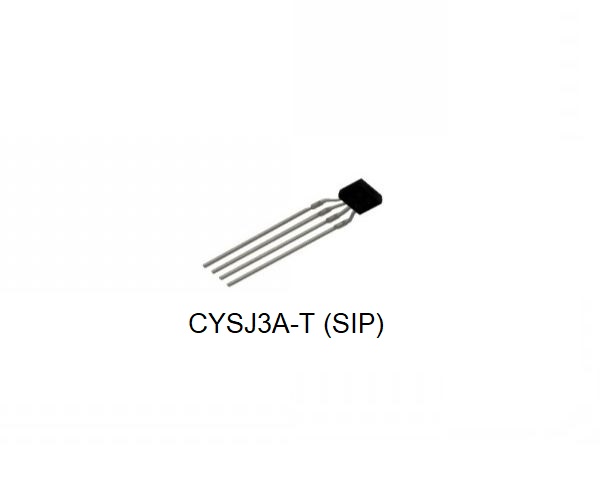

Linear Hall Effect Sensor CYSJ3A, Max. Sensitivity: 0.96 ~ 1.44 (mV/mT), Measuring range: 3T

Serial: CYSJ3A

Max. Sensitivity: 0.96 ~ 1.44 mV/mT
Linearity: 1.0 %
Measuring range: 0~3 T, 0~30000 Gs
Operating temperature: -100°C ~ +200°C
Package/Size: SIP/SOT143

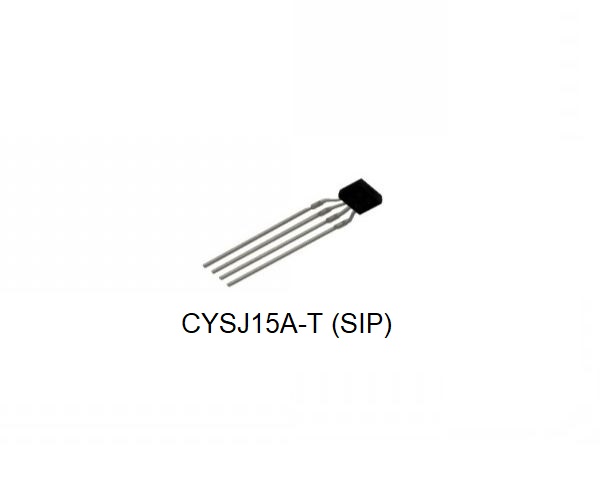

Linear Hall Effect Sensor CYSJ15A, Max. Sensitivity: 1.04 ~ 1.34 (mV/mT), Measuring range: 3T

Serial: CYSJ15A

Max. Sensitivity: 1.04 ~ 1.34 mV/mT
Linearity: 1.0 %
Measuring range: 0~3 T, 0~30000 Gs
Operating temperature: -100°C ~ +200°C
Package/Size: SIP/SOT143
Linear Hall Effect Sensor CYSJ2A, Max. Sensitivity: 1.17 ~ 1.71 (mV/mT), Measuring range: 3T

Serial: CYSJ2A

Max. Sensitivity: 1.17 ~ 1.71 mV/mT
Linearity: 0.5%
Measuring range: 0~3 T, 0~30000 Gs
Operating temperature: -100°C ~ +200°C
Package/Size: SIP/SOT143
Programmable Linear Hall Effect Sensor IC CYL810P

Serial: CYL810P

Max. Sensitivity: 36.5 ~ 293.0 mV/mT (programmable)
Linearity: 0.1%
Measuring range: 0~200mT, 0~2000 Gs
Operating temperature: -40°C ~ +125°C
Package/Size: TO94/5.13x3.6x1.6mm

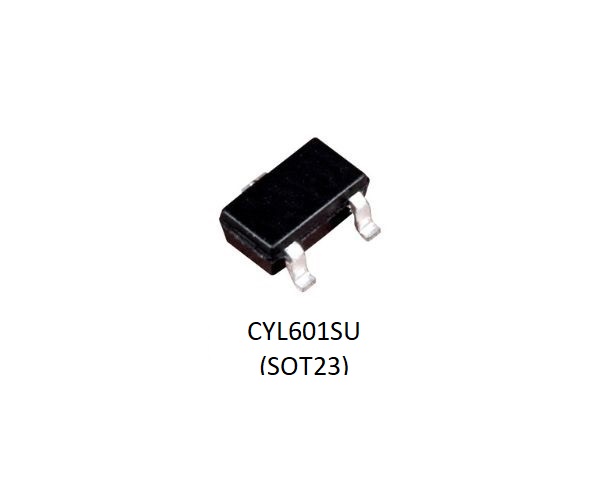

Linear Hall-Effect Sensor IC CYL601, Max. Sensitivity: 9-15 (mV/mT) , Measuring range: 1250 Gs (= 125 mT)

Serial: CYL601

Max. Sensitivity: 9.0 ~ 15.0 mV/mT
Linearity: ±1.0%
Measuring range: 0~125 mT, 0~1250 Gs
Operating temperature: -40°C ~ +150°C"
Package/Size: SOT23 or TO92
Linear Hall-Effect Sensor IC CYL602, Max. Sensitivity: 22-28 (mV/mT) , Measuring range: 600 Gs (= 60 mT)

Serial: CYL602

Max. Sensitivity: 22.0 ~ 28.0 mV/mT
Linearity: ±1.0%
Measuring range: 0~60 mT, 0~600 Gs
Operating temperature: -40°C ~ +150°C"
Package/Size: SOT23 or TO92

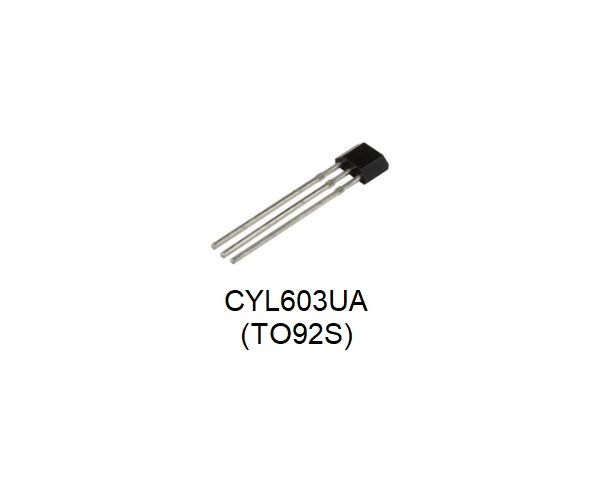

Linear Hall-Effect Sensor IC CYL603, Max. Sensitivity: 29.5-35.5 (mV/mT) , Measuring range: 460 Gs (= 46 mT)

Serial: CYL603

Max. Sensitivity: 27.5 ~ 35.0 mV/mT
Linearity: ±1.0%
Measuring range: 0~46 mT, 0~460 Gs
Operating temperature: -40°C ~ +150°C"
Package/Size: SOT23 or TO92

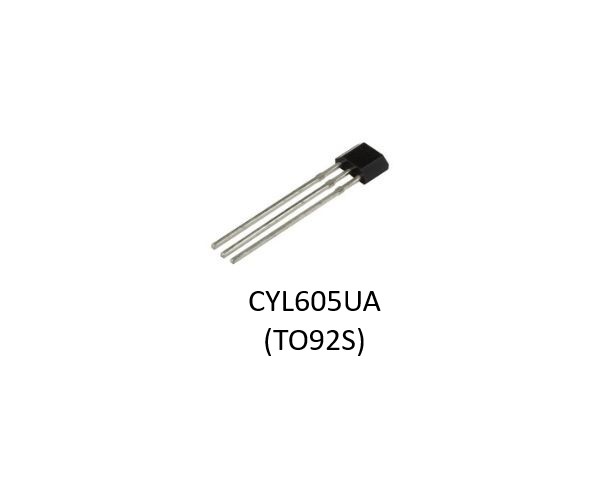

Linear Hall-Effect Sensor IC CYL605, Max. Sensitivity: 47-53 (mV/mT) , Measuring range: 300 Gs (= 30 mT)

Serial: CYL605

Max. Sensitivity: 47.0 ~ 53.0 mV/mT
Linearity: ±1.0%
Measuring range: 0~30 mT, 0~300 Gs
Operating temperature: -40°C ~ +150°C"
Package/Size: SOT23 or TO92
