Fluxgate Voltage Sensors
Fluxgate voltage sensors are based on magentic saturation and magnetic compensation principle.
| Characteristics: | Application: |
|
|
We are dedicated to providing you with the highest quality products suited to your needs.
To find the Fluxgate Voltage Sensors, that fit your technical specifications the best, we highly recommend using the filter function.

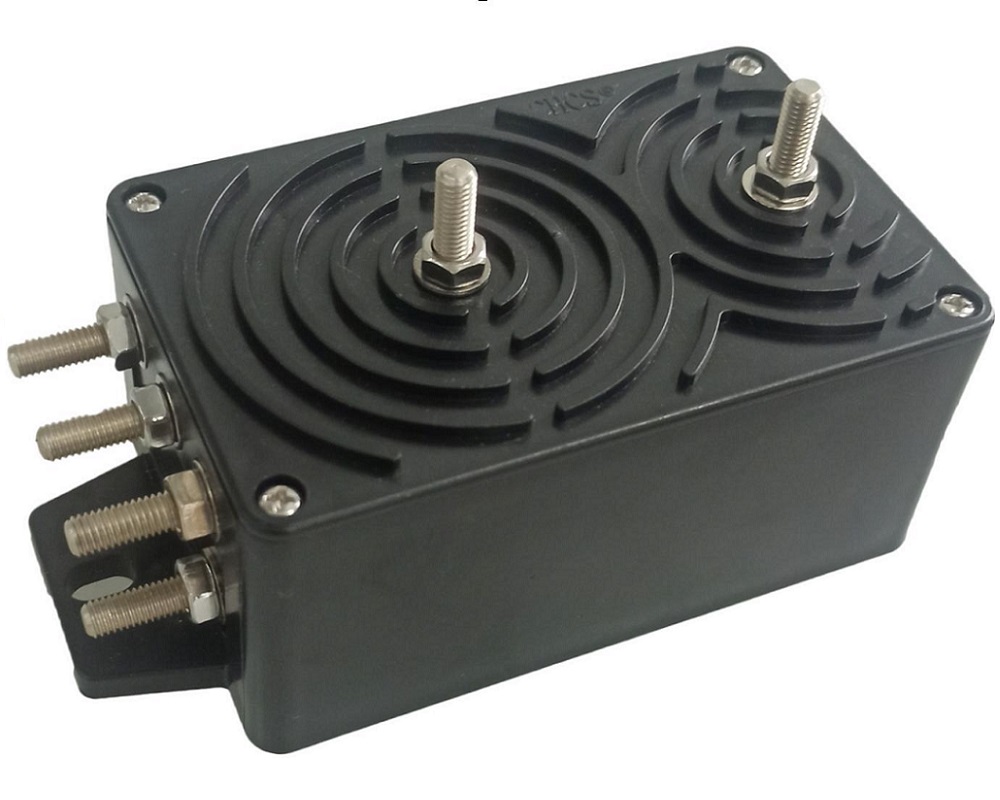

Serial: CYFGVS3000EV
Input Voltage Range::
0~±50V to 0~±3000V AC/DC
Output signal:
0~±5 V AC/DC
Accuracy :
0.1%
Power Supply:
±12V ~ ±15V DC
Operating Temperature:
-25°C ~ +85°C
Serial: CYFGVS3000EVA
Input Voltage Range::
0~±50V to 0~±3000V AC/DC
Output signal:
0~±50 mA AC/DC
Accuracy :
0.1%
Power Supply:
±12V ~ ±15V DC
Operating Temperature:
-25°C ~ +85°C
Serial: CYFGVS3000EVT
Input Voltage Range::
0~±50V to 0~±3000V AC/DC
Output signal:
0~±5 or 0-±10 V DC
Accuracy :
1.0%
Power Supply:
+20 ~ +32 V DC
Operating Temperature:
-25°C ~ +85°C
