Hall Effect Switch IC with Dual Outputs

We are dedicated to providing you with the highest quality products suited to your needs.

Product Filter

Product Filter
Dual Channel Hall Effect Switch CYD8526 With Speed and Direction Outputs, Power Supply: 3.5 ~ 24 V

Serial: CYD8526

Operating point: 7mT~13mT
Release Point: -13mT~-7mT
Supply Voltage: 3.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: 4-pin SIP
Dual Channel Sensitive Hall Effect Switch with Quadrature Outputs CYD8536, Power Supply: 2.8 ~ 24 V DC

Serial: CYD8536

Operating point: 0.5mT ~ 3.5mT
Release Point: -3.5mT ~ -0.5mT
Supply Voltage: 2.8V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: 4-pin SIP

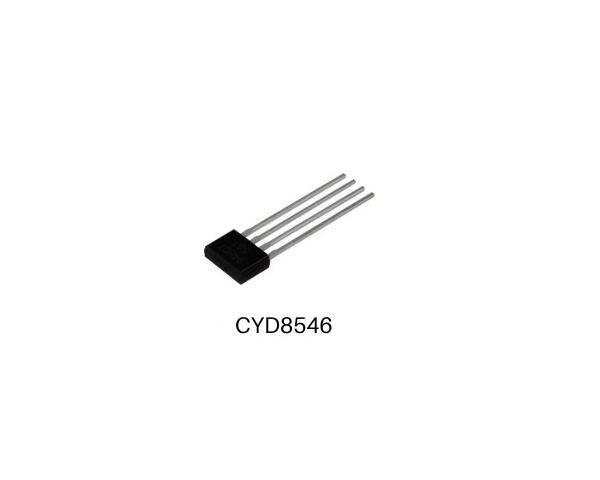

Dual Channel Sensitive Hall Effect Switch With Quadrature Outputs CYD8546, Power Supply: 2.5 V ~ 24 V DC

Serial: CYD8546

Operating point: 1.0mT ~ 3.0mT
Release Point: -3.0mT ~ -1.0mT
Supply Voltage: 2.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: 4-pin SIP
