Bipolar Hall Switch ICs

We are dedicated to providing you with the highest quality products suited to your needs.

To find the Bipolar Hall Switch ICs that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter

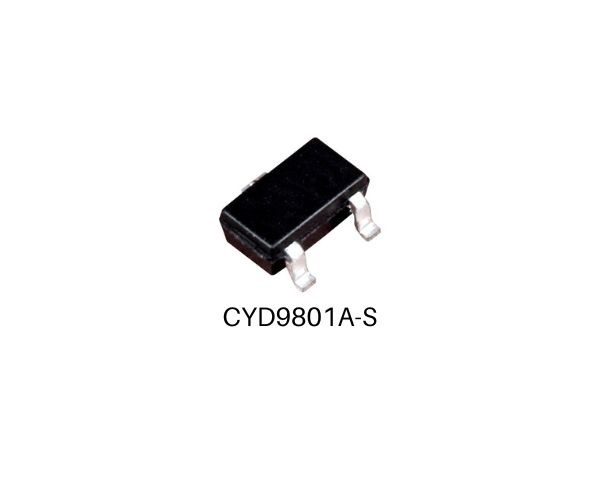

Bipolar Hall Effect Switch Ics CYD9801A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Serial: CYD9801A

Operating point: 1.0mT~3.5mT
Release Point: -3.5mT~-1.0mT
Supply Voltage: 2.5V ~ 18V
Operating temperature: -40°C ~ +125°C
Package/Size: SOT-23
Bipolar Hall Effect Switch Ics CYD9802A, Power Supply: 2.5V -18V, Power Supply current: 25mA

Serial: CYD9802A

Operating point: 1.0mT~3.5mT
Release Point: -3.5mT~-1.0mT
Supply Voltage: 2.5V ~ 18V
Operating temperature: -40°C ~ +125°C
Package/Size: SOT-23

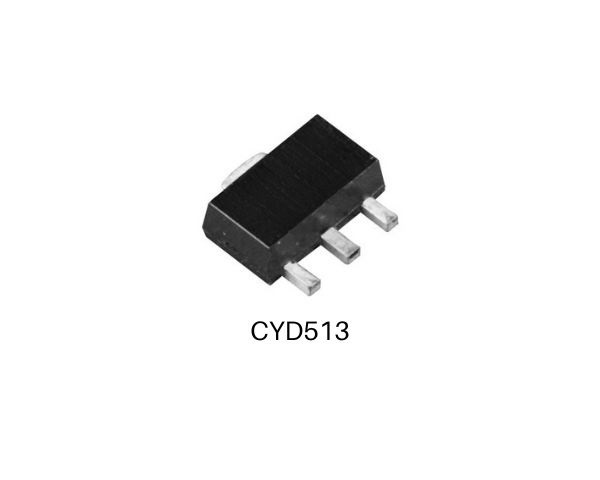

Bipolar Hall Effect Switch Ics CYD513, Power Supply: 4.5V -24V, Power Supply current: 10mA

Serial: CYD513

Operating point: 4mT
Release Point: -4mT
Supply Voltage: 4.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: SOT-89/4.5x2.5x1.5mm

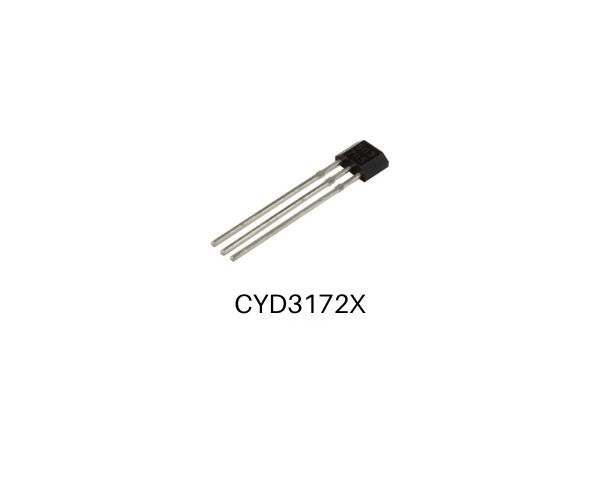

Bipolar Hall Effect Switch Ics CYD3172X, Power Supply: 4.5V -24V, Power Supply current: 12mA

Serial: CYD3172X

Operating point: 1mT ~ 7mT
Release Point: -7mT ~ -1mT
Supply Voltage: 4.5V ~ 24V
Operating temperature: -40°C ~ +85°C
Package/Size: TO-92UA/4.06x3.1x1.5mm

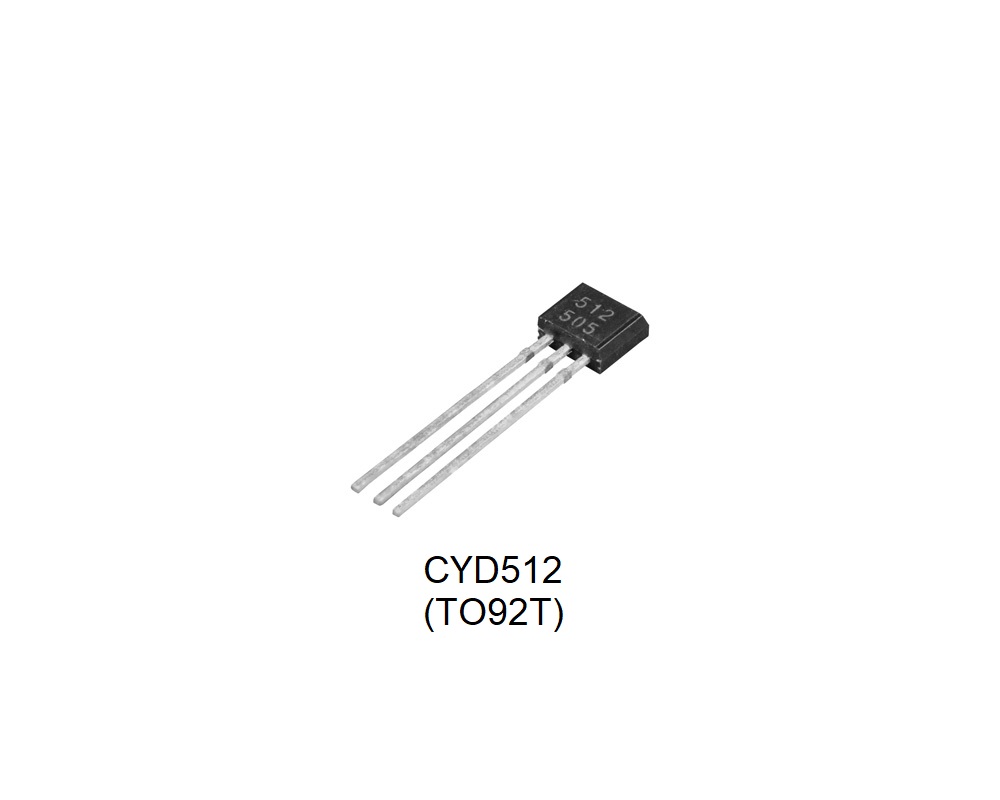

Bipolar Hall Effect Switch Ics CYD512, Power Supply voltage: 4.5V -18V, Power Supply current: 8mA

Serial: CYD512

Operating point: 1mT ~ 6mT
Release Point: -6mT ~ -1mT
Supply Voltage: 4.5V ~ 18V
Operating temperature: -40°C ~ +150°C
Package/Size: TO-92T/4.5x4.0x2.0mm

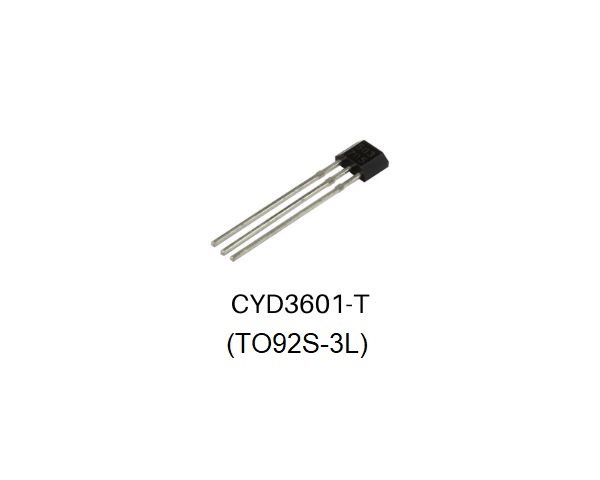

Bipolar Hall Effect Latching Switch Ics CYD3601, Power Supply: 2.5V -18V, supply current: 8mA

Serial: CYD3601

Operating point: 3.0mT
Release Point: -3.0mT
Supply Voltage: 2.5V ~ 18V
Operating temperature: -40°C ~ +125°C
Package/Size: SOT23-3L or TO92-3L

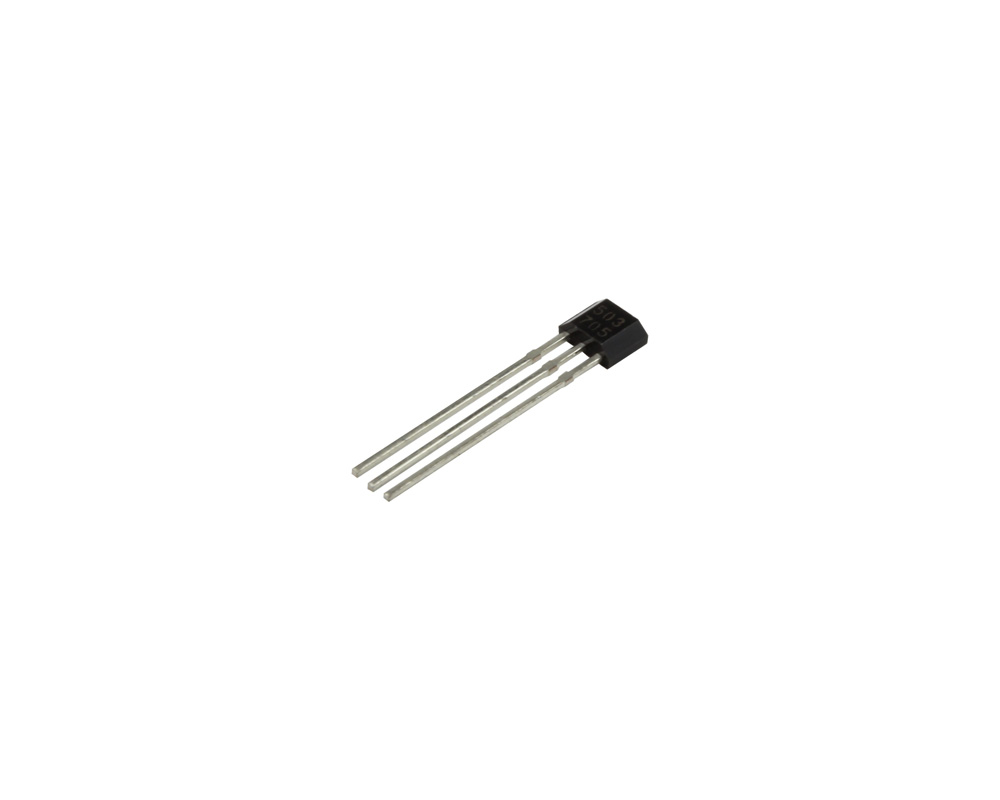

Bipolar Hall Effect Latching Switch IC CYD41, Power Supply: 4,5V~24V, Supply Current: 8mA, Operating Temperature: -40°C~+150°C

Serial: CYD41

Operating point: 4mT
Release Point: -4mT
Supply Voltage: 4.5V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: TO-92UA/4.06x3.1x1.5mm

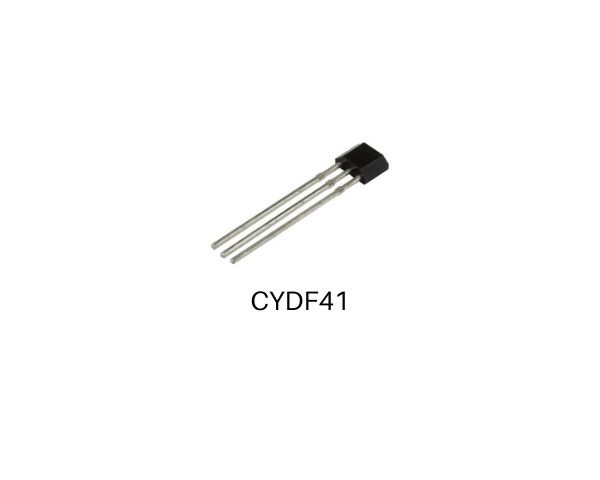

Bipolar Hall Effect Latching Switch IC CYDF41, Power Supply: 3,0V~28V, Supply Current: 10mA, Operating Temperature: -40°C~+125°C

Serial: CYDF41

Operating point: 6mT ~ 8.5mT
Release Point: -8.5mT ~ -6mT
Supply Voltage: 3.0V ~ 28V
Operating temperature: -40°C ~ +125°C
Package/Size: SIP-3L/4.1x3.05x1.5mm
Bipolar Hall Effect Latching Switch Ics CYD72X,Power Supply: 2,4V -16 V, Supply Current: 10 mA, Operating Temperature: -20°C~+100°C

Serial: CYD72X

Operating point: 2.5mT
Release Point: -2.5mT
Supply Voltage: 2.4V ~ 16V
Operating temperature: -20°C ~ +100°C
Package/Size: SIP-3L/4.1x3.05x1.5mm

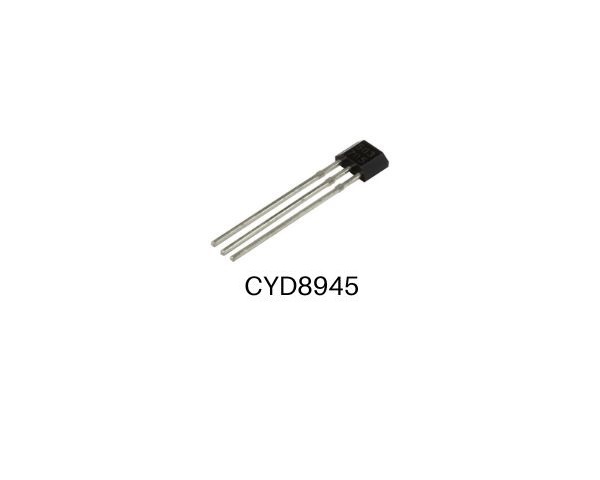

Bipolar Hall Effect Latching Switch Ics CYD8945, Power Supply: 3.8V -60V, supply current: 10mA

Serial: CYD8945

Operating point: 2.5mT~18.5mT
Release Point: -18.5mT~-2.5mT
Supply Voltage: 3.8V ~ 60V
Operating temperature: -50°C ~ +150°C
Package/Size: UA/4x1.52x2.45

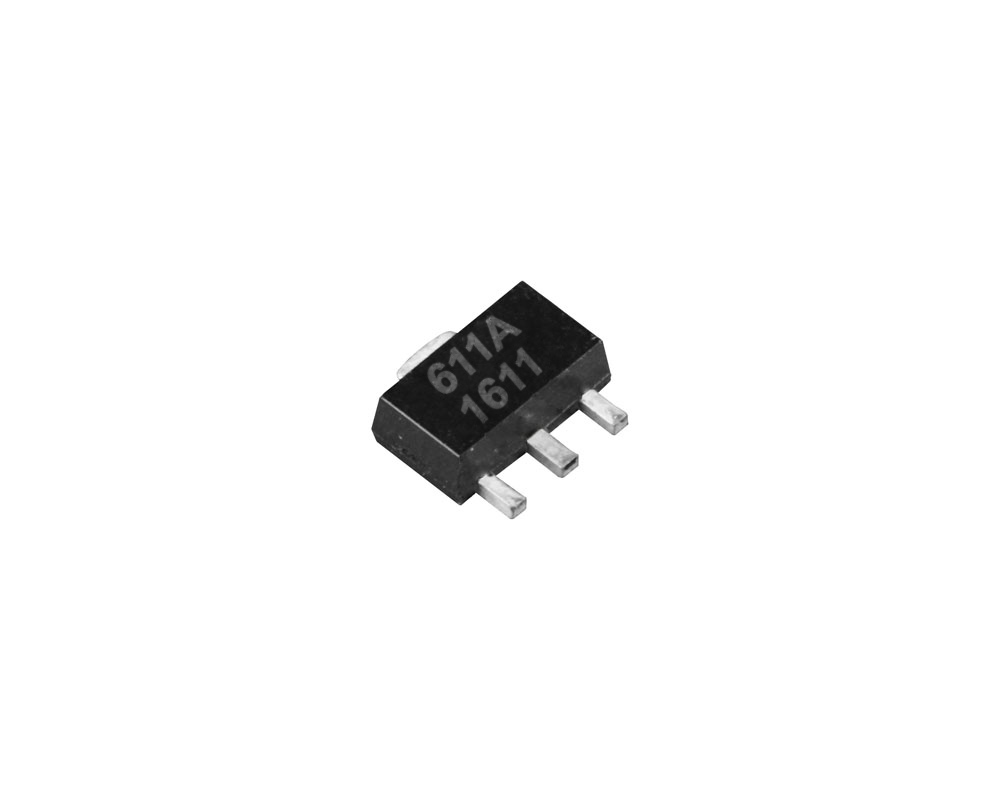

High Sensitivity Hall Effect Latch CYD9611

Serial: CYD9611

Operating point: 1.0mT~4.5mT
Release Point: -4.5mT~-1.0mT
Supply Voltage: 3.8V ~ 24V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92, SOT23 or SOT89

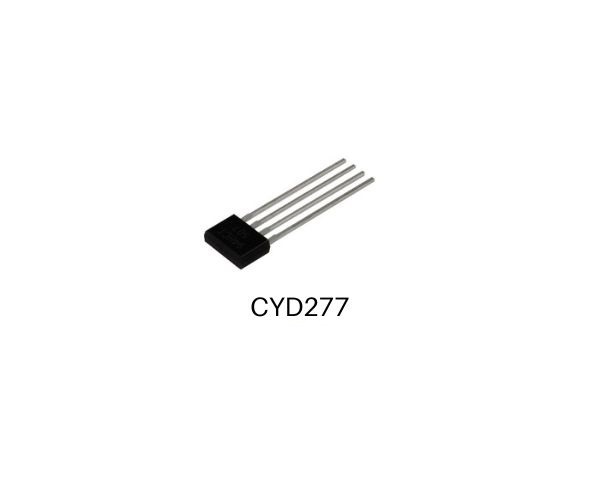

Bipolar Hall Effect Latching Switch Ics CYD277, Power Supply: 4.5V -20V, supply current: 200mA

Serial: CYD277

Operating point: 8mT
Release Point: -8mT
Supply Voltage: 4.5V ~ 20V
Operating temperature: -20°C ~ +85°C
Package/Size: SIP/5.13x3.6x1.6mm

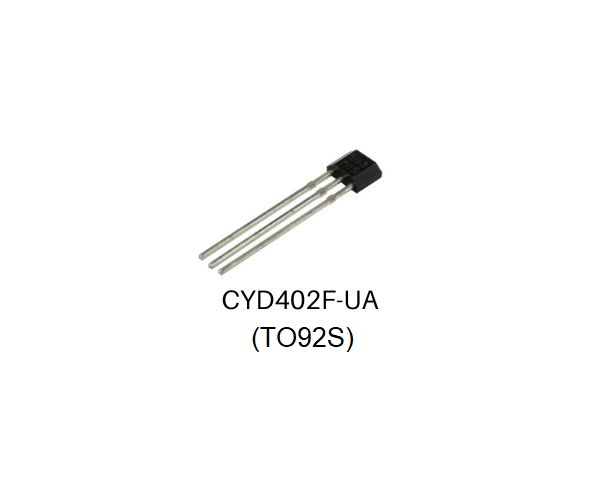

Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA

Serial: CYD402F

Operating point: 1.0mT ~ 4.0mT
Release Point: -4.0mT ~ -1.0mT
Supply Voltage: 3.8V ~ 60V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L

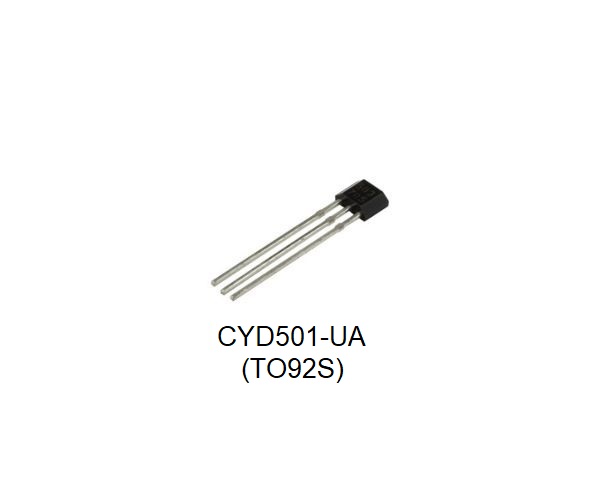

Bipolar Hall Effect Latching Switch Ics CYD501, Power Supply: 2.7V -30V, supply current: 25mA

Serial: CYD501

Operating point: 0.9mT
Release Point: -0.9mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
Bipolar Hall Effect Latching Switch Ics CYD502, Power Supply: 2.7V -30V, supply current: 25mA

Serial: CYD502

Operating point: 2.5mT
Release Point: -2.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L

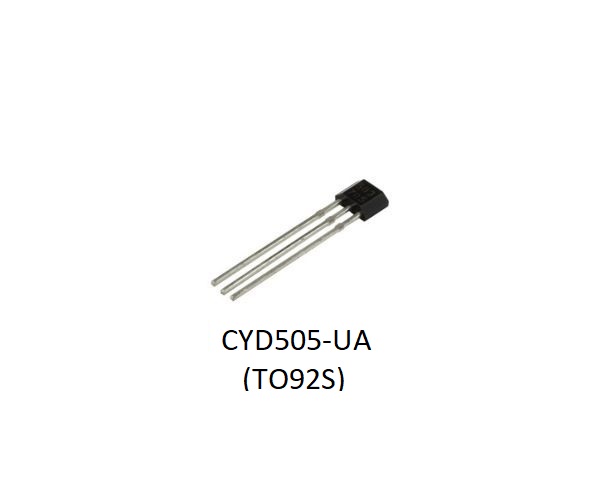

Bipolar Hall Effect Latching Switch Ics CYD505, Power Supply: 2.7V -30V, supply current: 25mA

Serial: CYD505

Operating point: 13.5mT
Release Point: -13.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
