Open Loop Hall Effect Sensors with Rectangle Window

We are dedicated to providing you with the highest quality products suited to your needs.

Hall Effect current sensors are often utilized in performance optimization and monitoring, for automobile electronics, renewable energy equipment, as well as current and voltage control in many other industrial applications. Open-loop sensors offer excellent value for money and are ideal for applications where you have to minimize power consumption, size, and weight. They are lightweight, inexpensive, and do not suffer significant damage from excessive overcurrent.

A comprehensive introduction to Hall Effect Current Sensor you find here.

To find the Open Loop Hall Effect Current Sensors that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter
Hall Effect DC Current Sensor CYHCT-BTV

Serial: CYHCT-BTV

Rated Input Current: 0~±50A to 0~±600A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 20.5x10.5mm
Connector: Molex

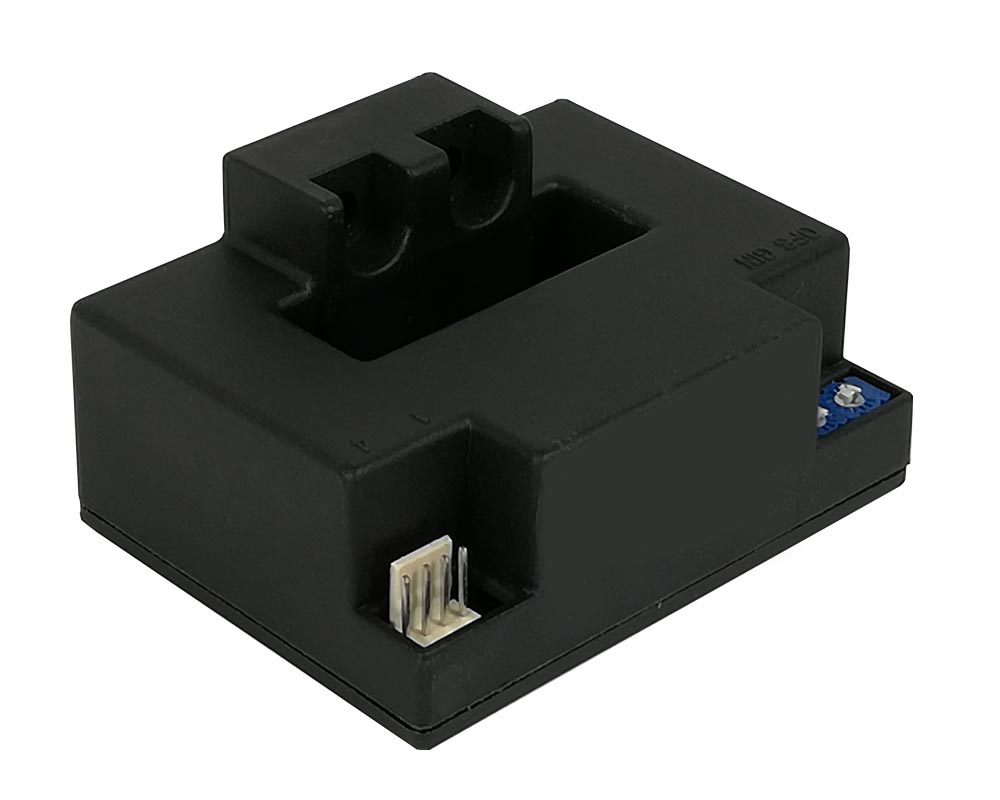

Hall Effect DC Current Sensor CYHCT-FV

Serial: CYHCT-FV-B200A-84

Rated Input Current: 0~±200A to 0~±2000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 41x14 mm
Connector: Molex
Hall Effect DC Current Sensor CYHCT-FAV

Serial: CYHCT-FAV

Rated Input Current: 0~±300A to 0~±2000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 51x13 mm
Connector: Molex
Hall Effect DC Current Sensor CYHCT-K104V

Serial: CYHCT-K104V

Rated Input Current: 0~±500A to 0~±5000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 104 x 36 mm (Split Core)
Connector: Molex or Screw
Hall Effect AC Current Sensor CYHCS-BTV

Serial: CYHCS-BTV

Rated Input Current: 0~±50A to 0~±600A AC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 20.5x10.5mm
Connector: Molex

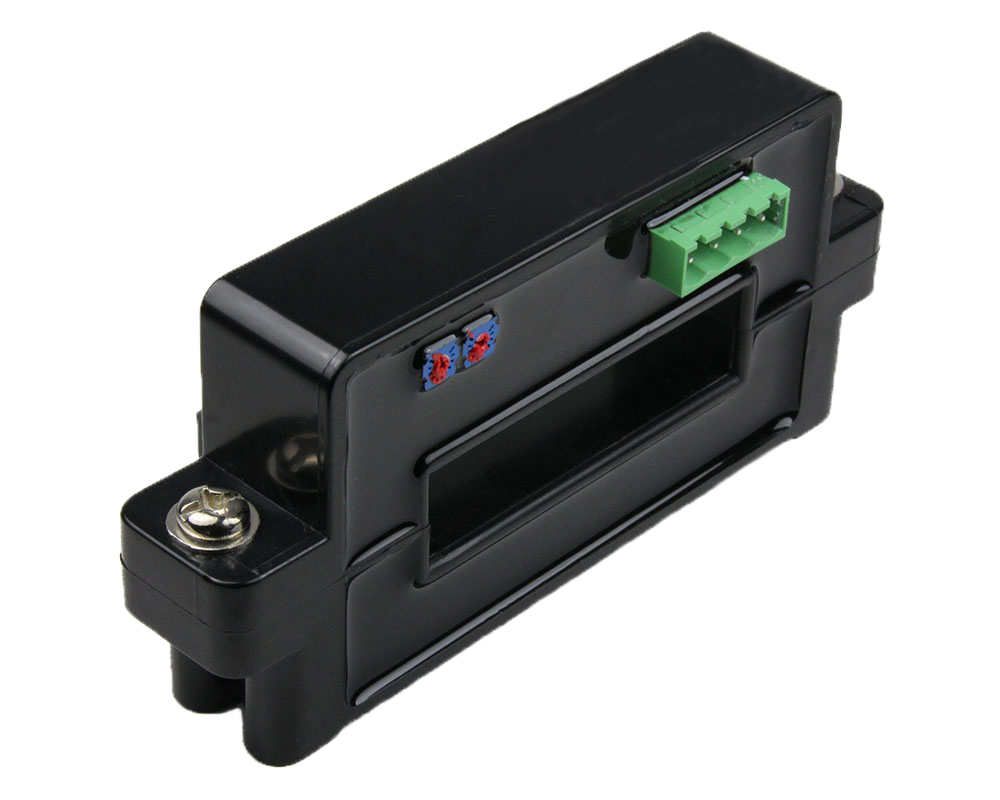

Split Core Hall Current Sensor CYHCT-KV

Serial: CYHCT-KV

Rated Input Current: 0~±300A to 0~±2000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 64x16 mm (Split Core)
Connector: Phoenix
Split Core Hall DC Current Sensor CYHCT-KC

Serial: CYHCT-KC

Rated Input Current: 0~±300A to 0~±2000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 64x16 mm (Split Core)
Connector: Phoenix
Split Core Hall Effect DC Current Sensor CYHCT-KF2V

Serial: CYHCT-KF2V

Rated Input Current: 0~±300A to 0~±3000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 85 x 27 mm (Split Core)
Connector: Molex
Split Core Hall Effect DC Current Sensor CYHCT-KF2C

Serial: CYHCT-KF2C

Rated Input Current: 0~±300A to 0~±3000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 85 x 27 mm (Split Core)
Connector: Molex

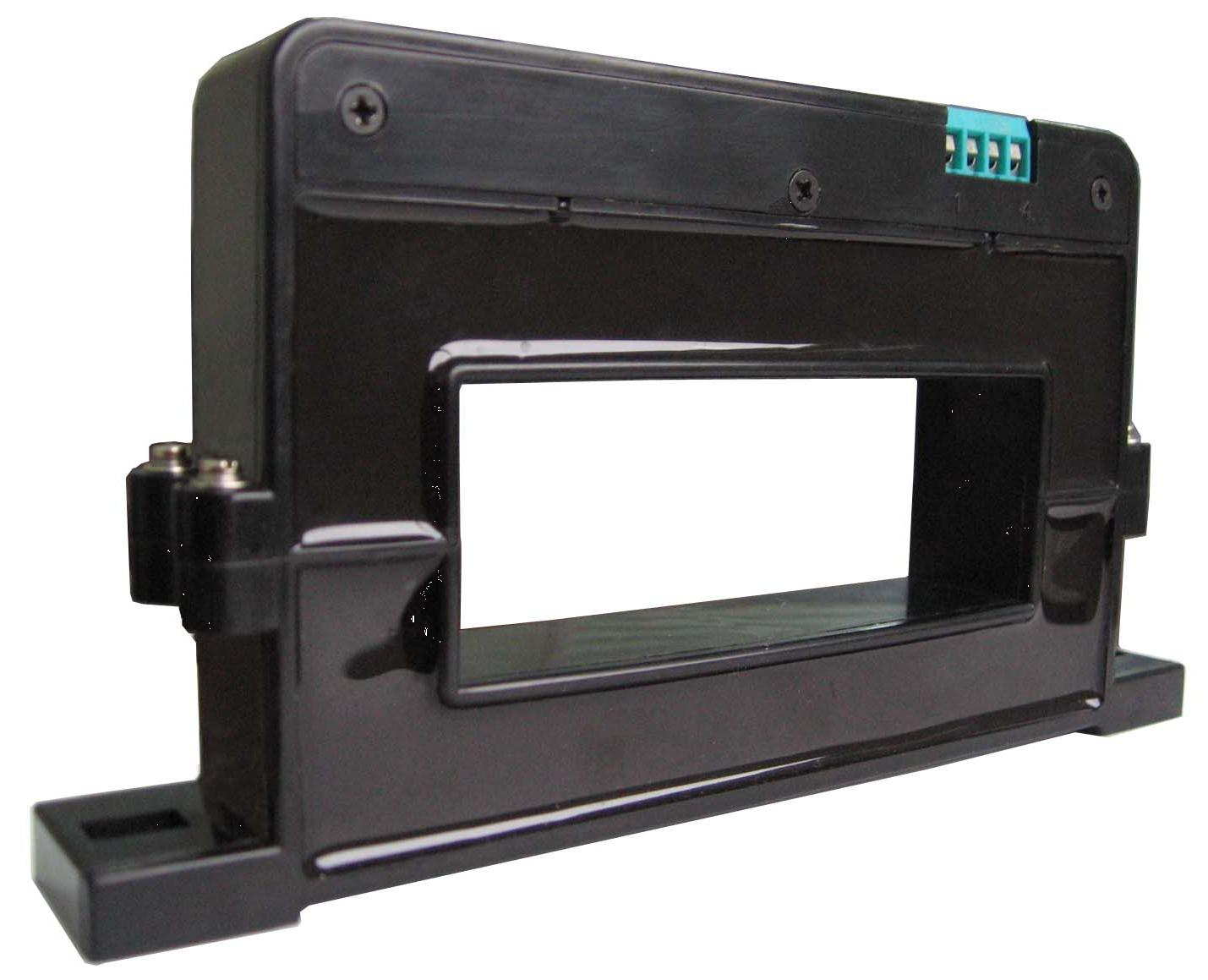

Split Core Hall Current Sensor CYHCT-K104C

Serial: CYHCT-K104C

Rated Input Current: 0~±500A to 0~±5000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 104 x 36 mm (Split Core)
Connector: Molex or Screw

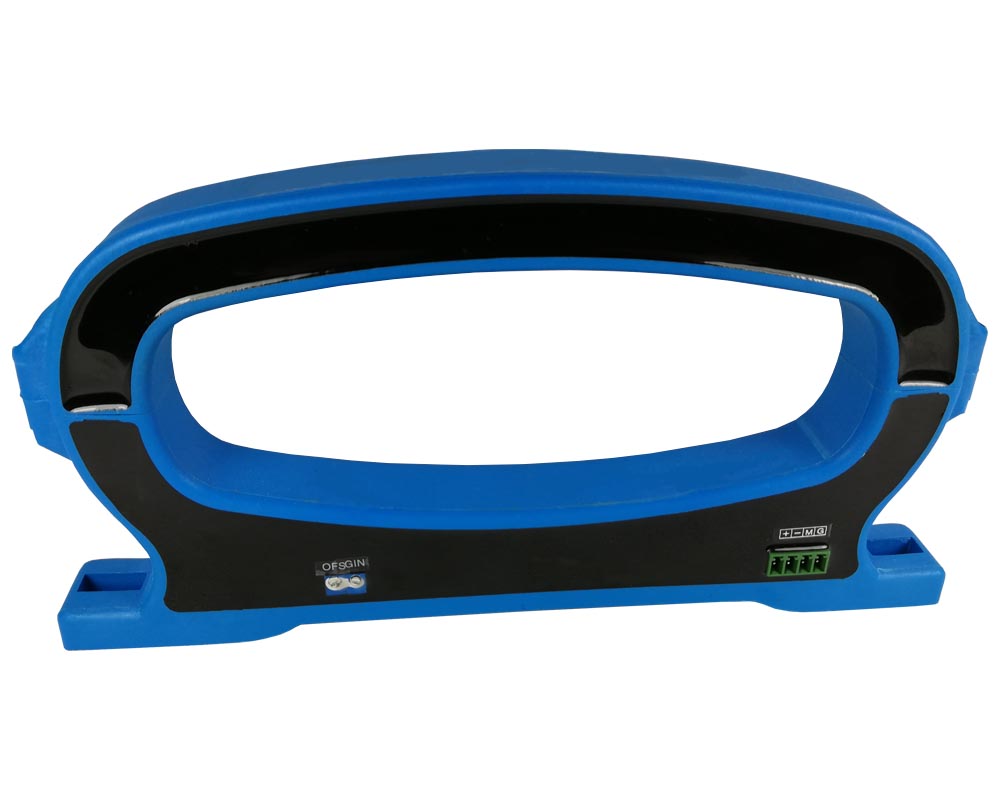

DC Current Sensor with Split Core CYHCT-C5

Serial: CYHCT-C5

Rated Input Current: 0~±300A to 0~±6000A DC
Output Signal: tracing ±5V, 0~10V, 4~20mA DC ±1% etc.
Power Supply: +/±12V,+/±15V or +24V DC
Window Size: 150 x 40 mm (Split Core)
Connector: Phoenix
Split Core Hall Effect DC Current Sensor CYHCT-KCV

Serial: CYHCT-KCV

Rated Input Current: 0~±1000A to 0~±10000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +/± 12V,+/±15V or +/±24V DC
Window Size: 140 x 36 mm (Split Core)
Connector: Phoenix

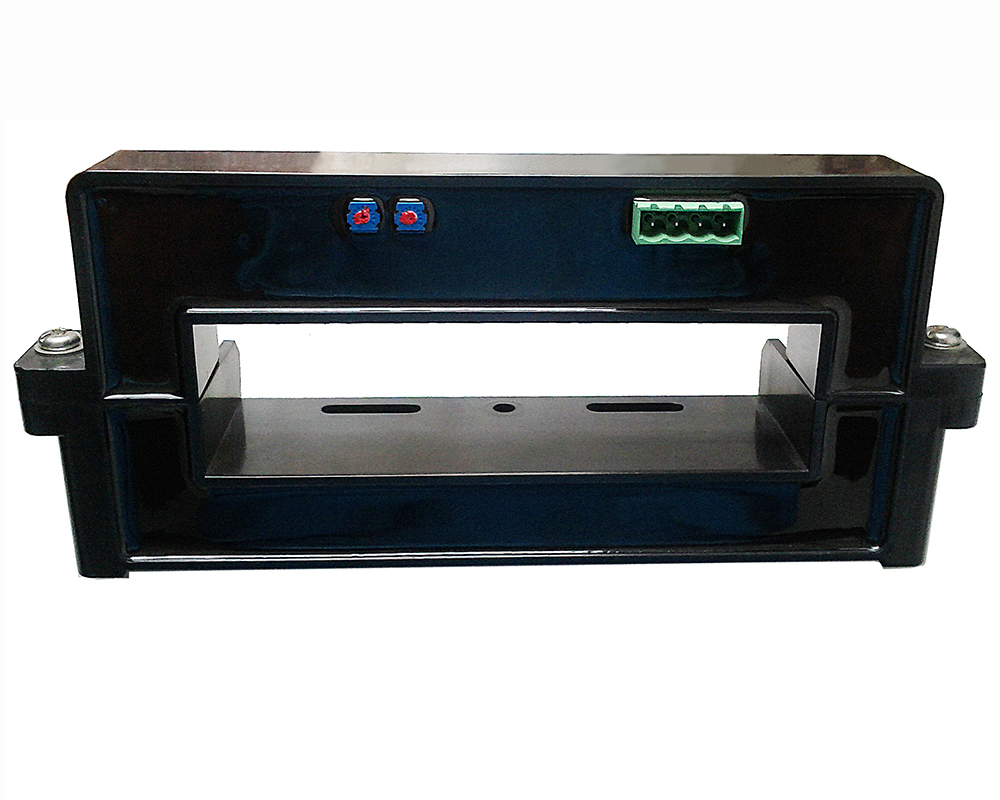

Hall Effect DC Current Sensor CYHCT-KCC

Serial: CYHCT-KCC

Rated Input Current: 0~±1000A to 0~±10000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +/± 12V,+/±15V or +/±24V DC
Window Size: 140 x 36 mm (Split Core)
Connector: Phoenix
Hall Effect DC Current Sensor CYHCT-HBV

Serial: CYHCT-HBV

Rated Input Current: 0~±2000A to 0~±10000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 140 x 50 mm
Connector: Screw

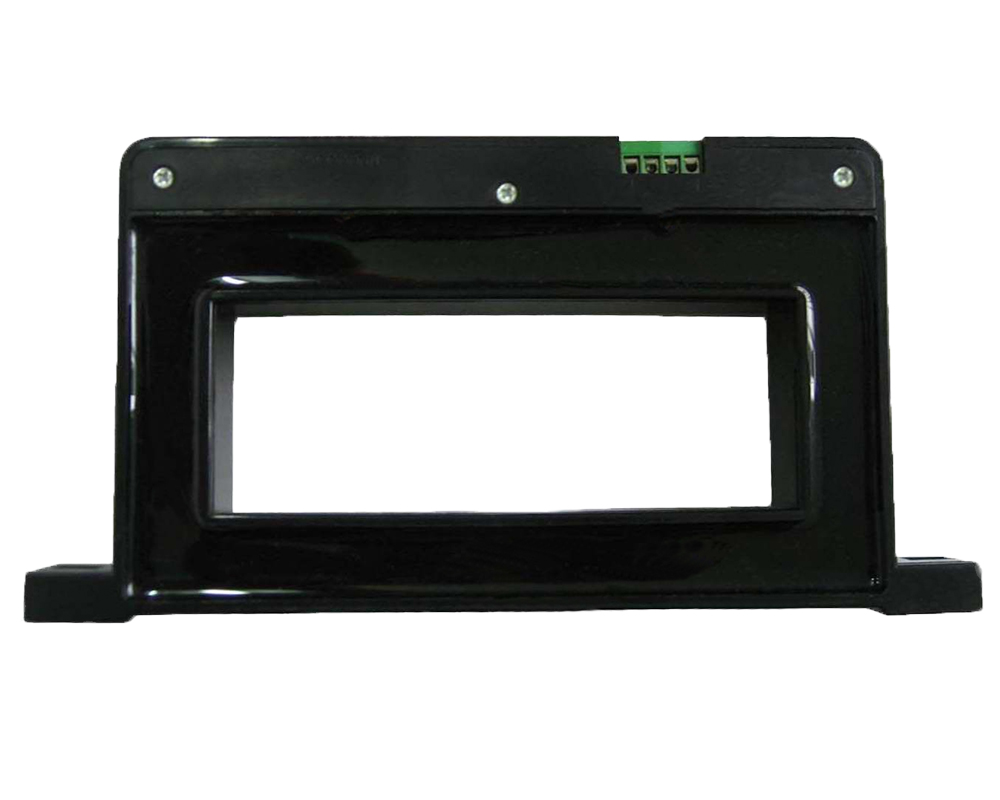

Hall Effect DC Current Sensor CYHCT-HBC

Serial: CYHCT-HBC

Rated Input Current: 0~±2000A to 0~±10000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 140 x 50 mm
Connector: Screw
Hall Effect DC Current Sensor CYHCT-K210V

Serial: CYHCT-K210V

Rated Input Current: 0~±3000A to 0~±100000A DC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +/±12V, +/±15V, +/±24V or +125V DC
Window Size: 100 x 210 mm
Connector: Phoenix

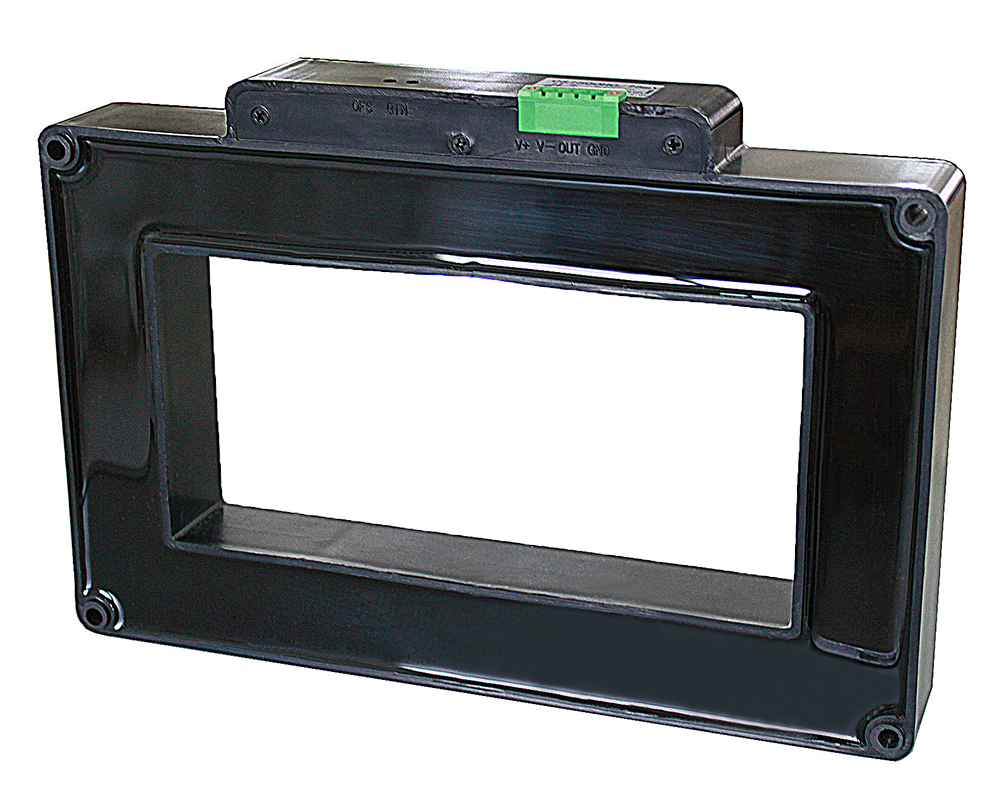

Hall Effect DC Current Sensor CYHCT-K210C

Serial: CYHCT-K210C

Rated Input Current: 0~±3000A to 0~±100000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +/±12V, +/±15V, +/±24V or +125V DC
Window Size: 100 x 210 mm
Connector: Phoenix

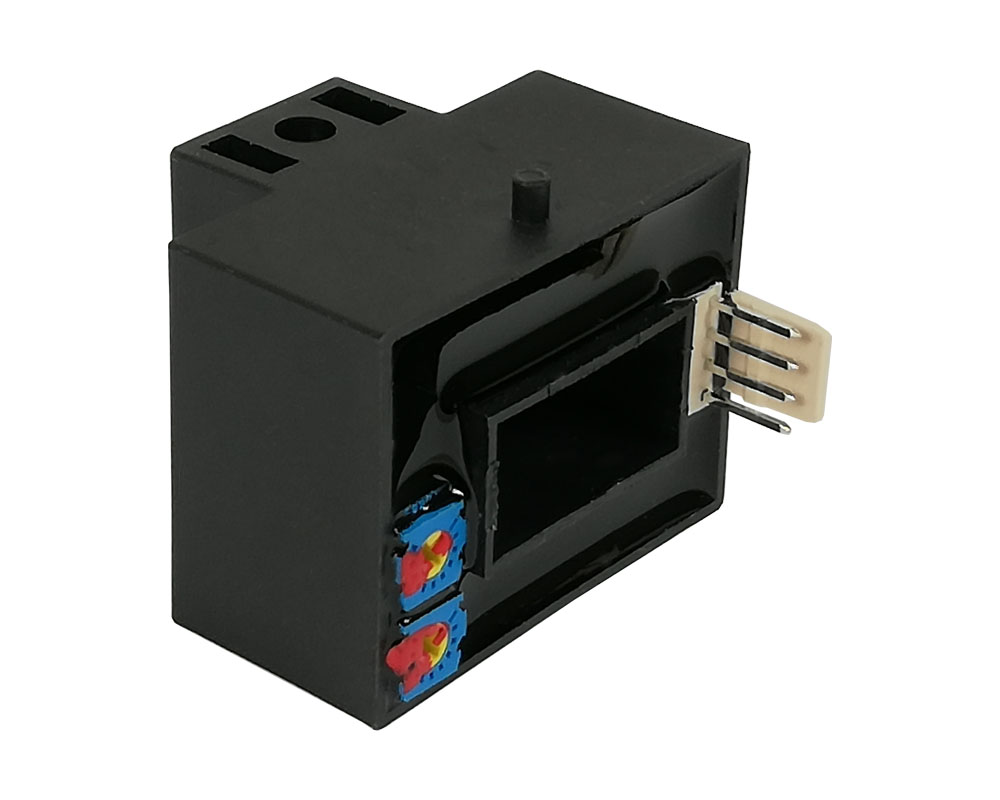

AC Hall Effect Current Sensor CYHCS-BTC

Serial: CYHCS-BTC

Rated Input Current: 0~±50A to 0~±600A AC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 20.5x10.5mm
Connector: Molex
Hall Effect AC Current Sensor CYHCS-FAV

Serial: CYHCS-FAV

Rated Input Current: 0~±300A to 0~±2000A AC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 51x13 mm
Connector: Molex
Hall Effect AC Current Sensor CYHCS-FAC

Serial: CYHCS-FAC

Rated Input Current: 0~±300A to 0~±2000A AC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 51x13 mm
Connector: Molex
Split Core Hall Effect AC Current Sensor CYHCS-KV

Serial: CYHCS-KV

Rated Input Current: 0~±300A to 0~±2000A AC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 64x16 mm (Split Core)
Connector: Phoenix
Split Core Hall Effect AC Current Sensor CYHCS-KC

Serial: CYHCS-KC

Rated Input Current: 0~±300A to 0~±2000A AC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 64x16 mm (Split Core)
Connector: Phoenix

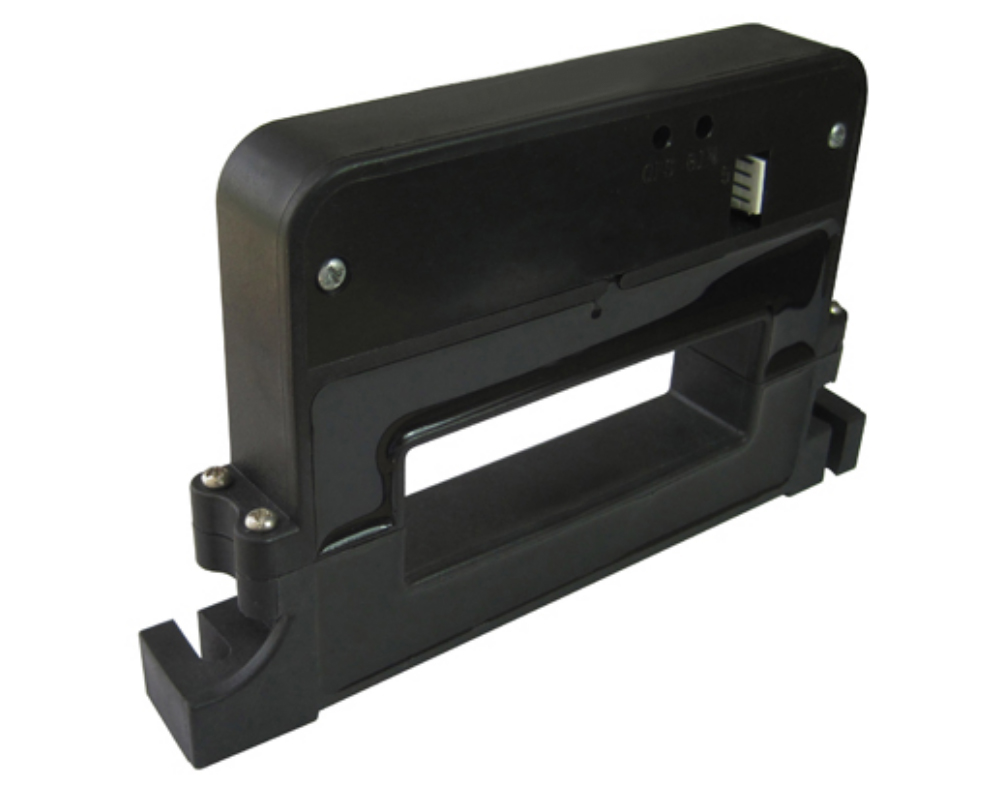

Split Core Hall Effect AC Current Sensor CYHCS-KF2V

Serial: CYHCS-KF2V

Rated Input Current: 0~±300A to 0~±3000A AC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 85 x 27 mm (Split Core)
Connector: Molex

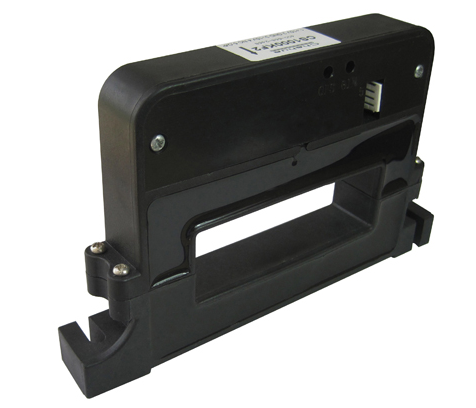

Split Core Hall Effect AC Current Sensor CYHCS-KF2C

Serial: CYHCT-KF2V

Rated Input Current: 0~±300A to 0~±3000A AC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 85 x 27 mm (Split Core)
Connector: Molex

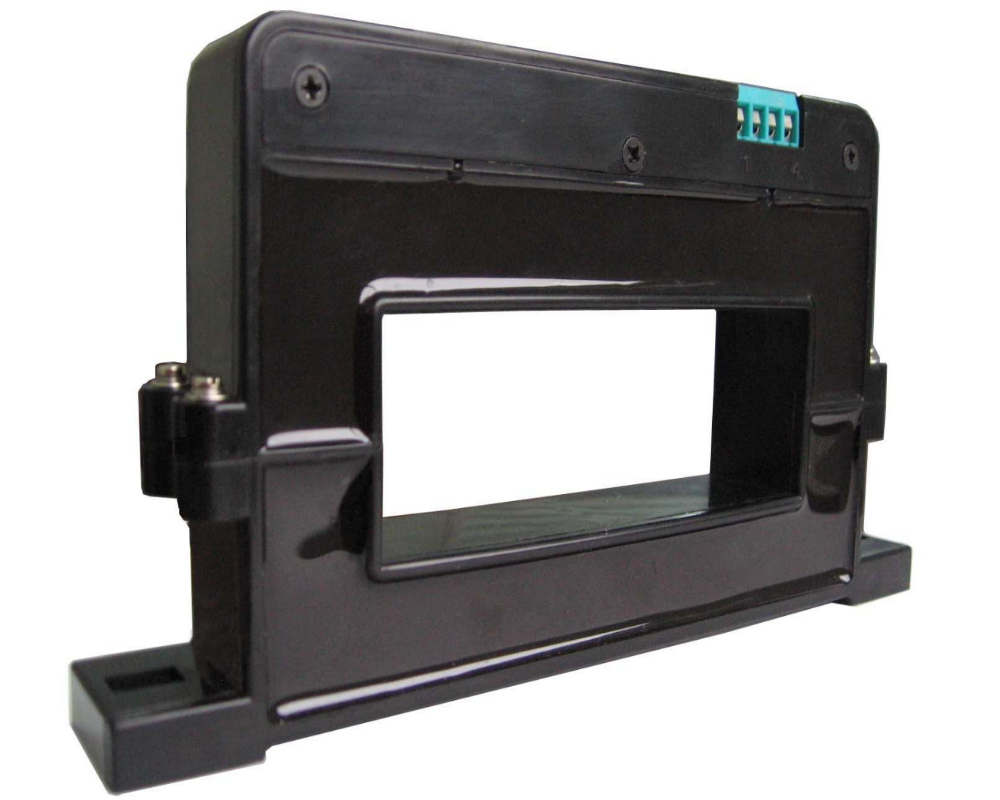

Split Core Hall Effect AC Current Sensor CYHCS-K104C

Serial: CYHCS-K104C

Rated Input Current: 0~±500A to 0~±5000A AC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V ,+15V or +24V DC
Window Size: 104 x 36 mm (Split Core)
Connector: Molex or Screw
Split Core Hall Effect AC Current Sensor CYHCS-C5

Serial: CYHCS-C5

Rated Input Current: 0~300A to 0~6000A AC
Output Signal: 0~5V DC, 0~10V DC, 4~20mA DC ±1% etc.
Power Supply: +/±12V,+/±15V or +24V DC
Window Size: 150x 40mm or 115x50mm (Split Core)
Connector: Phoenix
Open Loop Hall Current Sensor CYHCT-BTC

Serial: CYHCT-BTC

Rated Input Current: 0~±50A to 0~±600A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 20.5x10.5mm
Connector: Molex
Open Loop Hall Current Sensor CYHCT-FC

Serial: CYHCT-FC

Rated Input Current: 0~±200A to 0~±2000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 41x14 mm
Connector: Molex

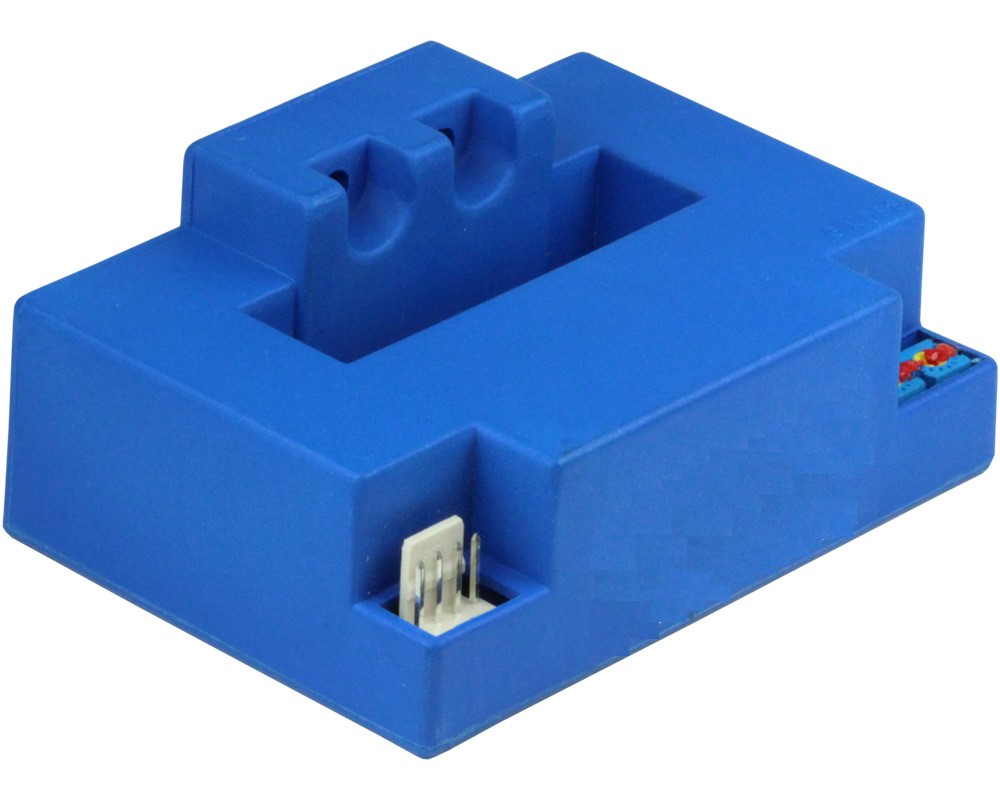

Open Loop Hall Current Sensor CYHCT-FAC

Serial: CYHCT-FAC

Rated Input Current: 0~±300A to 0~±2000A DC
Rated Output Current: 4~20mA DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 51x13 mm
Connector: Molex
Hall Effect AC Current Sensor CYHCS-FV

Serial: CYHCS-FV

Rated Input Current: 0~±200A to 0~±2000A AC
Rated Output Voltage: 0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply: +12V DC,+15V DC or +24V DC
Window Size: 41x14 mm
Connector: Molex
