Other Current Sensors
We are dedicated to providing you with the highest quality products suited to your needs.
To find the Current Sensors that fit your technical specifications the best, we highly recommend using the filter function.

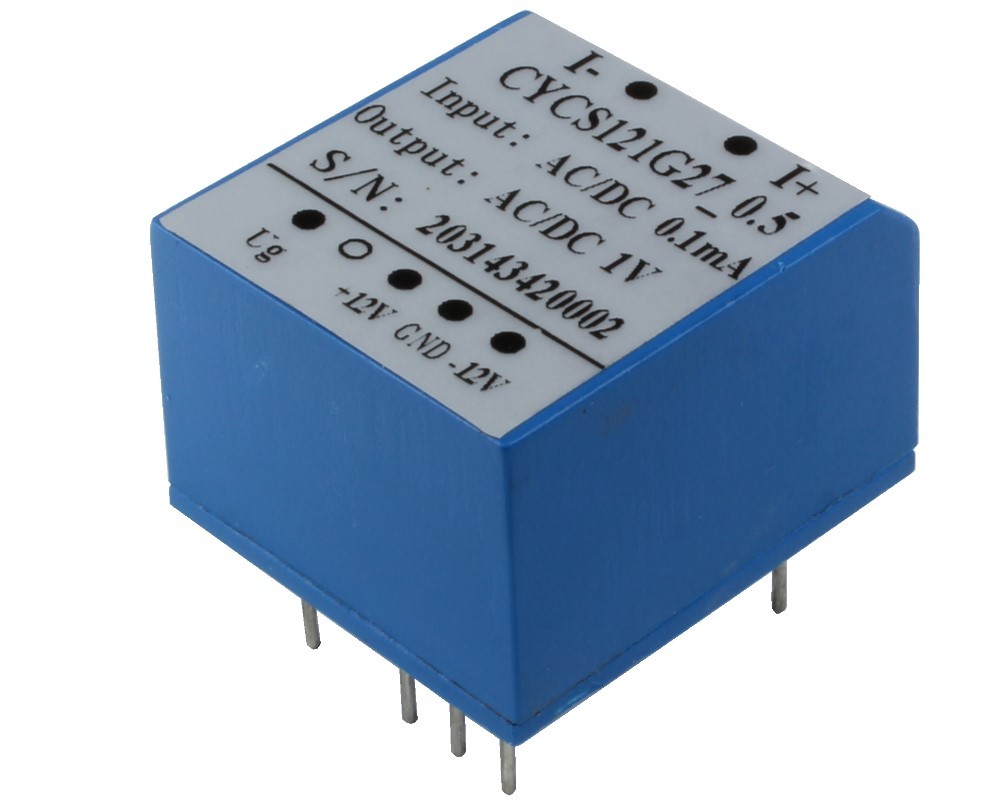

Serial: CYCS121G27
Rated Input Current:
0 ~ ±0.1mA AC/DC
Rated Output Voltage:
tracing 0~±1V AC/DC
Power Supply:
±12 V DC
Mounting:
PCB Mounting
Accuracy / Response Time:
±0.5%/ ≤45µs

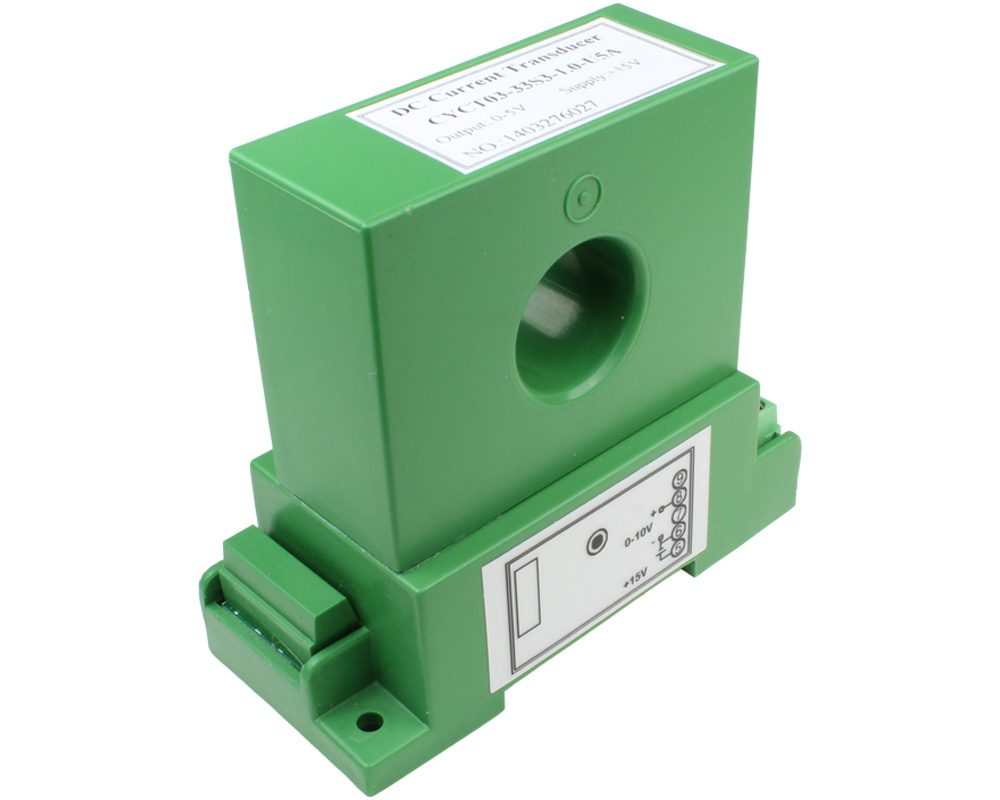

Serial: CYCT03-xnS3
Rated Input Current:
0 ~ ±20mA to 0 ~ ±30A DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
1.0% / ≤400ms
Serial: CYCT02-xnU0
Rated Input Current:
0 ~ +1mA to 0 ~ +5A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2%, 0.5% (see Datasheet) /≤350ms

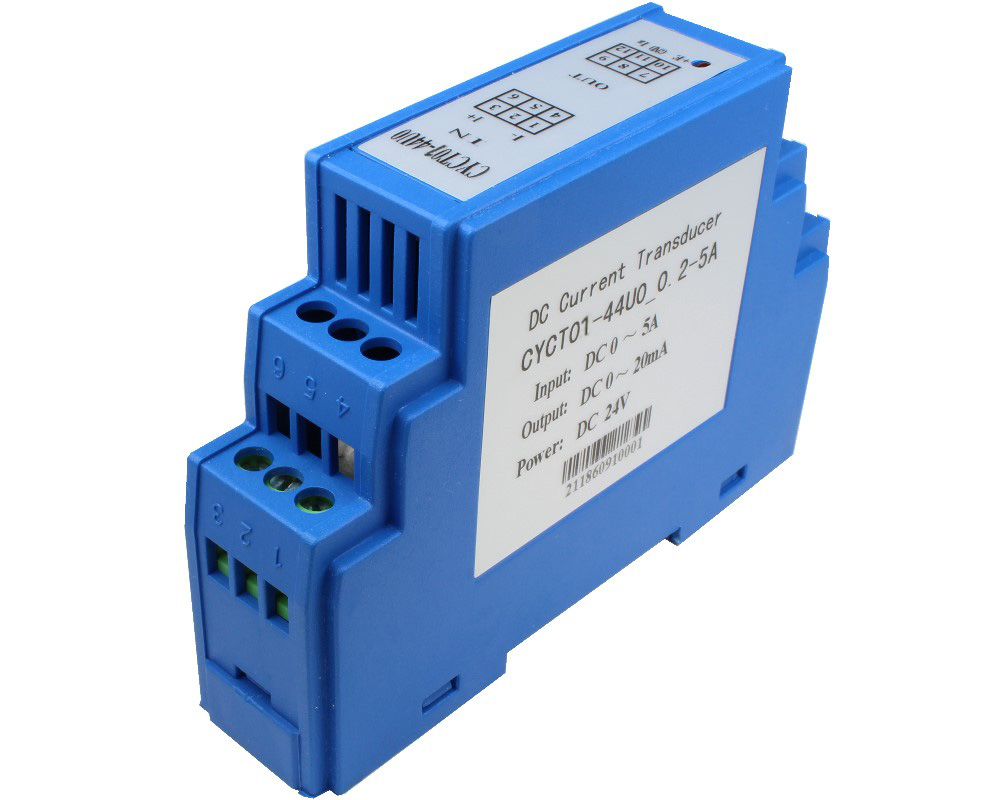

Serial: CYCT01-xnU0
Rated Input Current:
0 ~ +1mA to 0 ~ +5A DC
Output Signal:
0~5V DC, 0~10V DC, 4~20mA DC etc.
Power Supply:
+12V DC or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2% (V_out); 0.5% (I_out) / ≤350ms
Serial: CYCT03-xnWS3
Rated Input Current:
0 ~ ±5mA to 0 ~ ±25A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
±1.0% / ≤120ms

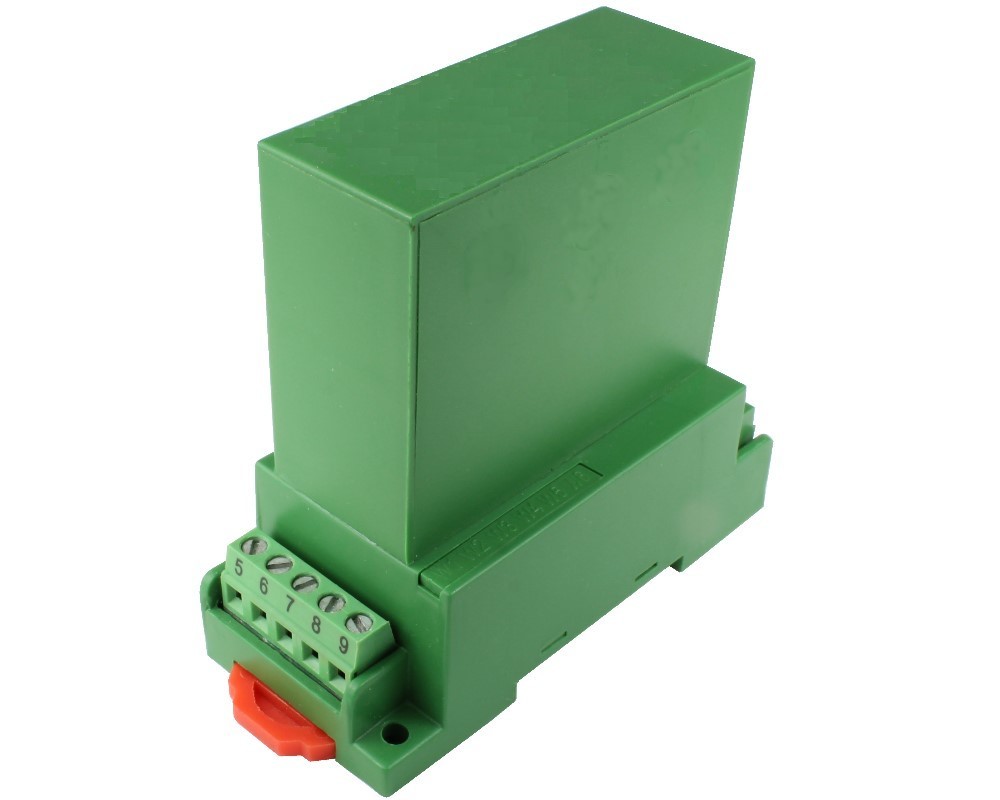

Serial: CYCT01-xnS3
Rated Input Current:
0 ~ ±500mA to 0 ~ ±5A DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V DC, +24V DC, 110V AC/DC, 220V AC/DC etc.
Mounting:
DIN Rail
Accuracy / Response Time:
±0.2% or ±0.5% / ≤10ms

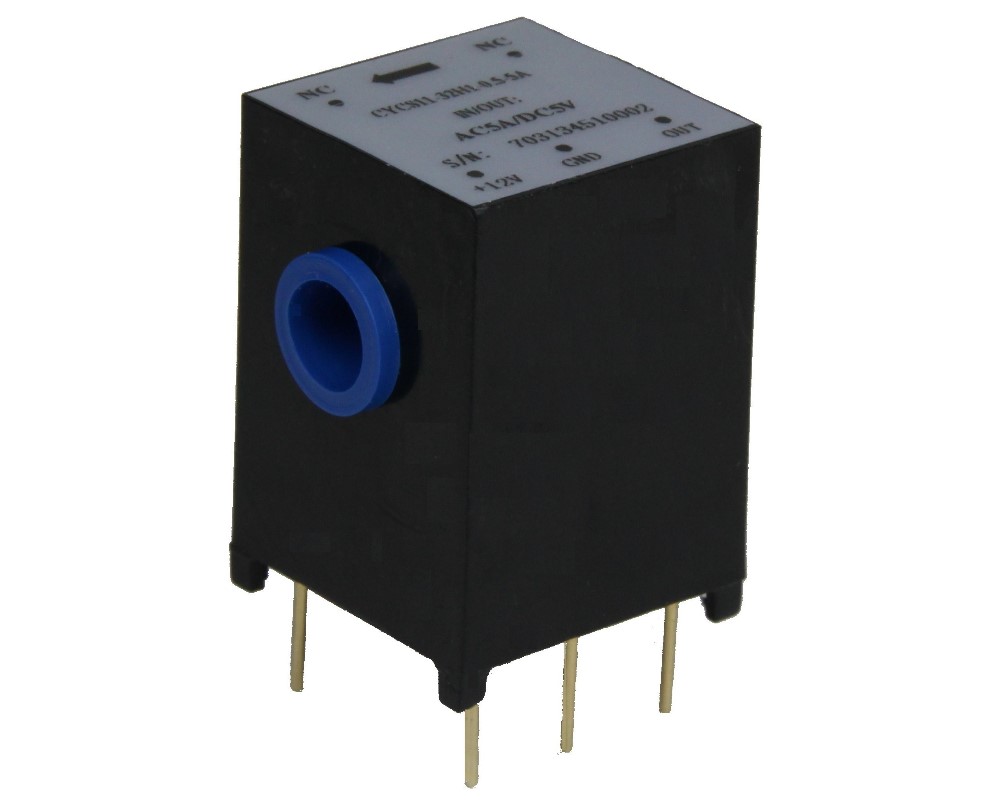

Serial: CYCS11-xnH1
Rated Input Current:
0 ~ 0.5A to 0 ~ 25A AC
Rated Output Voltage:
0~5V AC, 0-5V DC or 0~10V DC
Power Supply:
+12V or +15V DC
Window Size:
Ø 6.5 mm
Accuracy / Response Time:
0.5% / ≤400ms
Serial: CYCT01-xnS1
Rated Input Current:
0 ~ ±20mA to 0 ~ ±200mA DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V ,+15V or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
±0.5% / ≤10ms

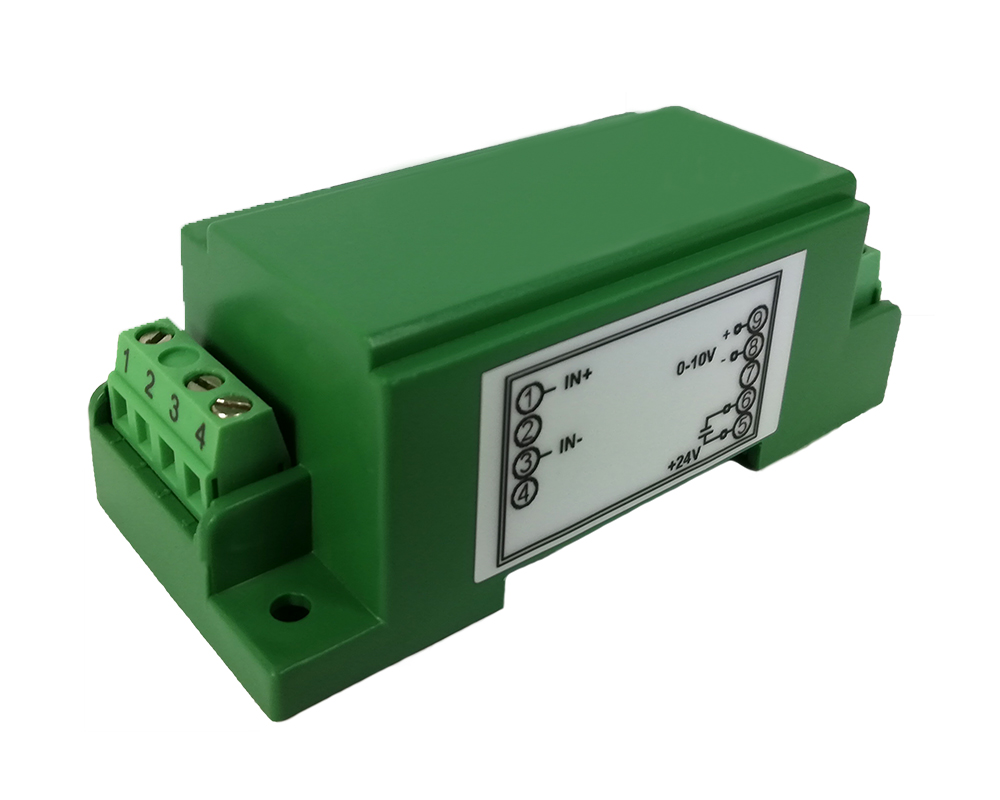

Serial: CYCT02-xnS1
Rated Input Current:
0 ~ ±20mA to 0 ~ ±200mA DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V ,+15V or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2% or 0.5% / ≤15ms

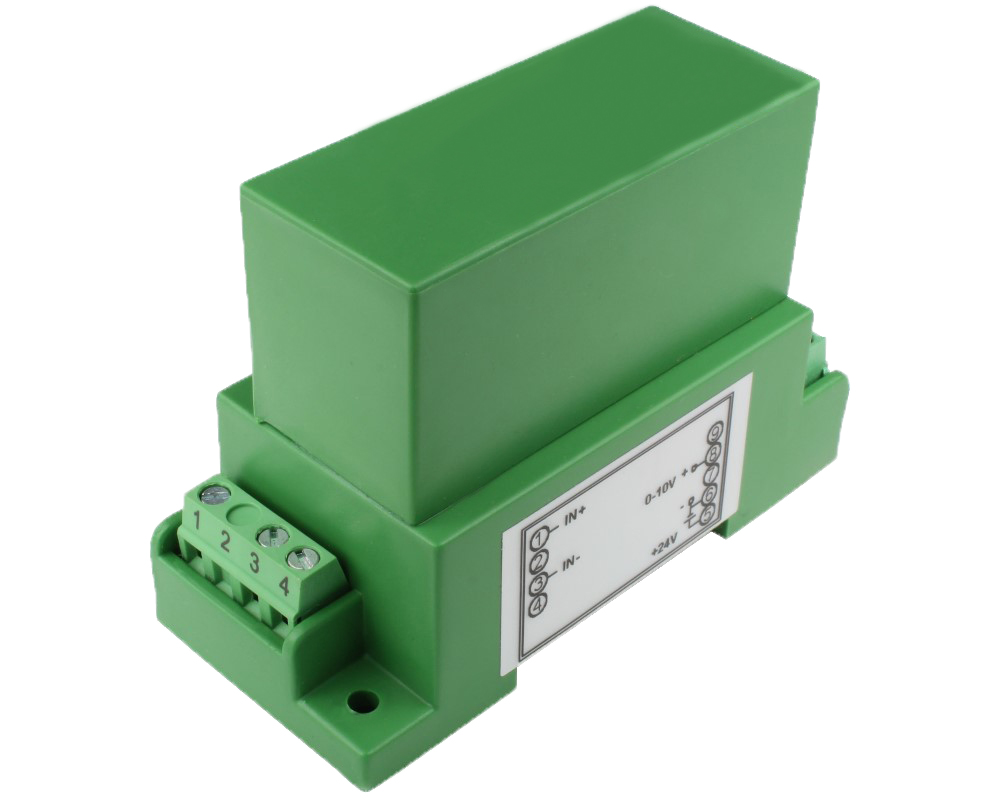

Serial: CYCT02-xnS2
Rated Input Current:
0 ~ ±500mA to 0 ~ ±5A DC
Output Signal:
0~10V DC, 4~20mA DC, Frequency OC etc.
Power Supply:
+12V ,+15V or +24V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2% or 0.5% / ≤15ms
Serial: CYCT03-xnS0
Rated Input Current:
0 ~ ±0.1mA to 0 ~ ±5A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V ,+15V or +24V DC
Accuracy :
0.2% (V_out), 0.5% (I_out)
Response Time:
≤15 µs (V_out) ; ≤0.6 ms (I_out)

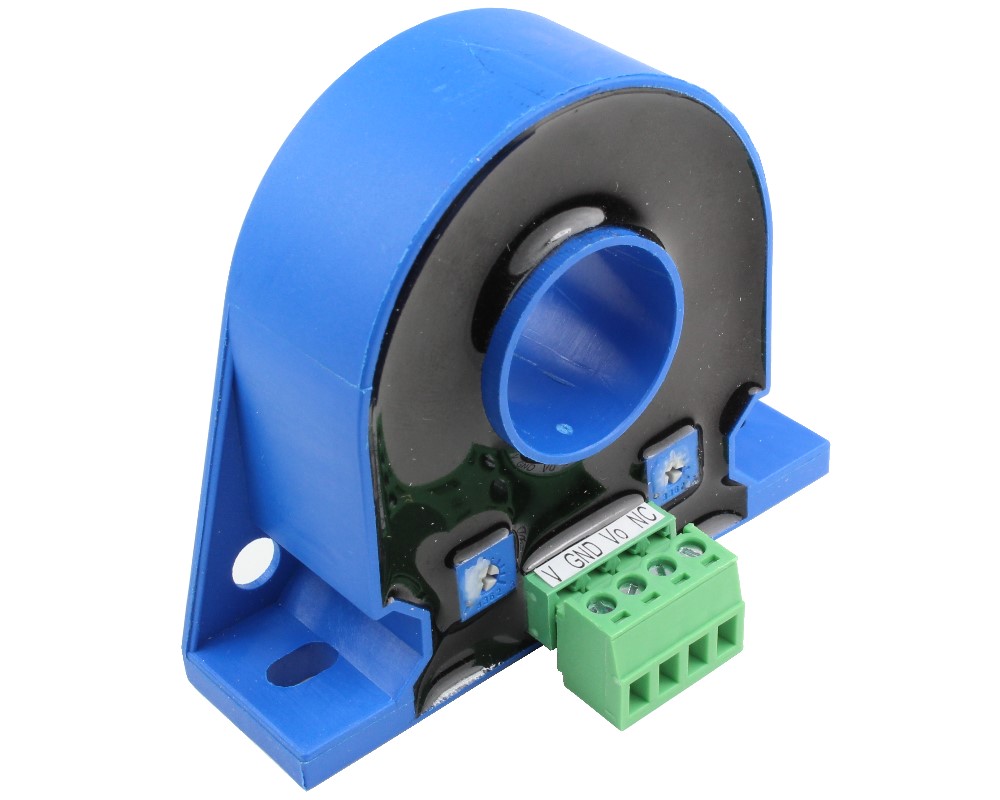

Serial: CYCT03-L20
Rated Input Current:
0 ~ ±5mA to 0 ~ ±25A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø20mm
Accuracy / Response Time:
±1.0% / ≤120ms
Serial: CYCS412D41
Rated Input Current:
0 ~ 0.5A to 0 ~ 8A AC
Rated Output Voltage:
0~5V AC
Power Supply:
+12V or +24V DC
Window Size:
Ø 4 mm
Accuracy / Response Time:
0.2% / ≤300ms

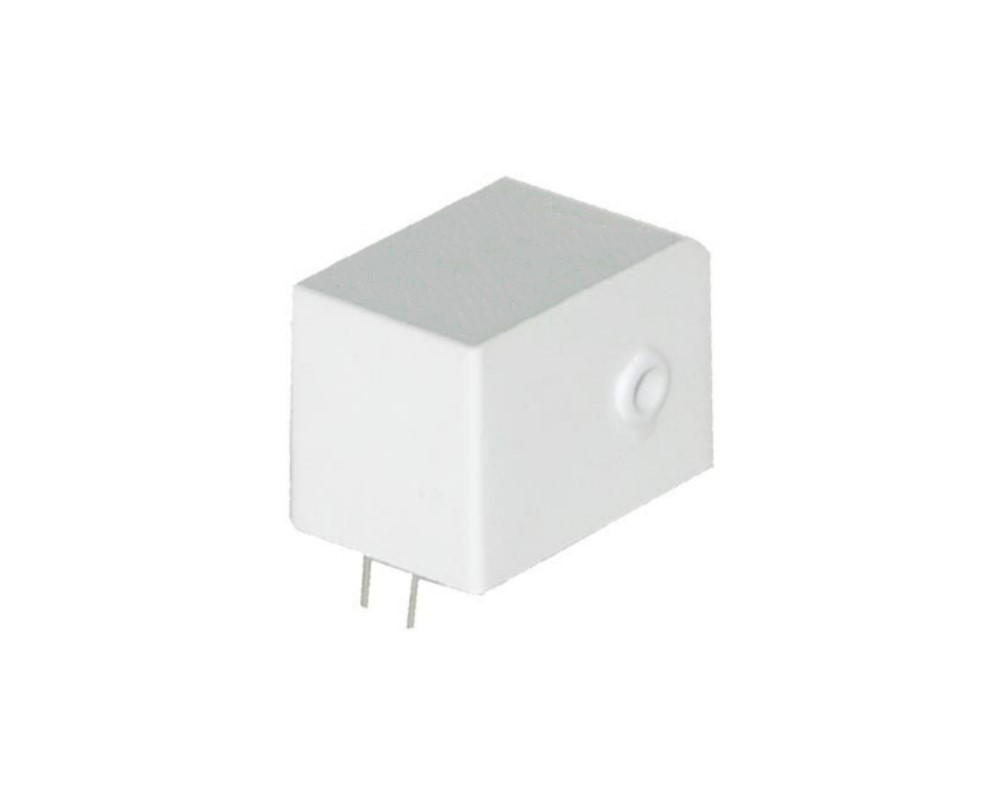

Serial: CYCS411D47
Rated Input Current:
0 ~ 0.5A to 0 ~ 8A AC
Rated Output Voltage:
0~5V AC
Power Supply:
±12 V or ±15 V DC
Window Size:
Ø 4 mm
Accuracy / Response Time:
0.1% / ≤15µs

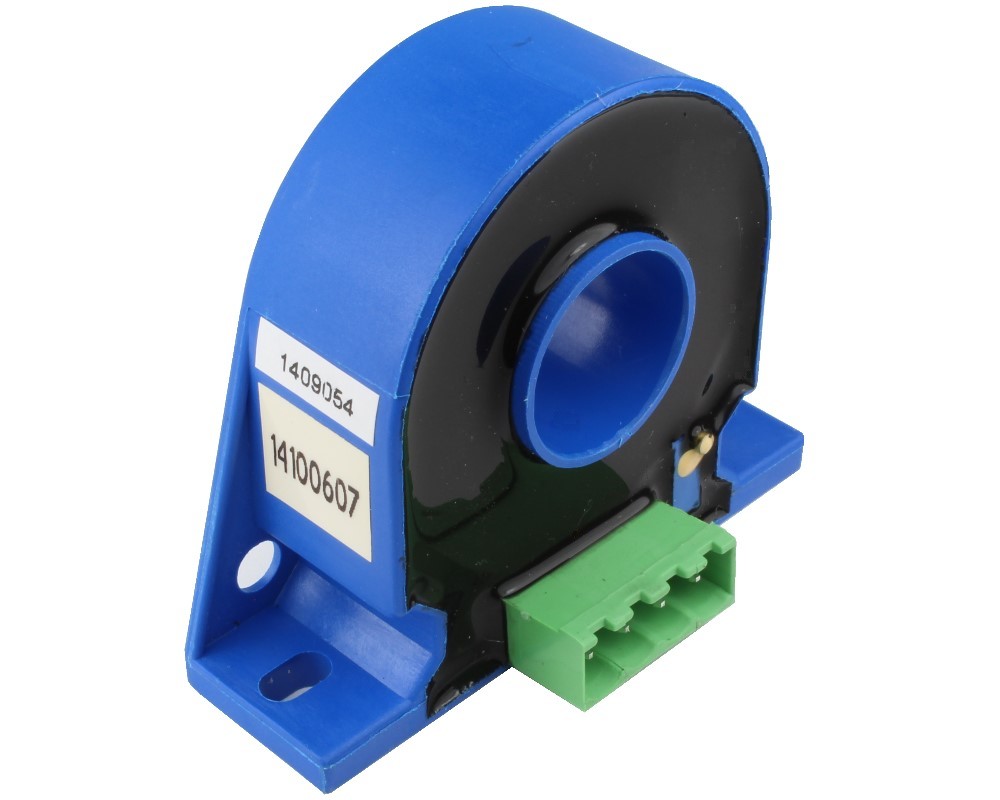

Serial: CYCT04-LTAD
Rated Input Current:
0 ~ ±1A to 0 ~ ±100A DC
Rated Output Voltage:
0~±5V DC
Power Supply:
±15 V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
0.5% / < 20ms

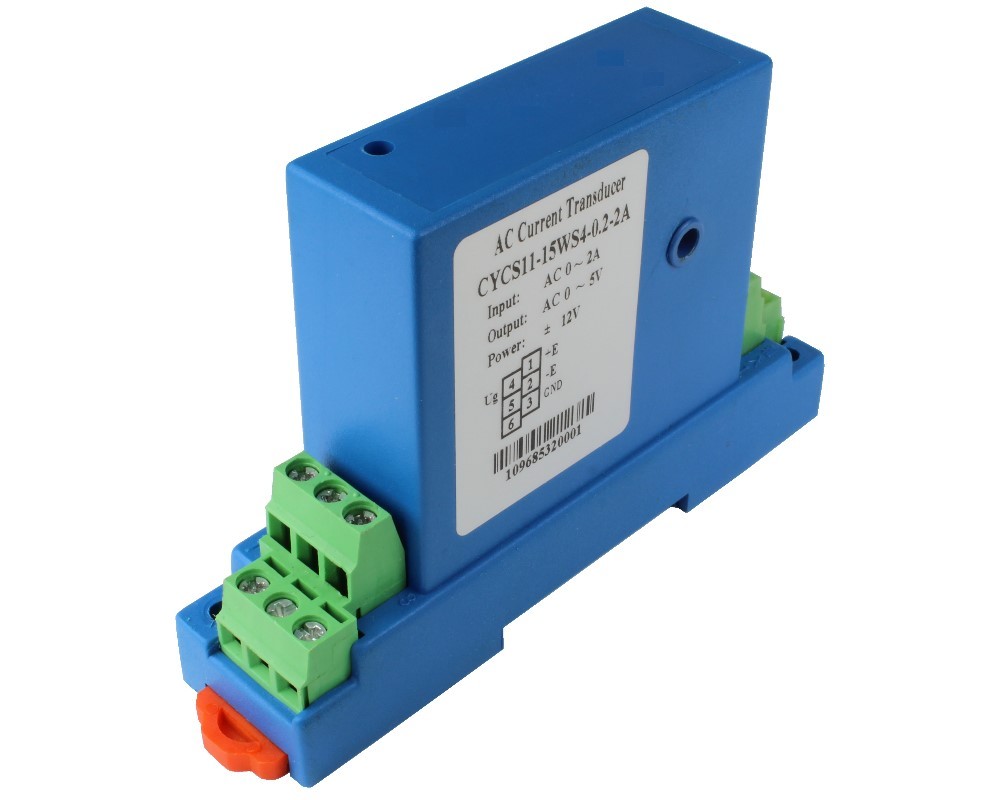

Serial: CYCS11-xnWS4
Rated Input Current:
0 ~ 0.5A to 0 ~ 8A AC
Output Signal:
Tracing 0-5VAC,0~10VDC,4-20mADC etc.
Power Supply:
±12V, ±15V, +12V or +24V DC
Accuracy/Window Size:
0.1%(Tr.V);0.2%(V);0.5%(I)/Ø4mm
Response Time:
15µs (Tr.V); ≤300ms (V&I)

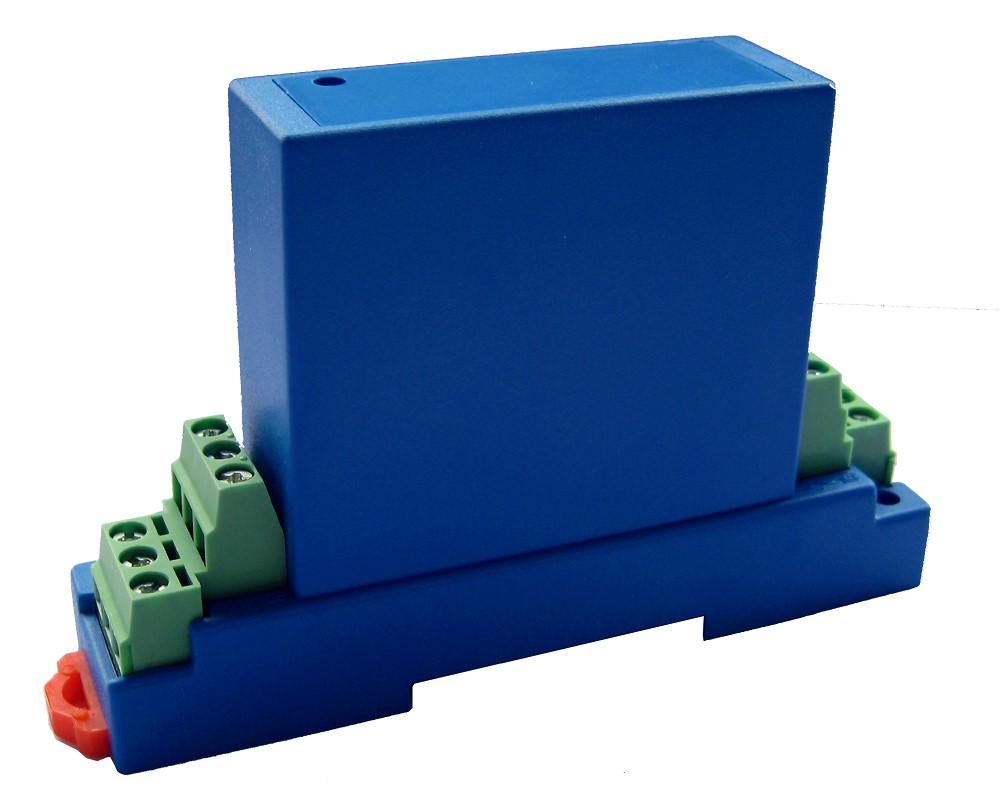

Serial: CYCS-xnS0
Rated Input Current:
0 ~ ±1mA to 0 ~ ±5A AC/DC
Rated Output Voltage:
tracing ±5V , 0-5V or 0-10V AC/DC
Power Supply:
±12 V or ±15 V DC
Mounting:
DIN Rail
Accuracy / Response Time:
±0.2% / ≤15µs

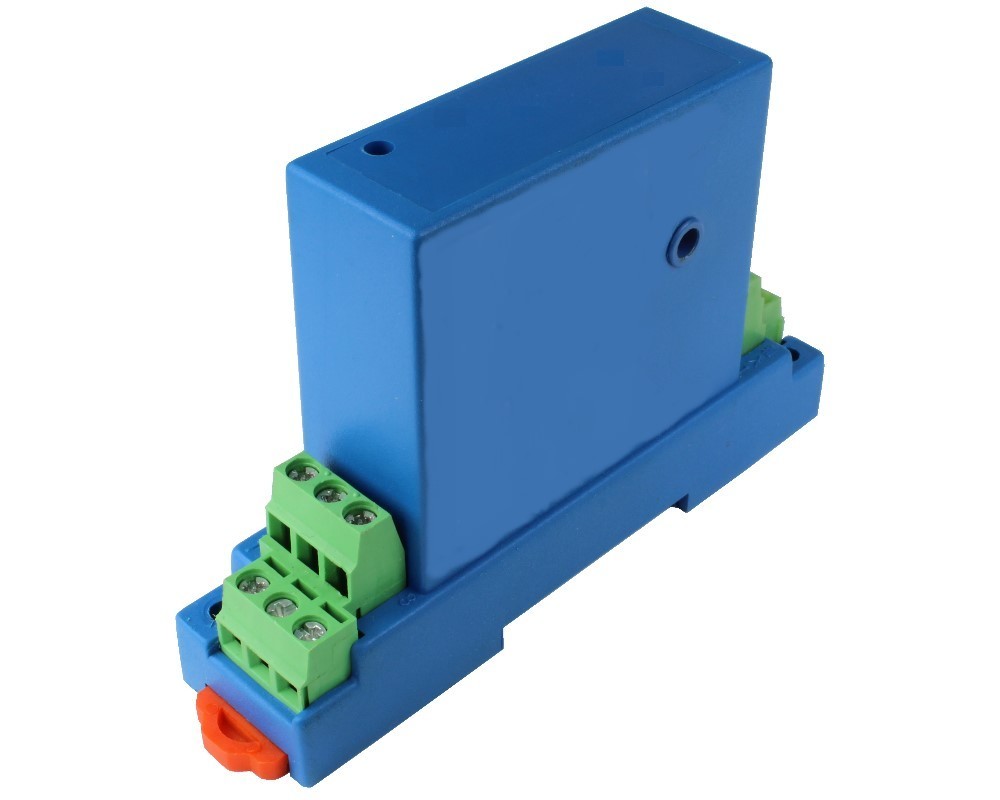

Serial: CYCS11A-xnWS4
Rated Input Current:
0 ~ 0.5A to 0 ~ 8A AC
Rated Output Current:
0-20mA or 4-20mA DC
Power Supply:
+24V DC, 85V~265V AC, 90V~360V DC etc.
Window Size:
Ø 4 mm
Accuracy / Response Time:
0.5% / ≤350ms

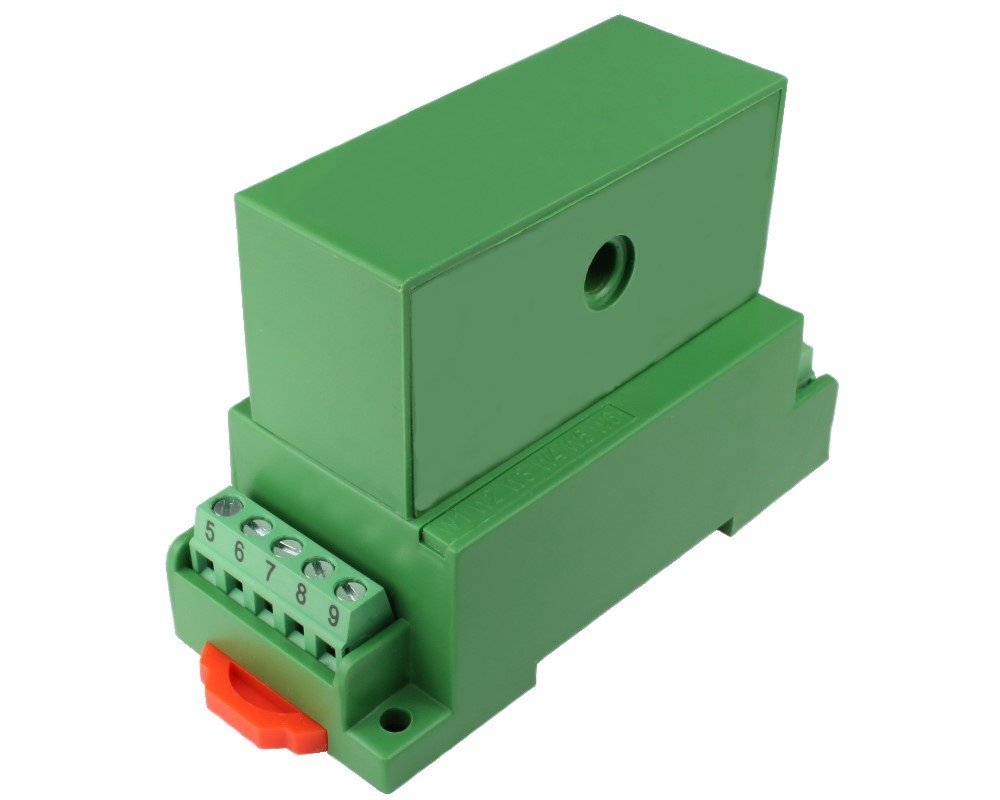

Serial: CYCS11-xnS2
Rated Input Current:
0 ~ 5A to 0 ~ 25A AC
Output Signal:
5V AC(tracing), 0-10V, 4-20mA DC etc.
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 6.5 mm
Accuracy / Response Time:
0.5% / ≤400ms
Serial: CYCS11-xnWS9
Rated Input Current:
0 ~ 5A to 0 ~ 50A AC
Output Signal:
5V AC(tracing), 0-10V, 4-20mA DC etc.
Power Supply:
±12V, ±15V, +12V or +24VDC
Accuracy / Window Size:
0.1%(Tr.V); 0.2%(V); 0.5%(I) / Ø 9 mm
Response Time:
15µs (Tr.V); ≤300ms (V&I)

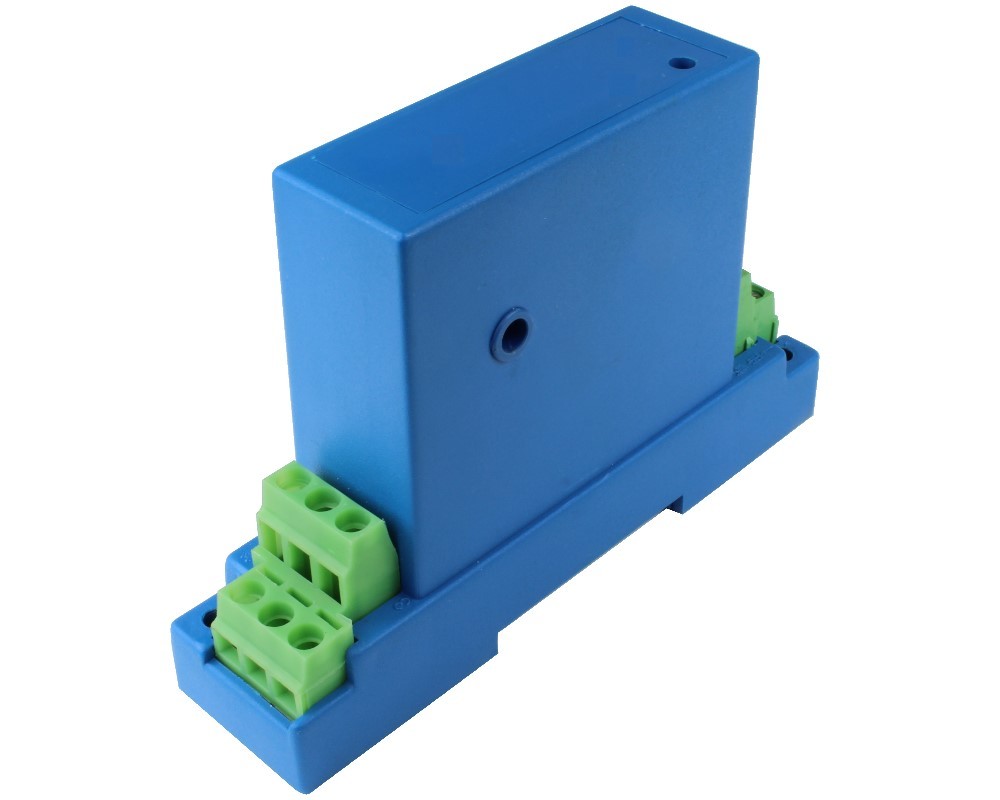

Serial: CYCS11A-xnWS9
Rated Input Current:
0 ~ 5A to 0 ~ 50A AC
Rated Output Current:
0-20mA or 4-20mA DC
Power Supply:
+24V DC, 85V~265V AC, 90V~360V DC etc.
Window Size:
Ø 9 mm
Accuracy / Response Time:
0.5% / ≤350ms

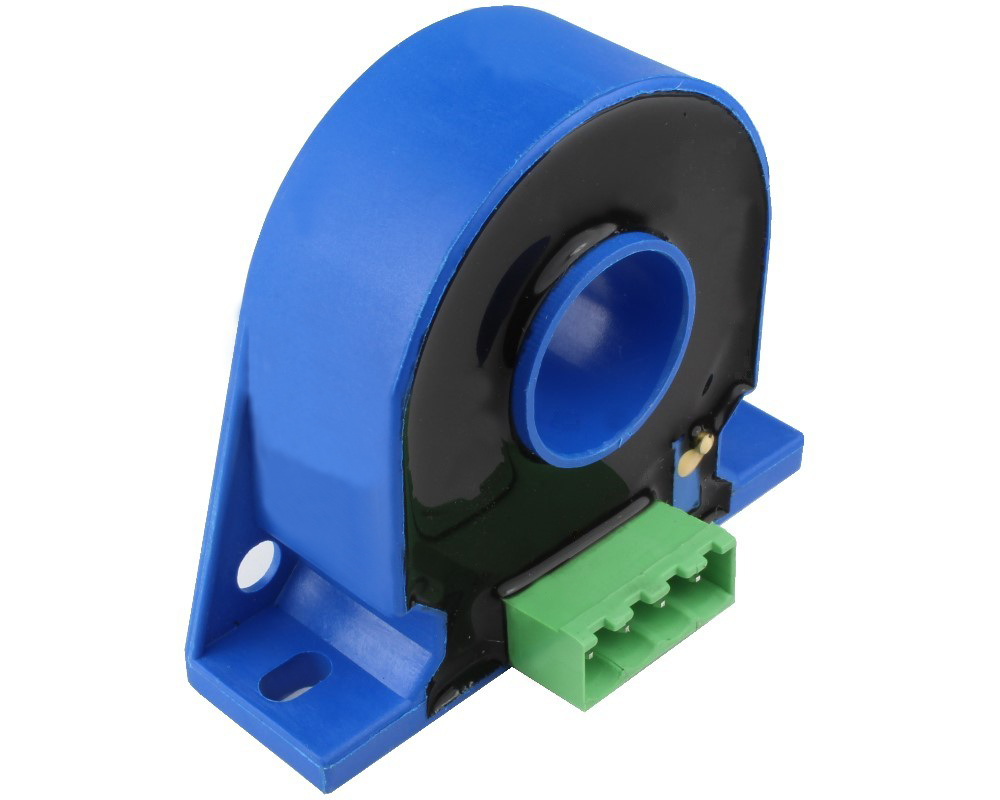

Serial: CYCS11-LTAD
Rated Input Current:
0 ~ 1A to 0 ~ 100A AC
Rated Output Current:
4-20mA DC
Power Supply:
+24V DC
Window Size:
Ø 20 mm
Accuracy / Response Time:
±0.5% / < 20ms

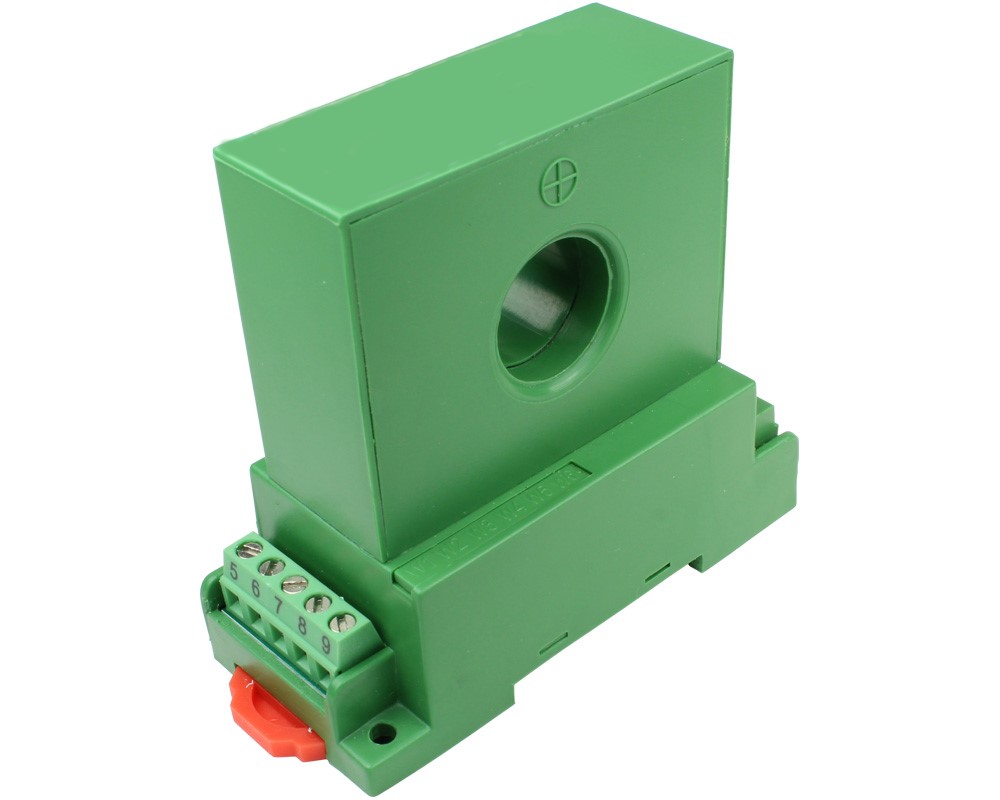

Serial: CYCS11-x0S3
Rated Input Current:
0 ~ 2A to 0 ~ 200A AC
Rated Output Voltage:
0-5V or 0-10V DC
Power Supply:
None
Window Size:
Ø 20 mm
Accuracy / Response Time:
1.0% / ≤500ms

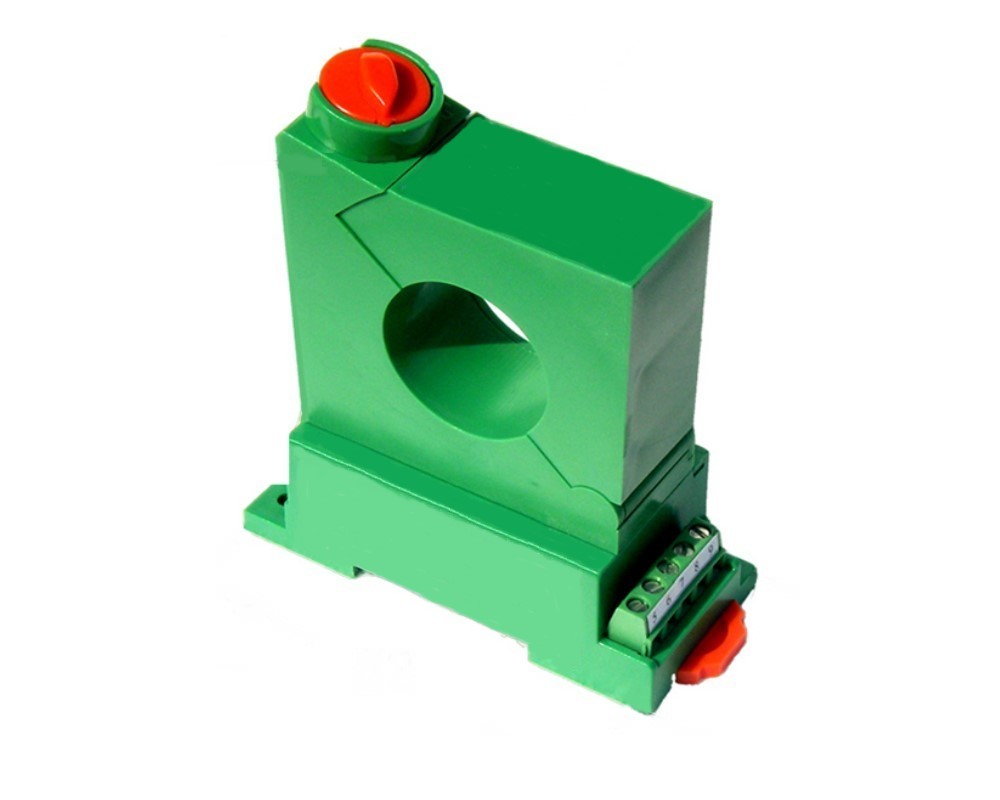

Serial: CYCS11-x0S4
Rated Input Current:
0 ~ 20A to 0 ~ 200A AC
Rated Output Voltage:
0~5V, 0~10V DC or 5V tracing
Power Supply:
None
Window Size:
Ø 31 mm
Accuracy / Response Time:
1.0% / ≤500ms

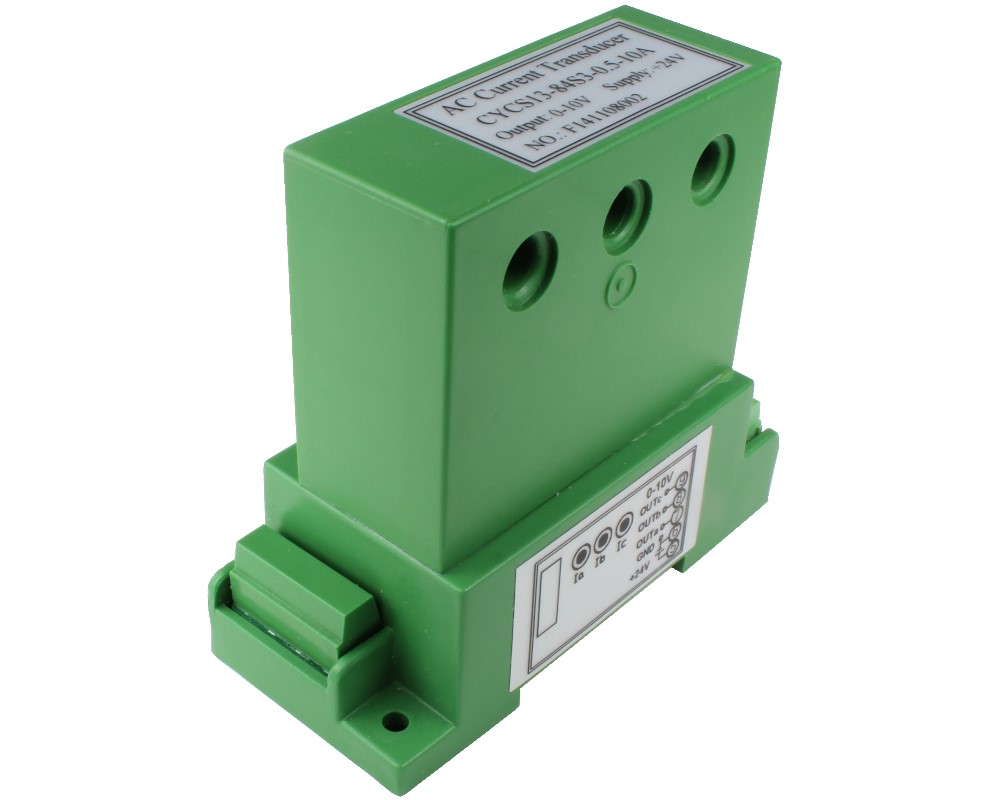

Serial: CYCS13-xnS3
Rated Input Current:
0 ~ 1A to 0 ~ 25A AC
Output:
0-5V AC tracing, 0-10V DC, 4-20mA DC etc.
Power Supply:
+12V ,+15V or +24V DC
Window Size:
Ø 6.5 mm
Accuracy / Response Time:
0.5% / ≤300ms
Serial: CYCS11-xnWF3
Rated Input Current:
0 ~ 50A to 0 ~ 500A AC
Output:
0-5V AC tracing, 0-10V DC, 4-20mA DC etc.
Power Supply:
±12V, ±15V, +12V or +24VDC
Accuracy / Window Size:
0.2%(Tr.V); 0.2%(V); 0.5%(I) / Ø 35 mm
Response Time:
15µs (Tr.V); ≤300ms (V&I)

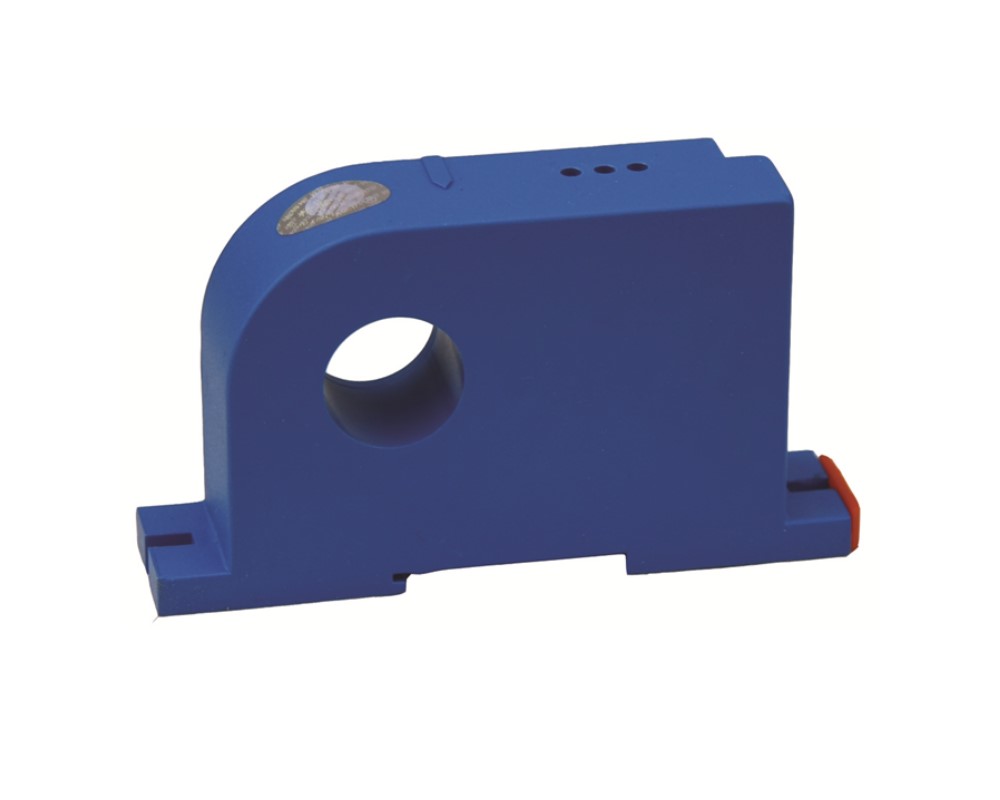

Serial: CYCS11-xnWF2
Rated Input Current:
0 ~ 30A to 0 ~ 400A AC
Output:
0-5V AC, 0-5V DC, 0-10V DC, 4-20mA DC etc.
Power Supply:
±12V, ±15V, +12V or +24VDC
Accuracy / Window Size:
0.1%(Tr.V); 0.2%(V); 0.5%(I) / Ø 20 mm
Response Time:
15µs (Tr.V); ≤300ms (V&I)
Serial: CYCT01-xnS1
Rated Input Current:
0 ~ +1mA to 0 ~ +5A DC
Output Signal:
0~5V, 0~10V, 0~20mA or 4~20mA DC
Power Supply:
85V~265V AC or +85V~+265V DC
Mounting:
DIN Rail
Accuracy / Response Time:
0.2% (V_out) , 0.5% (I_out) / ≤350ms

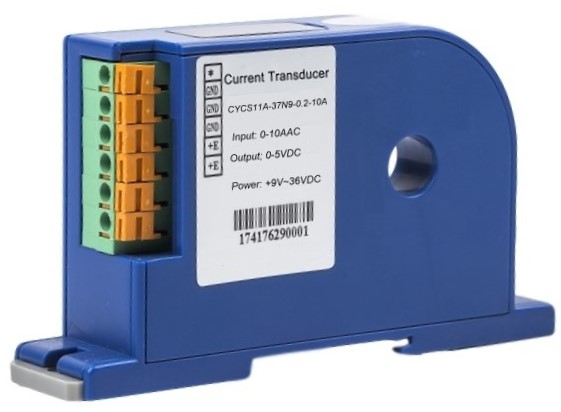

Serial: CYCS11A-xnN9
Rated Input Current:
0 ~ 0.5A to 0 ~ 50A AC
Output Signal:
0-5V, 0-10V, 0-20mA or 4-20mA DC
Power Supply:
+9V~36VDC
Window Size:
Ø 9 mm
Accuracy / Response Time:
0.2% / ≤300ms
