Digital Hall Effect Current Sensors
We are dedicated to providing you with the highest quality products suited to your needs.
To find the products that fit your technical specifications the best, we highly recommend using our product filter.
Serial: CYCTD-S3
Rated Input Current:
0 ~ ±5mA to 0 ~ ±25A DC
Analogue Output:
0~5V DC or 0~10V DC ±1%
Digital Output:
Current I (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm
Serial: CYHCTD-S3
Rated Input Current:
0 ~ ±25A to 0 ~ ±300A DC
Analogue Output:
0~5V DC or 0~10V DC (±0.5% ~ ±1%)
Digital Output:
Current I (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm

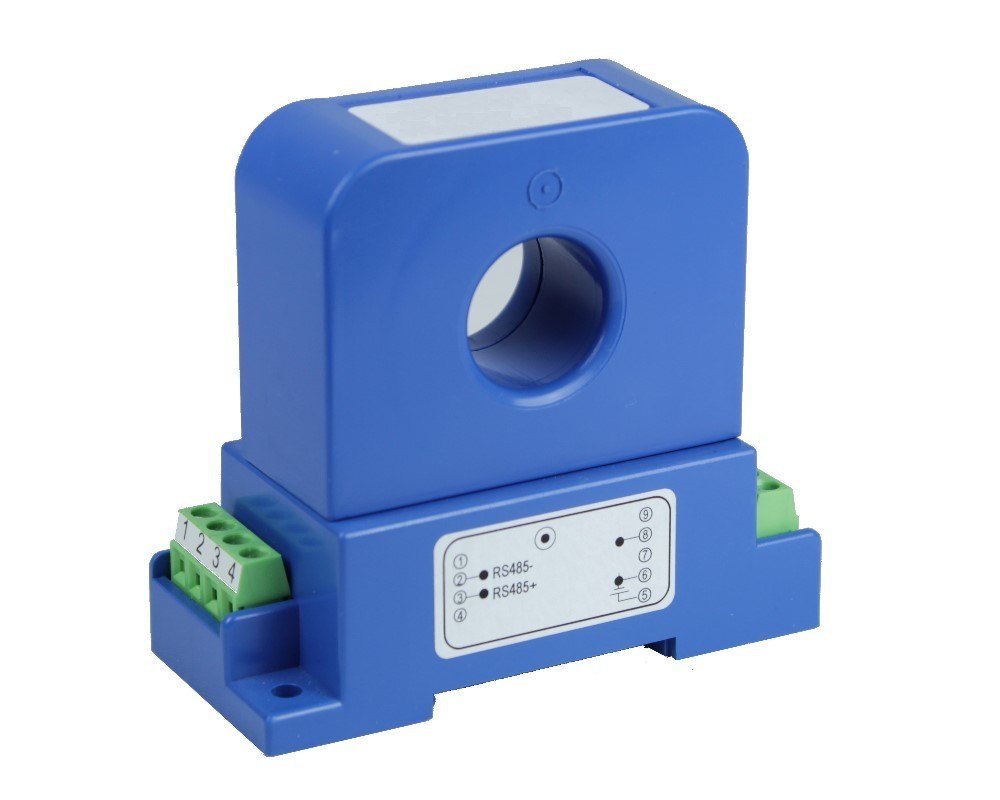

Serial: CYHCD-S3
Rated Input Current:
0 ~ 25A to 0 ~ 300A AC/DC
Analogue Output:
2.5V DC ± 2.5V AC/DC or 5V DC ± 5VAC/DC
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm

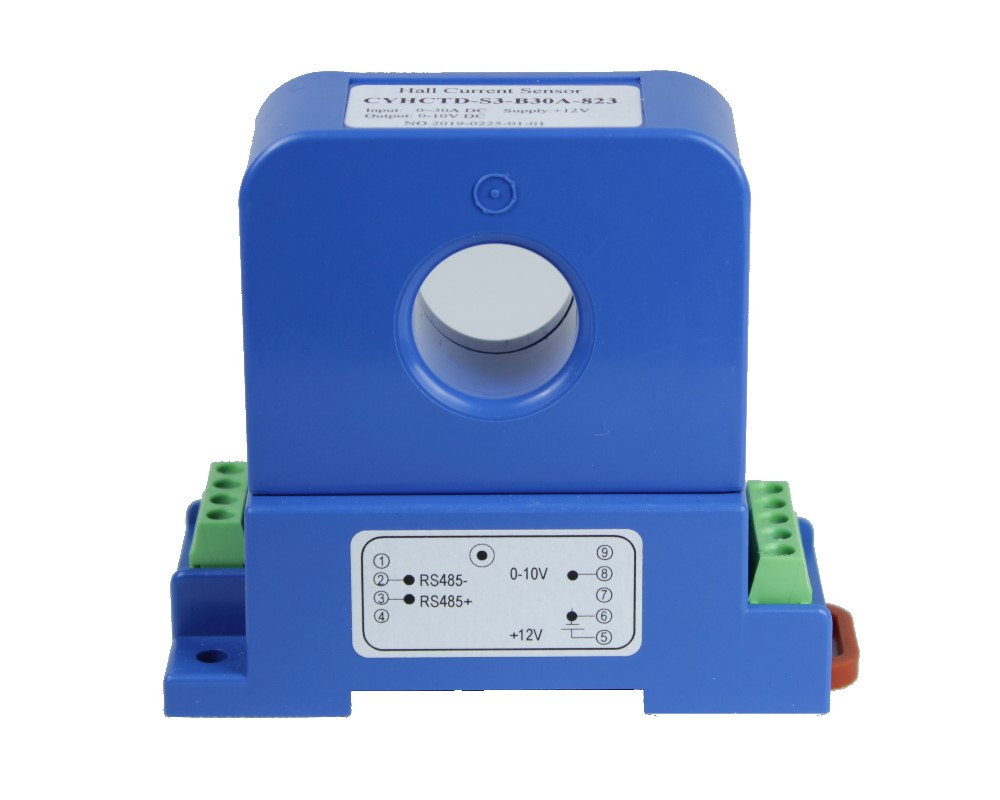

Serial: CYHCTD-S3K
Rated Input Current:
0 ~ ±25A to 0 ~ ±500A DC
Analogue Output:
0~5V DC or 0~10V DC (±0.5% ~ ±1%)
Digital Output:
Current I (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)

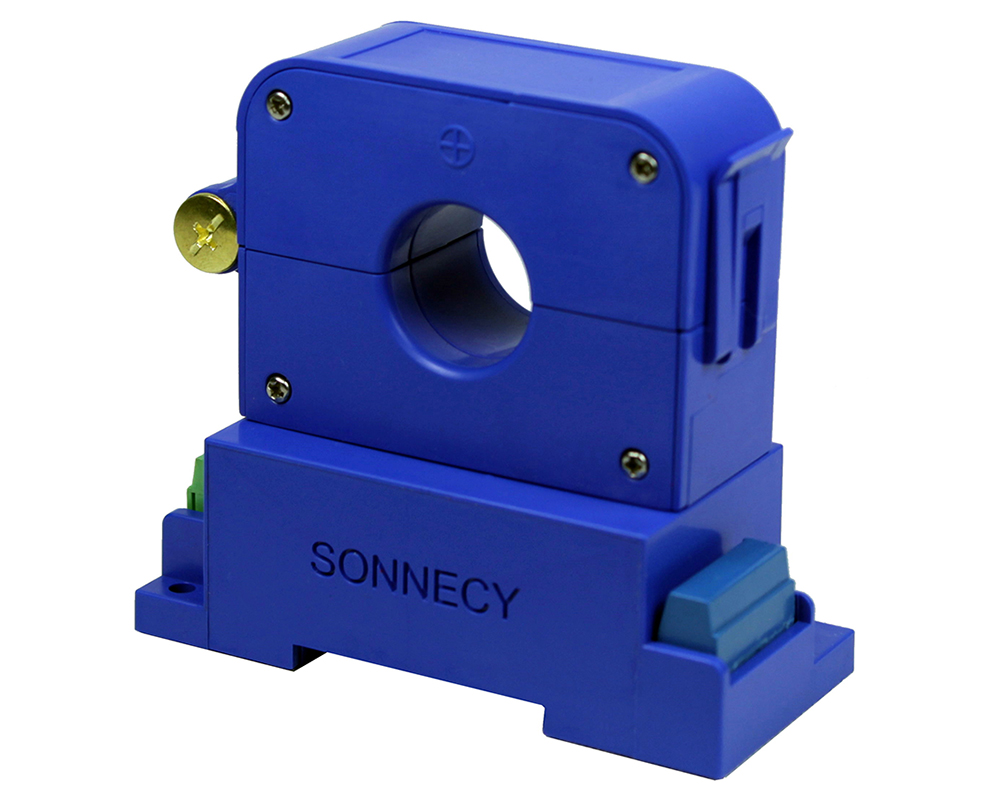

Serial: CYHCSD-S3K
Rated Input Current:
0 ~ 25A to 0 ~ 500A AC
Analogue Output:
2.5VDC ± 2.5VAC or 5VDC ± 5VAC (±0.5%~±1%)
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)
Serial: CYHCD-S3K
Rated Input Current:
0 ~ 25A to 0 ~ 500A AC/DC
Analogue Output:
2.5V DC ± 2.5V AC/DC or 5V DC ± 5VAC/DC
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm (Split core)
Serial: CYHCSD-S3
Rated Input Current:
0 ~ 25A to 0 ~ 300A AC
Analogue Output:
2.5VDC ± 2.5VAC or 5VDC ± 5VAC (±0.5%~±1%)
Digital Output:
Current I or Frequency F (±0.5%)
Power Supply:
+12V, +15V or +24V DC
Interface / Window Size:
RS-485, MODBUS / Ø 20 mm
