Hall Voltage Sensors

We are dedicated to providing you with the highest quality products suited to your needs.

To find the Hall Voltage Sensors that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter

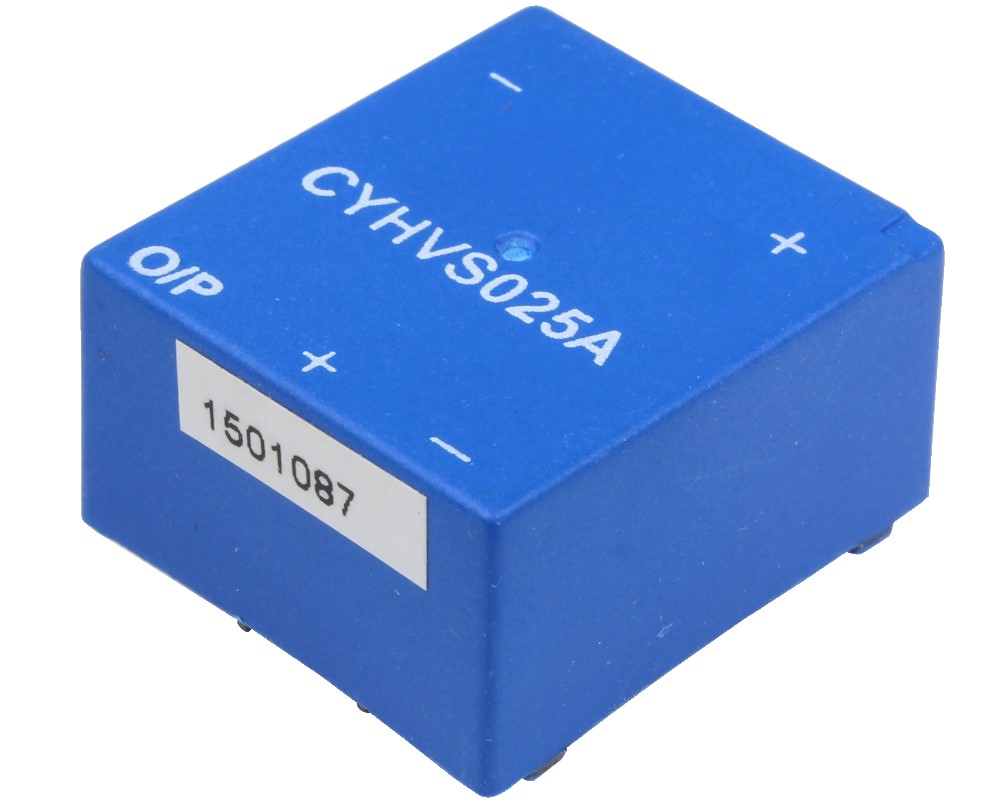

Hall Effect Voltage Sensor CYHVS025A, Output: ±25 mA, Power Supply: ±15 V DC, Measuring range: 0 ~ 500 V AC/DC

Serial: CYHVS025A

Rated Input Current: 0~±10 mA AC/DC
Measuring Range: 0~±500V AC/DC
Rated output Current: 0~±25 mA AC/DC ±0.5%
Power Supply: ±15V DC
Operating Temperature: -40°C ~ +85°C

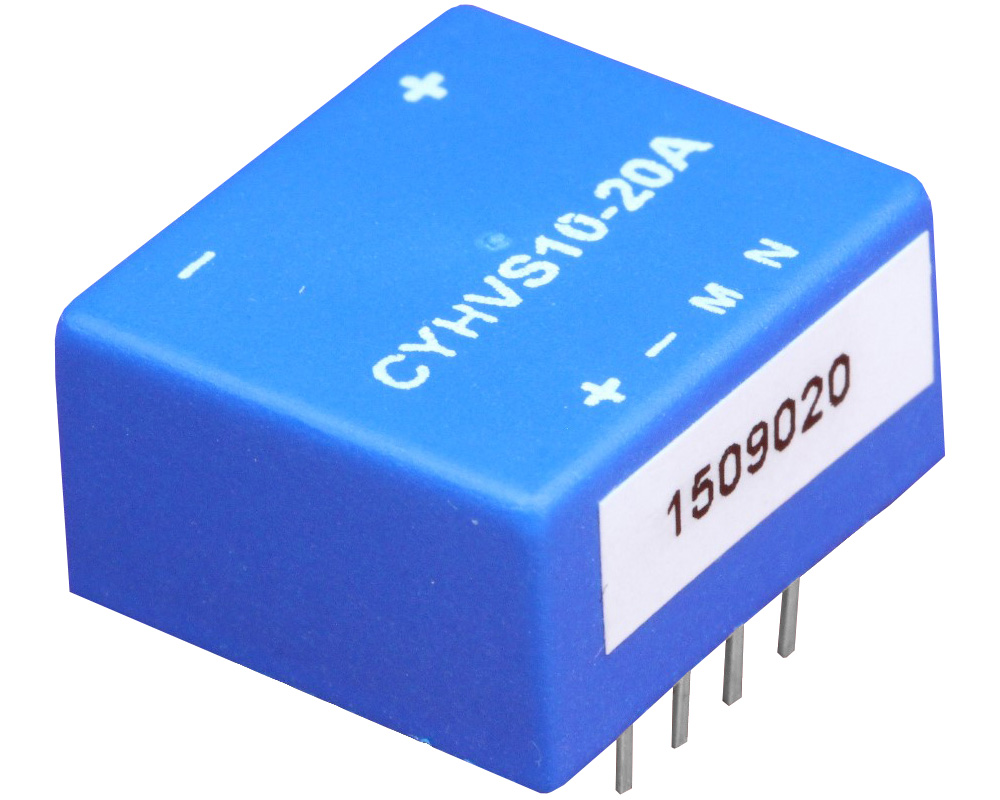

Hall Effect Voltage Sensor CYHVS10-20A, Output: ±20 mA AC/DC, Power Supply: ±15 V DC, Measuring range: 0 ~ 1000 V AC/DC

Serial: CYHVS10-20A

Rated Input Current: 0~±10 mA AC/DC
Measuring Range: 0~±1000V AC/DC
Rated output Current: 0~±20 mA AC/DC ±0.5%
Power Supply: ±15V DC
Operating Temperature: -40°C ~ +85°C

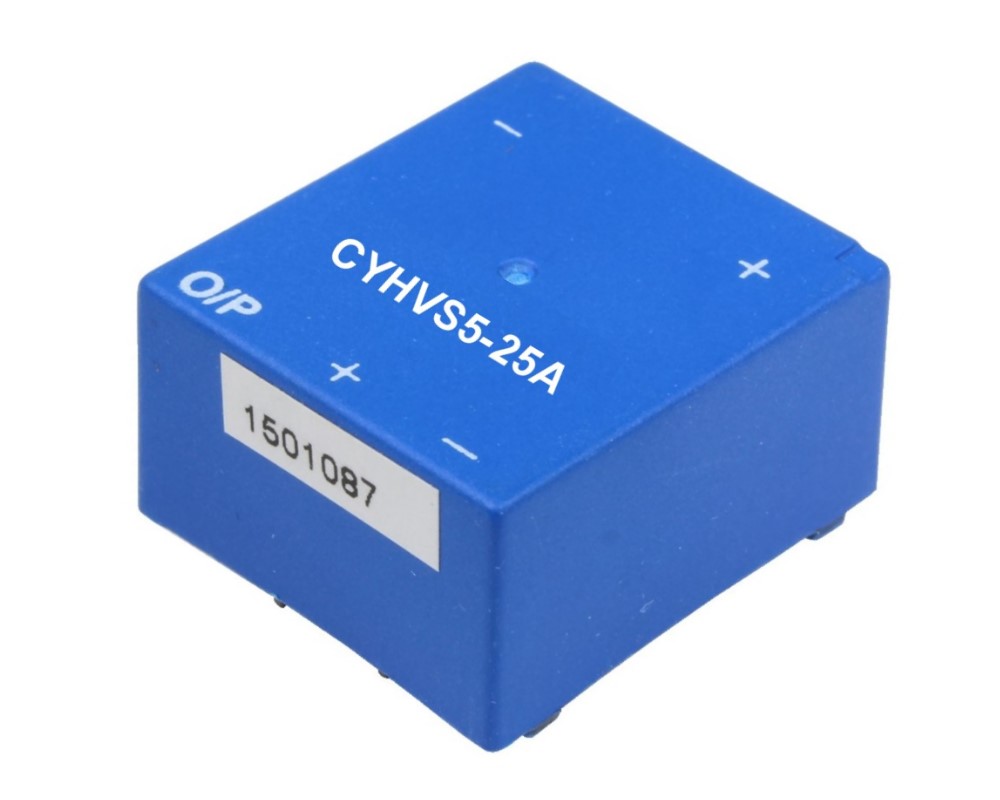

Hall Effect Voltage Sensor CYHVS5-25A, Output: ±25 mA AC/DC, Power Supply: ±15 V DC, Measuring range: 0 ~ 1500 V AC/DC

Serial: CYHVS5-25A

Rated Input Current: 0~±5 mA AC/DC
Measuring Range: 0~±1500V AC/DC
Rated output Current: 0~±25 mA AC/DC ±0.5%
Power Supply: ±15V DC
Operating Temperature: -40°C ~ +85°C

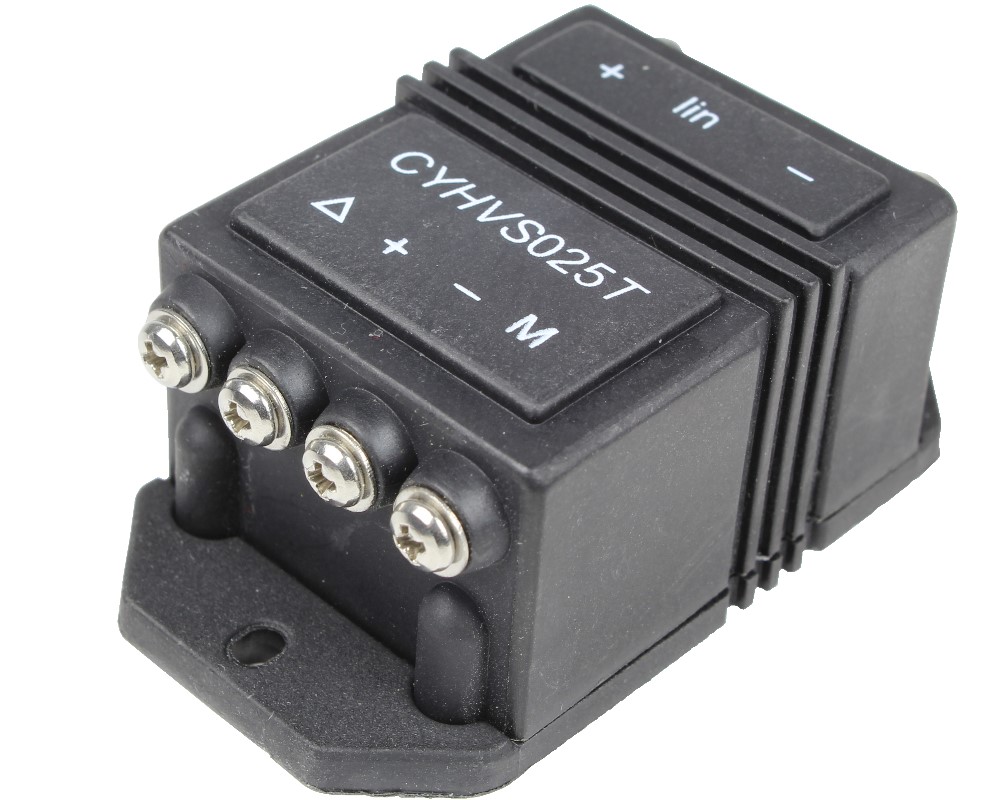

Hall Effect Voltage Sensor CYHVS025T, Output: ±25 mA AC/DC, Power Supply: ±15 V DC, Measuring range: 0 ~ 2500 V AC/DC

Serial: CYHVS025T

Rated Input Current: 0~±10 mA AC/DC
Measuring Range: 0~±100V to 0~±2500V AC/DC
Rated output Current: 0~±25 mA AC/DC ±0.5%
Power Supply: ±15V DC
Operating Temperature: -10°C ~ +70°C

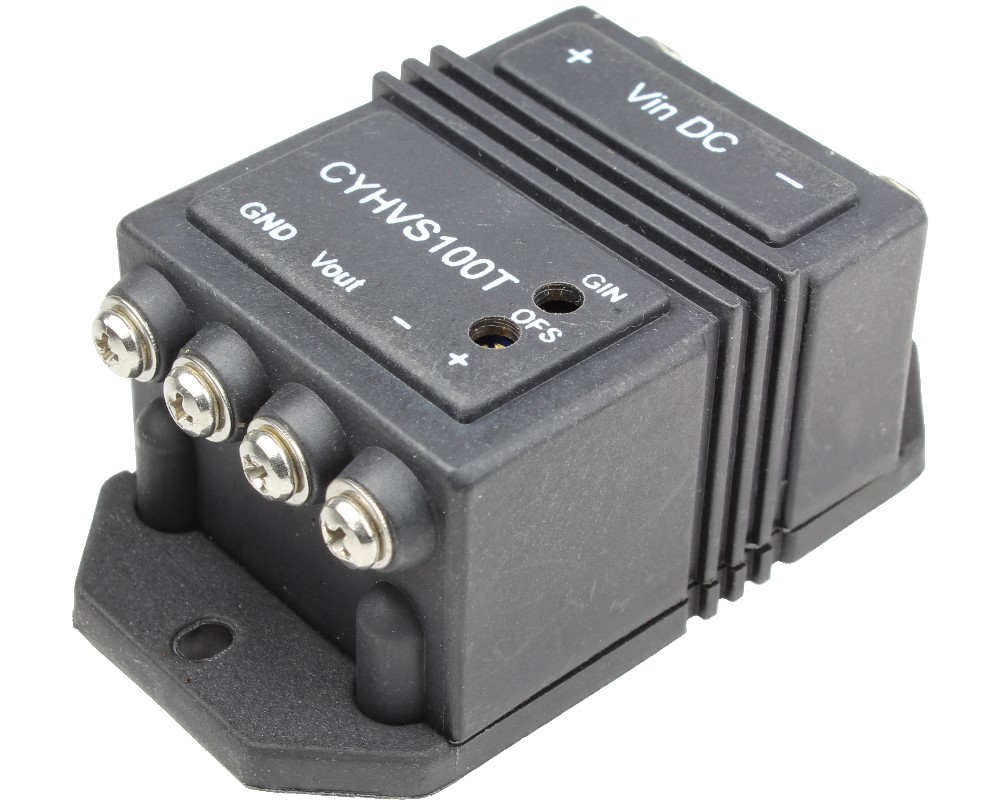

Hall Effect Voltage Sensor CYHVS100T, Output: 0-4 V or 0-5 V AC/DC, Power Supply: ±12 V ~ ±15 V DC, Measuring range: 0 ~ 750 V AC/DC

Serial: CYHVSxxxT

Rated Input Voltage: 0~±100V to 0~±500V AC/DC
Measuring Range: 0~±150V to 0~±750V AC/DC
Rated output Current: 4V or 5V AC/DC ±1.0%
Power Supply: ±12V~±15V DC
Operating Temperature: -10°C ~ +70°C
Hall Effect AC Voltage Sensor CYHVS800DA, Output: 0-20 mA DC, Power Supply: ±12 V ~ ±15 V DC, Measuring range: 0-1000V AC

Serial: CYHVS800DA

Rated Input Voltage: 0~±50V to 0~±800V AC
Measuring Range: 0~±100V to 0~±800V AC
Rated output Current: 0~20mA DC ±0.8%
Power Supply: ±12V~±15V DC
Operating Temperature: -25°C ~ +85°C
Hall Effect Voltage Sensor CYHVS800D, Output: ± 20 mA AC/DC, Power Supply: ±12 V ~ 15 V DC, Measuring range: 0-1000 V AC/DC

Serial: CYHVS800D

Rated Input Voltage: 0~±50V to 0~±800V AC/DC
Measuring Range: 0~±100V to 0~±800V AC/DC
Rated output Current: 0~±20mA AC/DC ±0.8%
Power Supply: ±12V ~ ±15V DC
Operating Temperature: -25°C ~ +85°C

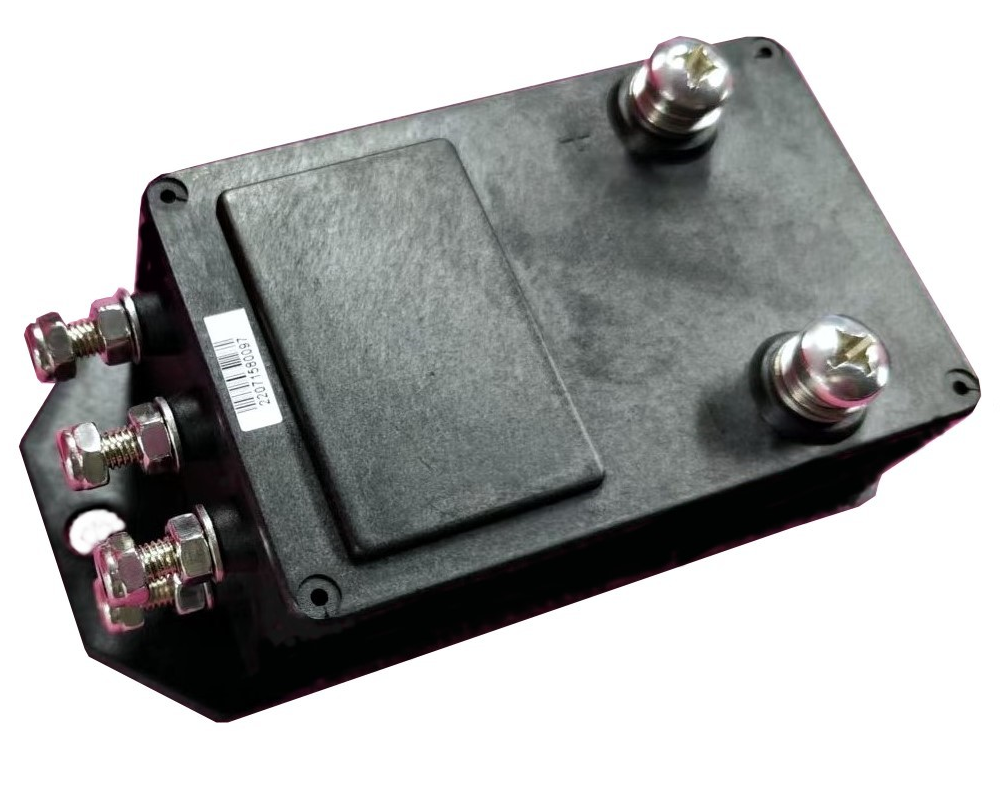

Hall Effect Voltage Sensor CYHVS10-50LVA, Output: ±50 mA AC/DC, Power Supply: ±15~±24 V DC, Measuring range: 100 ~ 2500 V AC/DC

Serial: CYHVS10-50LVA

Rated Input Current: 0~±10 mA AC/DC
Measuring Range: 0~±100V to 0~±2500V AC/DC
Rated output Current: 0~±50 mA AC/DC ±0.5%
Power Supply: ±15V ~ ±24V DC
Operating Temperature: -55°C ~ +85°C or -40°C ~ +85°C

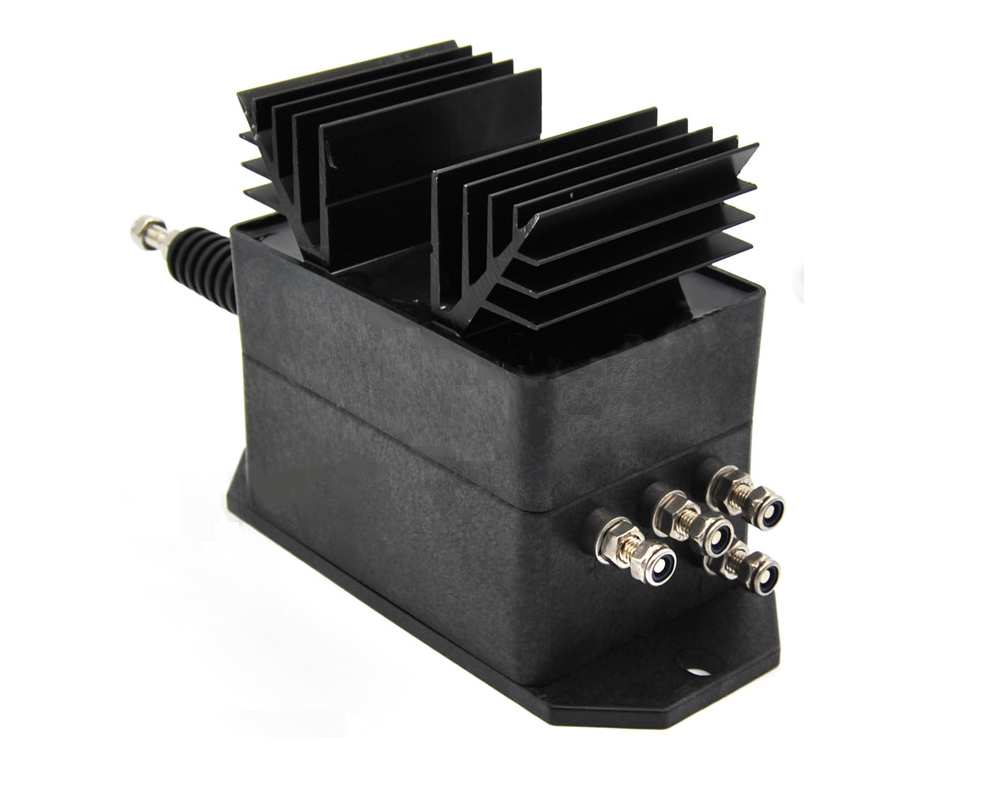

Hall Effect Voltage Sensor CYHVS5000LV, Output: ±50 mA AC/DC, Power Supply: ±15~±24 V DC, Measuring range: 200 ~ 7500 V AC/DC

Serial: CYHVS5000LV

Rated Input Voltage: 0~±100V to 0~±5000V AC/DC
Measuring Range: 0~±200V to 0~±7500V AC/DC
Rated output Current: 0~±50 mA AC/DC ±0.5%
Power Supply: ±15V ~ ±24V DC
Operating Temperature: -55°C ~ +85°C or -40°C ~ +85°C
