Hall Gear Tooth Sensors

We are dedicated to providing you with the highest quality products suited to your needs.

Hall Effect Gear Tooth Sensors are an established and inexpensive technology for the measurement of position and rotational speed. By sensing the magnetic flux variation in the air gap between a magnet and passing ferrous gear teeth, they generate a pulse signal with a frequency proportional to rotational speed. Their quick response time, high operating temperature range as well as their contamination, and EMI immunity have turned Hall Effect Gear Tooth Sensors into popular sensing solutions for many different industries like automation, automotive, and renewable energy.

A comprehensive introduction to Hall Effect Gear Tooth Sensors you find here.

To find the Hall Gear Tooth Sensors that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter

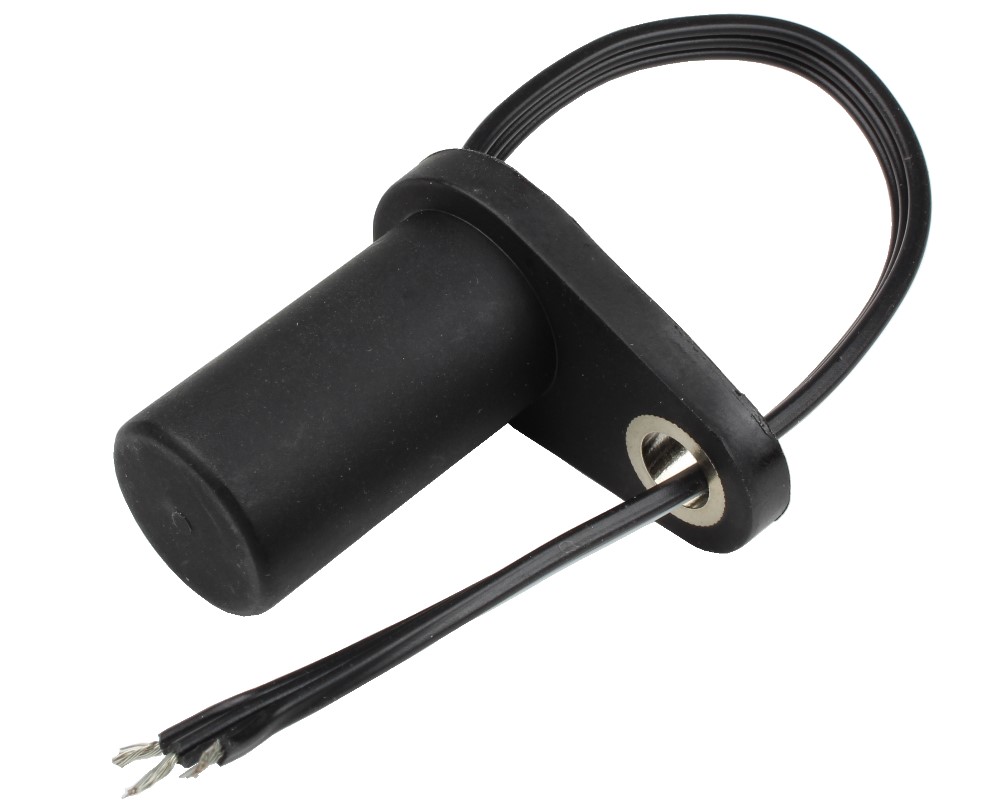

Hall Effect Gear Tooth Sensor CYGTS101DC, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Serial: CYGTS101DC

Power Supply: 4.5V ~ 24V
Output Type: NPN (OC)
Operating Temperature: -40°C ~ +135°C
Sensing gap/distance: 0.2mm ~ 4.0mm
Cross-reference: 1GT101DC, 1GT103DC, 1GT105DC

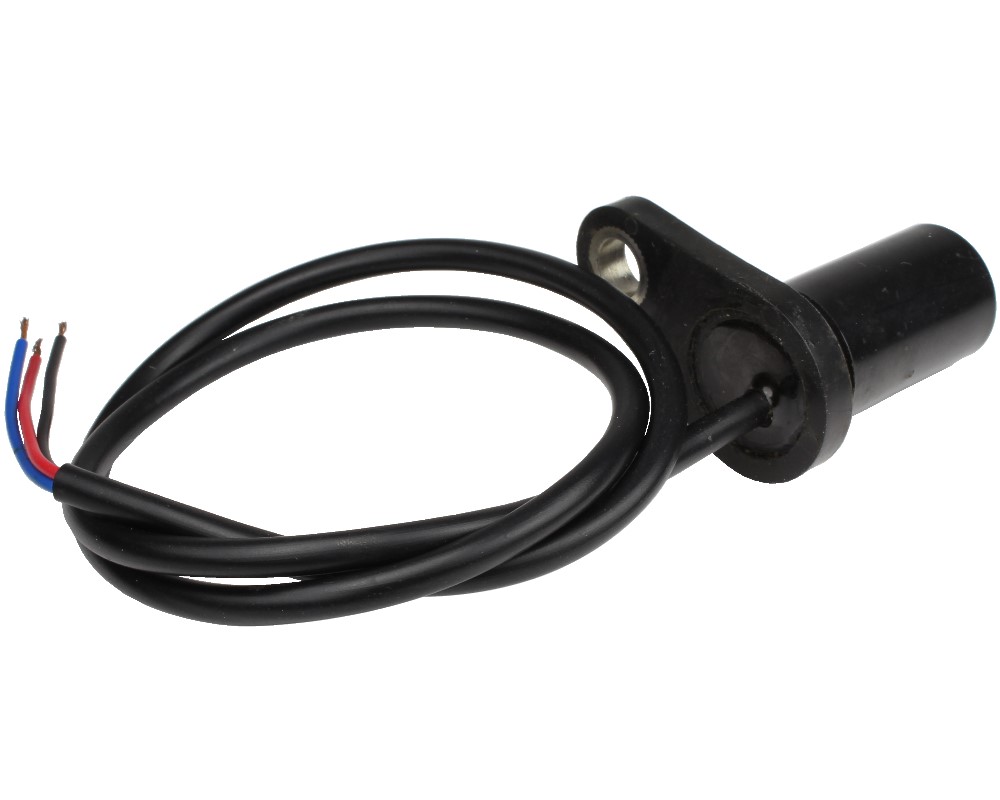

Hall Effect Gear Tooth Sensor CYGTS101DC-S, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Serial: CYGTS101DC-S

Power Supply: 4.5V ~ 24V
Output Type: NPN (OC)
Operating Temperature: -40°C ~ +135°C, or -40°C ~ +150°C
Sensing gap/distance: 0.2mm ~ 5.0mm
Cross-reference: 1GT101DC, 1GT103DC, 1GT105DC
Hall Effect Gear Tooth Sensor CYGTS101PC, Output: PNP (OC), Power Supply: 4,5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Serial: CYGTS101PC

Cable Length: 150 mm
Power Supply: 4.5V ~ 24V
Output Type: PNP (OC)
Operating Temperature: -40°C ~ +135°C
Sensing gap/distance: 0.2mm ~ 4.0mm
Cross-reference: 1GT101DC, 1GT103DC, 1GT105DC
Hall Effect Gear Tooth Sensors CYGTS211A-NO2, Output: PNP (OC), Power Supply: 5 V DC

Serial: CYGTS211

Power Supply: +5 V DC
Output Type: NPN (OC), square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs
Hall Effect Gear Tooth Sensors CYGTS211A-PO2, Output: PNP (OC), Power Supply: 5 V DC

Serial: CYGTS211

Power Supply: +5 V DC
Output Type: PNP(OC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs
Hall Effect Gear Tooth Sensors CYGTS211B-NO2, Output: NPN (OC), Power Supply: 6 V ~ 30 V DC

Serial: CYGTS211

Power Supply: 6V ~ 30V DC
Output Type: NPN (OC), square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs

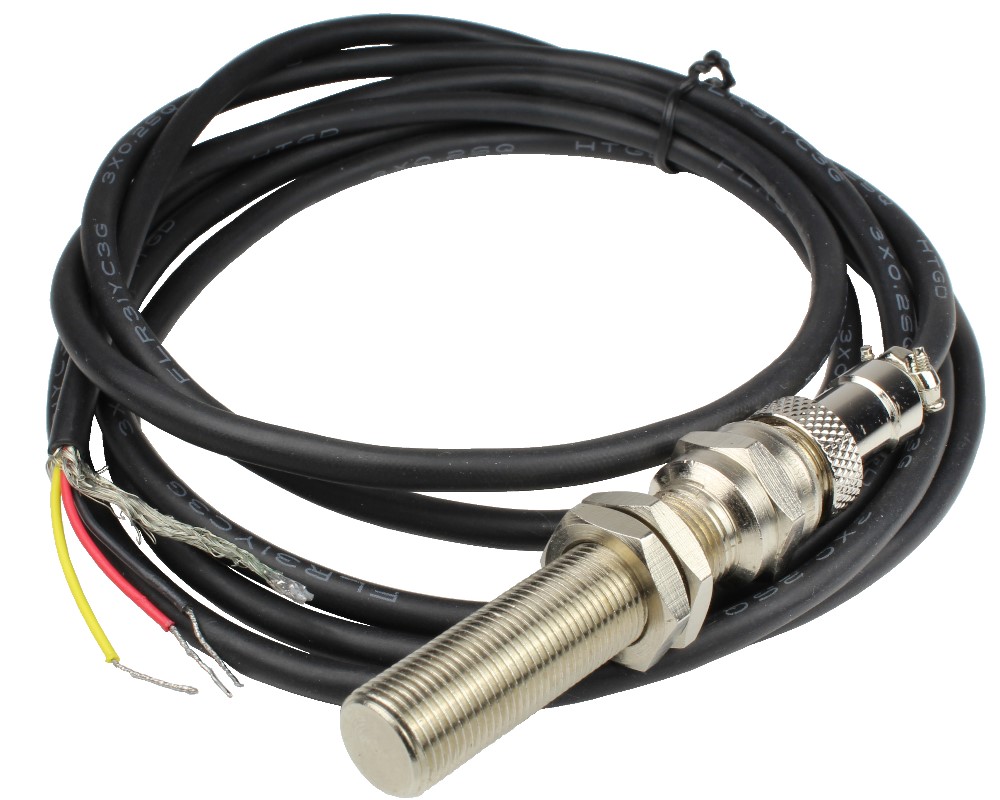

Hall Effect Gear Tooth Sensors CYGTS211B-PO2, Output: PNP (OC), Power Supply: 6 V ~ 30 V DC

Serial: CYGTS211

Power Supply: 6V ~ 30V DC
Output Type: PNP(OC), square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs
Hall Effect Gear Tooth Sensors CYGTS212A-PR6, Output: PNP (RC), Power Supply: 5 V DC

Serial: CYGTS212

Power Supply: +5 V DC
Output Type: PNP(RC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs

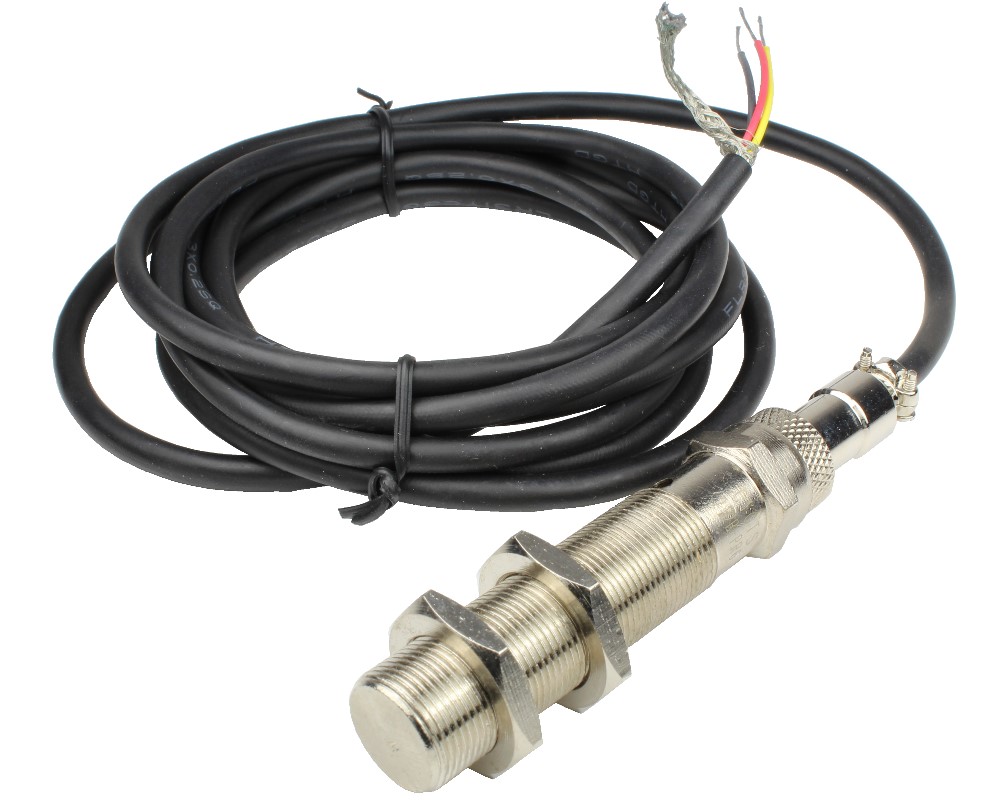

Hall Effect Gear Tooth Sensors CYGTS212B-NR6, Output: PNP (RC), Power Supply: 6 V ~ 30 V DC

Serial: CYGTS212

Power Supply: 6V ~ 30V DC
Output Type: NPN (RC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs
Hall Effect Gear Tooth Sensors CYGTS212B-PR6, Output: PNP (RC), Power Supply: 6 V ~ 30 V DC

Serial: CYGTS212

Power Supply: 6V ~ 30V DC
Output Type: PNP(RC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs

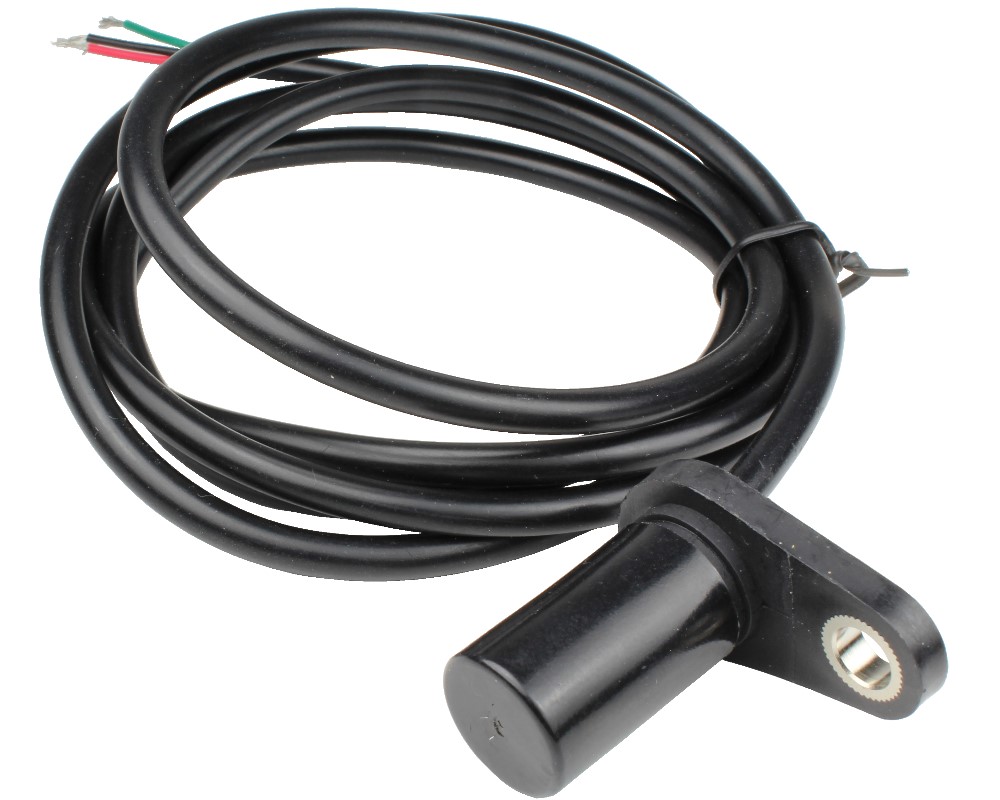

Hall Effect Gear Tooth Sensor CYGTS104X, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Alternative for: Honeywell SNDH Series

Serial: CYGTS104X

Power Supply: 4.5V ~ 24V
Output Type: NPN (OC), two square waves
Operating Temperature: -40°C ~ +150°C
Sensing gap/distance: 0.2mm ~ 5.0mm
Cross-reference: Honeywell SNDH Serie
Hall Effect Gear Tooth Sensor CYGTS104U-S, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Alternative for: Honeywell SNDH Series

Serial: CYGTS104U-S

Power Supply: 4.5V ~ 24V
Output Type: NPN (OC), two square waves
Operating Temperature: -40°C ~ +150°C
Sensing gap/distance: 0.5mm ~ 5.0mm
Cross-reference: Honeywell SNDH Serie

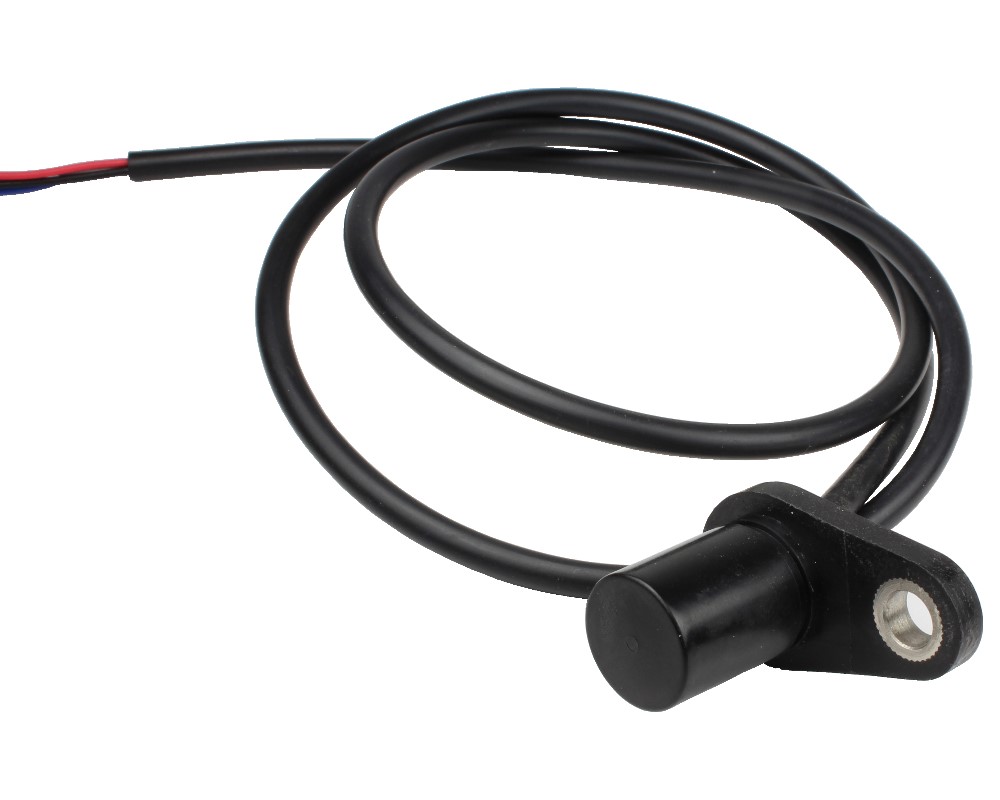

Hall Effect Gear Tooth Sensor CYGTS104U, Output: NPN (OC) two output signals, Power Supply: 4.5 V ~ 24 V DC, Alternative for: Honeywell SNDH Series

Serial: CYGTS104U

Power Supply: 4.5V ~ 24V
Output Type: NPN (OC), two square waves
Operating Temperature: -40°C ~ +150°C
Sensing gap/distance: 0.5mm ~ 5.0mm
Cross-reference: Honeywell SNDH Serie
Hall Effect Gear Tooth Sensors CYGTS212A-NR6, Output: PNP (RC), Power Supply: 5 V DC

Serial: CYGTS212

Power Supply: +5 V DC
Output Type: NPN (RC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs

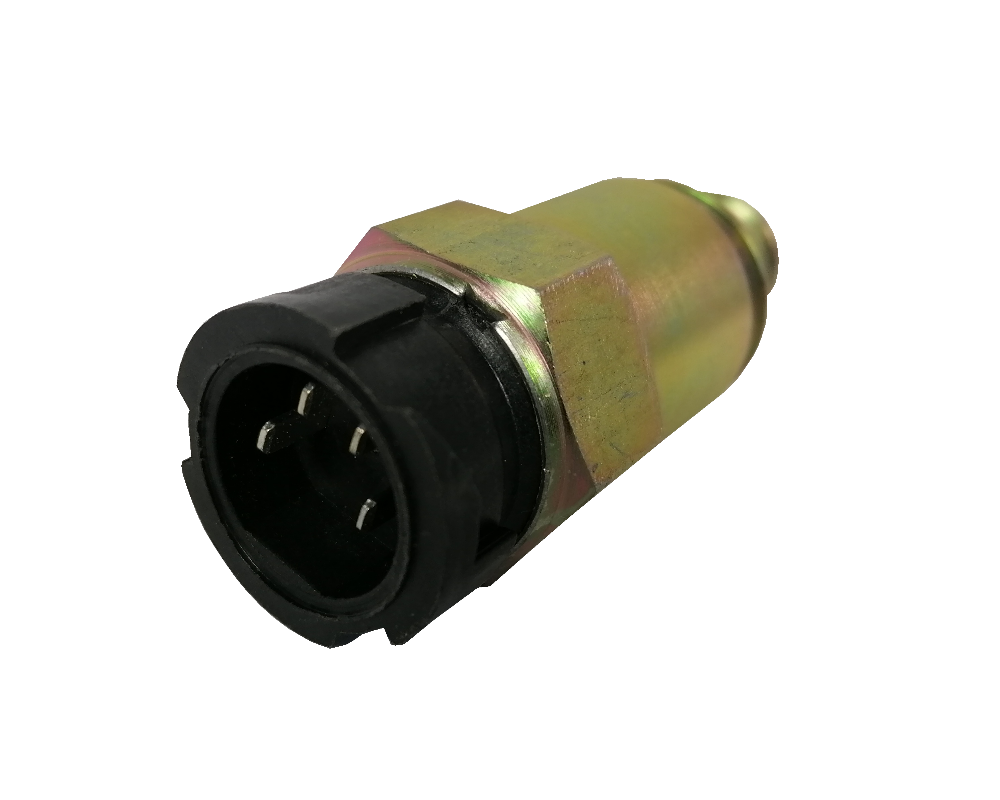

Hall Effect Gear Tooth Sensor CYGTS99

Serial: CYGTS99

Power Supply: 6V ~ 24V
Output Type: NPN (OC)
Operating Temperature: -40°C ~ +135°C
Sensing gap/distance: 1mm ~ 2mm
Cross-reference: Siemens VDO Sensors
Hall Effect Gear Tooth Speed Sensors CYGTS288

Serial: CYGTS288

Power Supply: 4.5V ~ 30V DC
Output Type: NPN/PNP (RC/OC),square-wave
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: ≤3mm
Rise/Fall Time: 2µs / 2µs

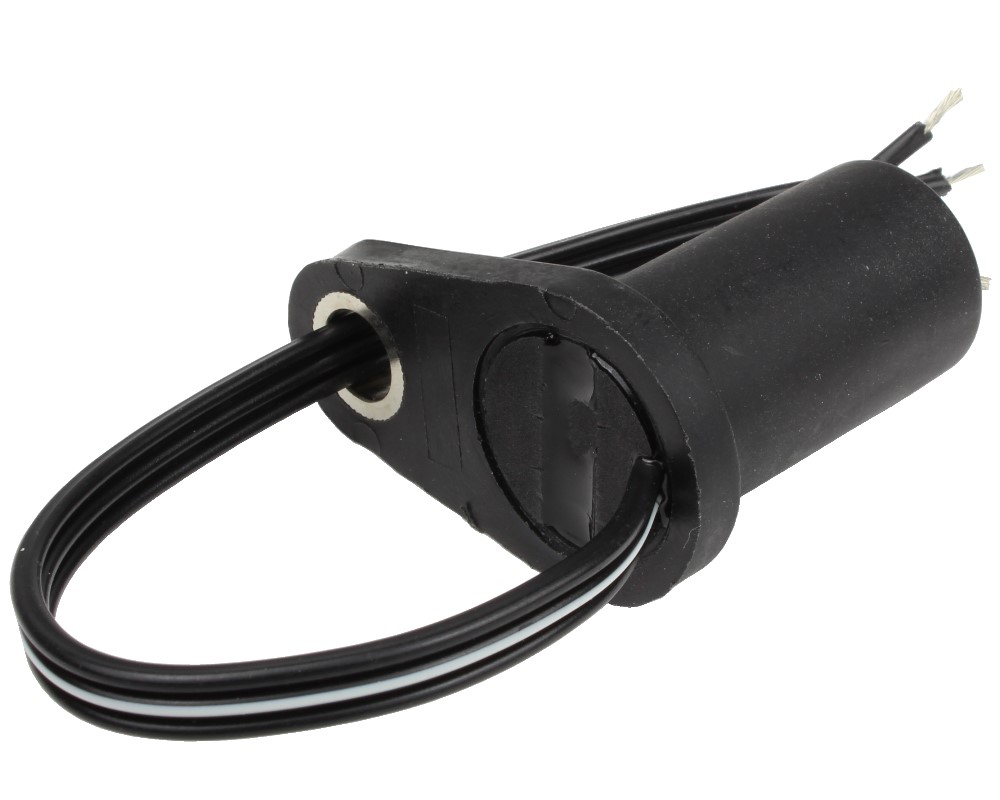

Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Hall Effect Gear Tooth Sens...

Power Supply: 4.5V ~ 24V
Output Type: RC (NPN or PNP)
Operating Temperature: -40°C ~ +135°C
Sensing gap/distance: 0.2mm ~ 4.0mm
Cross-reference: 1GT101DC, 1GT103DC, 1GT105DC
Hall Effect Gear Tooth Sensor CYGTS102DC, Output type: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

Serial: CYGTS102DC

Power Supply: 4.5V ~ 24V
Output Type: sinusoid and square waves
Operating Temperature: -40°C ~ +125°C
Sensing gap/distance: 0.2mm ~ 4.0mm
Cross-reference: 1GT101DC, 1GT103DC, 1GT105DC
