Unipolar/Omnipolar Hall Switch ICs

We are dedicated to providing you with the highest quality products suited to your needs.

To find the Unipolar/Omnipolar Hall Switch ICs that fit your technical specifications the best, we highly recommend using the filter function.

Product Filter

Product Filter
Unipolar Hall Effect Switch Ics CYD443H, Power Supply: 4-30V, Supply current: 5mA, Operating Temperature: -40 ~+150°C

Serial: CYD443H

Operating point: 3mT ~ 10.5mT
Release Point: 2mT ~ 7.5mT
Versorgungsspannung: 4.0V ~ 30V
Betriebstemperatur: -40°C ~ +150°C
Gehäuse/Abmessungen: TO-92S/4.1x3.18x1.58mm
Unipolar Hall Effect Switch Ics CYD3141E, Power Supply: 4.5-24V, Supply current: 9mA,Operating Temperature: -40 ~+85°C

Serial: CYD3141E

Operating point: 5mT ~ 16mT
Release Point: 1mT ~ 13mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: TO-92UA/4.06x3.1x1.5mm
Unipolar Hall Effect Switch Ics CYD3144E, Power Supply: 4.5-24V, supply current: 9mA,Operating Temperature: -40 ~+85°C

Serial: CYD3144E

Operating point: 5mT ~ 20mT
Release Point: 1mT ~ 14mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: TO-92UA/4.06x3.1x1.5mm

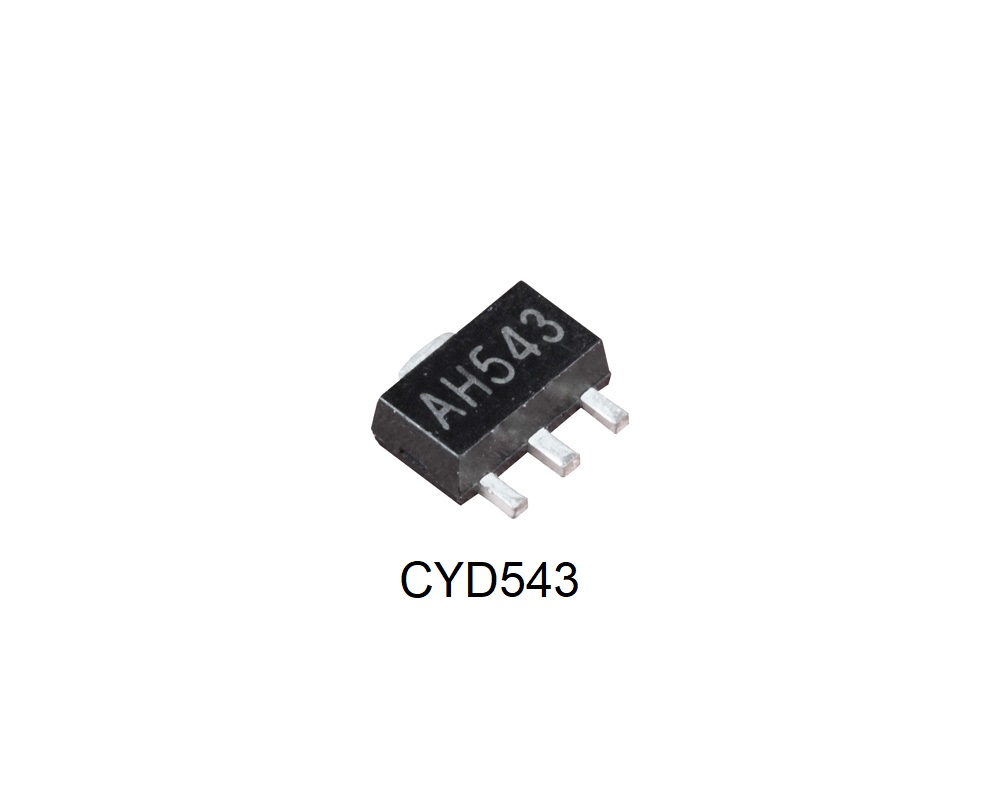

Unipolar Hall Effect Switch Ics CYD543, Power Supply: 4.5-24V, Supply current: 10mA,Operating Temperature: -50 ~+150°C

Serial: CYD543

Operating point: 15mT
Release Point: 10mT
Versorgungsspannung: 4.5V ~ 24V
Betriebstemperatur: -50°C ~ +150°C
Gehäuse/Abmessungen: SOT-89/4.5x2.5x1.5mm

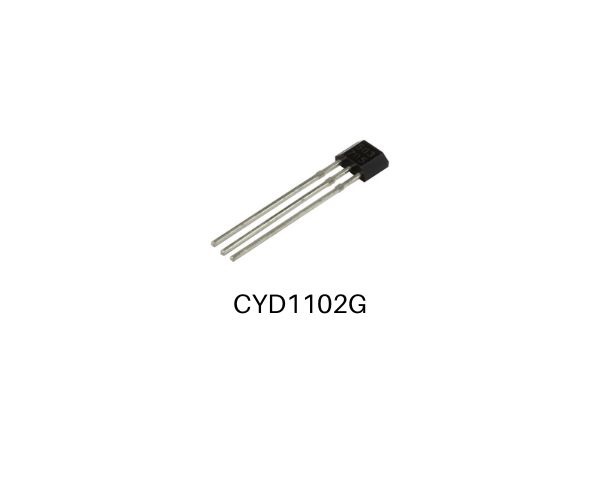

Unipolar Hall Effect Switch Ics CYD1102G, Power Supply: 3-28V, Supply current: 10mA,Operating Temperature: -40 ~+150°C

Serial: CYD1102G

Operating point: 14mT
Release Point: 6mT
Versorgungsspannung: 3.0V ~ 28V
Betriebstemperatur: -40°C ~ +150°C
Gehäuse/Abmessungen: SIP-3L/4.1x3.05x1.5mm

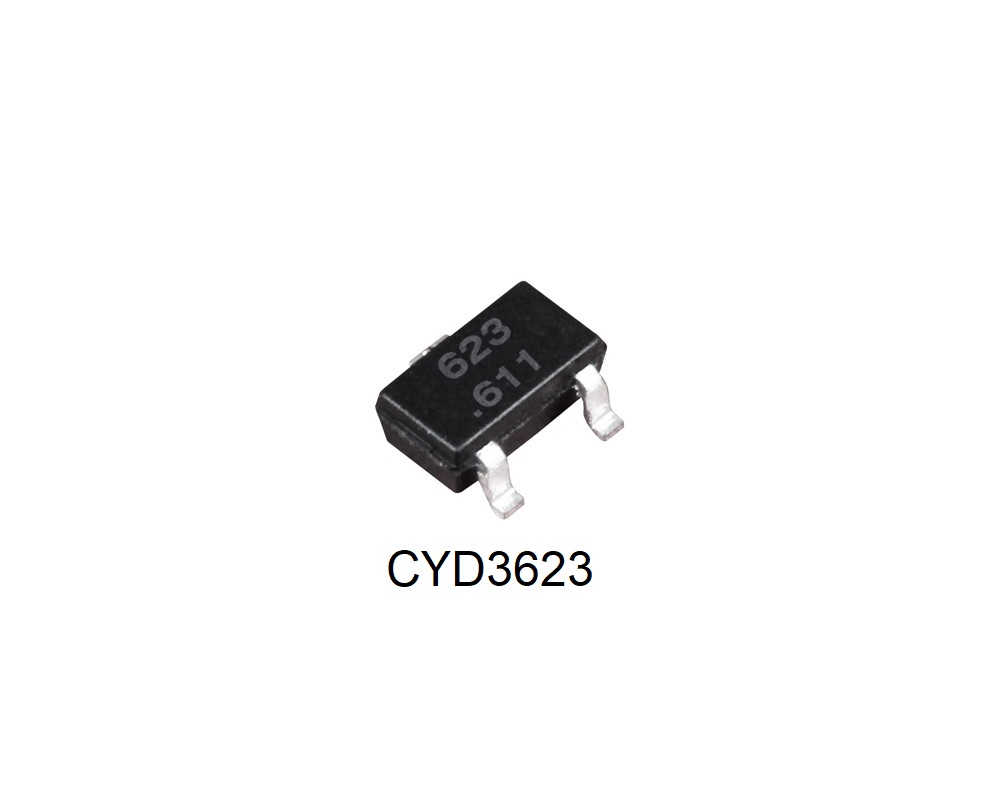

Unipolar Hall Effect Switch Ics CYD3623-S, Power Supply: 2.5-18V, Supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD3623

Operating point: 10mT ~ 11mT
Release Point: 7.0mT ~ 10mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: SOT23
Unipolar Hall Effect Switch Ics CYD9821A, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD9821A

Operating point: 9mT ~ 12mT
Release Point: 5.5mT ~ 11mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 or SOT89

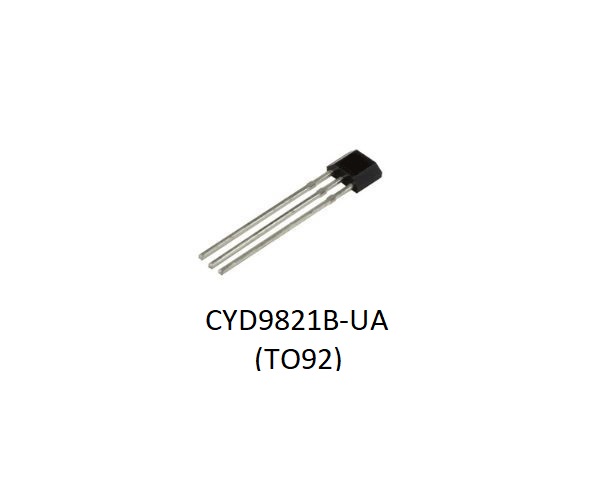

Unipolar Hall Effect Switch Ics CYD9821B, Power Supply: 2.5-18V, supply current: 25mA,Operating Temperature: -40 ~+125°C

Serial: CYD9821B

Operating point: -12mT ~ -9mT
Release Point: -11.0mT ~ -5.5mT
Versorgungsspannung: 2.5V ~ 18V
Betriebstemperatur: -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 or SOT89

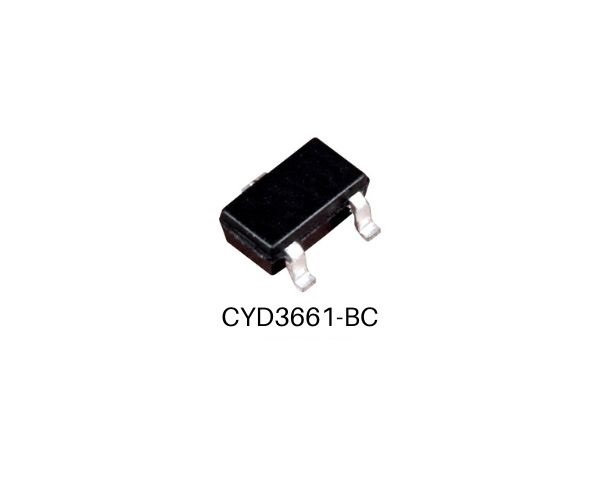

Omni-polar Hall Effect Switch CYD3661-BC, Power Supply: 2,4V~6V, Operating Temperature: -40°C~+85°C

Serial: CYD3661-BC

Operating point: S: 1.8mT~4.7mT, N: -3.5mT~-5.5mT
Release Point: S: 1.4mT~4.3mT, N: -2.7mT~-4.6mT
Versorgungsspannung: 2.4V ~ 6.0V
Betriebstemperatur: -40°C ~ +85°C
Gehäuse/Abmessungen: SOT-23/2.9x1.8x1.1mm

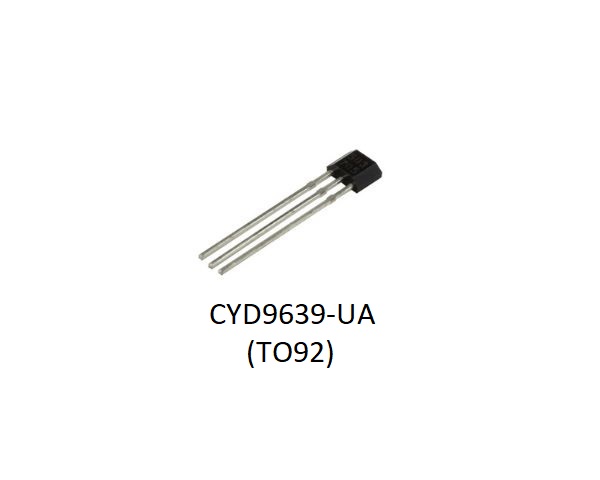

Unipolar Hall Effect Switch ICs CYD9639

Serial: CYD9639

Einschaltpunkt: -7.2mT ~ -3.8mT
Rückschaltpunkt: -5.0mT ~ -2.0mT
Versorgungsspannung: 3.8V ~ 24V
Betriebstemperatur: -40°C ~ +150°C or -40°C ~ +125°C
Gehäuse/Abmessungen: TO92, SOT23 oder SOT89
High-Sensitive Unipolar Hall Effect Switch CYD9636

Serial: CYD9636

Operating point: 3.8mT ~ 7.2mT
Release Point: 2.0mT ~ 5.0mT
Supply Voltage: 3.8V ~ 24V
Operating temperature: -40~+150 or -40~+125 (°C)
Package/Size: TO92, SOT23 or SOT89

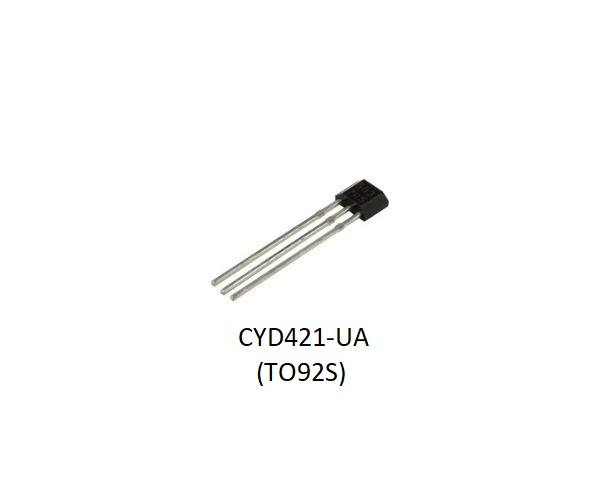

Unipolar Hall Effect Switch Ics CYD421, Power Supply: 3.8-40V, supply current: 40mA, Operating Temperature: -40 ~+125°C

Serial: CYD421

Operating point: 3.0mT ~ 8.0mT
Release Point: 1.0mT ~ 6.0mT
Supply Voltage: 3.8V ~ 40V
Operating temperature: -40°C ~ +125°C
Package/Size: TO92S or SOT23-3L

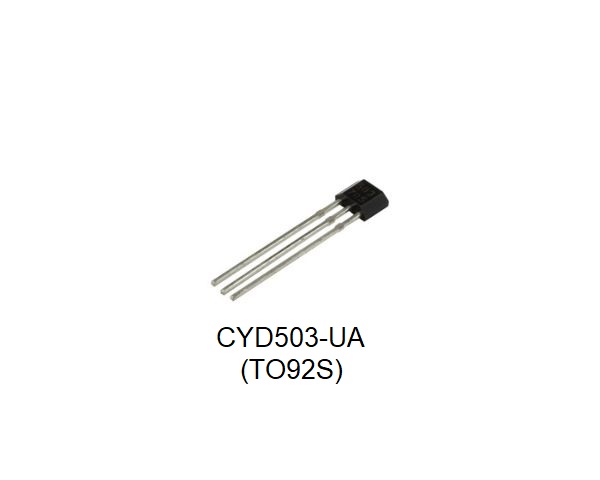

Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD503

Operating point: 3.8mT ~ 7.2mT
Release Point: 2.0mT ~ 5.0mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
Unipolar Hall Effect Switch Ics CYD506, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD506

Operating point: 18mT
Release Point: 16mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
Unipolar Hall Effect Switch Ics CYD507, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD507

Operating point: 27mT
Release Point: 23mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L

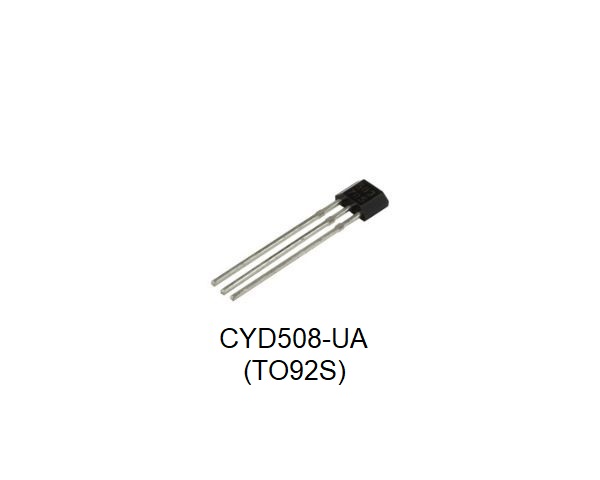

Unipolar Hall Effect Switch Ics CYD508, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD508

Operating point: -5.5mT
Release Point: -3.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L

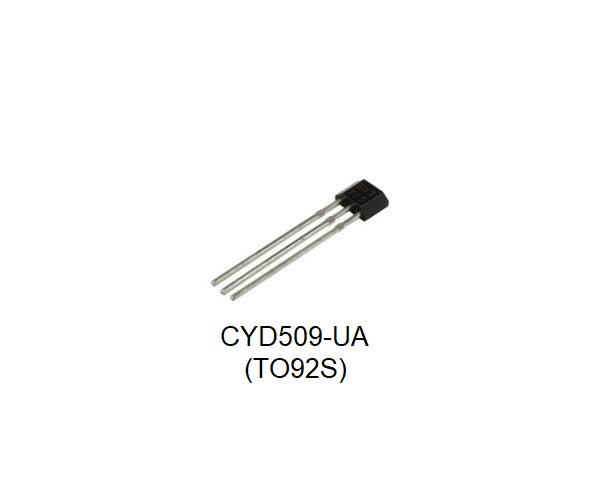

Unipolar Hall Effect Switch Ics CYD509, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD509

Operating point: 3.5mT
Release Point: 5.5mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
Unipolar Hall Effect Switch Ics CYD510, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD510

Operating point: 10mT
Release Point: 8mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
Unipolar Hall Effect Switch Ics CYD511, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Serial: CYD511

Operating point: 8mT
Release Point: 10mT
Supply Voltage: 2.7V ~ 30V
Operating temperature: -40°C ~ +150°C
Package/Size: TO92S or SOT23-3L
