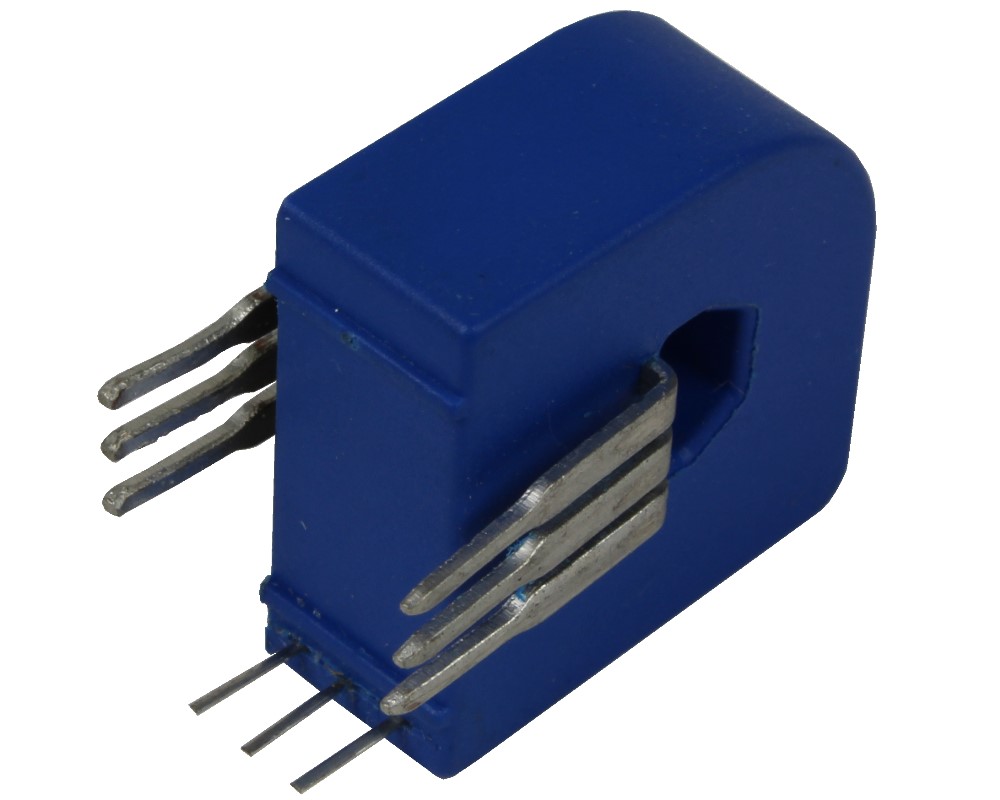

AC/DC Closed Loop Hall Current Sensor CYHCS-B100R
Serial-Nr:
CYHCS-B100R
Article-Nr:
CYHCS-B100R-6A
Product information "AC/DC Closed Loop Hall Current Sensor CYHCS-B100R"
This Hall Effect current sensor is based on closed loop compensating principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Current overload capability
Applications
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC/DC |
| Frequency Bandwith: | DC ~ 200kHz |
| Linearity: | 0.1% |
| Measurement Direction: | bidirectional |
| Operating Temperature: | -40°C ~ +85°C |
| Output Signal: | +2.5 V DC ± 0.625 V |
| Power Supply: | +5 V DC |
| Rated Input Current: | 0-6A, 0-15A, 0-25A, 0-50A |
| Sensor Type: | Closed-Loop |
| Window Size (mm): | 6.6 x 4.3 |
| Window Type: | Rectangle |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
