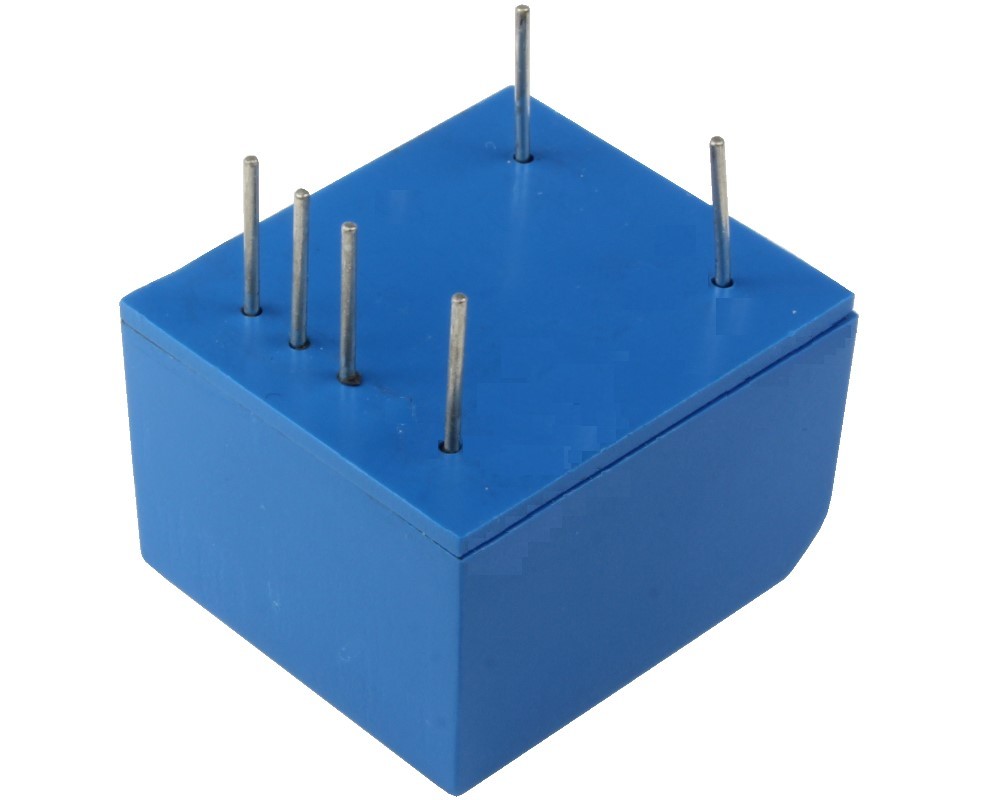

AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC
Serial-Nr:
CYCS121G27
Article-Nr:
CYCS121G27
Product information "AC/DC Current Sensor CYCS121G27, Output: instantaneous voltage 0-1 V AC/DC, Power Supply: ±12 V DC"
The CYCS121G27 AC/DC current Sensor/Transducer works according to photoelectric isolation principle and is designed for applications to measurement and monitoring of small AC/DC current. The output signal of this transducer is proportional to input current. They are suitable for measurements and long time monitoring of AC/DC currents etc.
Characteristics
- high measuring accuracy
- high reliability
- low thermal drift
- low current consumption
- small size, PCB mounting etc
| Accuracy: | 0.5% |
|---|---|
| Current Type: | AC/DC |
| Direction: | bidirectional |
| Nominal Input Current: | 0-0.1mA |
| Operating Temperature: | -10°C ~ +70°C |
| Output Signal: | instantaneous voltage 0-1V AC/DC |
| Power Supply: | ±12 V DC |
| Response Time: | ≤45µs |
| Window Type: | No Window |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
