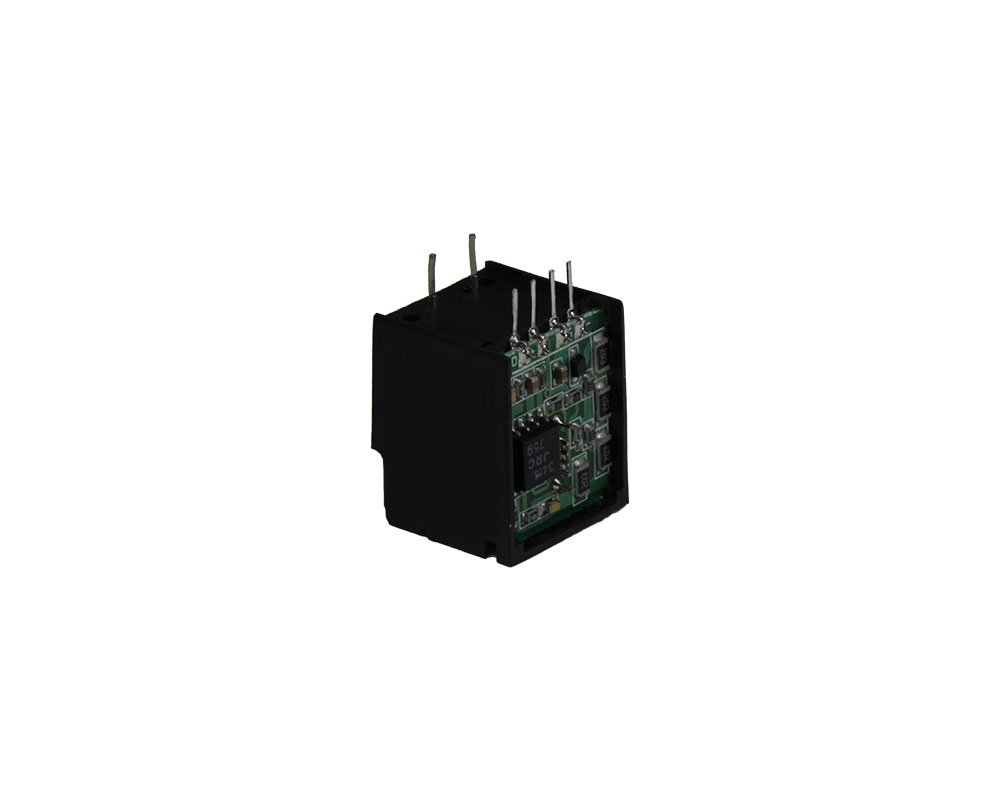

AC/DC Hall Current Sensor CYHCS013-B
Serial-Nr:
CYHCS012
Article-Nr:
CYHCS013-B.7
Product information "AC/DC Hall Current Sensor CYHCS013-B"
This Hall Effect current sensor is based on open loop principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Current overload capability
Applications
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies
- Switched Mode Power Supplies
| Accuracy: | 1% |
|---|---|
| Current Type: | AC/DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC ~ 50kHz |
| Linearity: | 1% |
| Nominal Input Current: | 0-3A, 0-5A, 0-10A, 0-15A, 0-20A, 0-25A, 0-30A, 0-35A, 0-40A, 0-45A, 0-50A |
| Operating Temperature: | -10°C ~ +80°C |
| Output Signal: | +5 V ± 2 V AC/DC |
| Power Supply: | +12 V DC |
| Sensor Type: | Open-Loop |
| Window Type: | No Window, PCB Mounted |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
