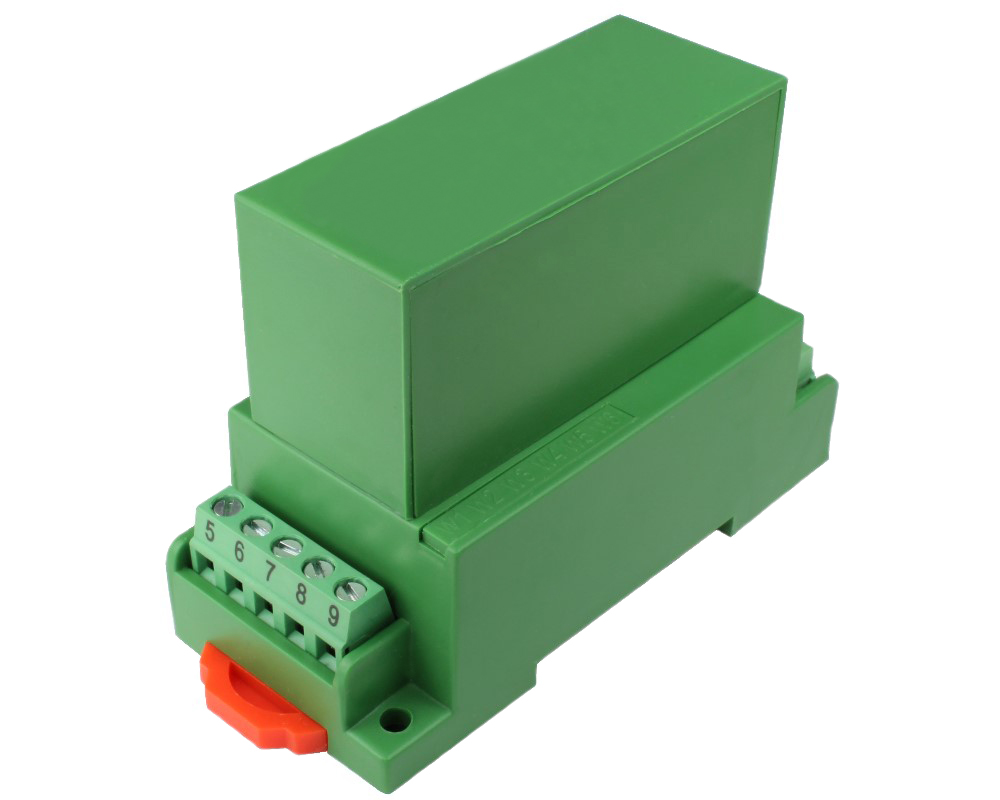

AC Voltage Sensor CYVS11-xnS2

Back
Preview: AC Voltage Sensor CYVS11-xnS2 Preview: AC Voltage Sensor CYVS11-xnS2
AC Voltage Sensor CYVS11-xnS2
AC Voltage Sensor CYVS11-xnS2


Nominal Input Voltage:

Power Supply:

Output Signal:


Order now in Online Store
Description Technical Properties Data Sheets
Description
The CYVS11-xnS2 AC Voltage Sensor/Transducer works according electro-magnetic induction and is... more
Close menu
AC Voltage Sensor CYVS11-xnS2

The CYVS11-xnS2 AC Voltage Sensor/Transducer works according electro-magnetic induction and is designed for applications to measurement and monitoring of single phase AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the average effective value (RMS) of input AC voltage. They are suitable for general applications such as fixed frequency voltage supplies etc.

Technical Properties
more
Close menu
Operating Temperature: -10°C ~ +60°C
Input Voltage Range: 0-10V AC, 0-50V AC, 0-100V AC, 0-110V AC, 0-220V AC, 0-250V AC, 0-380V AC, 0-400V AC, 0-500V AC, 0-1000V AC
Isolation voltage: 2.5 kV DC, 1min
Output Signal: 5V, instantaneous ±5V DC
Accuracy: 0.5%
Power Supply: +12 V DC, +15 V DC, +24 V DC
Response Time: ≤300ms
Data Sheets
more
Close menu
Data sheets to download:
