CHENYANG AC Voltage Sensor CYVS11-xnU0

Article-Nr: CYVS11-xnU0.1
Serial-Nr: CYVS11-xnU0
Request on this Article
Data Sheet Download
Data Sheet Download(German)

The CYVS11-xnU0 AC voltage sensor/transducer works according to Electromagnetic Induction and is... more

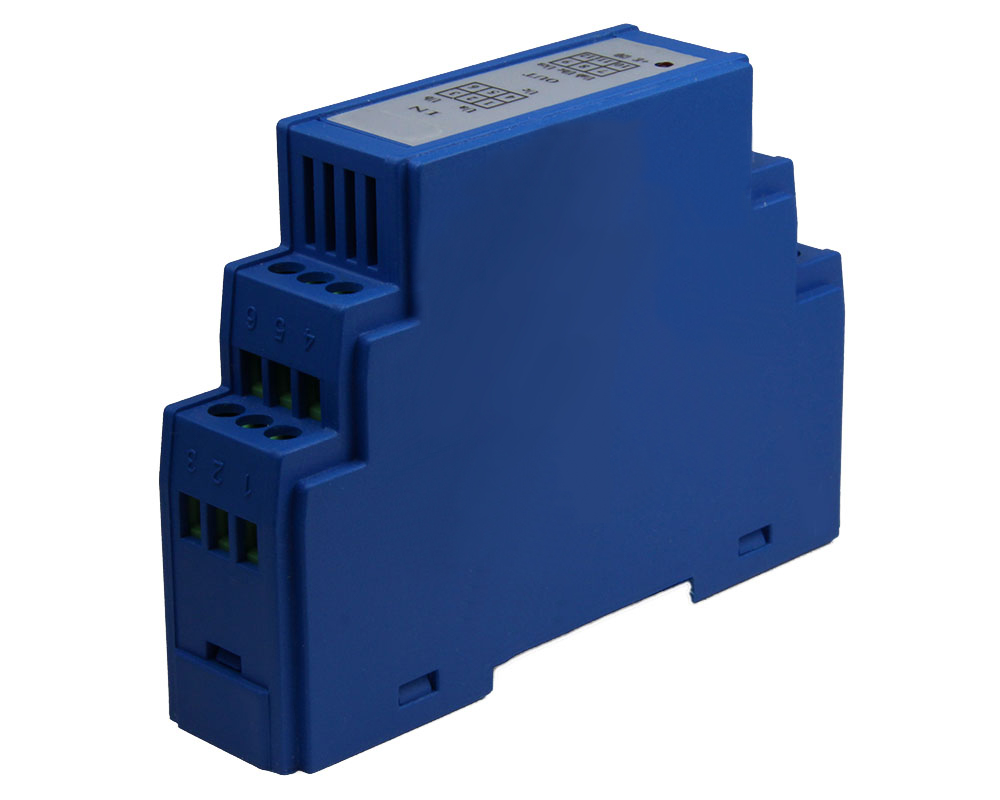

AC Voltage Sensor CYVS11-xnU0

The CYVS11-xnU0 AC voltage sensor/transducer works according to Electromagnetic Induction and is designed for applications to measurement and monitoring of AC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input AC voltage. They are suitable for measurements and long-time monitoring of AC voltages and can be applied to power supply management, AC motor drivers, battery chargers and systems, etc.

In case of a quotation request. please state the required input voltage range in the comments.

Close menu

Output Signal:	0-5 V DC, 0-10 V DC, 0-20 mA DC, 4-20 mA DC, tracing voltage 0-5V AC
Power Supply:	+12 V DC, +24 V DC, ±12 V DC, ±15 V DC
Input Voltage Range:	min 0-10V AC;max 0-1000V AC
Thermal drift:	50-80ppm/°C, 300ppm/°C
Accuracy:	0.2%, 0.5%
Response Time:	300ms , ≤15µs
Current Type:	AC
Isolation voltage:	2.5 kV DC, 1min
Operating Temperature:	-10°C ~ +60°C
