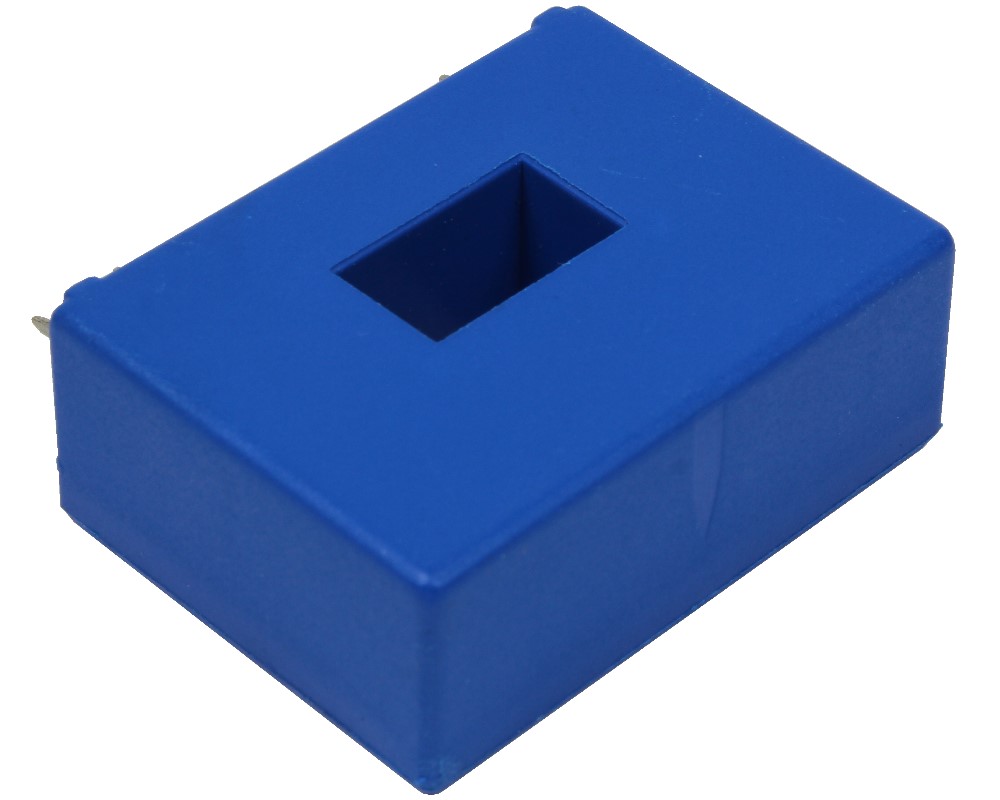

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B6, Output: 25 mA / 50 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: 12.7 x 7 mm
Back- Article-Nr: CYHCS-B6-25A
- Serial-Nr: CYHCS-B6
- Request on this Article
- Data Sheet Download
- Data Sheet Download (German)
This Hall Effect current sensor is based on closed loop compensating principle and can be used... more
Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B6, Output: 25 mA / 50 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: 12.7 x 7 mm
This Hall Effect current sensor is based on closed loop compensating principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.
Characteristics
- Excellent accuracy
- Very good linearity
- Small size and encapsulated
- Less power consumption
- Current overload capability
Applications
- Photovoltaic equipment
- General Purpose Inverters
- AC/DC Variable Speed Drivers
- Battery Supplied Applications
- Uninterruptible Power Supplies
- Switched Mode Power Supplies
Nominal Input Current: | 0-25A, 0-50A, 0-100A |
Sensor Type: | Closed-Loop |
Power Supply: | ±12V ~ ±15V DC |
Output Signal: | ±25 mA AC/DC, ±50 mA AC/DC |
Current Type: | AC/DC |
Window Type: | Rectangle |
Window Size (mm): | 12.7 x 7 |
Direction: | bidirectional |
Accuracy: | 0,5% |
Linearity: | 0.1% |
Operating Temperature: | -25°C ~ +85°C |
Frequency Bandwith: | DC ~ 200kHz |
