Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B9, Power Supply: ±15 V DC, Window: 15.2 x 10.2 mm

Back

Nominal Input Current:

This Hall Effect current sensor is based on closed loop compensating principle and can be used... more

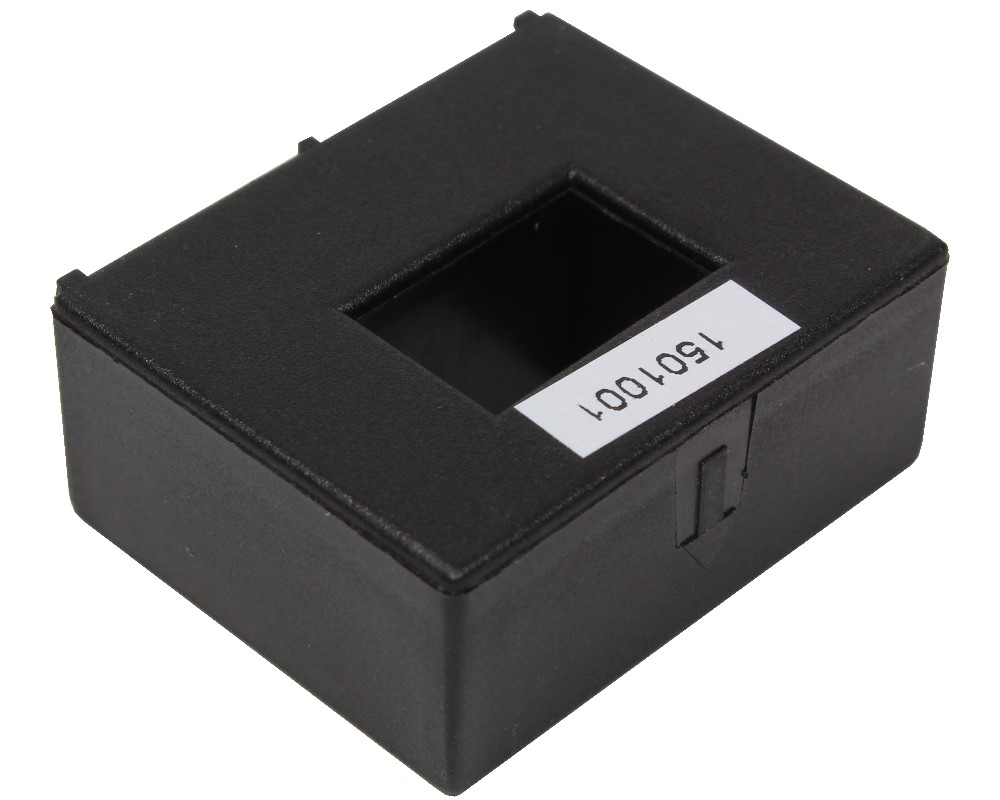

Closed Loop Hall Effect AC/DC Current Sensor CYHCS-B9, Power Supply: ±15 V DC, Window: 15.2 x 10.2 mm

This Hall Effect current sensor is based on closed loop compensating principle and can be used for measurement of DC and AC current, pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption
  • Current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies
  • Switched Mode Power Supplies
Nominal Input Current: 0-125A, 0-200A
Sensor Type: Closed-Loop
Power Supply: ±15 V DC
Output Signal: ±100 mA AC/DC, ±125 mA AC/DC
Current Type: AC/DC
Window Type: Rectangle
Window Size (mm): 15.2 x 10.2
Direction: bidirectional
Accuracy: 0,5%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 100kHz
