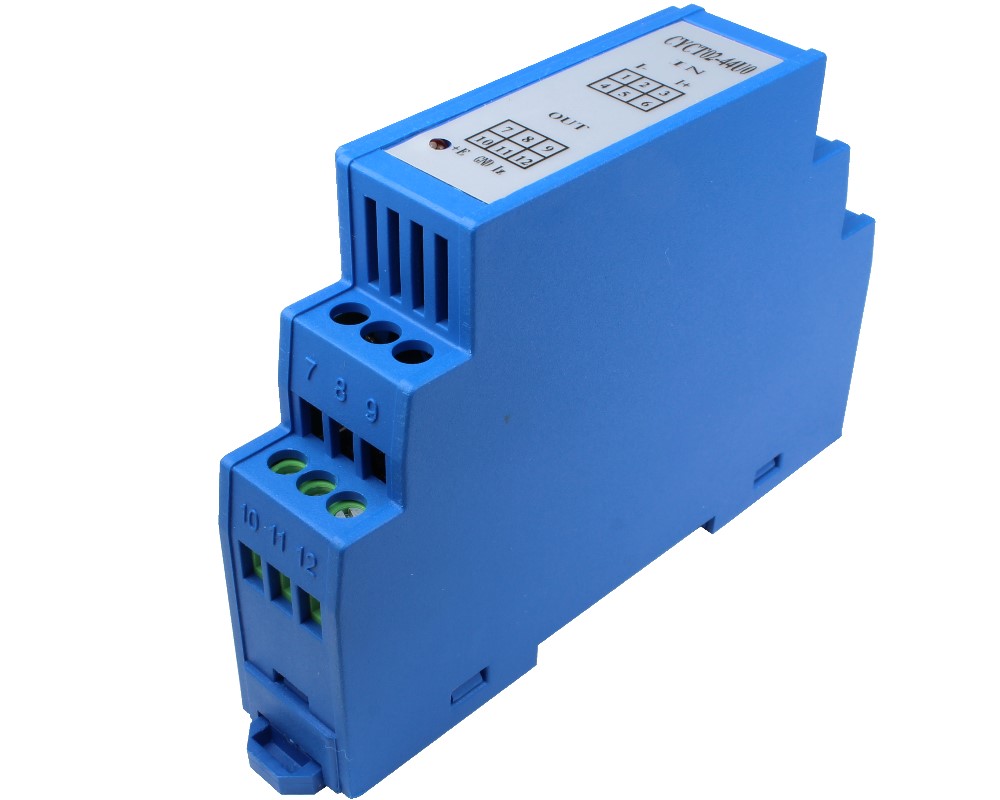

DC Curent Sensor CYCT02-xnU0
Serial-Nr:
CYCT02-xnU0
Article-Nr:
CYCT02-xnU0.26
Product information "DC Curent Sensor CYCT02-xnU0"
The CYCT02-xnU0 DC current sensor/transducer works according to Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long-time monitoring of DC currents and can be applied to power supply management, DC motor drivers, battery chargers and systems, etc.
| Accuracy: | 0.2%, 0.5% |
|---|---|
| Current Type: | DC |
| Direction: | unidirectional |
| Nominal Input Current: | 0-1A, 0-1mA, 0-2A, 0-3A, 0-4A, 0-5A, 0-5mA, 0-10mA, 0-20mA, 0-50mA, 0-100mA, 0-500mA |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 0-20 mA DC, 0-5 V DC, 4-20 mA DC, 0-10 V DC |
| Power Supply: | +12 V DC, +24 V DC |
| Response Time: | ≤350ms |
| Window Type: | No Window |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
