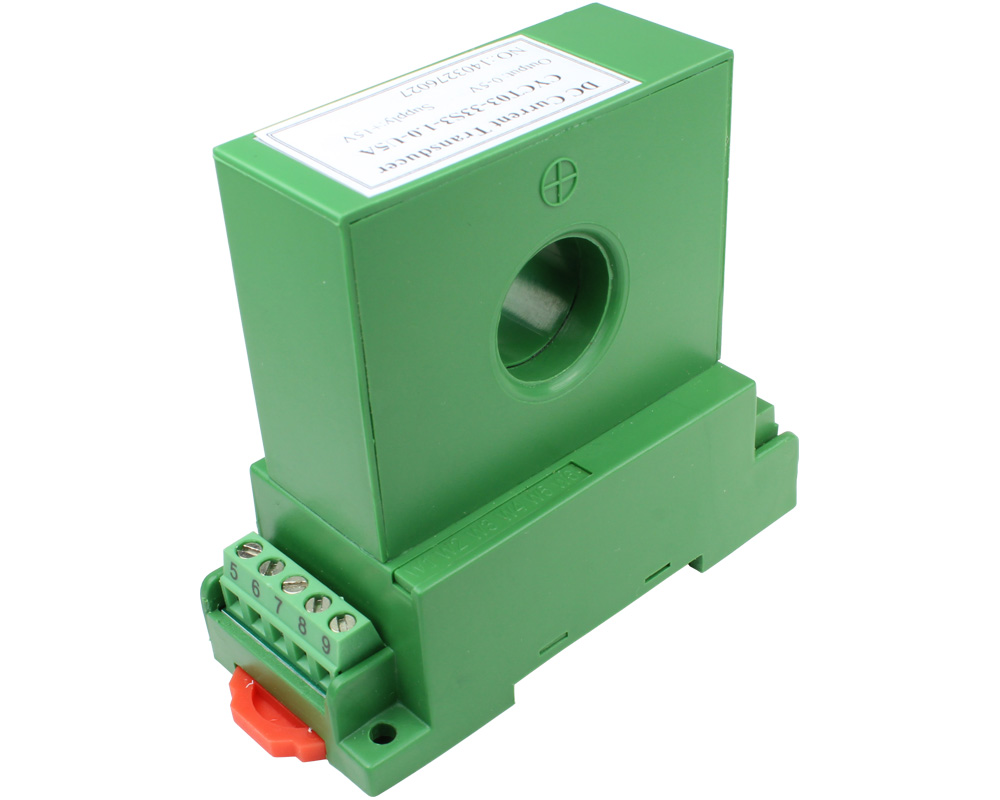

DC Curent Sensor CYCT03-xnS3

The CYCT03-xnS3 DC current sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long time monitoring of DC currents and can applied to power supply management, DC motor drivers, battery chargers and systems etc.

Nominal Input Current: 0-20mA, 0-50mA, 0-100mA, 0-200mA, 0-500mA, 0-2A, 0-5A, 0-10A, 0-20A, 0-30A
Power Supply: +12 V DC, +15 V DC, +24 V DC
Output Signal: 0-5 V DC, 0-10 V DC, 0-20 mA DC, 4-20 mA DC, Frequency OC
Operating Temperature: -10°C ~ +60°C
Response Time: ≤100ms
Accuracy: 1%
Direction: unidirectional, bidirectional
Window Type: No Window
Current Type: DC
Daten zum Produkthersteller more

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
