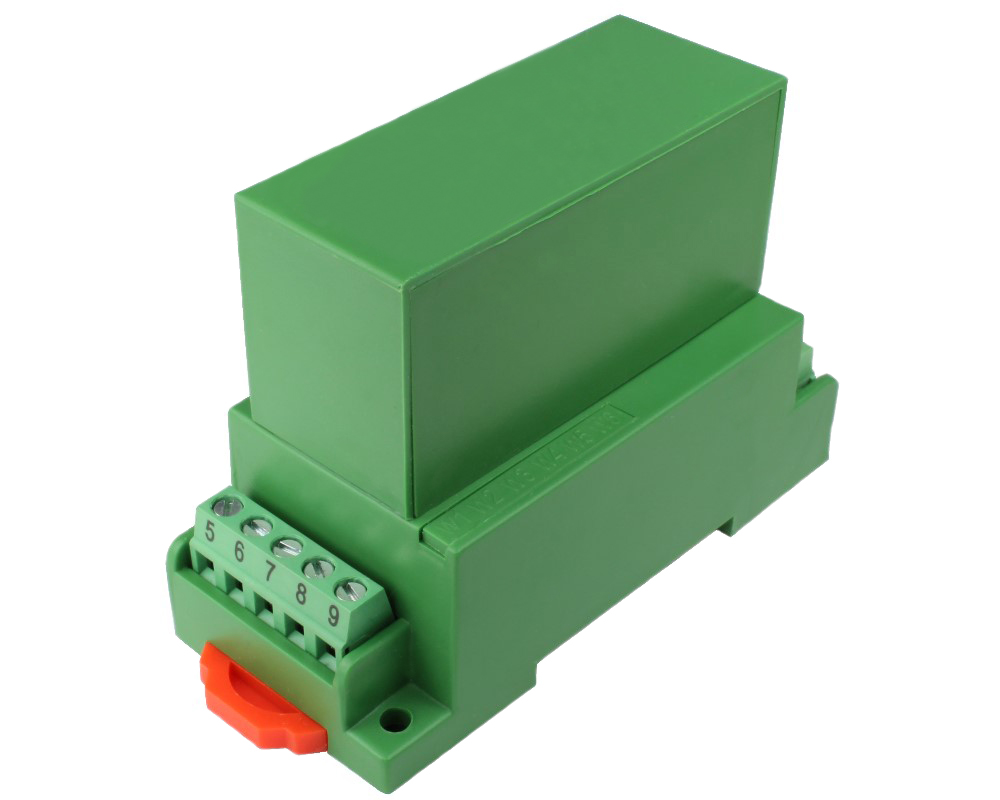

DC Current Sensor CYCT02-xnS2
Serial-Nr:
CYCT02-xnS2
Article-Nr:
CYCT02-xnS2.29
Product information "DC Current Sensor CYCT02-xnS2"
The CYCT02-xnS2 DC current sensor/transducer works according Magnetic Modulation and is designed for applications to measurement and monitoring of DC current. The output signal (DC voltage or current) of this transducer is proportional to the input DC current. They are suitable for measurements and long time monitoring of DC currents and can applied to power supply management, DC motor drivers, battery chargers and systems etc.
| Accuracy: | 0.5% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Nominal Input Current: | 0-1A, 0-2A, 0-5A, 0-500mA |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | Frequency OC, 0-20 mA DC, 0-5 V DC, 4-20 mA DC, 0-10 V DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Response Time: | ≤15ms |
| Window Type: | No Window |
