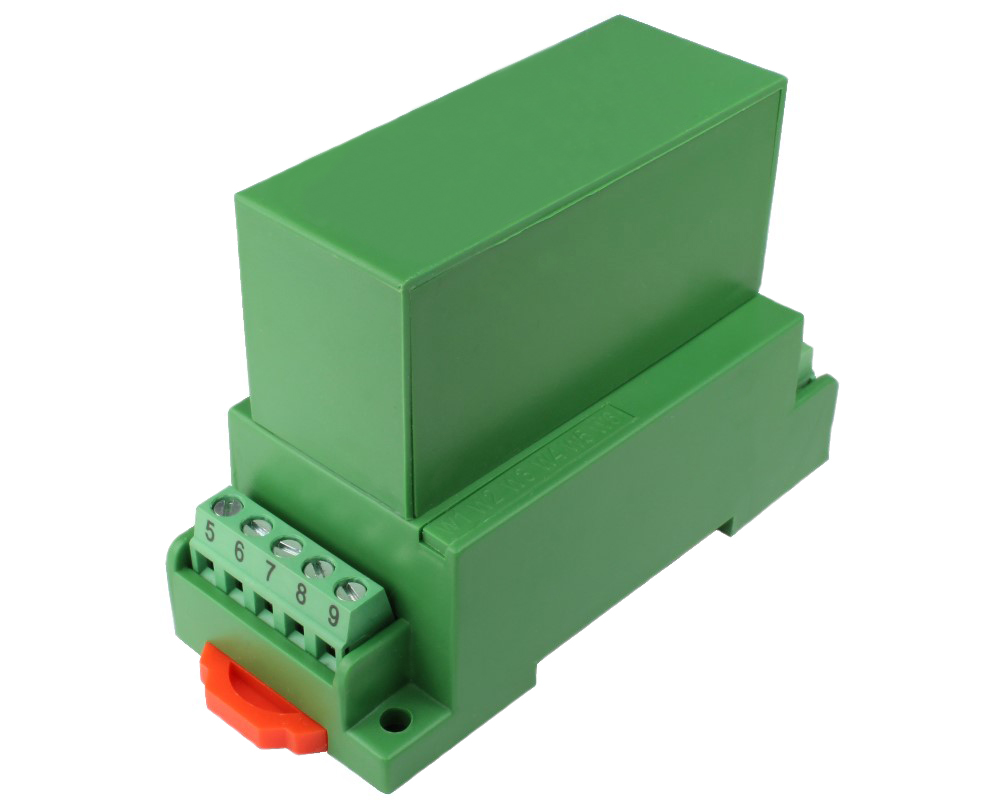

DC Voltage Sensor CYVT01-xnS2
Serial-Nr:
CYVT01-xnS2
Article-Nr:
CYVT01-xnS2.35
Product information "DC Voltage Sensor CYVT01-xnS2 "
The CYVT01-xnS2 DC voltage sensor/transducer works according Linear Photoelectrical Isolation and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.
| Accuracy: | 0.5% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Input Voltage Range: | 0-1V DC, 0-5V DC, 0-10V DC, 0-10mV DC, 0-50V DC, 0-50mV DC, 0-75V DC , 0-75mV DC, 0-100V DC, 0-200V DC, 0-500V DC, 0-1000V DC |
| Isolation voltage: | 2.5 kV DC, 1min |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | Frequency OC, 0-20 mA DC, 0-5 V DC, 4-20 mA DC, 0-10 V DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Response Time: | ≤400ms |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
