DC Voltage Sensor CYVT02-xnS1

Back

Nominal Input Voltage:

Power Supply:

Direction:

Output Signal:

The CYVT02-xnS1 DC voltage sensor/transducer works according Electromagnetic Induction and is... more

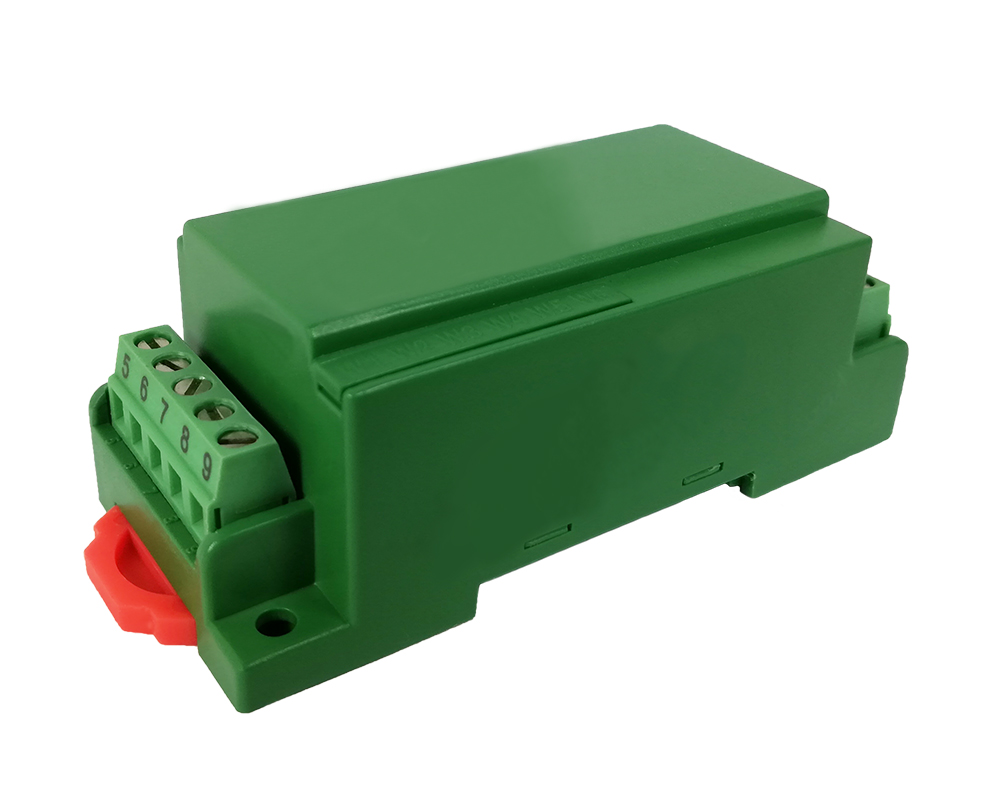

DC Voltage Sensor CYVT02-xnS1

The CYVT02-xnS1 DC voltage sensor/transducer works according Electromagnetic Induction and is designed for applications to measurement and monitoring of DC voltage. The output signal (DC voltage or current) of this transducer is proportional to the input DC voltage. They are suitable for measurements and long time monitoring of DC voltages and can applied to power supply management, DC motor drivers, battery chargers and systems etc.

Operating Temperature: -10°C ~ +60°C
Input Voltage Range: 0-10mV DC, 0-50mV DC, 0-75mV DC, 0-1V DC, 0-5V DC, 0-10V DC, 0-50V DC, 0-75V DC , 0-100V DC, 0-200V DC, 0-500V DC, 0-600V DC, 0-700V DC, 0-800V DC, 0-900V DC, 0-1000V DC
Accuracy: 0.5%
Response Time: ≤400ms
Isolation voltage: 2.5 kV DC, 1min
Output Signal: Frequency OC
Power Supply: +12 V DC, +15 V DC, +24 V DC
