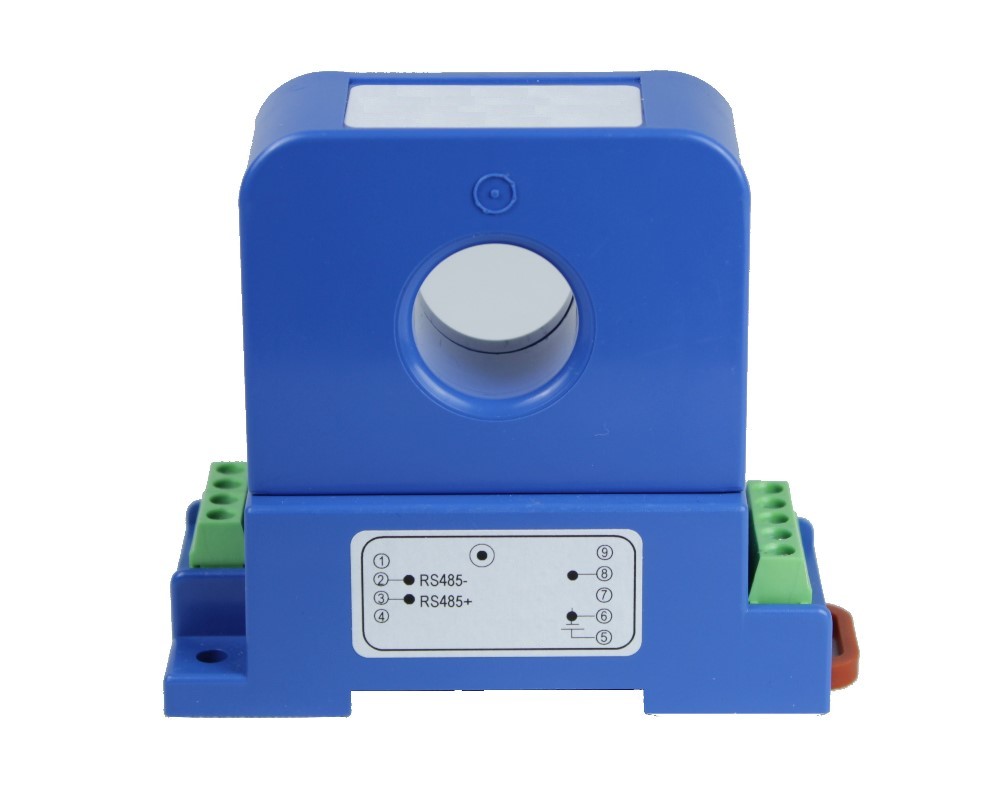

Hall Effect DC/AC Current Sensor CYHCD-S3 with Analog and Digital Outputs

The hall current sensor is designed for measurement of AC and DC current. This current sensor has a galvanic isolation between the high power primary conductor and the secondary electronic circuit. The sensor has digital outputs Frequency F and Current I as well as an analogue output 5VDC ± 2.5x √2 VAC and RS485 MODBUS interface, which makes data communication with other digital equipment fast and uncomplicated.

Features and Advantages

• DC/AC current measurement
• High measuring accuracy
• Analog output voltage 5VDC±2.5x 2 VAC
• Digital outputs (RS-485 Modbus)
• High isolation between primary and secondary circuits
• No insertion losses

Applications

• Photovoltaic equipment
• Battery banks, such as, monitoring load current and charge current, verifying operation
• Transportation, measuring traction power
• Phase fired controlled heaters
• Directly connect to PLC
• Sense motor stalls and short circuits
• Industrial instrumentation
