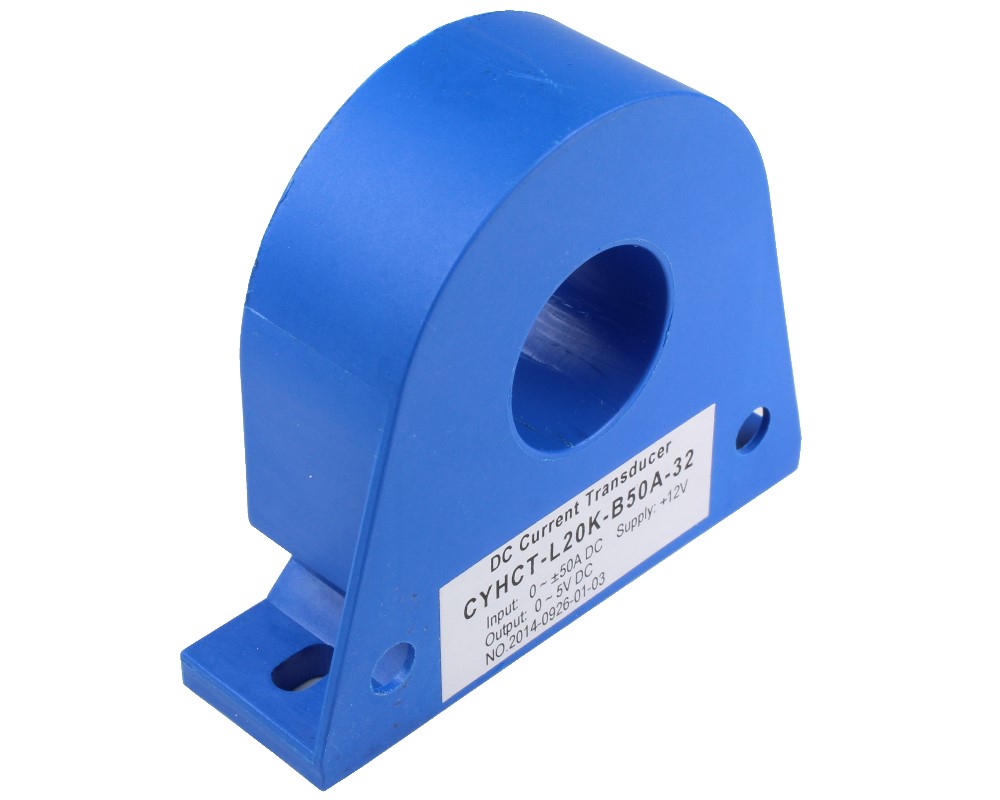

Hall Effect DC Current Sensor CYHCT-L20K

Back
Preview: Hall Effect DC Current Sensor CYHCT-L20K Preview: Hall Effect DC Current Sensor CYHCT-L20K
Hall Effect DC Current Sensor CYHCT-L20K
Hall Effect DC Current Sensor CYHCT-L20K


Nominal Input Current:

Power Supply:

Direction:

Output Signal:


Order now in Online Store
Description Technical Properties Data Sheets Product Safety Information
Description
The sensor CYHCT-L20K is based on open loop principle and designed with a high galvanic... more
Close menu
Hall Effect DC Current Sensor CYHCT-L20K

The sensor CYHCT-L20K is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC current, DC pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Features and Advantages

  • DC current measurement
  • Output signal option (4-20mA, 0-5V, 0-10V, ±5V)
  • High isolation between primary and secondary circuits
  • No insertion losses
  • Temperature compensation

Applications

  • Photovoltaic equipment
  • Battery banks, such as, monitoring load current and charge current, verifying operation
  • Transportation, measuring traction power
  • Phase fired controlled heaters
  • Directly connect to PLC
  • Sense motor stalls and short circuits
  • Industrial instrumentation
Technical Properties
more
Close menu
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A
Sensor Type: Open-Loop
Power Supply: +12 V DC, +15 V DC, +24 V DC
Output Signal: tracing voltage ±5 V DC, 0-5 V DC, 0-10 V DC, 0-20 mA DC, 4-20 mA DC
Current Type: DC
Window Type: Round
Window Size (mm): Ø 20
Direction: unidirectional, bidirectional
Accuracy: 0.5%, 1%
Linearity: 0.5%, 0.2 %
Operating Temperature: -40°C ~ +85°C
Frequency Bandwith: DC – 8kHz
