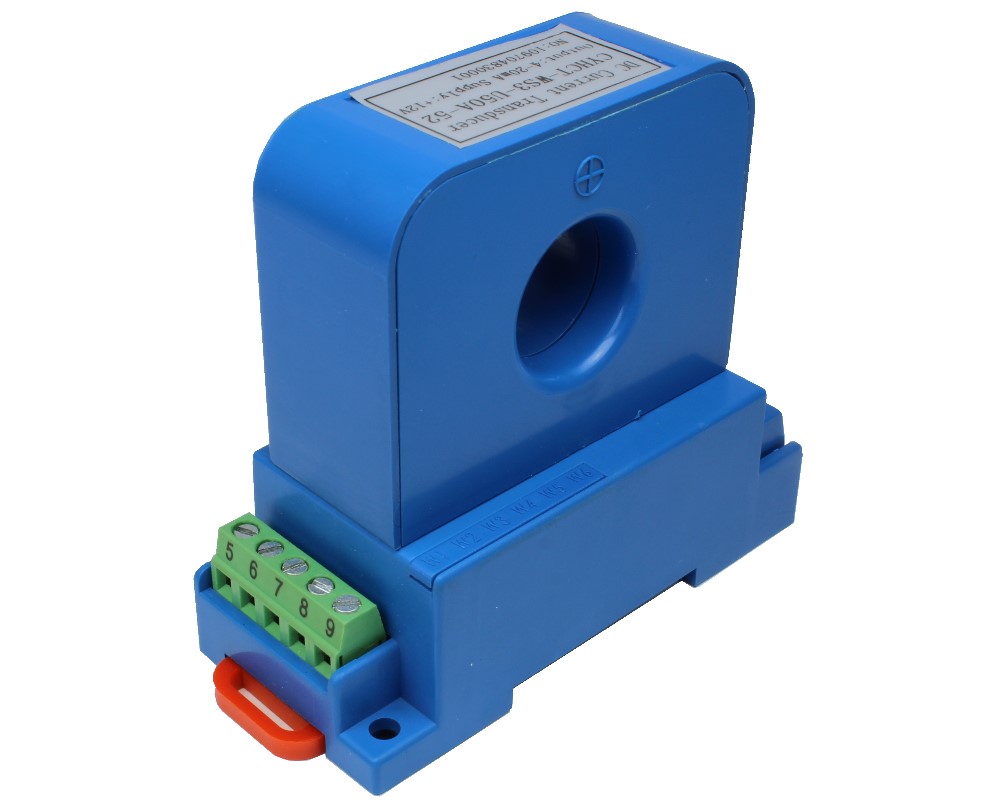

Hall Effect DC Current Sensor CYHCT-WS3
Serial-Nr:
CYHCT-WS3
Article-Nr:
CYHCT-WS3.117
Product information "Hall Effect DC Current Sensor CYHCT-WS3"
The sensor CYHCT-WS3 is a Hall Effect sensor for the measurement of DC current. The sensor has galvanic isolation between the high power primary conductor and the second electronic circuit and different output signals and different power supplies.
Features and Advantages
- DC current measurement
- Output signal option (4-20mA, 0-5V, 0-10V, ±5V)
- High isolation between primary and secondary circuits
- No insertion losses
- Temperature compensation
Applications
- Photovoltaic equipment
- Battery banks, such as, monitoring load current and charge current, verifying operation
- Transportation, measuring traction power
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
| Accuracy: | 0.5%, 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Frequency Bandwith: | DC – 8kHz |
| Linearity: | 0.2 %, 0.5% |
| Nominal Input Current: | 0-25A, 0-30A, 0-40A, 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
| Operating Temperature: | -40°C ~ +70°C |
| Output Signal: | 0-20 mA DC, 0-5 V DC, 4-20 mA DC, 0-10 V DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
