Hall Effect Gear Tooth Sensor CYGTS101RC, Output: RC (NPN or PNP), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 1GT101DC, 1GT103DC, 1GT105DC (Honeywell)

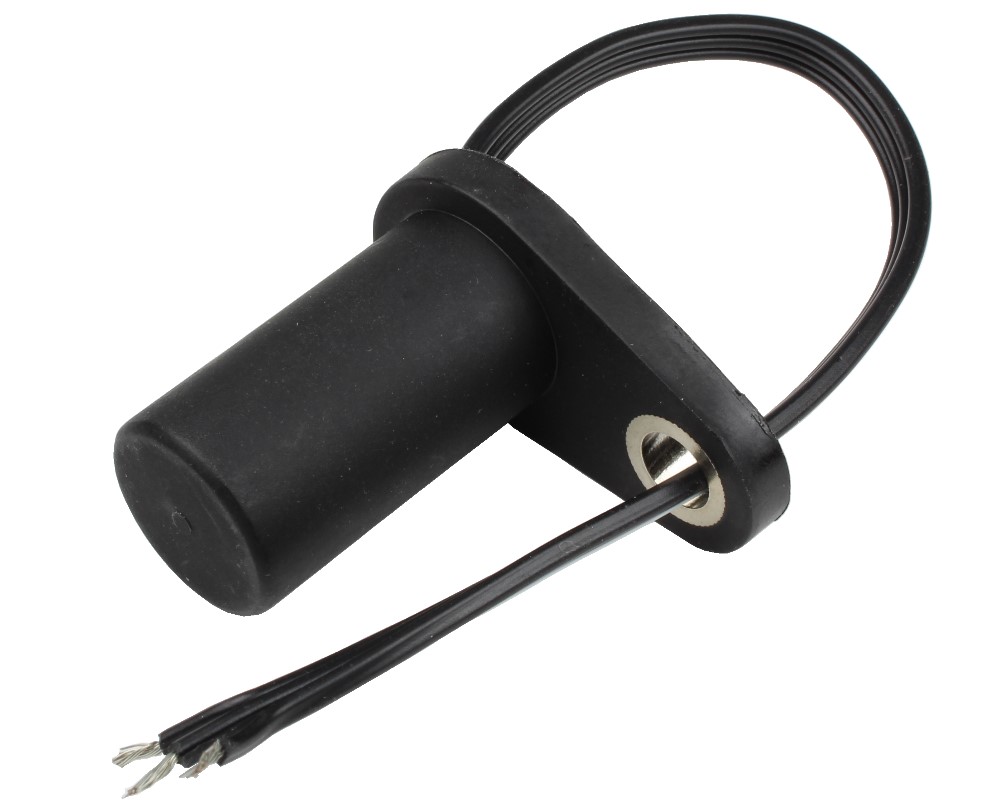

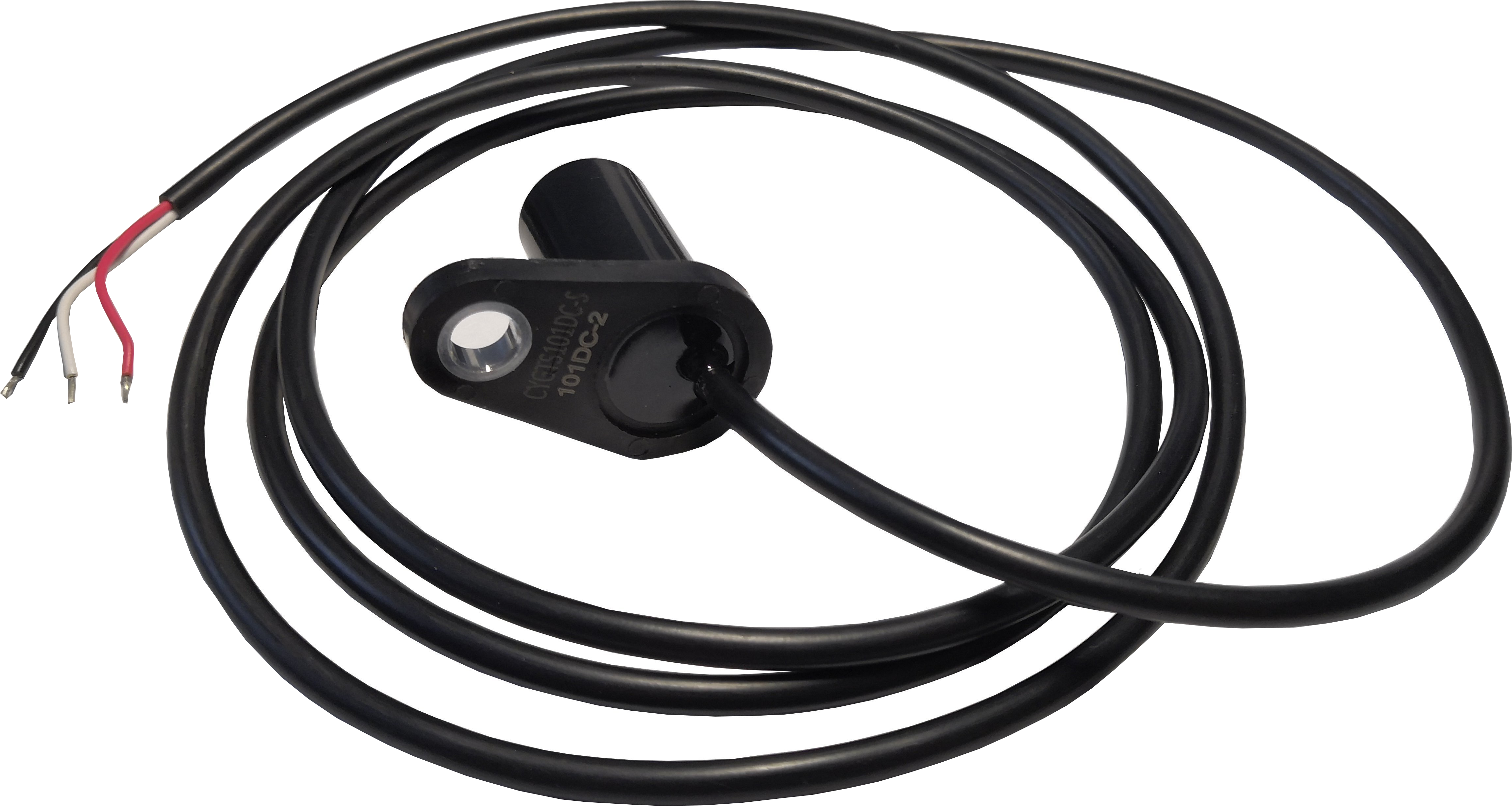

CYGTS101RC Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated circuit to accurately sense movement of ferrous metal targets. This specially designed gear tooth sensor IC with bias magnet and discrete capacitor is sealed in plastic for physical protection and cost effective installation. The GTS IC works according to peak magnetic field detection. This unit functions under power supply from 4.5 to 24VDC. Output is digital, current sinking (NPN) or current sourcing (PNP) and RC. Reverse polarity protection is standard. The sensor will not be damaged if power is inadvertently wired backwards.

The CYGTS101RC may be considered as a possible replacement or cross-reference type for 1GT101DC, 1GT103DC and 1GT105DC, depending on the specific application. The listed cross-reference types are provided for identification and comparison purposes only. Please verify suitability and compatibility using the technical specifications.

Features

• Sensing ferrous metal targets
• Digital current sinking or sourcing output
• Good signal-to-noise ratio
• Excellent low speed performance
• Output amplitude not dependent on RPM
• Fast operating speed, over 15kHz
• EMI resistant
• Reverse polarity protection and transient protection
• Wide operating temperature -40°C ~ +135°C.

Applications

Automotive and Heavy Duty Vehicles:

• Camshaft and crankshaft speed and position
• Transmission speed
• Tachometers
• Anti-skid/traction control

Industrial Areas:

• Sprocket speed
• Chain link conveyor speed/distance
• Stop motion detector
• High speed low cost proximity
• Tachometers, counters.
