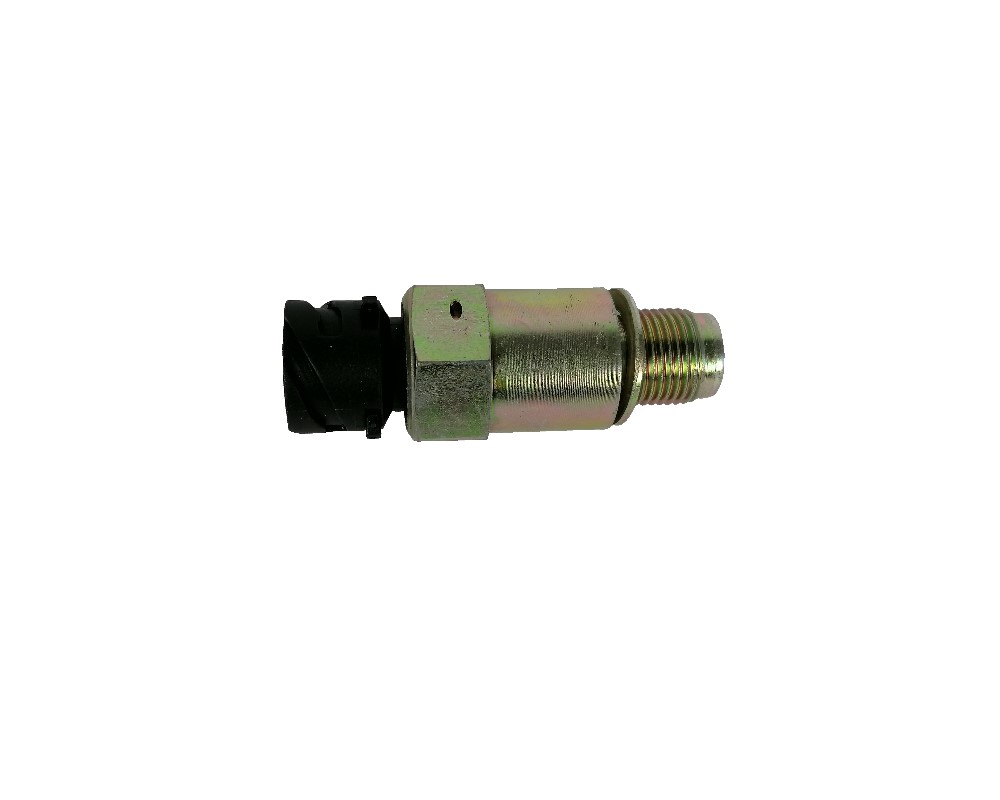

Hall Effect Gear Tooth Sensor CYGTS99

CYGTS99 Hall Effect Gear Tooth Sensor uses a magnetically biased Hall Effect integrated circuit to accurately sense movement of ferrous metal targets. This specially designed integrated circuit, with bias magnet and discrete capacitor, is sealed in plastic or metal package for physical protection and cost effective installation. The units function under power supply from 6V to 24V DC. Output is digital, current sinking (RC). Reverse polarity protection is standard. The sensor will not be damaged if power is inadvertently wired backwards.

Features

Sensing ferrous metal targets
Digital current sinking output (RC)
Good signal-to-noise ratio
Excellent low speed performance
Output amplitude not dependent on RPM
Fast operating speed, over 15kHz
EMI resistant
Reverse polarity protection and transient protection
Wide operating temperature -40°C ~ +135°C.

Applications

Automotive and Heavy Duty Vehicles:

Camshaft and crankshaft speed and position
Transmission speed
Tachometers
Anti-skid/traction control

Industrial Areas:

Sprocket speed
Chain link conveyor speed/distance
Stop motion detector
High speed low cost proximity
Tachometers, counters.

Close menu

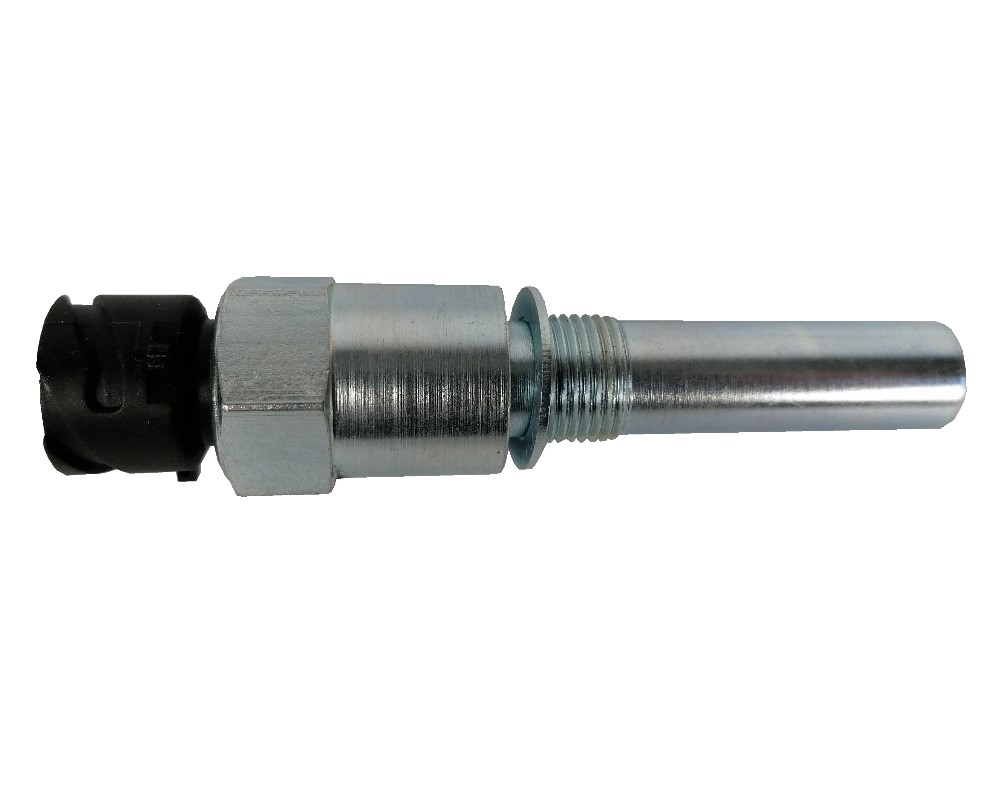

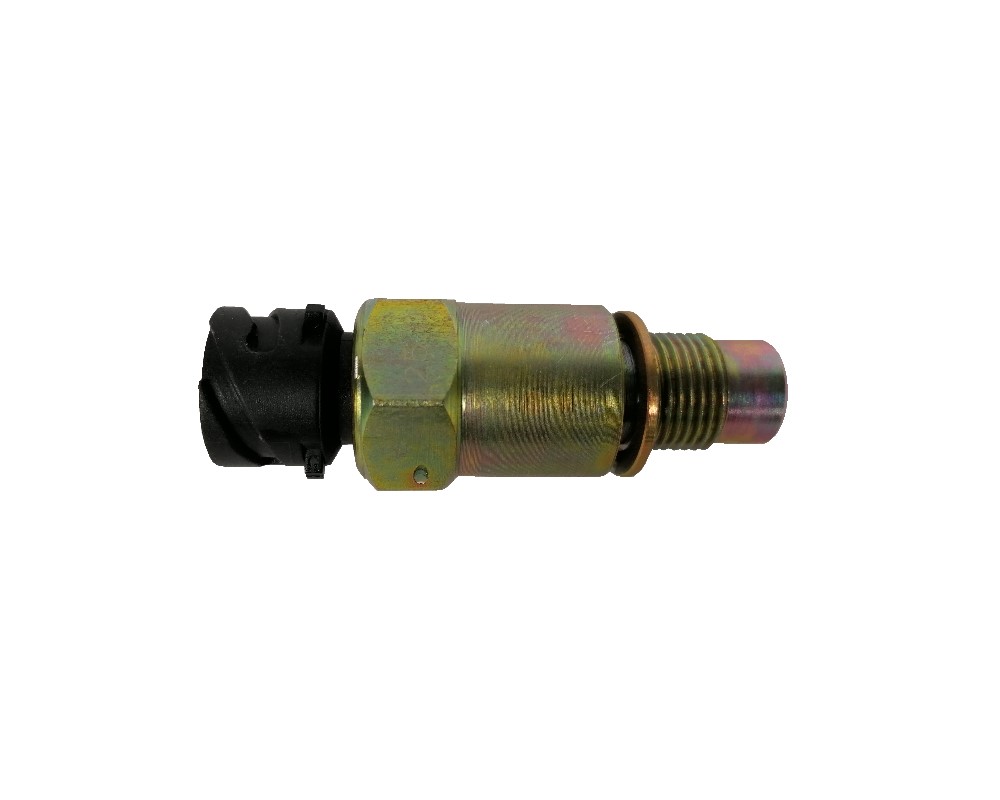

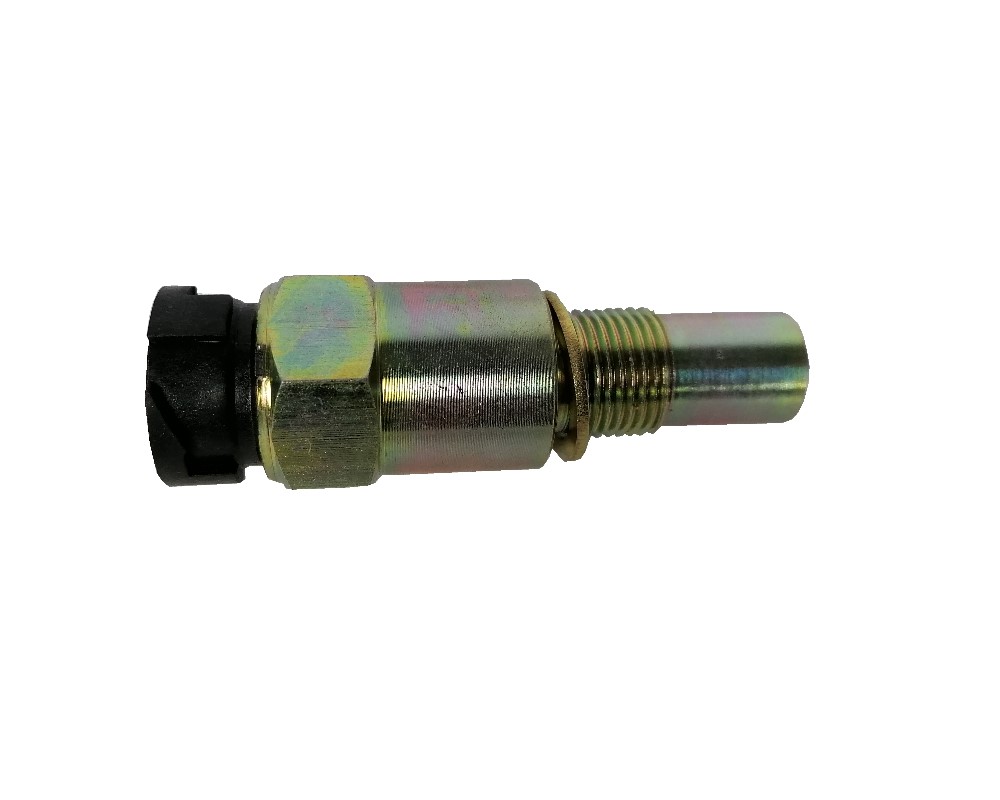

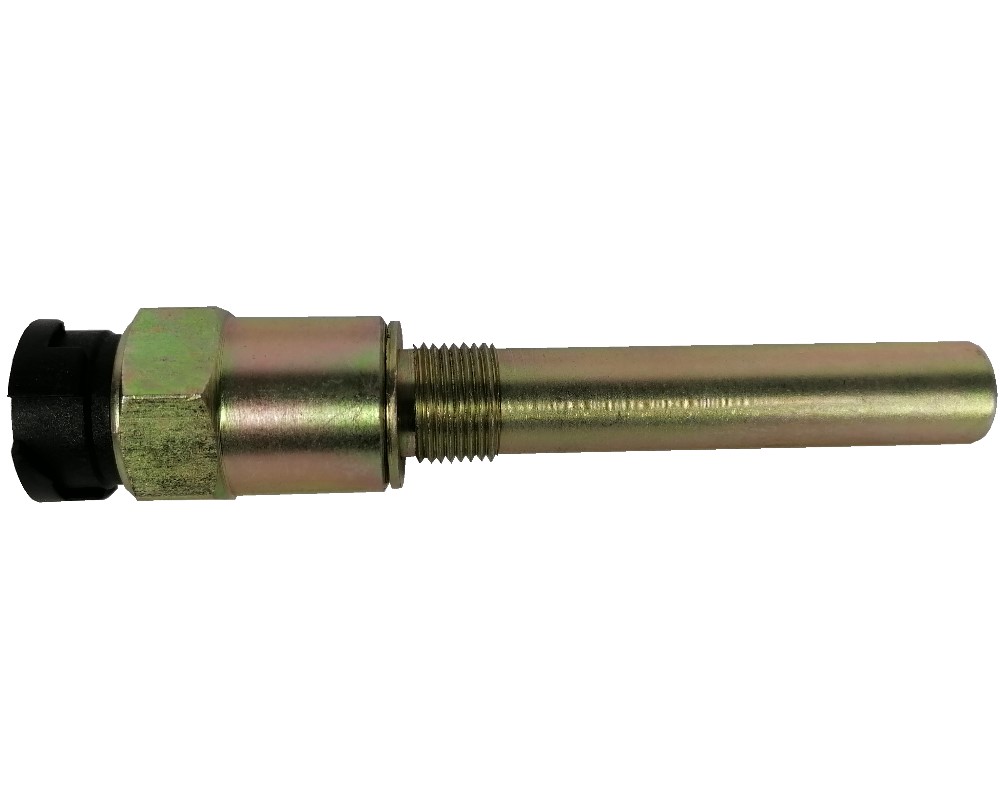

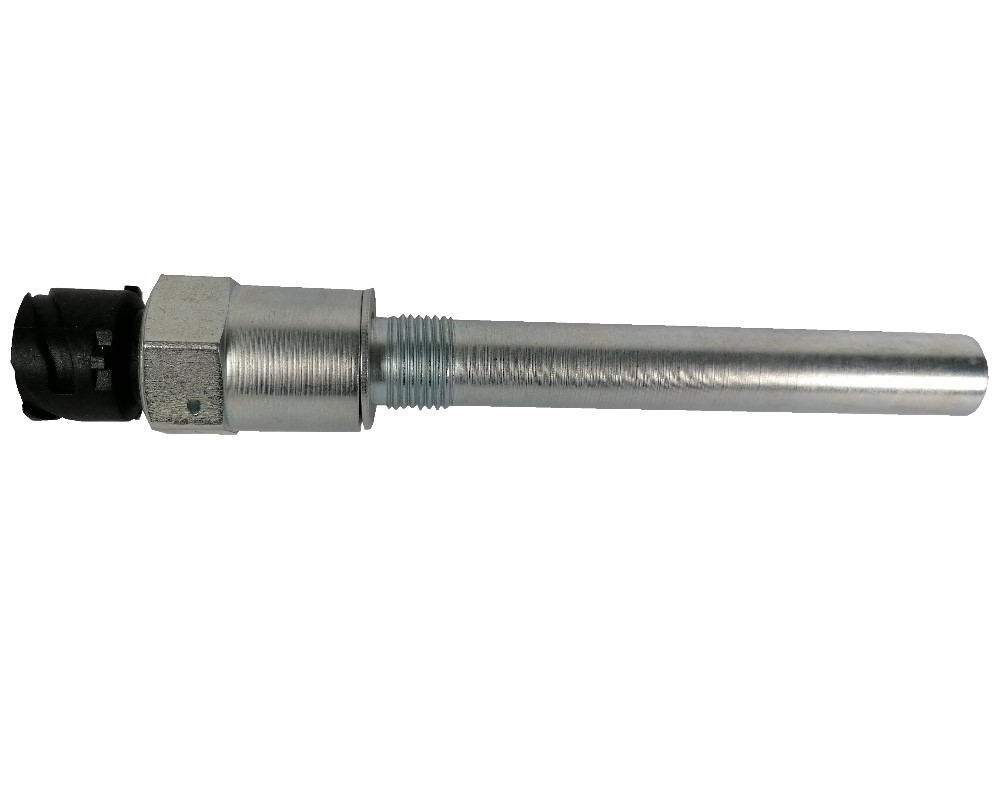

Length:	L: 19,8 mm, L: 25 mm, L: 35 mm, L: 63,2 mm, L: 90 mm, L: 115 mm
Operating Temperature:	-40°C ~+135°C
Output type:	NPN (OC)
Power Supply:	6.0V ~ 24V DC
Rise/Fall time:	10µs / 2µs
Sensing gap/distance:	1.0mm ~ 2.0mm
Sensing Object :	ferrous metal targets
Cross Reference:	Siemens VDO Sensors

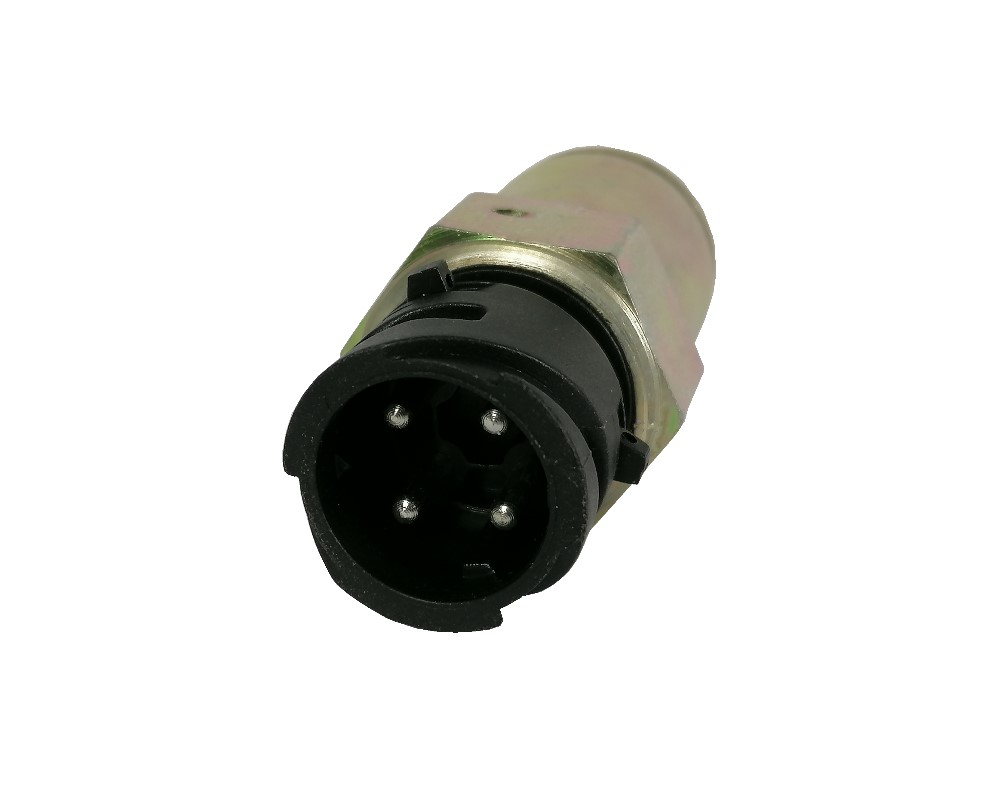

Pin type:	Flat, Round
