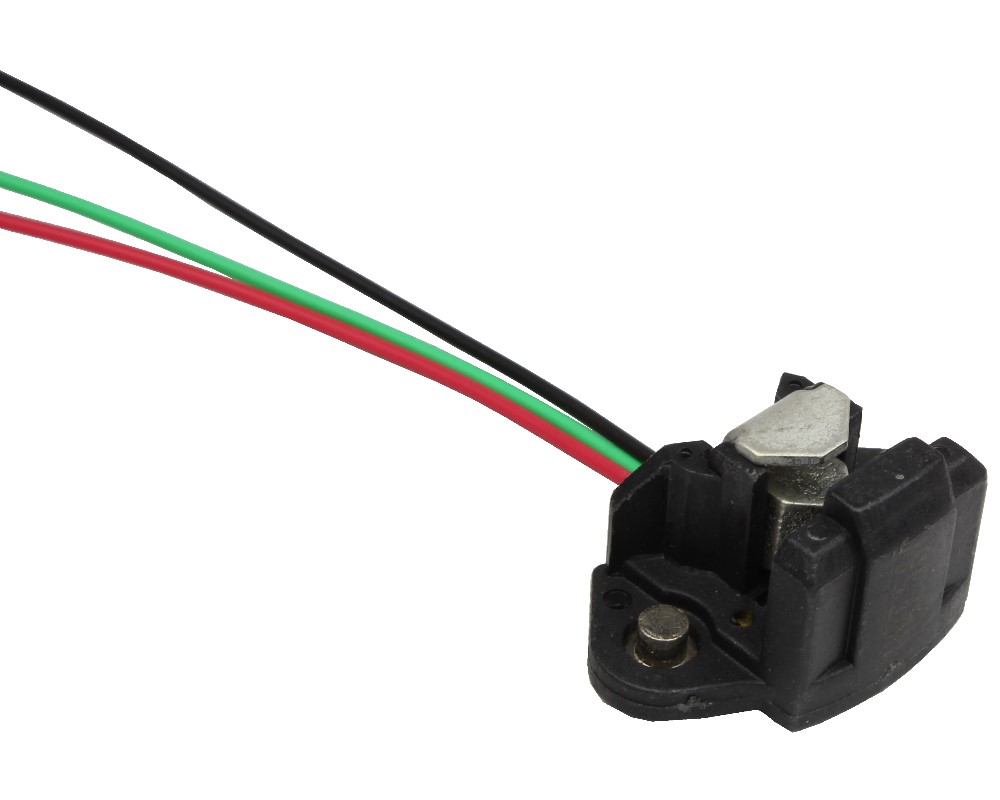

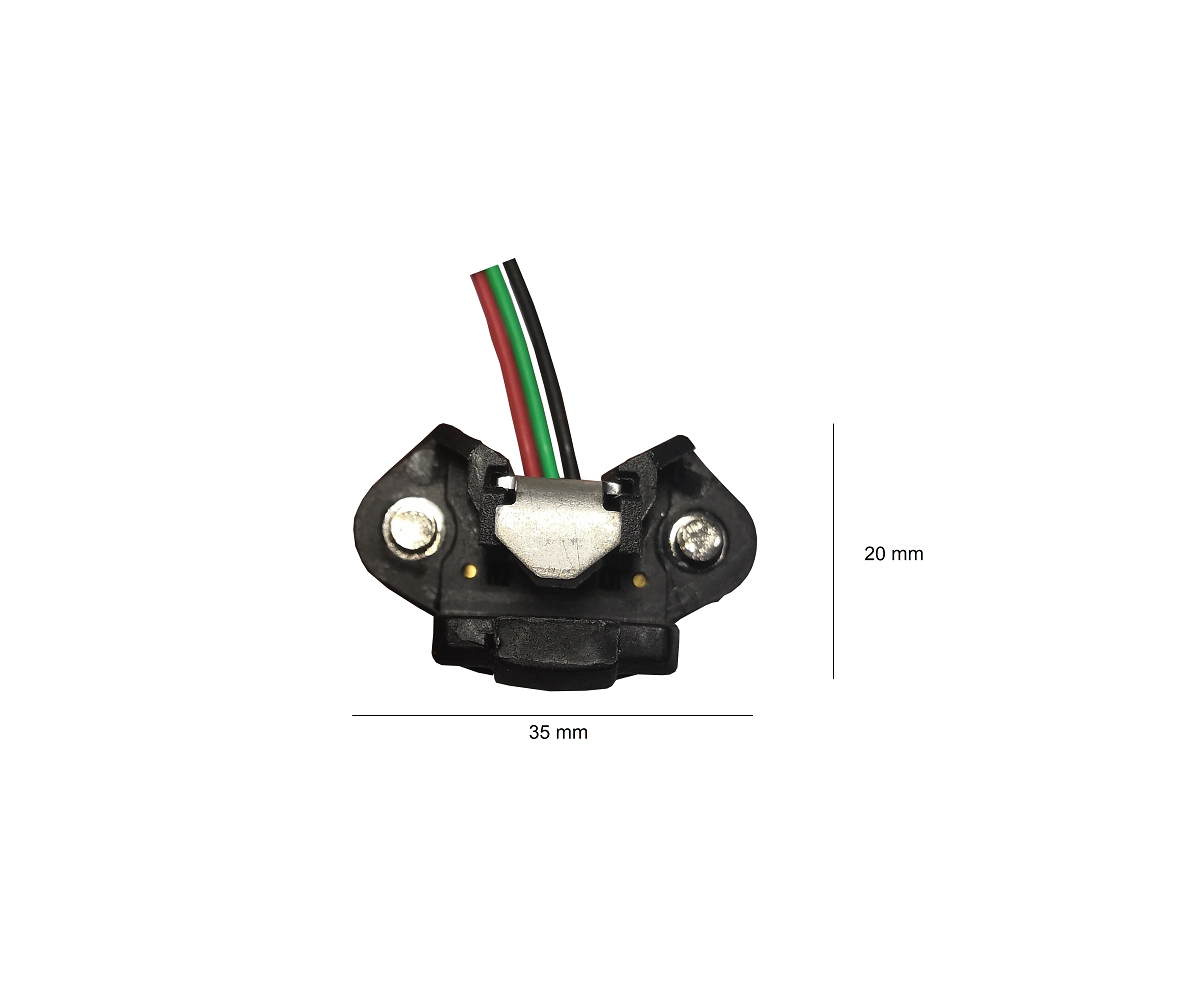

Hall-Effect Vane Sensor CYHME56, Output: NPN (OC), Power Supply: 4.5 V ~ 24 V DC, Alternative for: 2AV54, 2AV16A, 2AV51A, 2AV56 (Honeywell)

ChenYang Hall-Effect Vane Sensor CYHME56 is designed to work in the conditions of automobile environment. The device is produced in compliance with the international standard and has the features: modern design, accurateness, endurance, narrow temperature drifting, smooth and clean output curve as well as non instantaneous dithering.

The sensor is applicable to engines with electronic ejection. The main applications are in automobile industry, i.e. as a breaker-less trigger in electronic systems, in control engineering, especially in those areas where switches/ sensors must operate maintenance-free under harsh environmental conditions, e.g. rpm sensors, limit switches, position sensors, speed measurements, shaft encoders, scanning of coding disks etc.

The CYHME56 may be considered as a possible replacement or cross-reference type for 2AV54, 2AV16A, 2AV51A and 2AV56, depending on the specific application. Its electrical and mechanical characteristics are comparable; however, the circuitry principle may differ. The listed cross-reference types are provided for identification and comparison purposes only. Please verify suitability and compatibility using the technical specifications.

Features

• Contactless switch/sensor with open collector output (40mA)
• Static switching/sensing
• High switching/sensing frequency
• Hermetically sealed with plastic
• Unaffected by dirt, light and vibration
• Large temperature and voltage ranges
• Integrated protection of overvoltage etc.

If you require a different cable length, please send us a request via our Contact Form.
