Hall Effect Voltage Sensor CYHVS10-20A, Output: ±20 mA AC/DC, Power Supply: ±15 V DC, Measuring range: 0 ~ 1000 V AC/DC
Serial-Nr:
CYHVS10-20A
Article-Nr:
CYHVS10-20A
Product information "Hall Effect Voltage Sensor CYHVS10-20A, Output: ±20 mA AC/DC, Power Supply: ±15 V DC, Measuring range: 0 ~ 1000 V AC/DC"

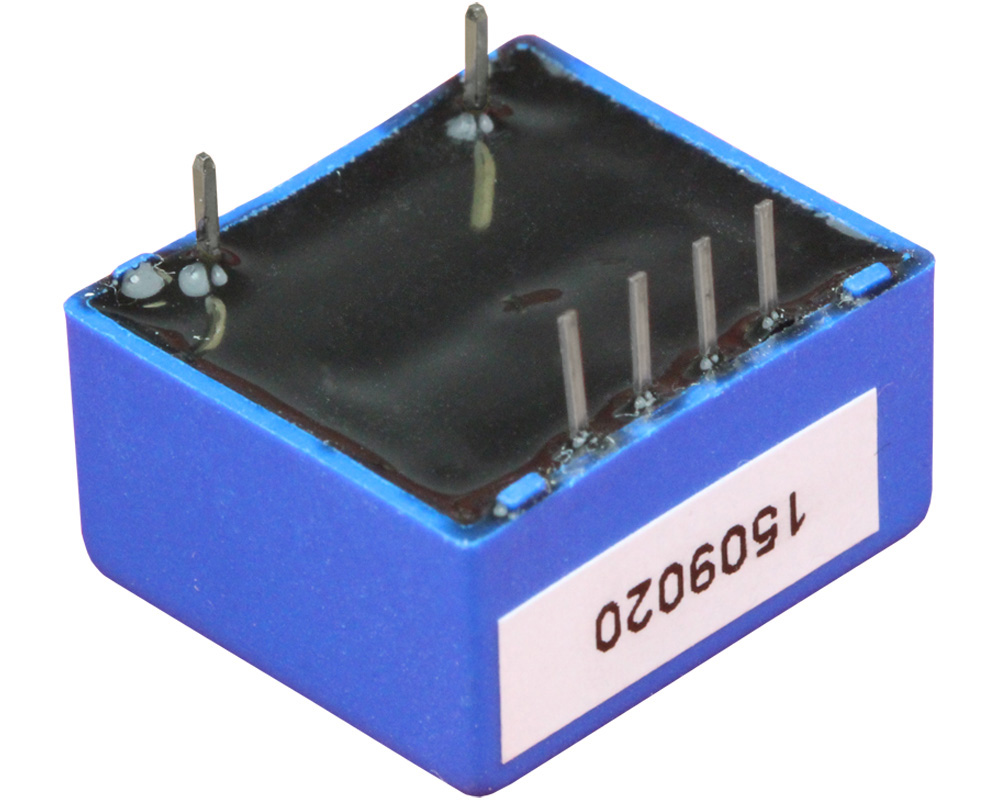

CYHVS10-20A is a Hall Effect Voltage sensor, which is based on Hall Effect closed loop and magnetic compensation principle. This sensor can be used for measuring DC and AC voltage with different wave forms. It has high electric isolation.
If you want to purchase higher quantities (beginnning from 100 pieces), contact us via our Contact Form.
Characteristics
- High electrical isolation
- High reliability
- Good overload capability
- Small sizes
- Insulated plastic case recognized according to UL94-V0
- Very good property-price ratio
Applications
- Switched Mode Power Supplies
- Uninterruptible power supplies (UPS)
- Overvoltage protection
- Feedback of control systems
- Electric power network monitoring
- AC frequency conversion servo-motors
- Various power supplies
- Power supply for welding applications
| Accuracy: | 0.5% |
|---|---|
| Measuring Range: | 0-1000V |
| Operating Temperature: | -40°C ~ +85°C |
| Output Signal: | ±20 mA AC/DC |
| Power Supply: | ±15 V DC |
| Rated Input Current/Voltage: | ±10mA |
| Response Time: | < 40µs |
