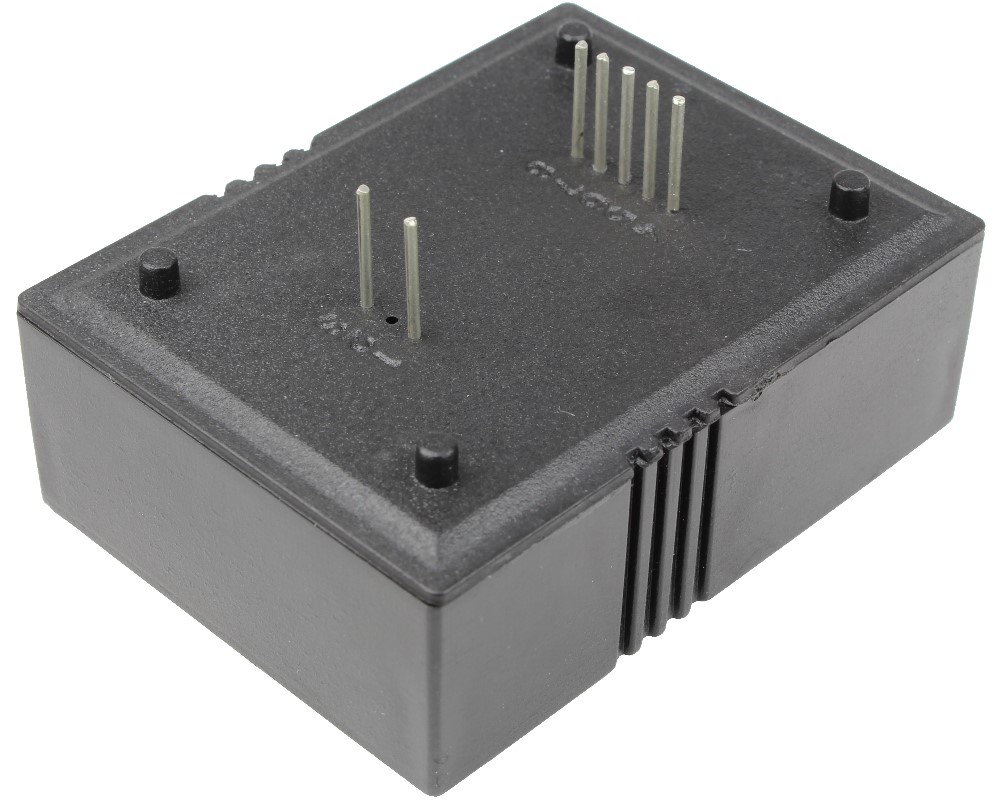

Hall Effect Voltage Sensor CYHVS800D, Output: ± 20 mA AC/DC, Power Supply: ±12 V ~ 15 V DC, Measuring range: 0-1000 V AC/DC
Serial-Nr:
CYHVS800D
Article-Nr:
CYHVS50D
Product information "Hall Effect Voltage Sensor CYHVS800D, Output: ± 20 mA AC/DC, Power Supply: ±12 V ~ 15 V DC, Measuring range: 0-1000 V AC/DC"
CYHVSxxxD is a Hall Effect Voltage sensor, which is based on Hall Effect closed loop and magnetic compensation principle. This sensor can be used for measuring AC and DC voltage with different wave forms. It has high electric isolation.
Characteristics
- High electrical isolation
- High reliability
- Good overload capability
- Small sizes
- Insulated plastic case recognized according to UL94-V0
Applications
- Switched Mode Power Supplies
- Uninterruptible power supplies (UPS)
- Overvoltage protection
- Feedback of control systems
- Electric power network monitoring
- AC frequency conversion servo-motors
- Various power supplies
| Accuracy: | 0,8% |
|---|---|
| Measuring Range: | 0-100V, 0-400V, 0-800V |
| Operating Temperature: | -40°C ~ +85°C |
| Output Signal: | ±20 mA AC/DC |
| Power Supply: | ±12V ~ ±15V DC |
| Rated Input Current/Voltage: | 50V, 200V, 400V, 500V, 800V |
| Response Time: | ≤100µs |
