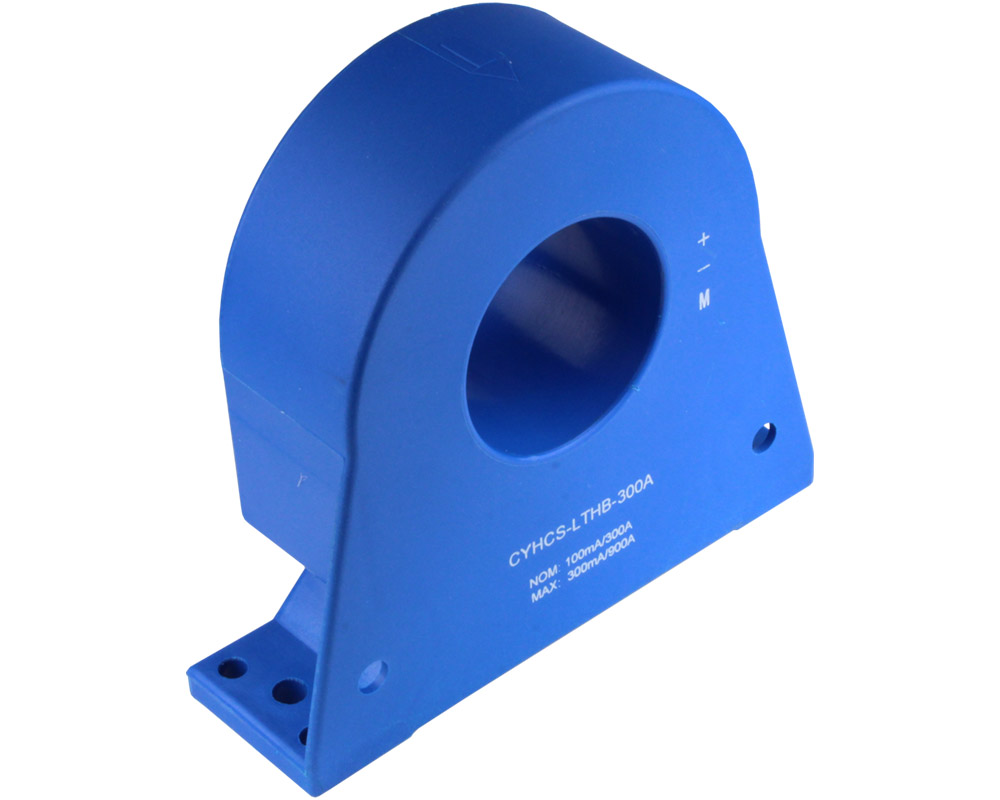

High Accurate Hall Effect AC/DC Current Sensor CYHCS-LTHB

This Hall Effect current sensor is based on closed-loop compensating principle and designed with high galvanic isolation between the primary conductor and secondary circuit. It can be used for the measurement of DC and AC current, pulse currents, etc. The output of the transducer reflects the real wave of the current-carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Small size and encapsulated
  • Less power consumption
  • Current overload capability

Applications

  • Photovoltaic equipment
  • General Purpose Inverters
  • AC/DC Variable Speed Drivers
  • Battery Supplied Applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies
Technical Properties
more
Close menu
Nominal Input Current: 0-300A, 0-400A, 0-500A
Sensor Type: Open-Loop
Power Supply: ±15V ~ ±24V DC
Output Signal: ±100 mA AC/DC
Current Type: AC/DC
Window Type: Round
Window Size (mm): Ø 35
Direction: bidirectional
Accuracy: 0.2%
Linearity: 0.1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 150kHz
Product Safety Information
Daten zum Produkthersteller more
Close menu

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
