Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

Back
Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT Preview: Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT


Order now in Online Store
Description Technical Properties Data Sheets
Description
The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux... more
Close menu
Linear Hall Effect Sensors Ics CYLF50, Max. Sensitivity: 10-14 (mV/mT) , Measuring range: 100mT

The CYLF50 Hall-effect sensors accurately track extremely small changes in magnetic flux density-changes generally too small to operate Hall-effect switches.

As motion detectors, gear tooth sensors, and proximity detectors, they are magnetically driven mirrors of mechanical events. As sensitive monitors of electromagnets, they can effectively measure a system’s performance with negligible system loading while providing isolation from contaminated and electrically noisy environments.

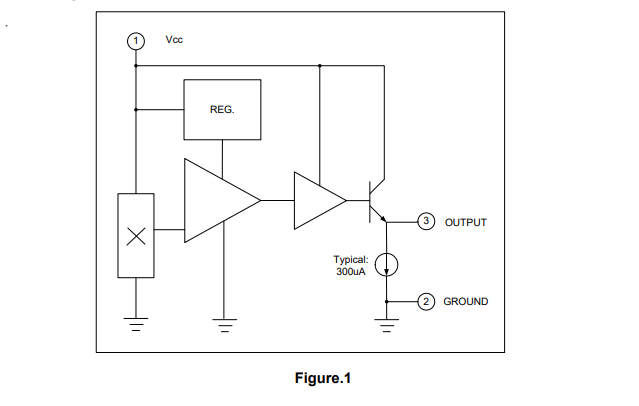

Each Hall-effect integrated circuit includes a Hall sensing element, linear amplifier, and emitter-follower output stage. Problems associated with handling tiny analog signals are minimized by having the Hall cell and amplifier on a single chip.

Characteristics

  • Very high sensitive
  • Flat response to 23 kHz
  • Lower low-noise output
  • 2.7V to 7V power supply
  • Package : SIP-3L

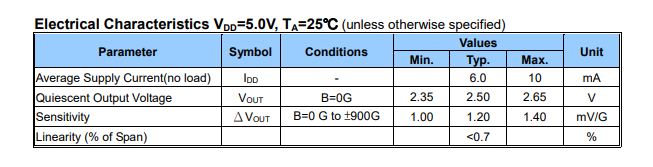

Technical Properties
more
Close menu
Operating Temperature: -20°C ~ +85°C
Quiescent Output voltage: 2.35 V ~ 2.65 V
Measuring range: 100mT

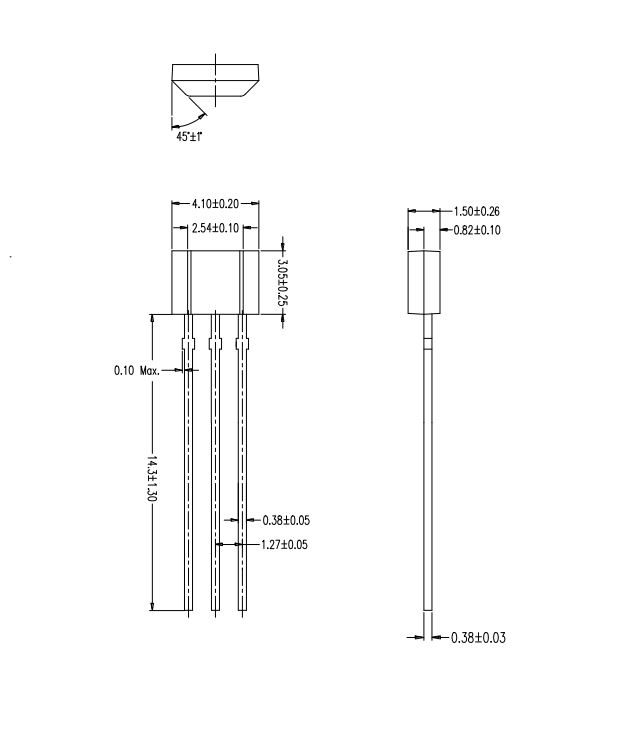

Package/Size: SIP3L/4.1x3.05x1.50mm
Max. Sensitivity: 10.0 ~ 14.0 mV/mT
Max. Supply current/voltage: 10 mA/7 V
Linearity: 0.7 %
Data Sheets
more
Close menu
Data sheets to download:
