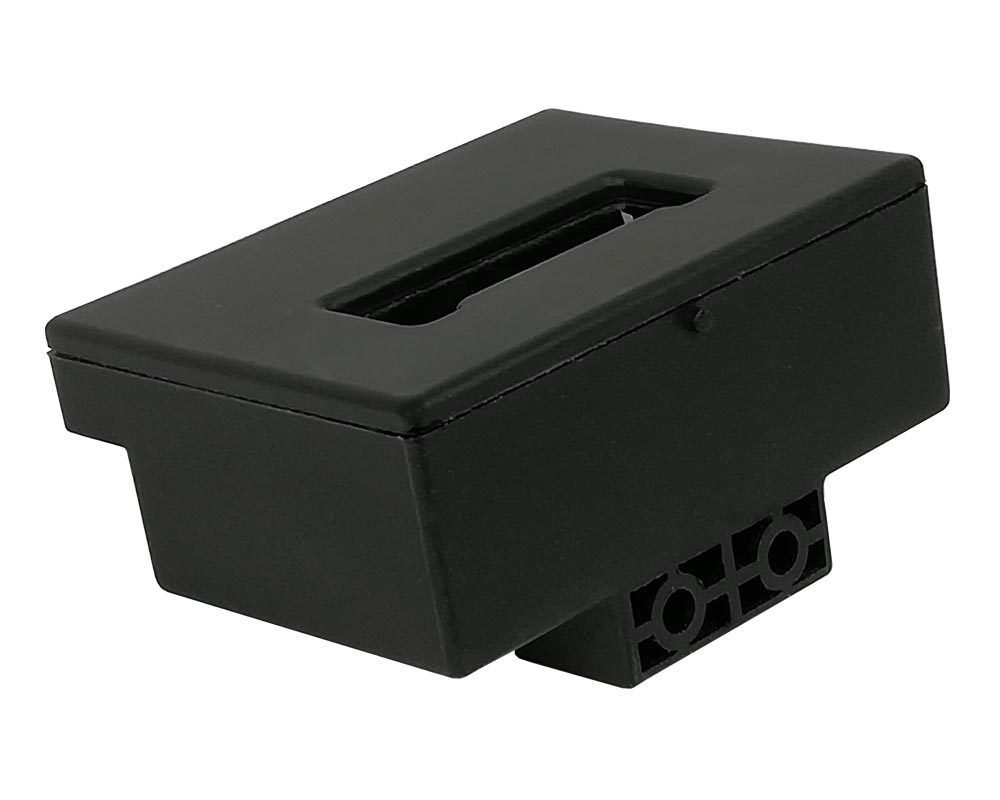

Open Loop Hall Current Sensor CYHCT-FC
Serial-Nr:
CYHCT-FC
Article-Nr:
CYHCT-FC.37
Product information "Open Loop Hall Current Sensor CYHCT-FC"
This Hall Effect current sensor is based on an open-loop compensating principle and designed with high galvanic isolation between the primary conductor and secondary circuit. It can be used for the measurement of DC current, DC pulse currents, etc. The output of the transducer reflects the real wave of the current-carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Less power consumption
- Window structure
- Electrically isolating the output of the transducer from the current-carrying conductor
- No insertion loss
- Current overload capability
Applications
- Photovoltaic equipment
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Transformer substation
- Numerical controlled machine tools
- Electrically powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
| Accuracy: | 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Frequency Bandwith: | DC ~ 20kHz |
| Linearity: | 0.5% |
| Nominal Input Current: | 0-200A, 0-400A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-2000A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | 4-20 mA DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | 41 x 14 |
| Window Type: | Rectangle |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
