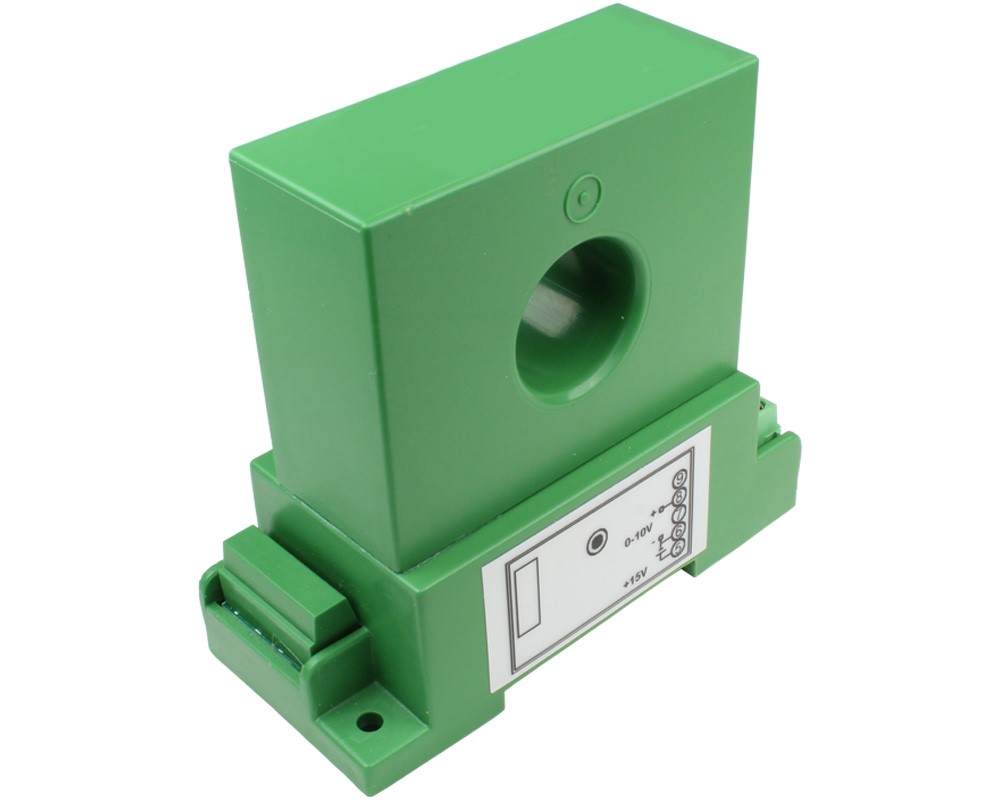

Self-Powered AC Current Sensor CYCS11-x0S3
Serial-Nr:
CYCS11-x0S3
Article-Nr:
CYCS11-x0S3.6
Product information "Self-Powered AC Current Sensor CYCS11-x0S3"
The sensor CYCS11-x0S3 is a self-powered single phase ac current transducer. The input and outputs are electrically isolated from each other. It needs no external power supply. Its ac current input is achieved by passing through the aperture Ø20mm of the case. The output is voltage 0-5V DC, 0-10VDC or instantaneous value ±5V. It can be widely applied to various measuring and controlling systems such as communication system, electrical power system, railway and various industrial control systems.
Application
- Multi-point current sensing and control panels
- Monitor motor faults
- Monitor heating elements
- Monitor lighting elements
| Accuracy: | 1% |
|---|---|
| Current Type: | AC |
| Nominal Input Current: | 0-2A, 0-5A, 0-10A, 0-20A, 0-50A, 0-75A, 0-100A, 0-150A, 0-200A |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 0-5 V DC, 0-10 V DC |
| Power Supply: | None |
| Response Time: | ≤500ms |
| Window Size (mm): | Ø 20 |
| Window Type: | Round |
