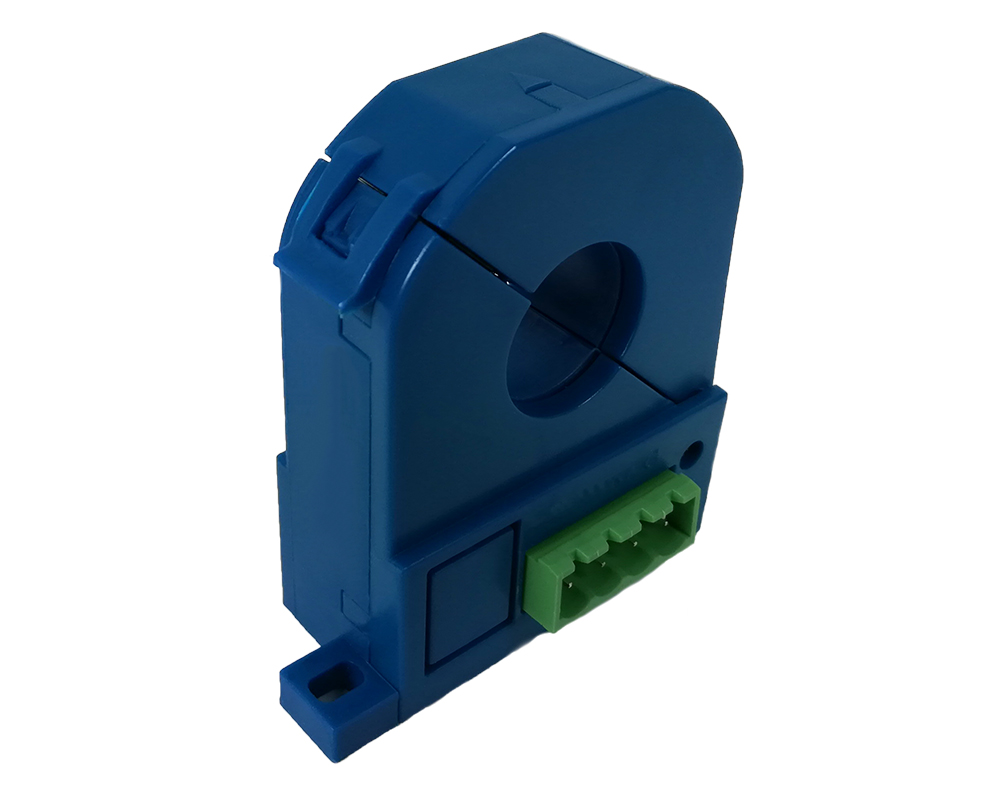

Split Core DC Leakage Current Sensor CYCT04-xnST
Serial-Nr:
CYCT04-xnST
Article-Nr:
CYCT04-xnST.17
Product information "Split Core DC Leakage Current Sensor CYCT04-xnST "
This Leakage Sensor is based on magnetic modulation and compensation principle, and can be used for measurement of small DC current and leakage current, current difference between two or more conductors.
Product Characteristics:
- Application of Computer Aided Ageing Technology -
- 100% Ageing Processing and Thermal Drift Test under high operating temperature in order to guarantee the long term stability of the sensors -
- Custom makeable according to individual requirements -
- Various current and voltage outputs are selectable -
- Power supply options: ±12VDC and ±15VDC -
- Sensors with window for contactless measurements
Applications:
- Isolation Monitoring of DC power systems and cable selection systems,
- Measurements of small DC currents and leakage currents etc.
| Accuracy: | 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Operating Temperature: | -10°C ~ +60°C |
| Output Signal: | 0-5 V DC, tracing voltage ±5 V DC |
| Power Supply: | ±12 V DC, ±15 V DC |
| Rated Input Current/Voltage: | 0-1A, 0-100mA, 0-200mA, 0-300mA, 0-400mA, 0-500mA, 0-600mA, 0-700mA, 0-800mA, 0-900mA |
| Response Time: | ≤120ms |
| Window Size (mm): | Ø 19 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
