Split Core Hall Effect AC/DC Current Sensor CYHCS-EKGT, Output: 2,5 V DC ±2 V AC/DC , Power Supply: +12 V DC, Window: Ø 20,5 mm
Serial-Nr:
CYHCS-EKGT
Article-Nr:
CYHCS-EKGT-100A
Product information "Split Core Hall Effect AC/DC Current Sensor CYHCS-EKGT, Output: 2,5 V DC ±2 V AC/DC , Power Supply: +12 V DC, Window: Ø 20,5 mm"

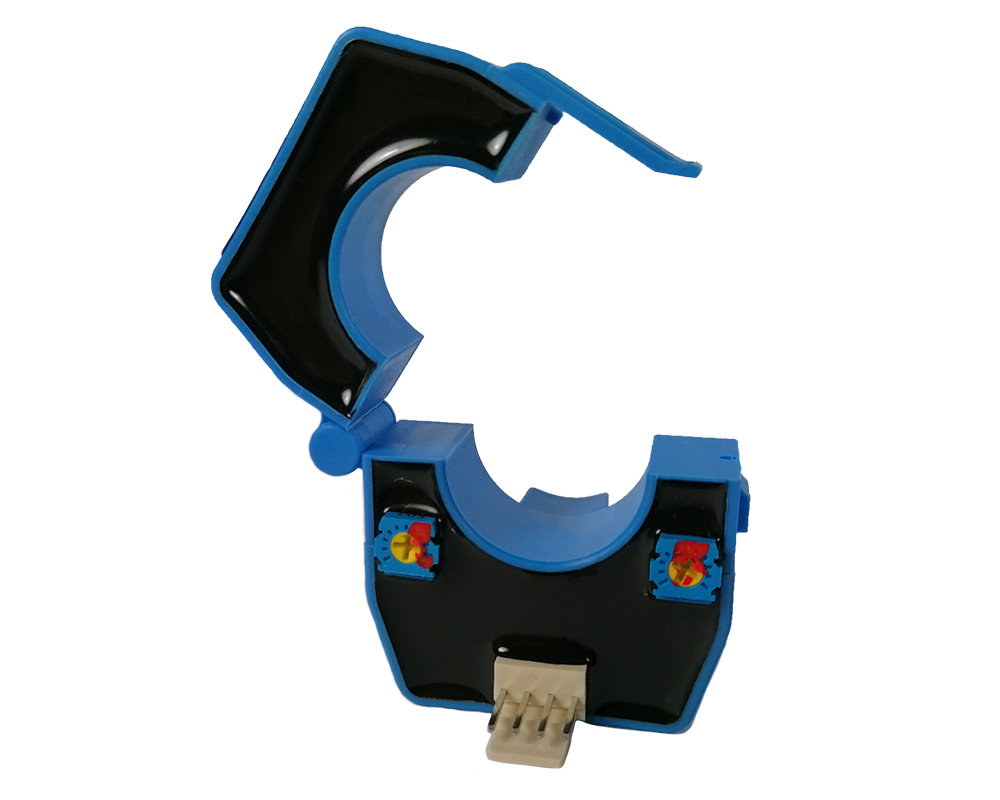

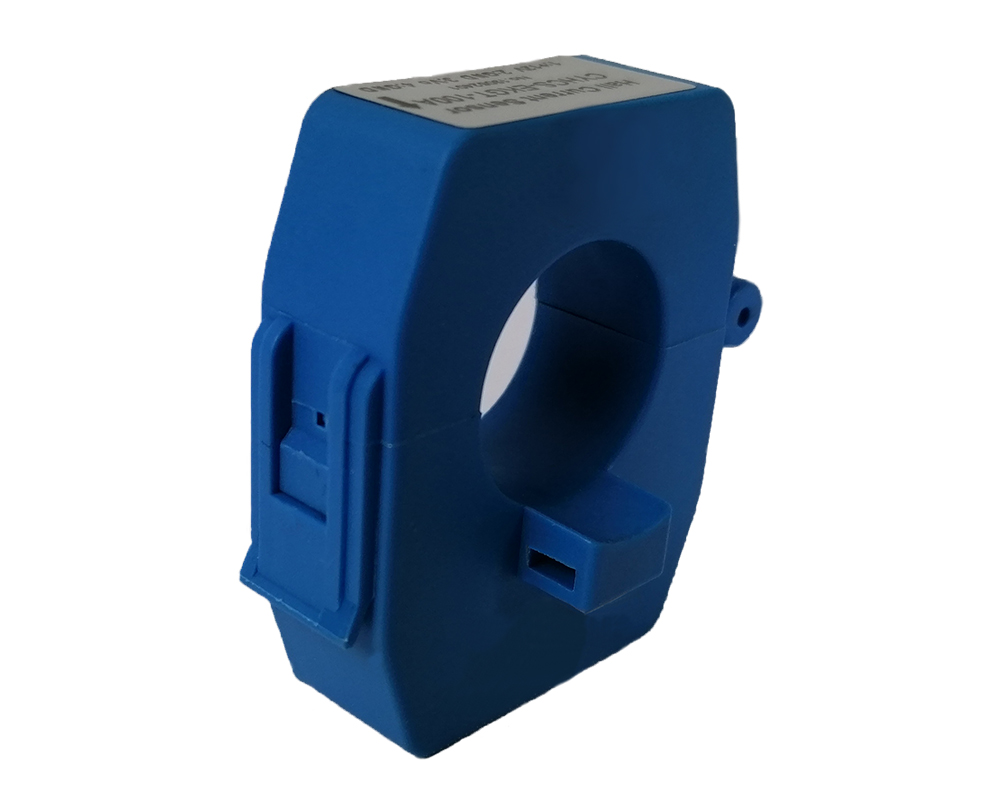

This Hall Effect current sensor is based on open-loop principle and designed with a split core and high galvanic isolation between the primary conductor and secondary circuit. It can be used for measurement of AC/DC current etc. The output of the transducer reflects the real wave of the current-carrying conductor. It can be mounted on the primary cable directly.
Product Characteristics:
- Excellent accuracy
- Very good linearity
- Light in weight
- Less power consumption
- Window structure, easily mounting
- Electrically isolating the output of the transducer from the current-carrying conductor
- No insertion loss
- Current overload capability
Applications:
- Photovoltaic equipment
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Numerical controlled machine tools
- Electrolyzing and electroplating equipment
- Electrically powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
| Accuracy: | 1% |
|---|---|
| Current Type: | AC/DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC - 20 kHz |
| Linearity: | 1% |
| Nominal Input Current: | 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | +2,5 V ± 2 V AC/DC |
| Power Supply: | +12 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | Ø 20,5 |
| Window Type: | Round |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
