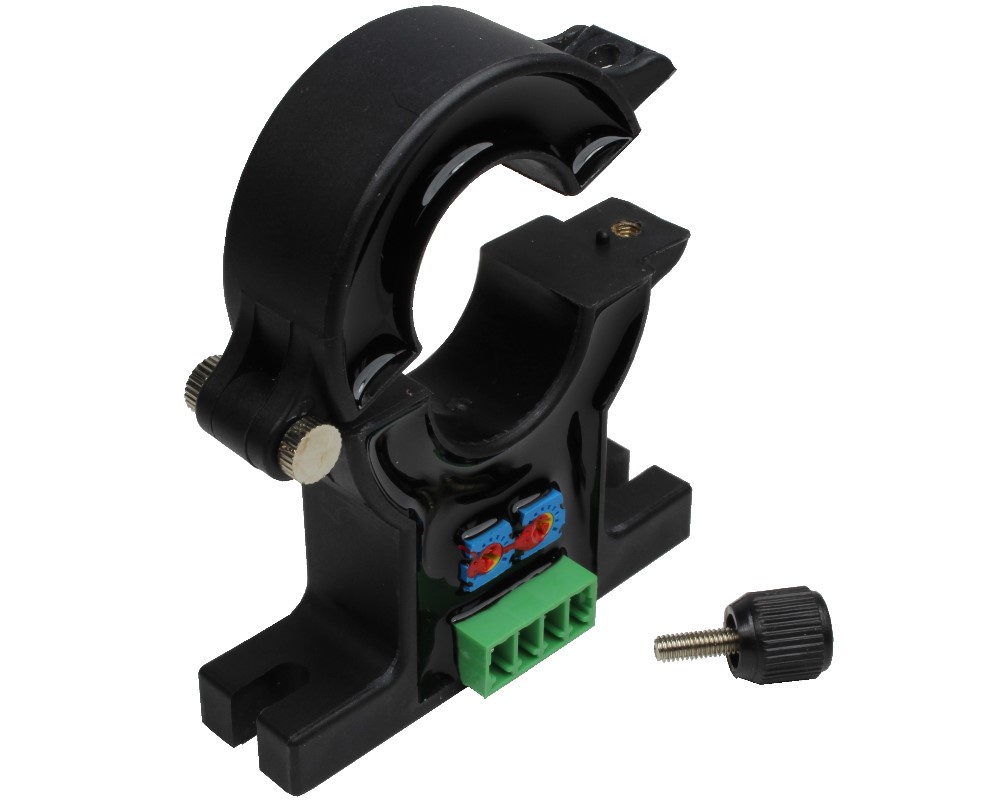

Split Core Hall Effect DC Current Sensor CYHCT-C2TV

This Hall Effect current sensor is based on open loop principle and designed with a split core and a high galvanic isolation between primary and secondary circuits. It can be used for measurement of DC current etc. The output of the transducer reflects the real wave of the current carrying conductor.

If the sensors offered don't have the input current which you require, contact us via our Contact Form.

Characteristics

  •  Excellent accuracy
  • Very good linearity
  • Light in weight
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability

Applications

  • Photovoltaic equipment
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Numerical controlled machine tools
  • Electrolyzing and electroplating equipments
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring
Nominal Input Current: 0-25A, 0-30A, 0-40A, 0-50A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-600A
Sensor Type: Open-Loop
Power Supply: +10 V DC ~ +16 V DC, +12 V DC, +15 V DC, +24 V DC
Output Signal: 0-4 V DC, 0-5 V DC, 0-10 V DC
Current Type: DC
Window Type: Round
Window Size (mm): Ø 21
Direction: unidirectional, bidirectional
Accuracy: 1%
Linearity: 1%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
