Split Core Hall Effect DC Current Sensor CYHCT-L35B
Serial-Nr:
CYHCT-L21K
Article-Nr:
CYHCT-L35B.137
Product information "Split Core Hall Effect DC Current Sensor CYHCT-L35B"

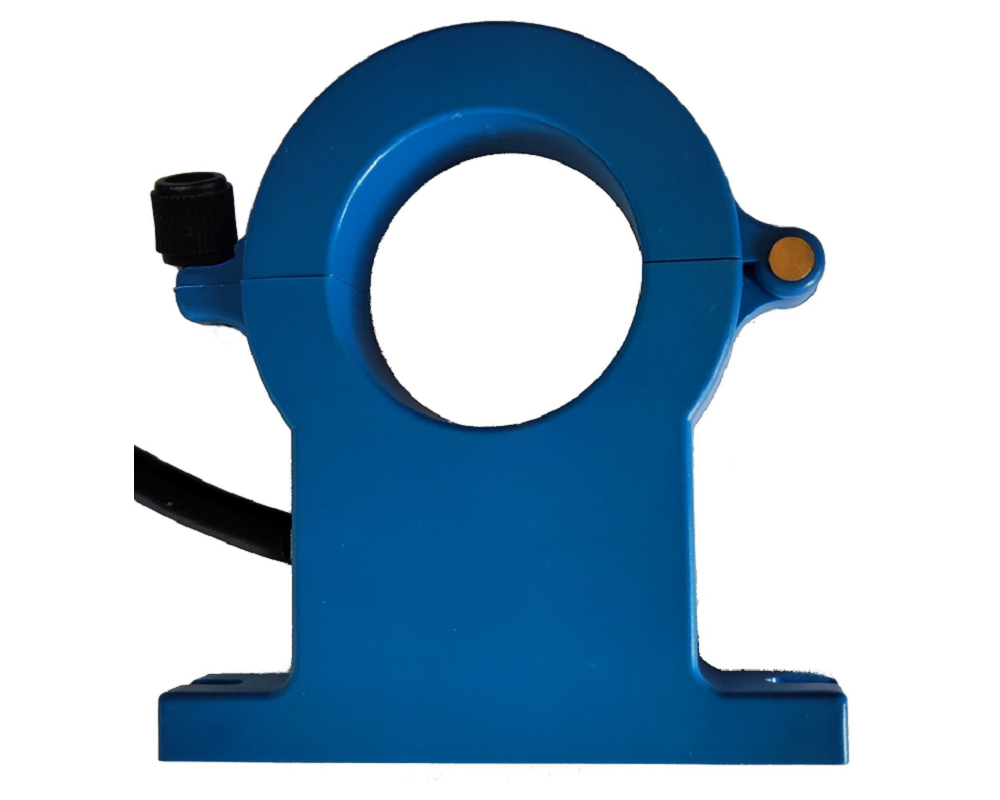

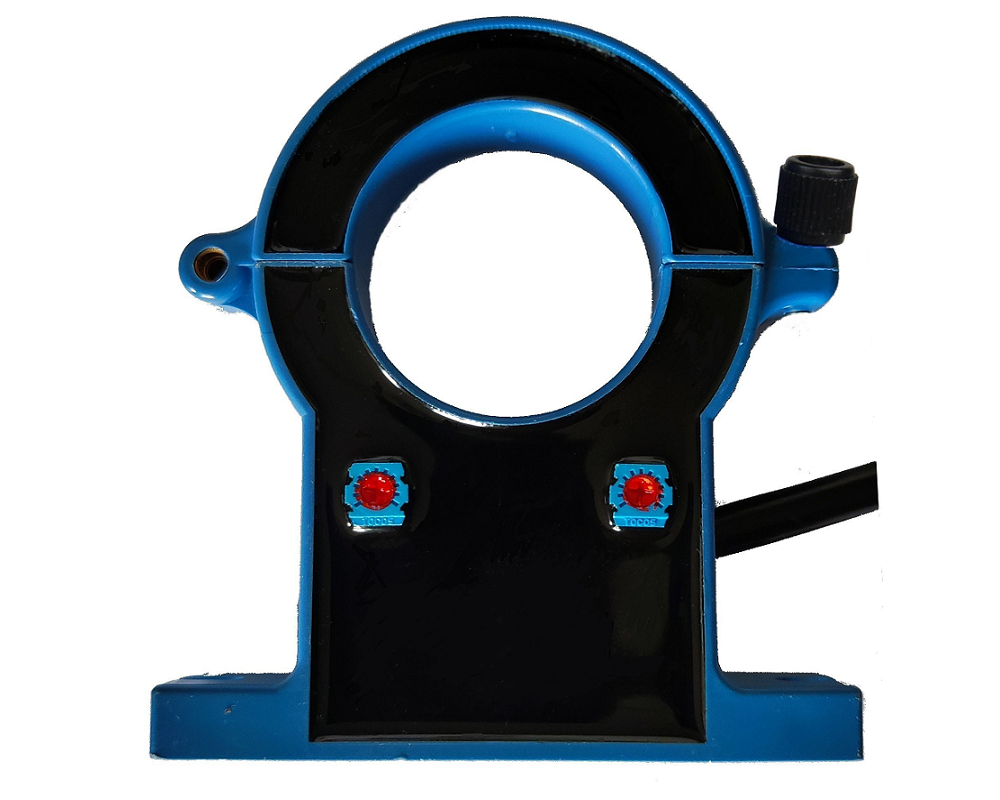

The Hall Effect current sensor CYHCT-L35B is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of bidirectional DC current, DC pulse currents etc. The output of the transducer reflects the real wave of the input current in the carrying conductor.
Features and Advantages
- DC current measurement
- Output signal option (4-20mA, 0-5V, 0-10V)
- High isolation between primary and secondary circuits
- No insertion losses
- Split Core, easy installation
- Temperature compensation
Applications
- Photovoltaic equipment
- Battery banks, such as, monitoring load current and charge current, verifying operation
- Transportation, measuring traction power or auxiliary loads
- Phase fired controlled heaters
- Directly connect to PLC
- Sense motor stalls and short circuits
- Industrial instrumentation
| Accuracy: | 0.5%, 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional |
| Frequency Bandwith: | DC – 8kHz |
| Linearity: | 0.2 %, 0.5% |
| Nominal Input Current: | 0-50A, 0-60A, 0-70A, 0-80A, 0-90A, 0-100A, 0-200A, 0-300A, 0-400A, 0-500A, 0-800A, 0-1000A |
| Operating Temperature: | -40°C ~ +85°C |
| Output Signal: | : 0~±5V DC, : 0~±20mA DC, 0~±10V DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | Ø 35 |
| Window Type: | Round |
