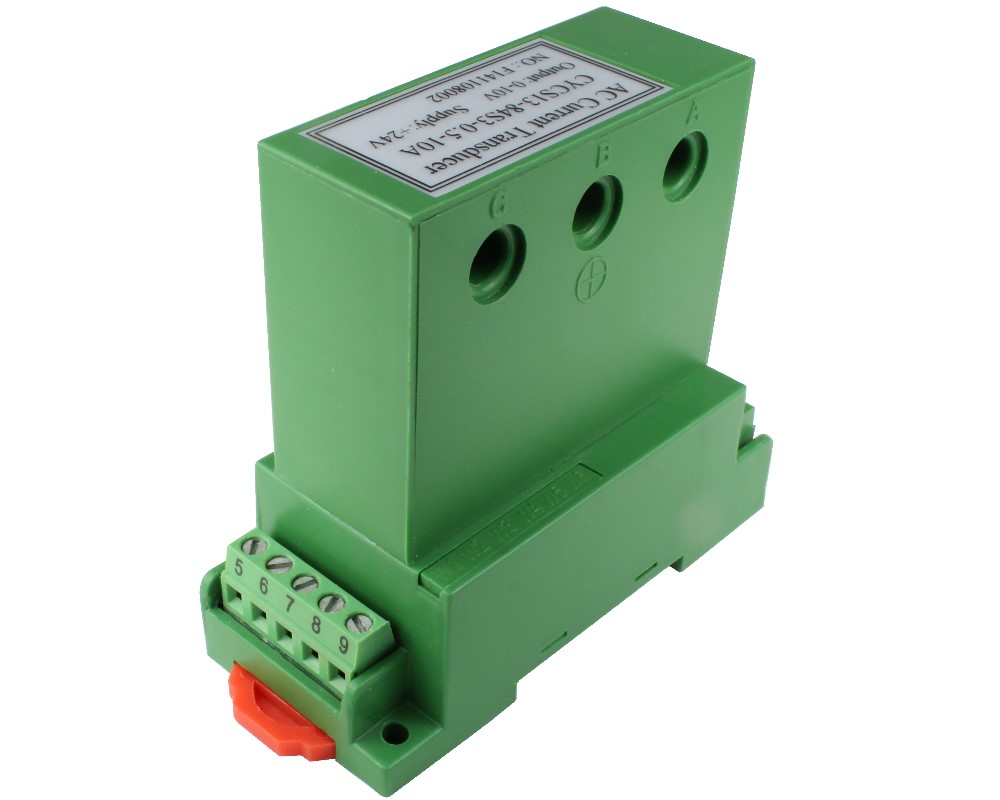

Three Phase AC Current Sensor CYCS13-xnS3

The CYCS13-xnS3 AC current Sensor/Transducer works according electro-magnetic induction and is designed for applications to measurement and monitoring of three phase AC current. The output signals (DC voltage or current) of this transducer are proportional to the rectified average values of input AC currents. They are suitable for general applications such as fixed frequency voltage supplies and sinusoid currents etc.

Application

  • Phase fired controlled heaters
  • Quickly varying motor loads
  • Chopped wave form drivers
  • Harmonic currents
Nominal Input Current: 0-1A, 0-2A, 0-5A, 0-10A, 0-15A, 0-25A
Power Supply: +12 V DC, +15 V DC, +24 V DC
Accuracy: 0.5%
Response Time: 300ms
Output Signal: 0-5 V DC, 0-10 V DC, 0-20 mA DC, 4-20 mA DC, instantaneous voltage ±5V DC
Operating Temperature: -10°C ~ +60°C
Window Type: Round
Current Type: AC
Window Size (mm): 3 x Ø 6,5
Daten zum Produkthersteller more

Manufacturer:

Company name: ChenYang Technologies GmbH & Co.KG

Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland

E-Mail: info@chenyang.de

Phone: +49 8121 2574100
