Open Loop Hall Effect Sensors with Rectangle Window
We are dedicated to providing you with the highest quality products suited to your needs.
Hall Effect current sensors are often utilized in performance optimization and monitoring, for automobile electronics, renewable energy equipment, as well as current and voltage control in many other industrial applications. Open-loop sensors offer excellent value for money and are ideal for applications where you have to minimize power consumption, size, and weight. They are lightweight, inexpensive, and do not suffer significant damage from excessive overcurrent.
A comprehensive introduction to Hall Effect Current Sensor you find here.
To find the Open Loop Hall Effect Current Sensors that fit your technical specifications the best, we highly recommend using the filter function.
Serial: CYHCS-FC
Rated Input Current:
0~±200A to 0~±2000A AC
Rated Output Current:
4~20mA DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
41x14 mm
Connector:
Molex

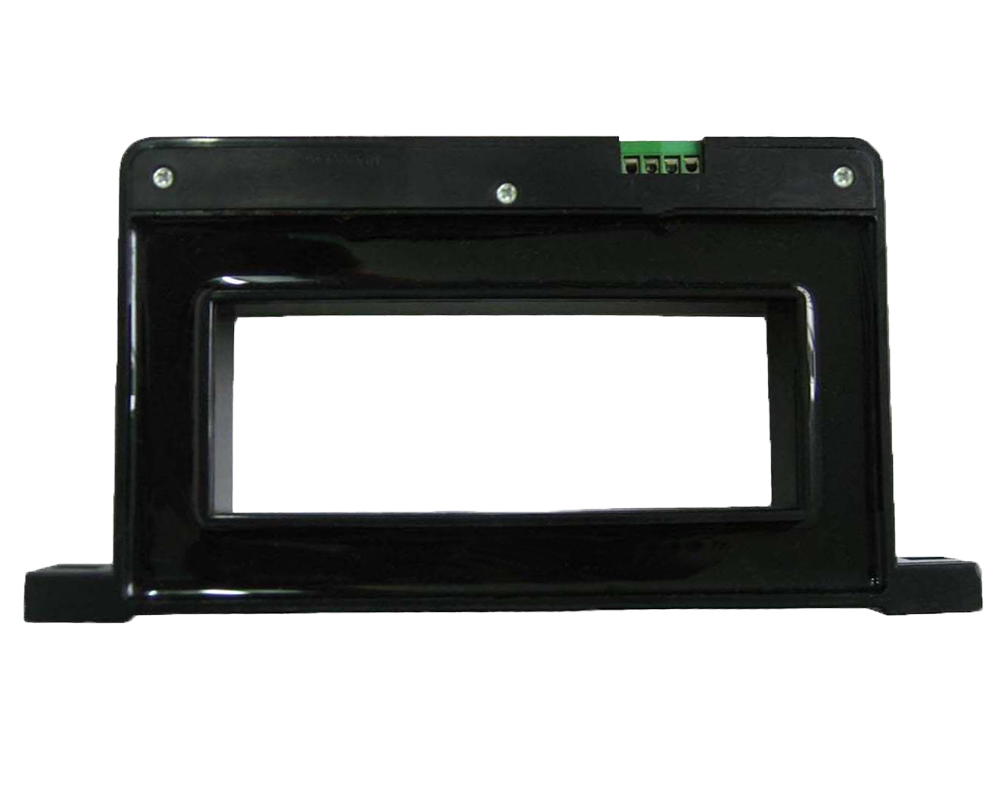

Serial: CYHCS-HBV
Rated Input Current:
0~2000A to 0~10000A AC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V ,+15V or +24V DC
Window Size:
140 x 50 mm
Connector:
Screw
Serial: CYHCS-HBC
Rated Input Current:
0~2000A to 0~10000A AC
Rated Output Current:
4~20mA DC ±1.0%
Power Supply:
+12V ,+15V or +24V DC
Window Size:
140 x 50 mm
Connector:
Screw

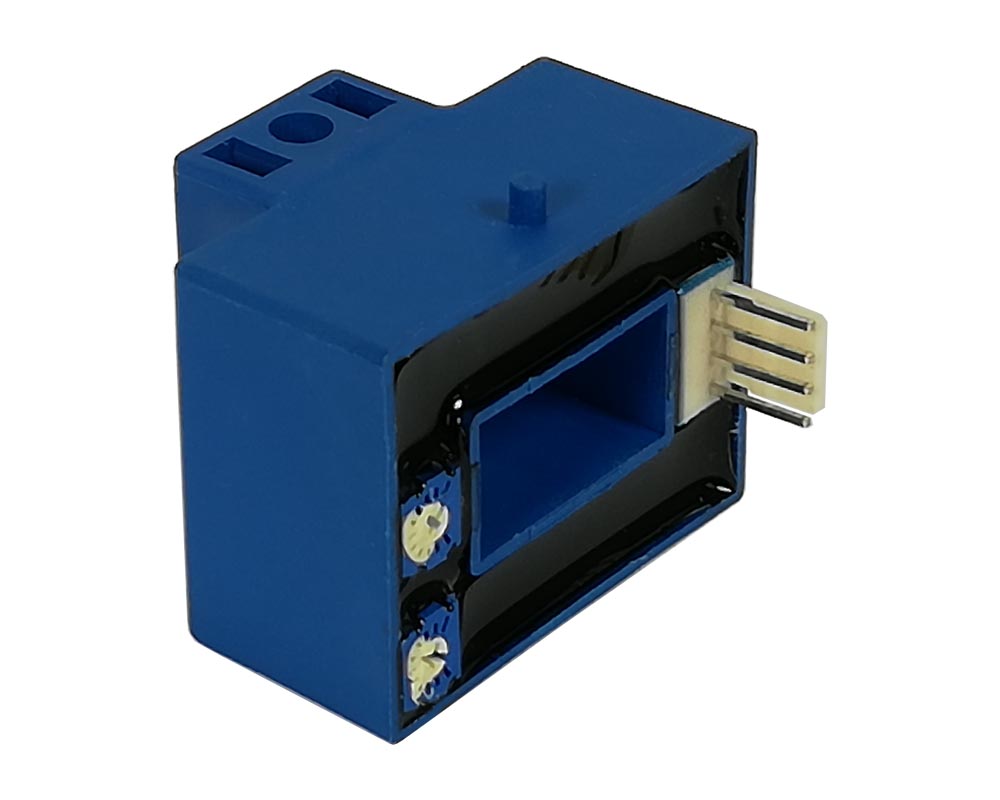

Serial: CYHCS-K3/BR
Rated Input Current:
0~±50A to 0~±600A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±15V DC
Window Size:
20.5x10.5 mm
Connector:
Molex or Cable

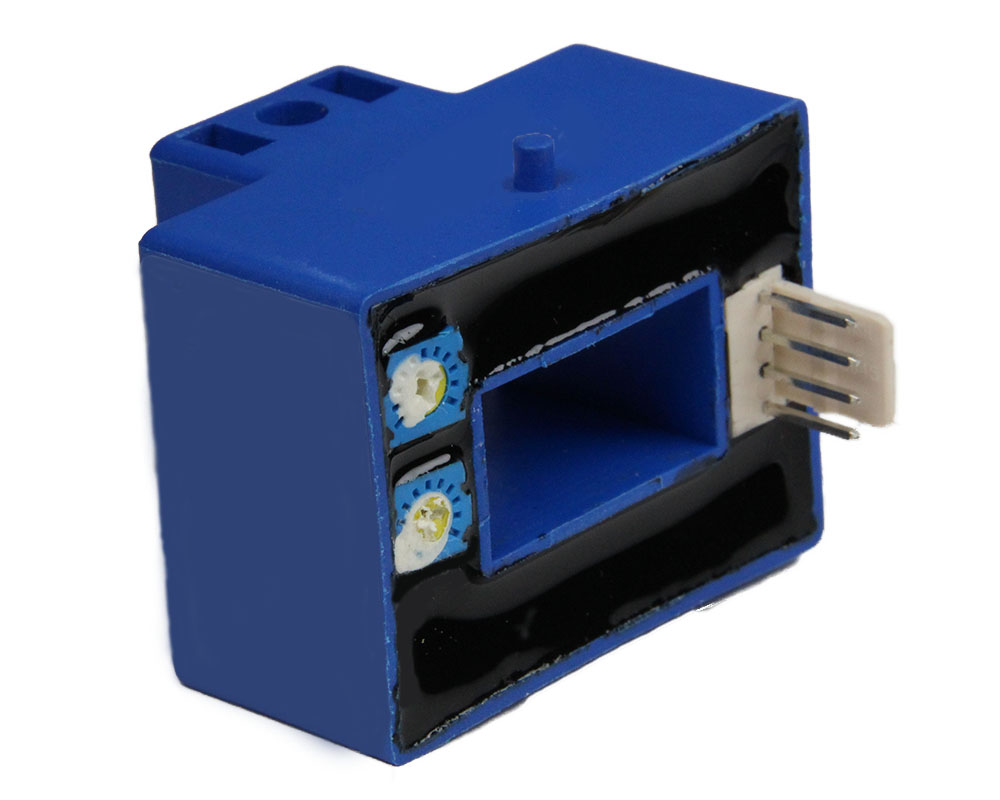

Serial: CYHCS-BS5
Rated Input Current:
0~±50A to 0~±600A AC/DC
Rated Output Voltage:
2.5V DC ±1V AC/DC ±1.0%
Power Supply:
+5V DC
Window Size:
20.5x10.5mm
Connector:
Molex

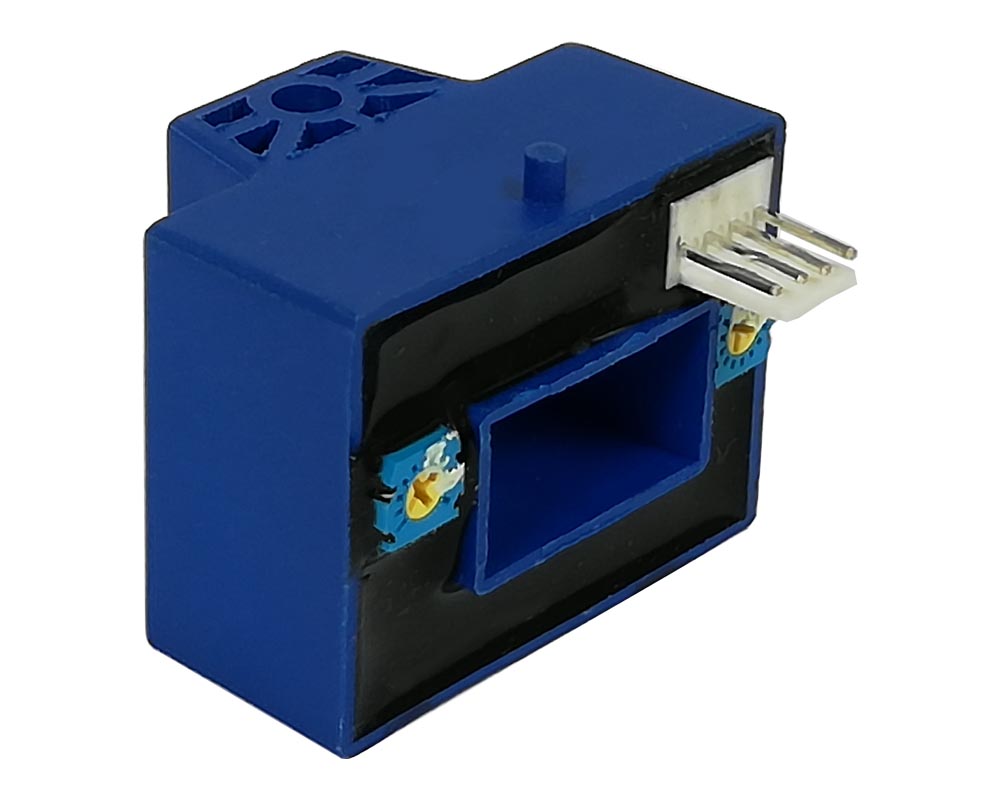

Serial: CYHCS-BSR565
Rated Input Current:
0~±50A to 0~±600A AC/DC
Rated Output Voltage:
2.5V DC ± 0.625V AC/DC ±1.0%
Power Supply:
+5V DC
Window Size:
20.6x10.5mm
Connector:
Molex
Serial: CYHCS-BT
Rated Input Current:
0~±50A to 0~±600A AC/DC
Rated Output Voltage:
5V DC ±2V AC/DC ±1.0%
Power Supply:
+12V ,+15V or +24V DC
Window Size:
20.5x10.5mm
Connector:
Molex

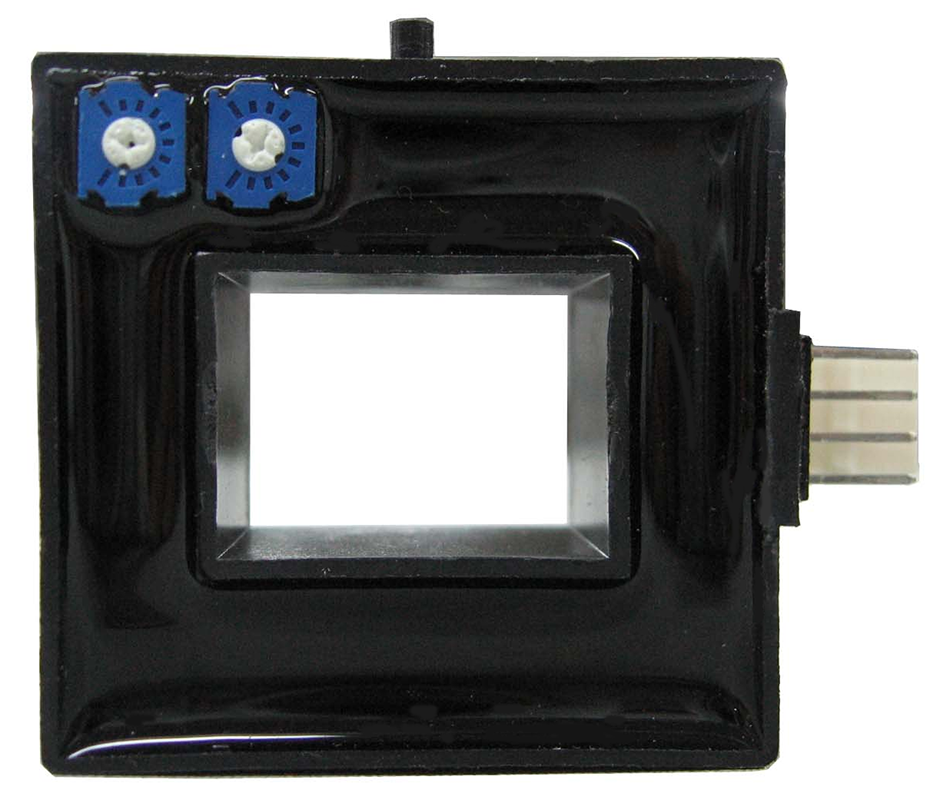

Serial: CYHCS-N
Rated Input Current:
0~±100A to 0~±600A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±15V DC
Window Size:
22x16 mm
Connector:
Molex or PCB Mounting

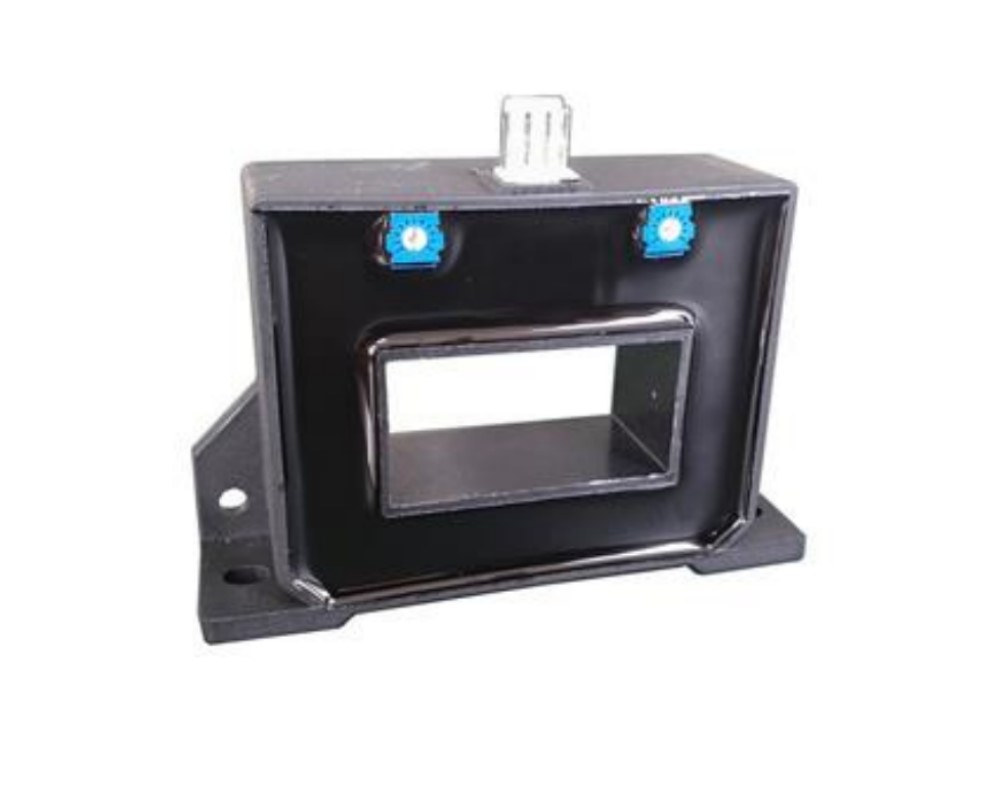

Serial: CYHCS-BF
Rated Input Current:
0~±100A to 0~±1000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
40.5x20.5 mm
Connector:
Molex

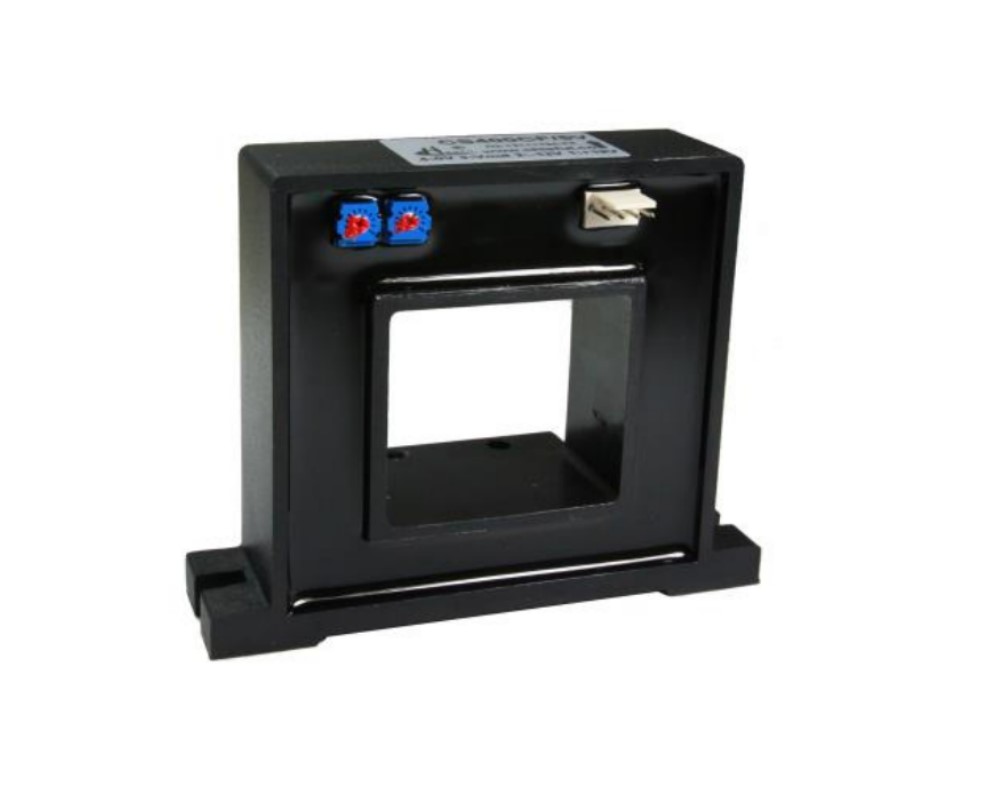

Serial: CYHCS-CF
Rated Input Current:
0~±200A to 0~±1500A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
42x37 mm
Connector:
Molex

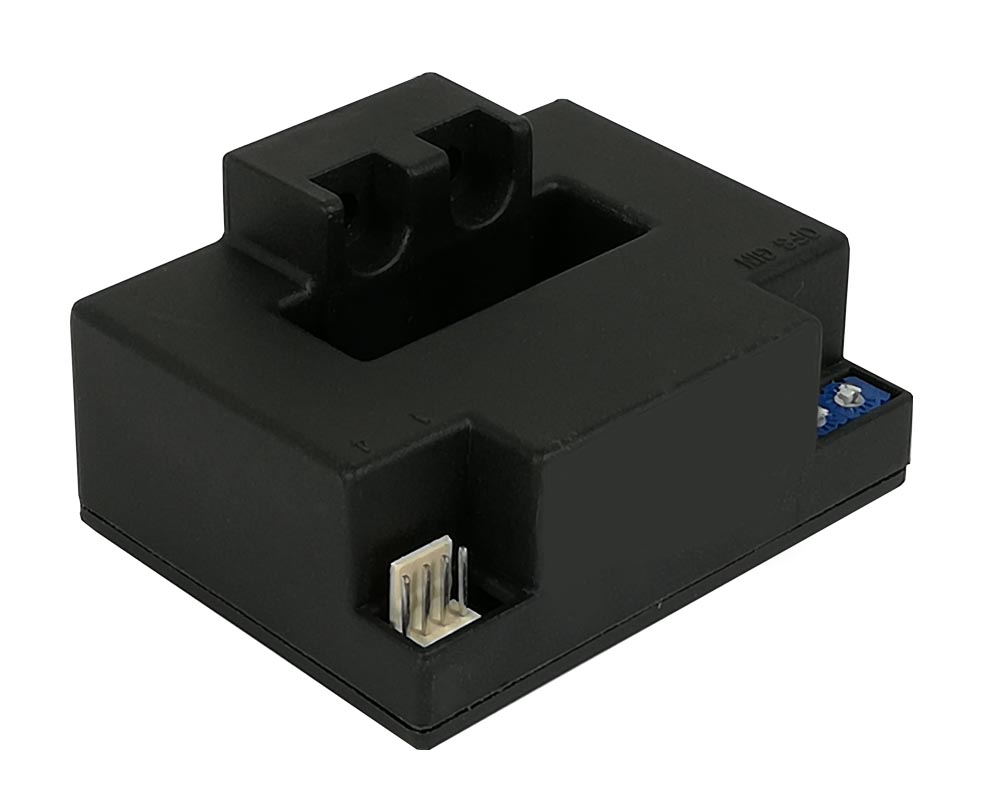

Serial: CYHCS-F
Rated Input Current:
0~±200A to 0~±2000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
41x14 mm
Connector:
Molex

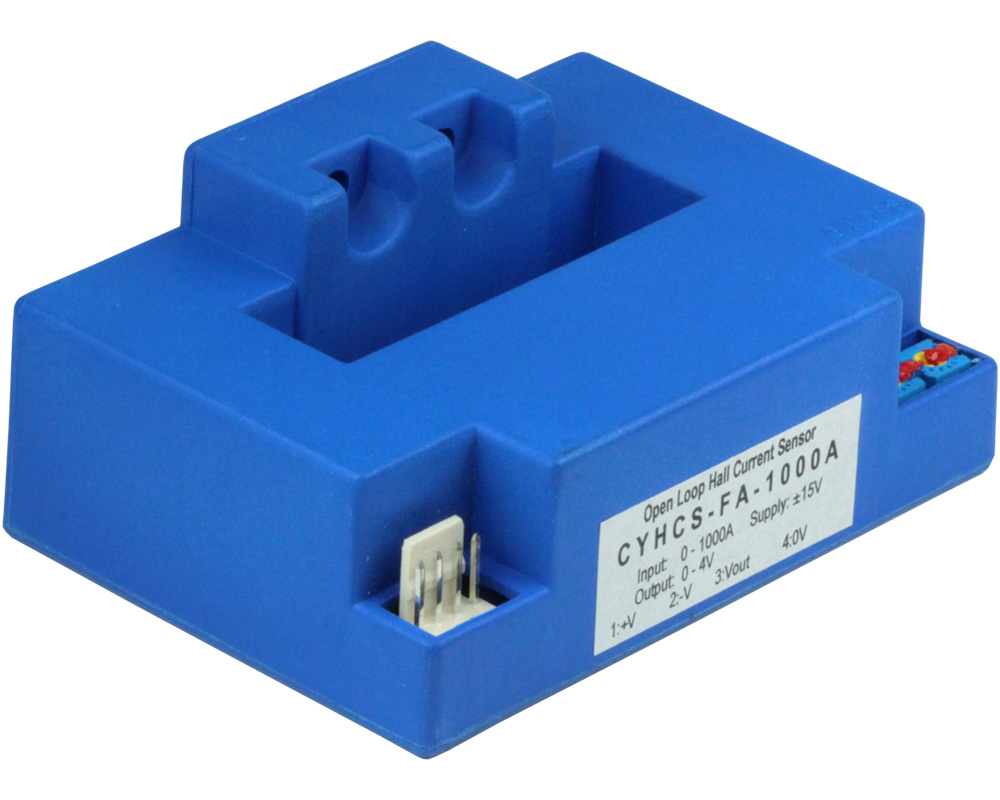

Serial: CYHCS-FA
Rated Input Current:
0~±300A to 0~±2000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
51x13 mm
Connector:
Molex

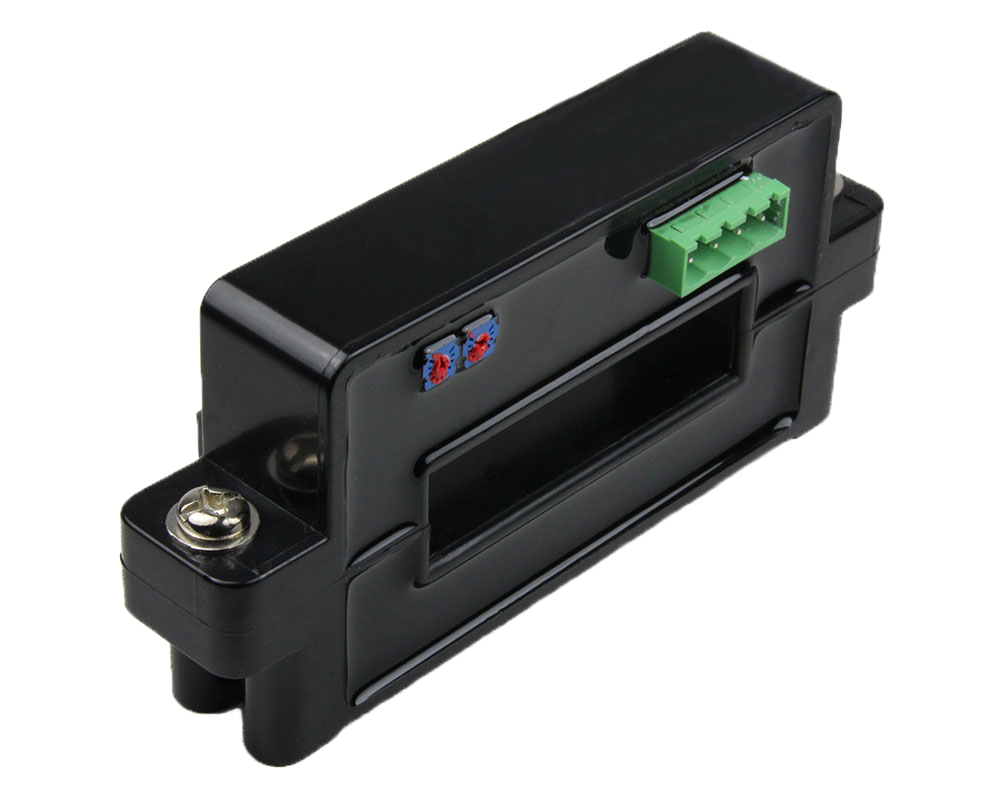

Serial: CYHCS-K
Rated Input Current:
0~±300A to 0~±2000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
64x16 mm (Split Core)
Connector:
Phoenix

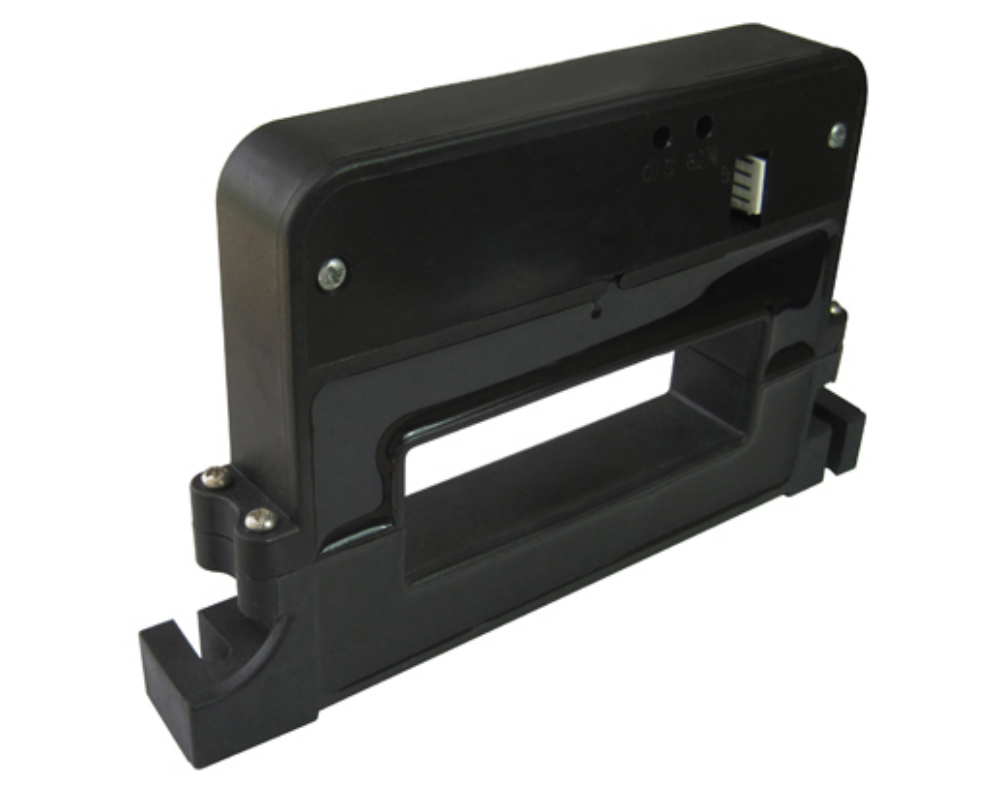

Serial: CYHCS-KF2
Rated Input Current:
0~±300A to 0~±3000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
85x27 mm (Split Core)
Connector:
Molex

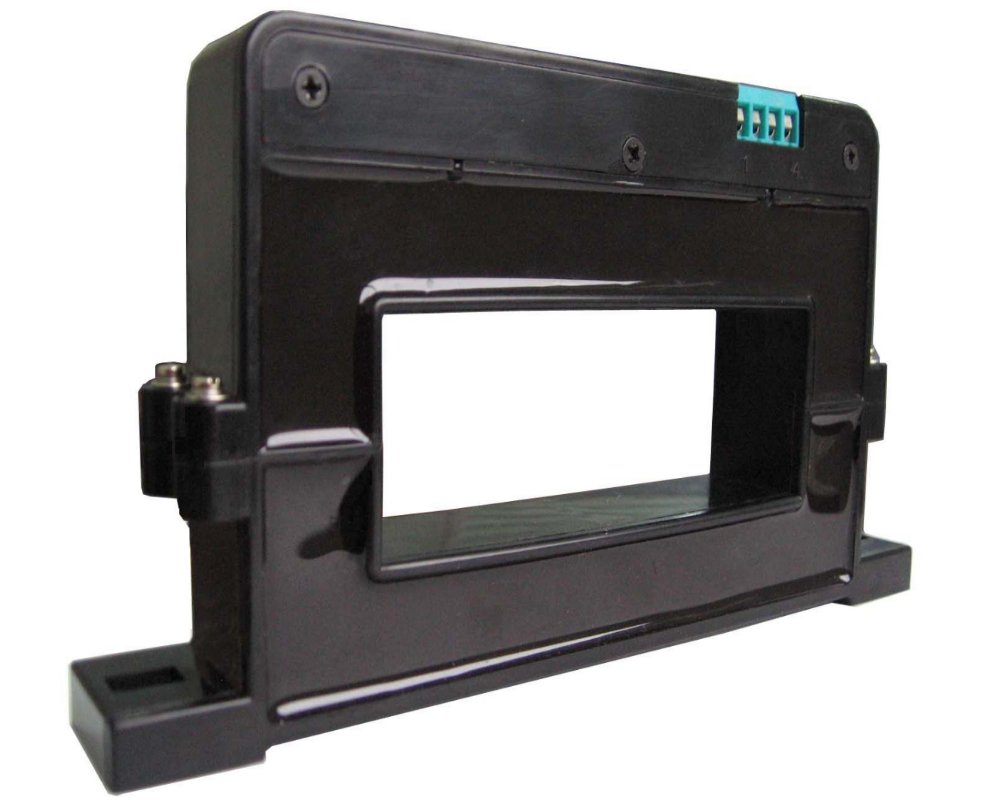

Serial: CYHCS-K104V
Rated Input Current:
0~±500A to 0~±5000A AC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V ,+15V or +24V DC
Window Size:
104 x 36 mm (Split Core)
Connector:
Molex or Screw

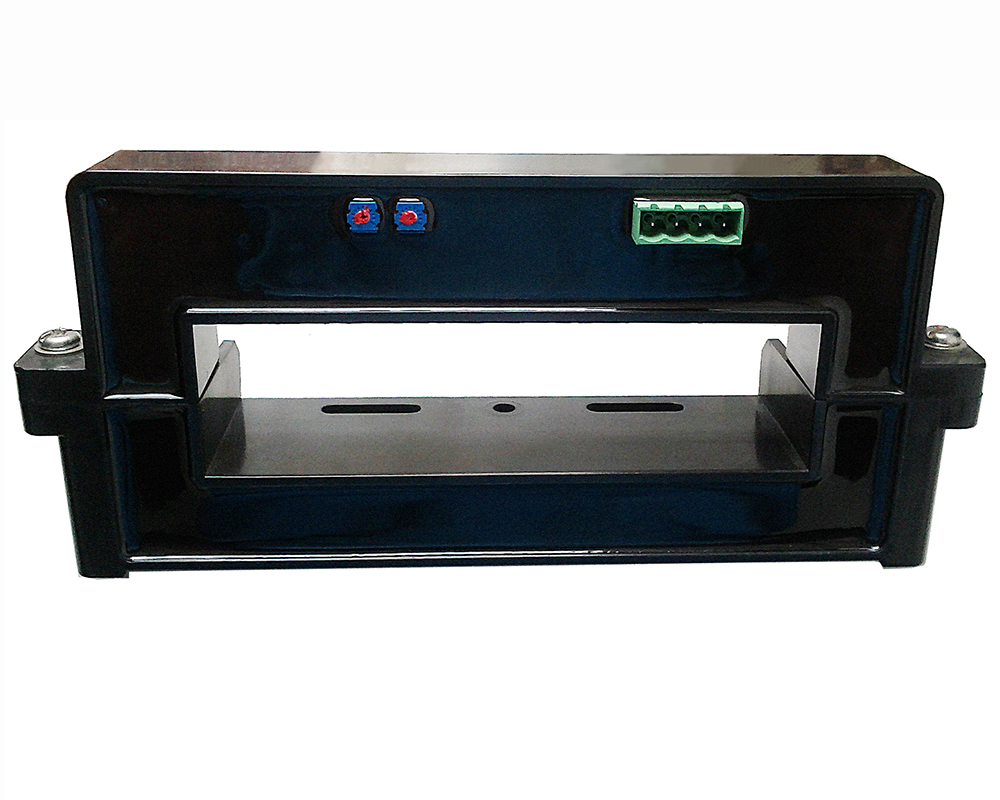

Serial: CYHCS-KCA
Rated Input Current:
0~±1000A to 0~±10000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V DC or ±15V DC
Window Size:
140 x 36 mm (Split Core)
Connector:
Phoenix
Serial: CYHCS-HB
Rated Input Current:
0~±2000A to 0~±10000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V DC or ±15V DC
Window Size:
140 x 50 mm
Connector:
Screw

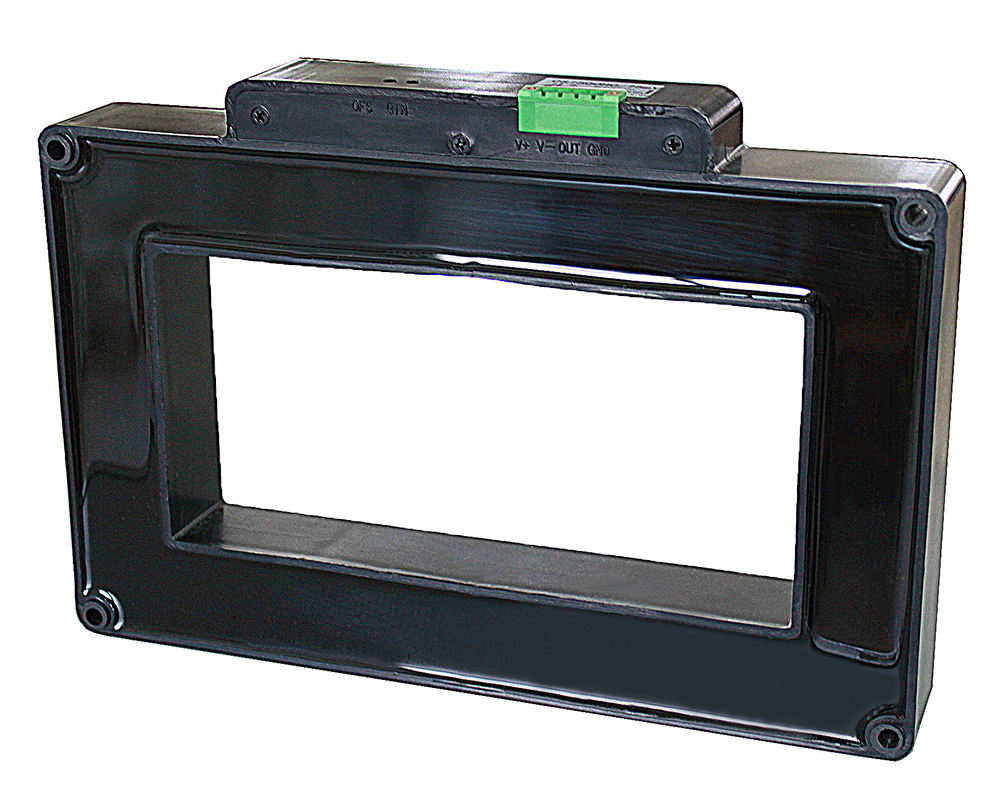

Serial: CYHCS-K210
Rated Input Current:
0~±5000A to 0~±30000A AC/DC
Output Signal:
±4V , ±5V , ±10V or ±20mA AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
210 x 100 mm
Connector:
Screw

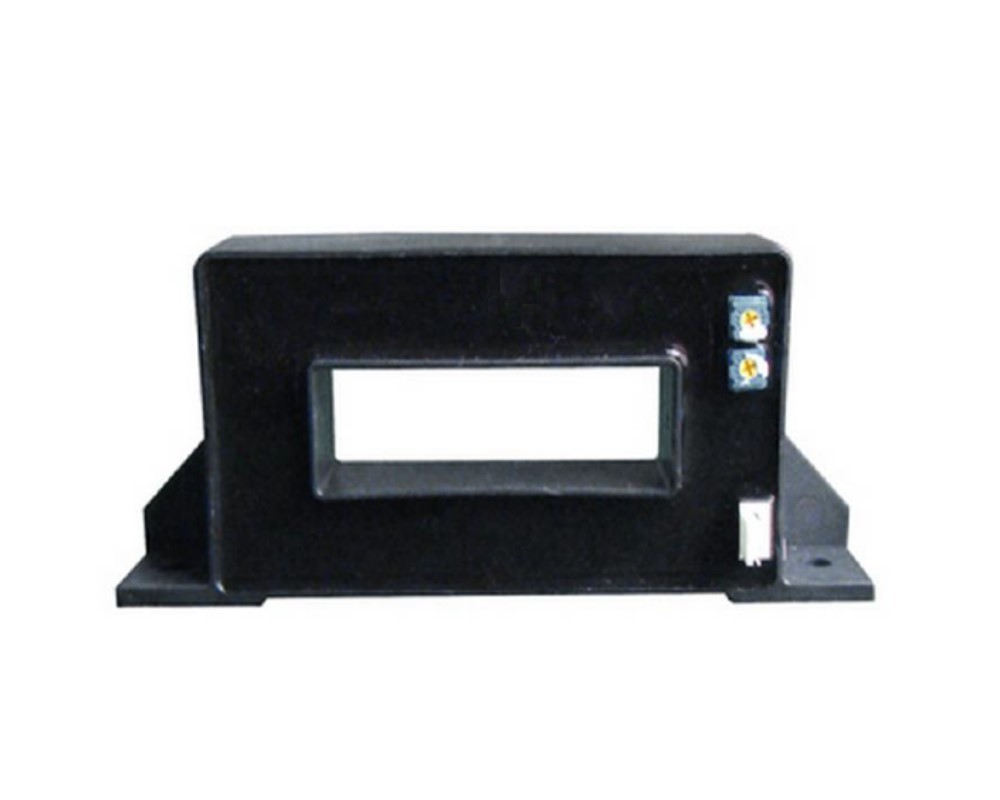

Serial: CYHCS-HAX
Rated Input Current:
0~±500A to 0~±3000A AC/DC
Output Signal:
0~±4V, 0~±5V or 0~±10V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
64x21 mm
Connector:
Molex

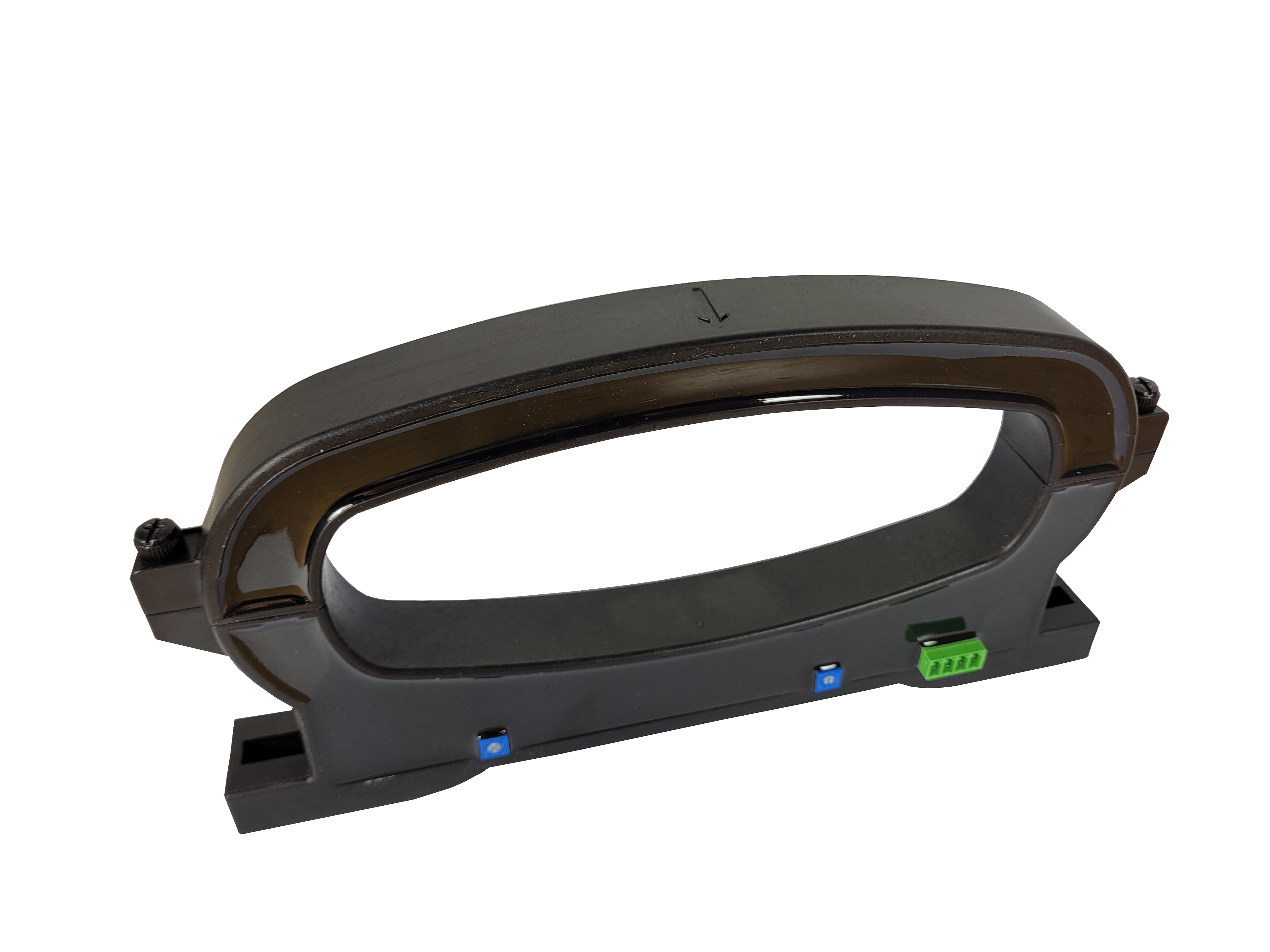

Serial: CYHCT-L65K
Rated Input Current:
0~±300A to 0~±6000A DC
Output Signal:
tracing ±5V, 0~10V, 4~20mA DC ±1% etc.
Power Supply:
+/±12V,+/±15V or +24V DC
Window Size:
150 x 40 mm (Split Core)
Connector:
Phoenix

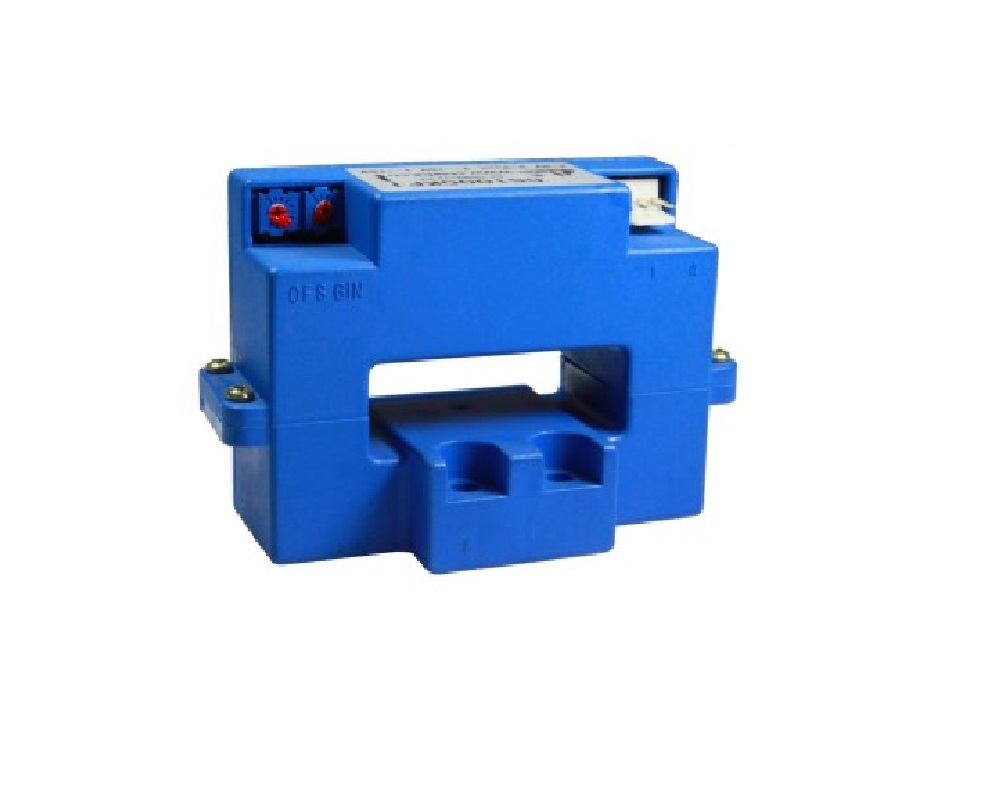

Serial: CYHCS-KF-X
Rated Input Current:
0~±200A to 0~±1000A AC/DC
Output Signal:
0~4V, 0~5V, 0~20mA, 0~40mA AC/DC ±1.0%
Power Supply:
+12V ~ +15V DC
Window Size:
41x13 mm (Split Core)
Connector:
Molex
Serial: CYHCS-K104
Rated Input Current:
0~±500A to 0~±5000A AC/DC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±12V ~ ±15V DC
Window Size:
104x36 mm (Split Core)
Connector:
Molex or Screw
Serial: CYHCS-KE
Rated Input Current:
0~±1000A to 0~±20000A AC
Rated Output Voltage:
0~±4V or 0~±5V AC/DC ±1.0%
Power Supply:
±15V DC
Window Size:
164x36 mm or 164x64 mm (Split Core)
Connector:
Phoenix

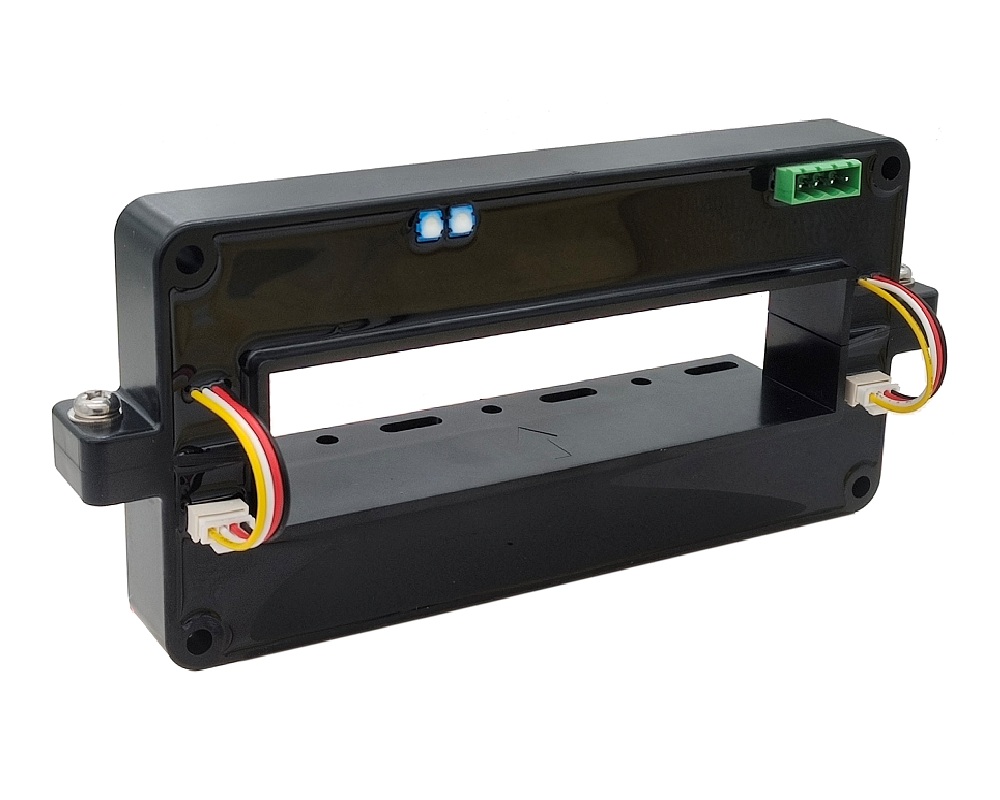

Serial: CYHCT-KEV
Rated Input Current:
0~±1000A to 0~±20000A DC
Rated Output Voltage:
0~4V, 0~5V or 0~10V DC ±1.0%
Power Supply:
+12V DC,+15V DC or +24V DC
Window Size:
164 x 36 mm or 164 x 64 mm (Split Core)
Connector:
Phoenix or Cable
Serial: CYHCT-KEC
Rated Input Current:
0~±1000A to 0~±20000A DC
Rated Output Current:
4~20mA DC ±1.0%
Power Supply:
+12V DC,+15V DC oder +24V DC
Window Size:
164 x 36 mm or 164 x 64 mm (Split Core)
Connector:
Phoenix or Cable
