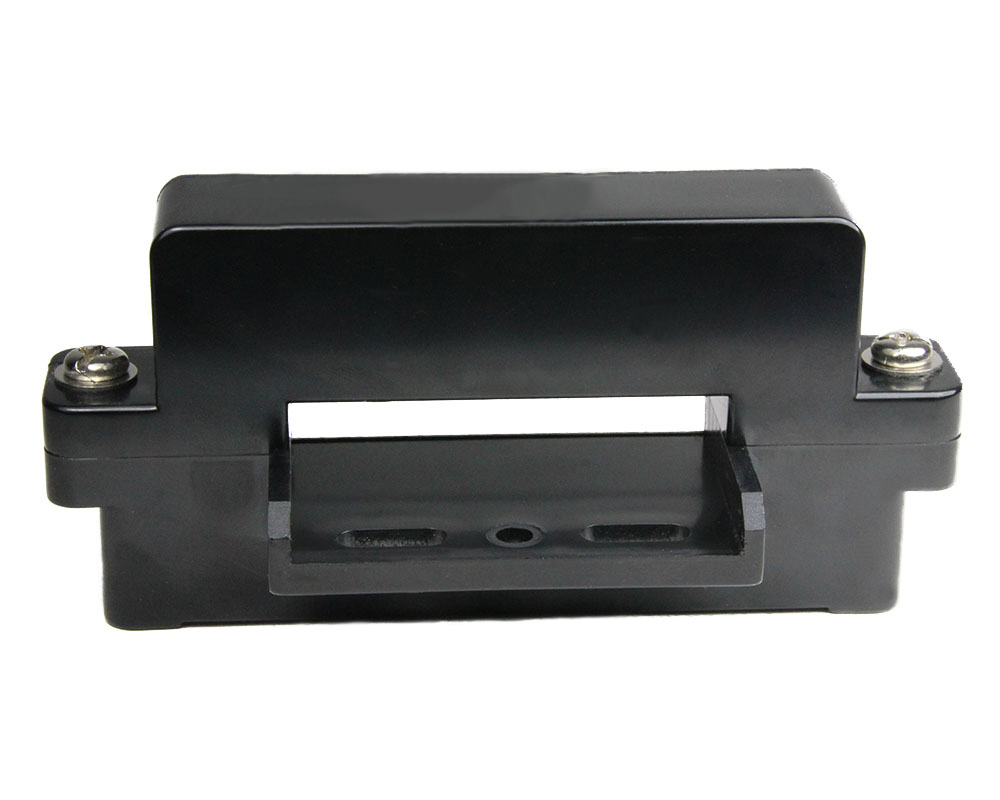

Split Core Hall Current Sensor CYHCT-KV

This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC current, DC pulse currents etc. The output of the transducer reflects the real wave of the current carrying conductor.

Product Characteristics

  • Excellent accuracy
  • Very good linearity
  • Using split cores and easy mounting
  • Less power consumption
  • Window structure
  • Electrically isolating the output of the transducer from the current carrying conductor
  • No insertion loss
  • Current overload capability
Applications
  • Frequency conversion timing equipment
  • Various power supply
  • Uninterruptible power supplies (UPS)
  • Electric welding machines
  • Transformer substation
  • Numerical controlled machine tools
  • Electric powered locomotive
  • Microcomputer monitoring
  • Electric power network monitoring



Nominal Input Current: 0-300A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-1500A, 0-2000A
Power Supply: +12 V DC, +15 V DC, +24 V DC
Output Signal: 0-4 V DC, 0-5 V DC, 0-10 V DC
Current Type: DC
Window Type: Rectangle
Window Size (mm): 64 x 16
Direction: unidirectional, bidirectional
Accuracy: 1%
Linearity: 0.5%
Operating Temperature: -25°C ~ +85°C
Frequency Bandwith: DC ~ 20kHz
