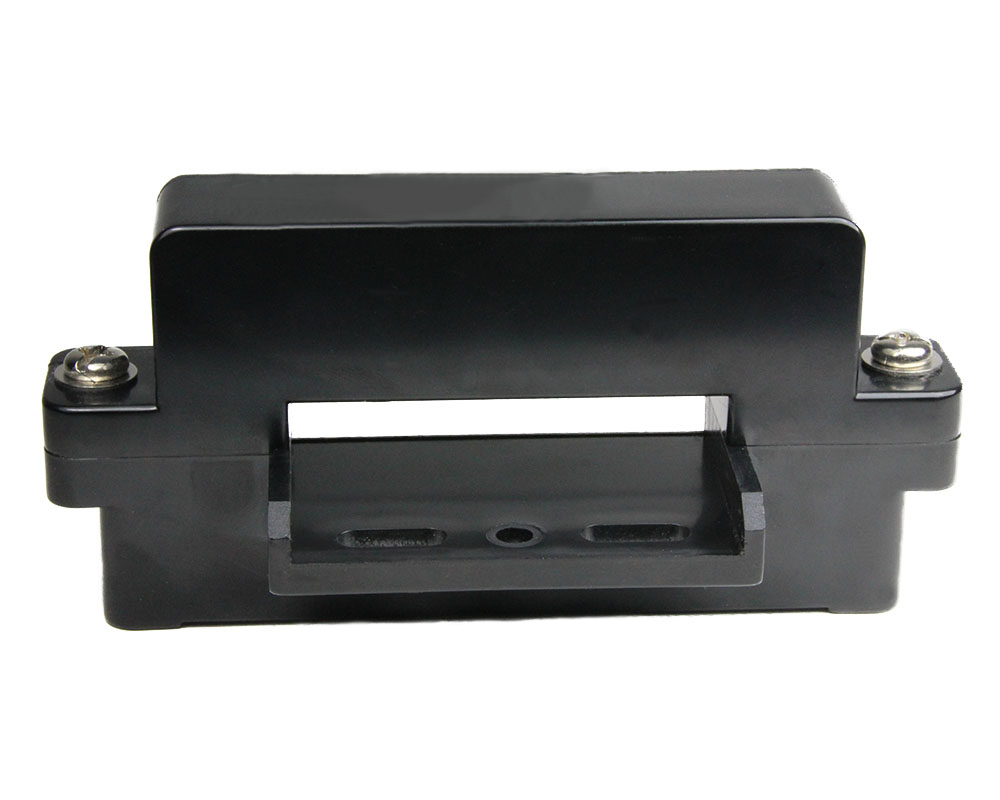

Split Core Hall DC Current Sensor CYHCT-KC
Serial-Nr:
CYHCT-KC
Article-Nr:
CYHCT-KC.3
Product information "Split Core Hall DC Current Sensor CYHCT-KC "
This Hall Effect current sensor is based on open loop principle and designed with a high galvanic isolation between primary conductor and secondary circuit. It can be used for measurement of DC current, DC pulse currents etc. The output of the transducer reflects the rectified average value of the current in the carrying conductor.
Product Characteristics
- Excellent accuracy
- Very good linearity
- Using split cores and easy mounting
- Less power consumption
- Window structure
- Electrically isolating the output of the transducer from the current carrying conductor
- No insertion loss
- Current overload capability
Applications
- Frequency conversion timing equipment
- Various power supply
- Uninterruptible power supplies (UPS)
- Electric welding machines
- Transformer substation
- Numerical controlled machine tools
- Electric powered locomotive
- Microcomputer monitoring
- Electric power network monitoring
| Accuracy: | 1% |
|---|---|
| Current Type: | DC |
| Direction: | bidirectional, unidirectional |
| Frequency Bandwith: | DC ~ 20kHz |
| Linearity: | 0.5% |
| Nominal Input Current: | 0-300A, 0-500A, 0-600A, 0-800A, 0-1000A, 0-1500A, 0-2000A |
| Operating Temperature: | -25°C ~ +85°C |
| Output Signal: | 4-20 mA DC |
| Power Supply: | +12 V DC, +15 V DC, +24 V DC |
| Sensor Type: | Open-Loop |
| Window Size (mm): | 64 x 16 |
| Window Type: | Rectangle |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
