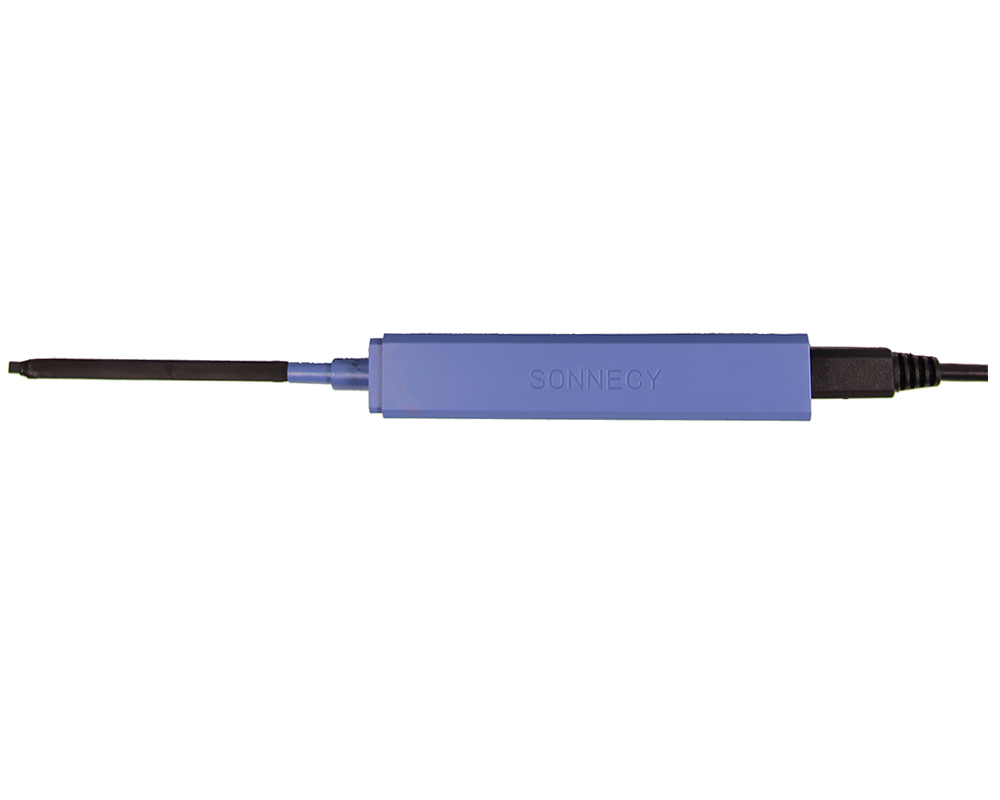

Transverse Hall Probe CYTP98

General Information

The CYTP98 is a transverse Hall probe, which can be used to measure AC/DC magnetic field strength of permanent magnet materials, electromagnets, motors, loudspeakers, magnetic sensors or transducer, and other machines or instruments.

The high linearity of ±0.5%~±1.0% and accuracy of ±1.0% ~ ±2.0% allow you conducting  precise measurement in different measuring ranges from 0-50mT up to 0-3000mT.

Characteristics

• The Hall probe gives an analog voltage output of 2.5VDC±2VAC/DC. It can be integrated into different measuring and controlling systems for magnetic field measurement.
• The Hall probe is powered with a single voltage source +5VDC that can be provided in the most microprocessor controlled systems through USB Cable.
• A low-cost measuring device, which is easy to operate and convenient to handle and store.
• Ideal for quick quality checks and comparative measurements

CYTP98A (Measuring Range: 0-50mT, 0-500mT), CYTP98B (Measuring Range: 0-200mT, 0-2000mT) and CYTP98C (Measuring Range: 0-300mT, 0-3000mT) are optimized for the use of the Gaussmeters CYGM99A, CYGM99B and CYGM99C. If you want to use the Hall Probe with other devices, machines or systems, please select "Custom Measuring Range" and specify, which measuring range you require.

Note: CYTP98 probes with custom measuring range have an output voltage of +2.5V±2VAC/DC.
