Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

Back
Preview: Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C Preview: Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C
Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C
Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C


Package:


Order now in Online Store
Description Technical Properties Data Sheets
Description
CYD503 Hall Effect Switch is a monolithic integrated circuit which switches in response to... more
Close menu
Unipolar Hall Effect Switch Ics CYD503, Power Supply: 2.7-30V, supply current: 25mA, Operating Temperature: -40 ~+150°C

CYD503 Hall Effect Switch is a monolithic integrated circuit which switches in response to magnetic field. If a magnetic field with flux lines perpendicular to the sensitive area is applied to the sensor, the biased Hall plate forces a Hall voltage proportional to this field. The Hall voltage is compared with the actual threshold level in the comparator. If the magnetic field exceeds the threshold levels, the output stage is switched to the appropriate state. The built-in hysteresis eliminates oscillation and provides switching behavior of output without bouncing.

Applications

  • Automotive brake pedal position detection
  • Proximity detection
  • Speed measurement
  • Weak magnetic field applications
  • Solid state switches

Features

  • 2.7V to 30V operation voltage
  • Overvoltage protection capability up to 40 V
  • High accuracy unipolar switch
  • Built-in dynamic offset cancellation
  • Open drain output
  • Low thermal drift of magnetic sensing
  • Qualified according to AEC-Q100 test standard
Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Release Point: 2.0 mT ~ 5.0 mT
Hysteresis: 1.5 mT ~ 2.7 mT

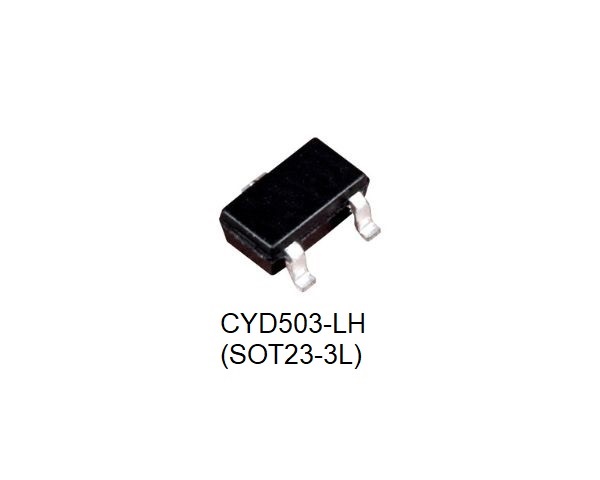

Package/Size: TO92S/4.1x3.18x1.58mm, SOT23-3L/ 2.92 x 1.60 x 1.15 mm
Power Supply: 2.7V ~ 30V DC
Max. Supply current/voltage: 25mA/30V
Operation Point: 3.8mT ~ 7.2mT
Data Sheets
more
Close menu
Data sheets to download:
