E-Cores of Soft Ferrite
Product information "E-Cores of Soft Ferrite"
Chenyang Technologies GmbH & Co.KG. supplies soft ferrite cores and components according to the requirements of customers. The products are specified for applications to electrical/electronic engineering, electronic/electrical components, transformers, sensors, instrumentation, telecommunication, radio and Television, automation machines and automotive industries, etc.
The following E-cores variants are offered by us:
- UU Cores

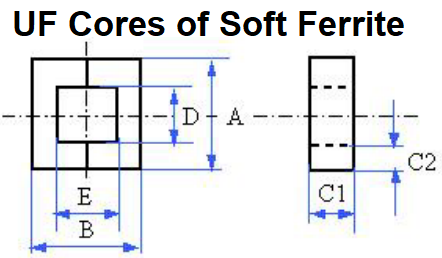

- UF Cores

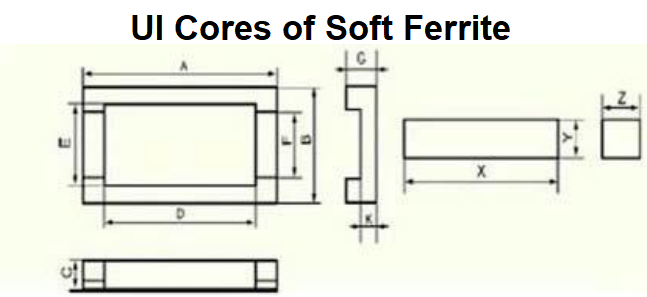

- UI Cores
- UT Cores
| Form: | UF-Cores, UI-Cores |
|---|---|
| Material: | Mn-Zn Materials with High Permeability, Mn-Zn Materials with Middle Permeability, Ni-Zn |
| Material Grade: | CY-HP5, CY-HP5B, CY-HP7, CY-HP7B, CY-HP10, CY-HP12, CY-HP15, CY-LP001, CY-LP002, CY-LP004, CY-LP006, CY-LP010, CY-LP020 , CY-LP025, CY-LP050 , CY-LP060, CY-LP070, CY-LP075 , CY-LP080, CY-LP100, CY-LP120 , CY-LP150, CY-LP180 , CY-LP200, CY-LP220 , CY-MP2, CY-MP2A, CY-MP2B, CY-MP3 , CY-MP3B, CY-MP4B |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
