Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC

Back
Preview: Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC Preview: Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC Preview: Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC Preview: Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC Preview: Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC


Order now in Online Store
Description Technical Properties Data Sheets
Description
The CYGTS9804 is a sophisticated IC featuring an on-chip 12-bit A/D Converter and logic that... more
Close menu
Self-Adjusting Two-Wire Hall Effect Gear Tooth Sensor IC CYGTS9804, Output: Two-wire Current Output, Power Supply:4 V ~ 24 V DC

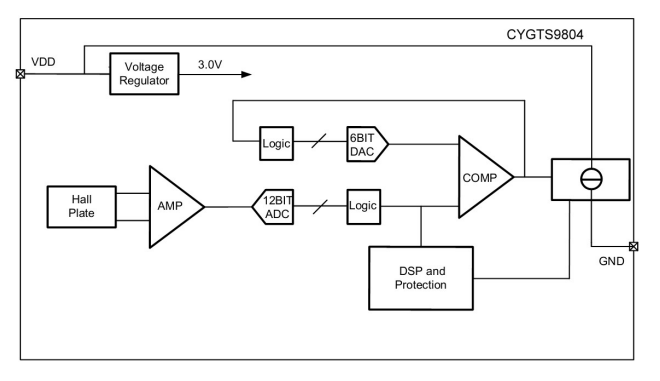

The CYGTS9804 is a sophisticated IC featuring an on-chip 12-bit A/D Converter and logic that acts as a digital sample and hold circuit. A separate 6-bit D/A converter provides a fixed hysteresis. The sensor does not have a chopper delay. It uses a single Hall plate which is immune to rotary alignment problems. The bias magnet can be from 1000GS to 4000Gs. As the signal is sampled, the logic recognizes an increasing or decreasing flux density. The output has been designed as a two wire current interface. The IDD (off) is 7mA (Typ.) when the flux has reached its peak and decreased by an amount equal to the hysteresis. Similarly the IDD (on) will reach to 14mA (Typ.) when the flux has reached its minimum value and increased by an amount equal to the hysteresis.

Characteristics

  • High sensitivity

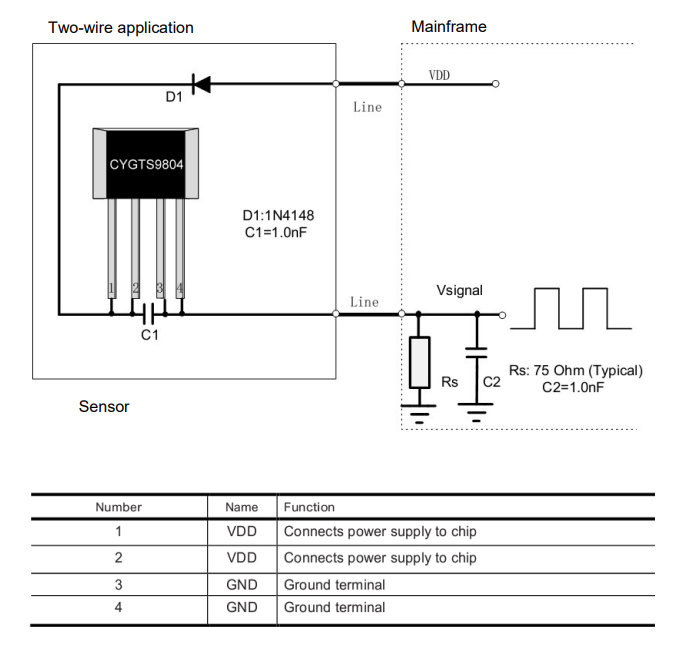

  • Two-wire current interface
  • Zero speed detection
  • Short circuit protection
  • Insensitive to orientation
  • Wide voltage working range
  • Self-adjusting magnetic range
  • On-chip 12 bit A/D converter
  • High speed operation
  • No chopper delay applications
  • RoHS compliant

Applications

 Automotive and Heavy Duty Vehicles:

  • ABS Sensors
  • Camshaft and crankshaft speed and position
  • Transmission speed
  • Tachometers

Industrial Areas:

  • Sprocket speed
  • Chain link conveyor speed/distance
  • Stop motion detector
  • High speed low cost proximity
  • Tachometers, counters.

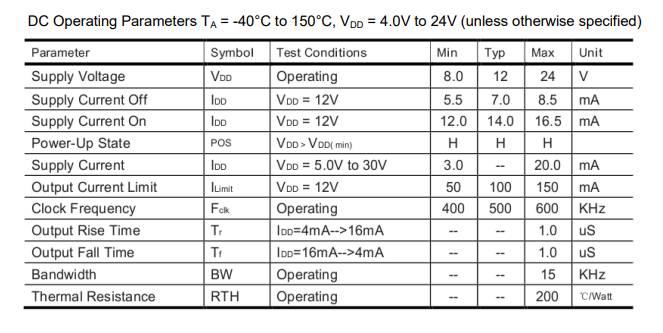

Technical Properties
more
Close menu
Operating Temperature: -40°C~ +150°C
Rise/Fall time: 0.4µs/0.4µs
Output Signal: Two-wire,Current Output

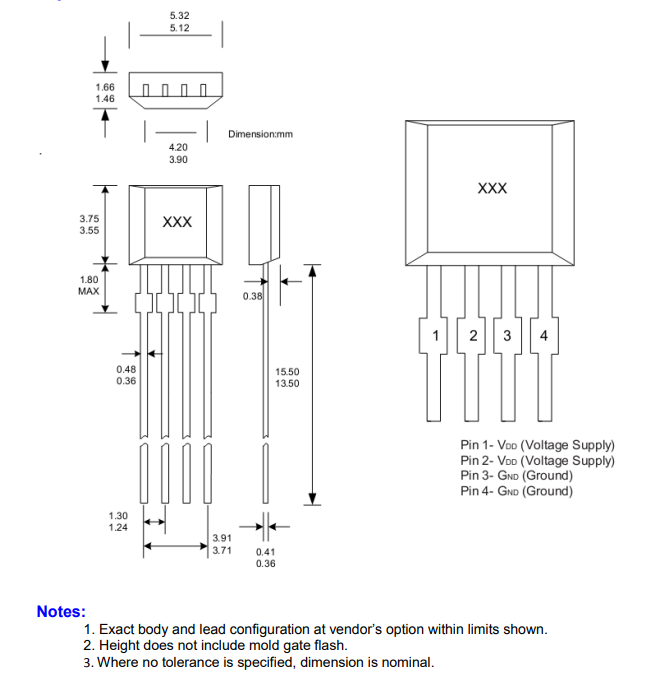

Package/Size: SIP4/5.22x3.65x1.55mm
Sensing gap/distance: 1.0mm ~ 3.0mm
Bias Magnetic Field: 100~400mT
Power Supply: 4 V ~ 24 V DC
Data Sheets
more
Close menu
Data sheets to download:
