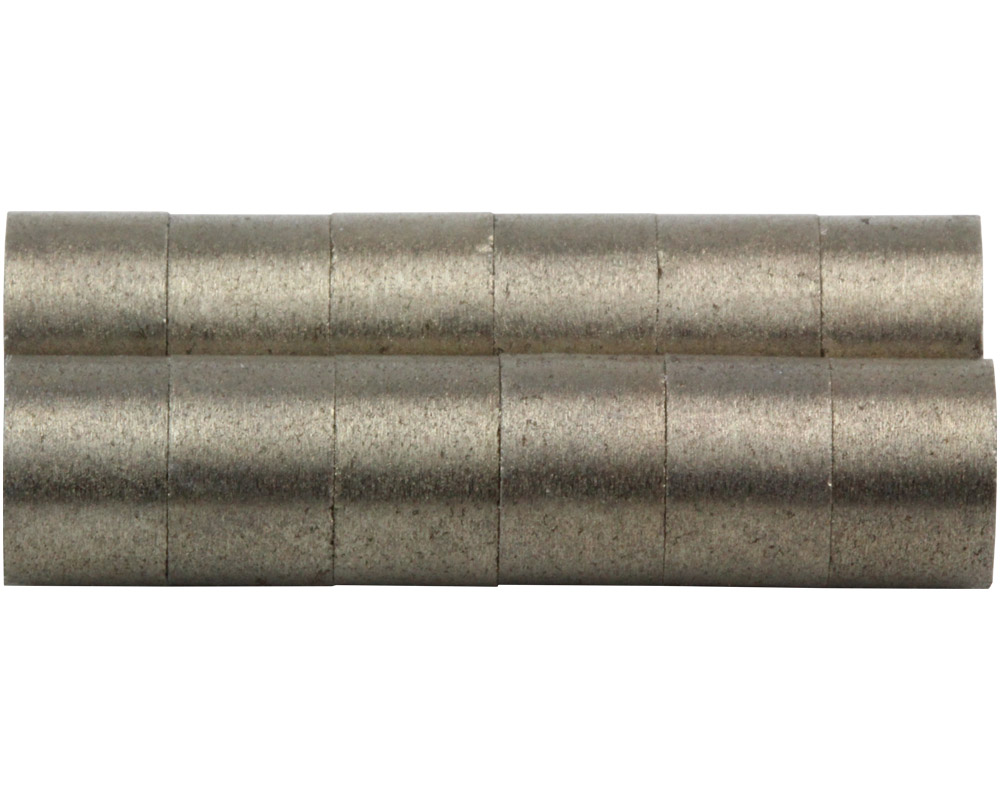

SmCo Disc Magnets
Product information "SmCo Disc Magnets"
In case of a quotation request please tell us the dimensions the magnets needed. Please write the dimensions according to the following scheme:
D[diameter] x [height] (e.g. D10x5)
General Information
SmCo magnets (Samarium Cobalt) have also a very strong magnetic field. They tend to resist demagnetization extremely well. Unlike Neodymium magnets, it is also very corrosion resistant. SmCo magnets can operate at higher temperatures up to 300°C and are widely used in applications in which higher operating temperature and higher corrosion and oxidation resistance are crucial. The temperature coefficient of remanence is usually less than ±0.05%. Two common compositions of SmCo magnets are SmCo5 and Sm 2Co17. They can be sintered and bonded. Generally, the cost of SmCo magnets is higher than NdFeB magnets. But NdFeB magnets are stronger than SmCo magnets.
Material Information
- An alloy composed of SmCo5/Sm2Co17 produced by powder metallurgical method
- Extremely hard & brittle
- High demagnetization resistance
- Excellent anti-corrosion properties
- More expensive than NdFeB magnets because of limited raw material supply
- Outstanding thermal stability
| Coating: | Epoxy, Gold, Nickel, Nickel + Copper + Nickel, Nickel + Epoxy, Nickel + Nickel, Nickel + Tin, Zinc, none |
|---|---|
| Curie Temperature (°C): | 700-800 |
| Density (g/cm3 ): | 8.0-8.5 |
| Form: | Disc |
| Hardness (Hv): | 450-600 |
| Magnetization Direction: | axial, diametral |
| Material: | Sm2Co17, SmCo5 |
| Material Grade: | S16, S18, S20, S22, S24, S220, S240, S260, S280, S300, S320 |
| Maximum Operating Temperature (°C): | 250, 350 |
| Relative Recoil Permeability (µrec) : | 1.10 |
| Resistivity (µ ohm.cm): | 50-90 |
| Saturation Field Strength, kOe (kA/m) : | 37.5 (3000) |
| Temperature Coefficient of Br (%/°C): | -0.05 ~ -0.03 |
| Temperature Coefficient of iHc (%/°C) : | -0.25 ~ -0.19 |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
