Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA
Product information "Bipolar Hall Effect Latching Switch Ics CYD402F, Power Supply: 3.8V -60V, supply current: 40mA"
The CYD402F is a high-voltage bipolar latching switch IC. The chip consists of a voltage regulator unit, a Hall voltage generator, a differential amplification circuit, a temperature compensation circuit, and open collector output with a built-in pull-up resistor (10kΩ) etc. The input is magnetic induction strength and the output is a digital voltage signal. It is resistant to high voltage shocks and has excellent noise resistance. Operating temperatures range is -40°C to 150°C and operating voltages from 3.8V to 60VDC, driving current up to 30mA. It is suitable for a variety of consumer electronics, automotive and industrial control and other fields. It is available in both TO92S and SOT23-3L packages, all of which are RoHS compliant.
Applications
- Brushless DC motors
- Speed measurement
- Counting
- Angle position detection
- Proximity detection
- Home applications
- Home safety
Features
- Operating voltages range 3.8V~ 60V
- Overvoltage protection capacity 80V
- ESD performance up to ±4kV
- Built-in pull-up resistor 10kΩ
- Operating temperature -40°C~150°C
- Suitable for automotive and extreme industrial environments
- TO92S and SOT23-3L packages
Information about product safety:
Manufacturer/ EU Responsible Person:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
| Hysteresis: | 5.0mT |
|---|---|
| Max. Supply current/voltage: | 40mA/80V |
| Operating Temperature: | -40°C~ +150°C |
| Operation Point: | 1.0 mT ~ 4.0 mT |

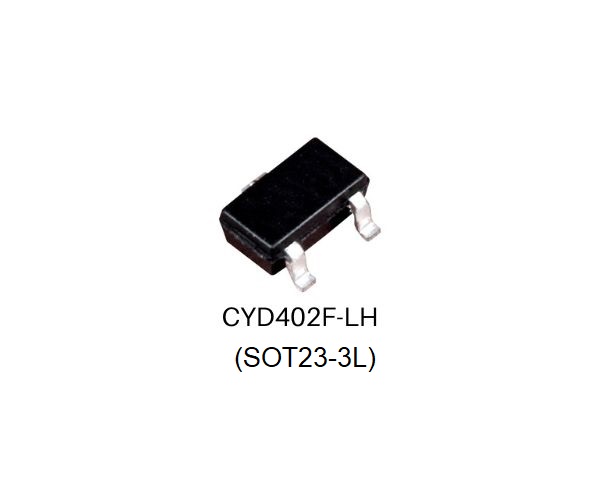

| Package/Size: | SOT23-3L/ 2.92 x 1.60 x 1.15 mm, TO92S/4.1x3.18x1.58mm |
| Power Supply: | 3.8V ~ 60V DC |
| Release Point: | -4.0mT ~ -1.0mT |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
