High Sensitivity Hall Effect Latch CYD9611
Serial-Nr:
CYD9611
Article-Nr:
CYD9611-LT-K.

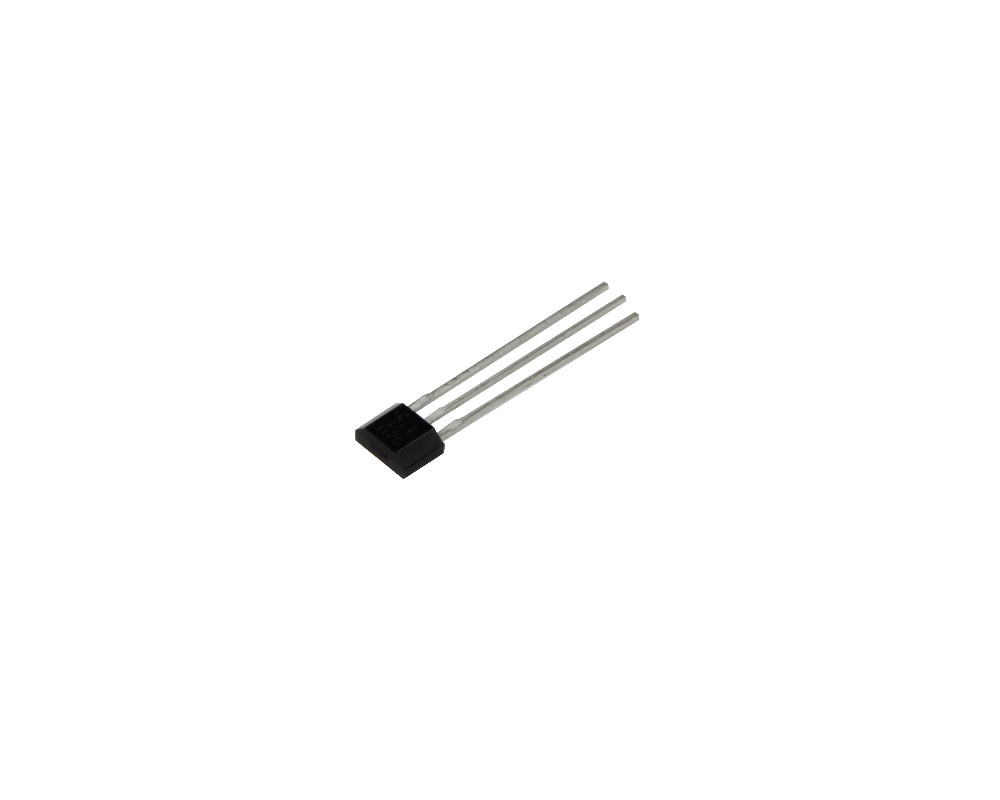

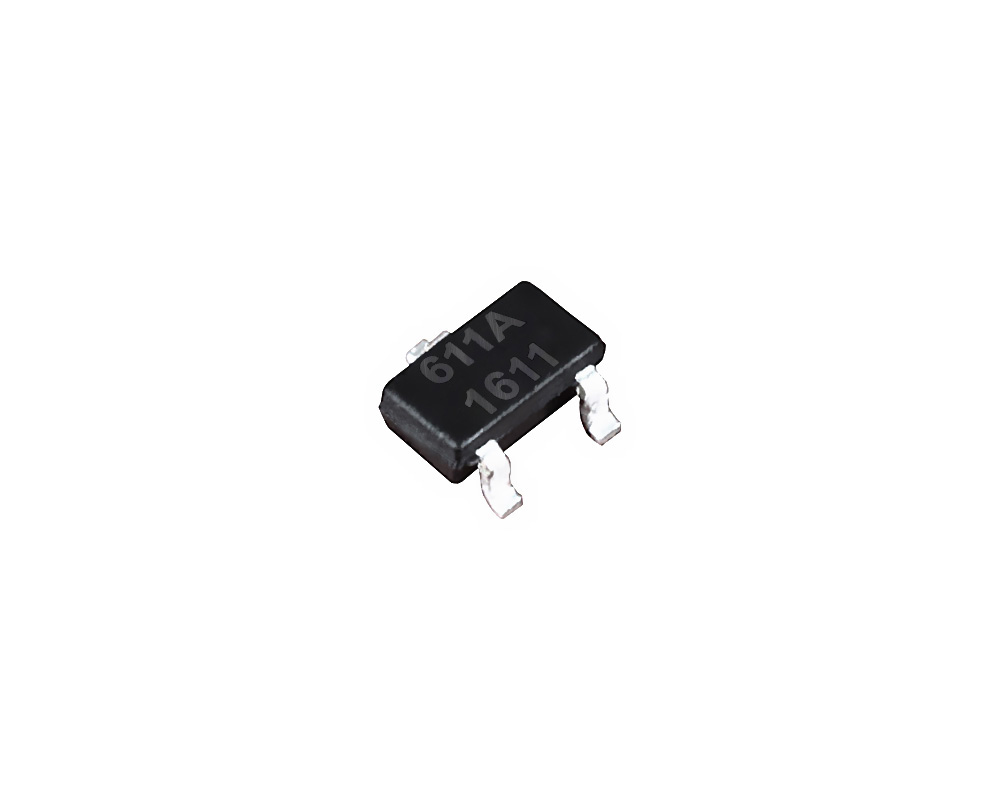

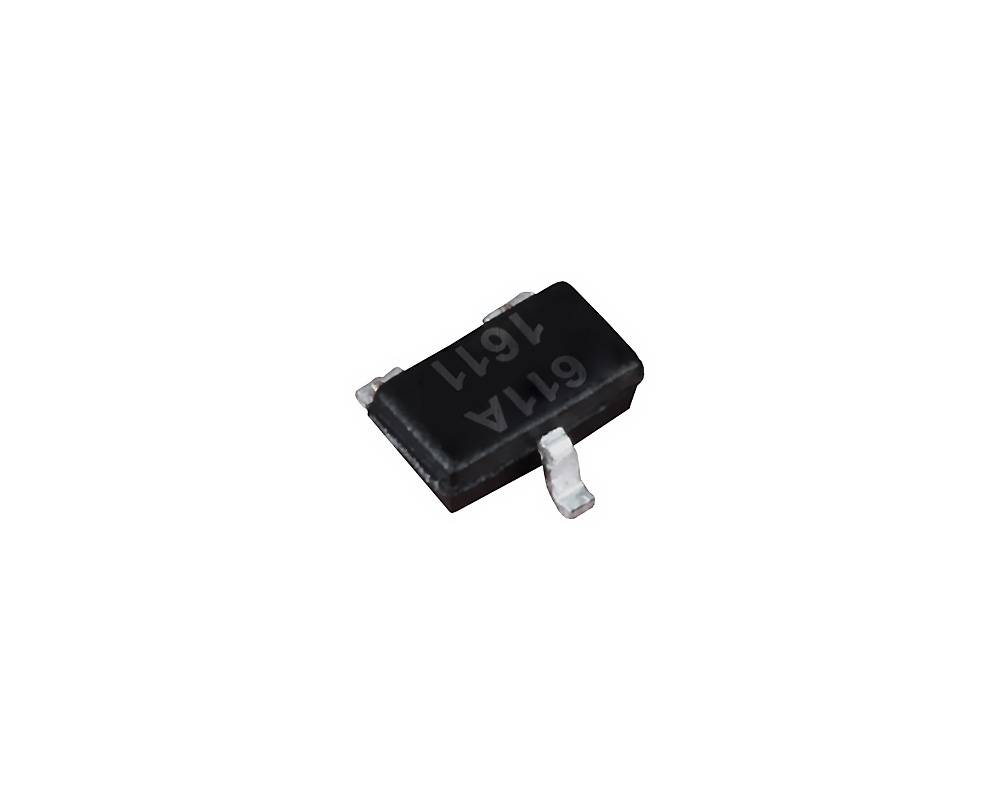

Product information "High Sensitivity Hall Effect Latch CYD9611"
The CYD9611 is designed for magnetic actuating using a bipolar magnetic field. The built-in dynamic offset cancellation of pre-amplifier stage achieves optimal symmetrical magnetic sensing. This Hall Effect IC is suitable for DC brushless fan applications. The supply voltage range is from 3.8V to 24V and the maximum output current is 50mA. This Hall Effect switch IC integrates the sensor, pre-amplifier with dynamic offset cancellation and hysteresis comparator in single chip.
Applications
- DC brushless motors
- CAM shaft sensors
- Magnetic Encoders
- Rotating Speed Measurement
- Home applications
- Home safety etc.
Features
- 3.8V to 24V operation voltage
- High sensitivity
- Built-in dynamic offset cancellation
- Small size
- High balance and low thermal drift of magnetic sensing
| Hysteresis: | 4.5 mT ~ 7.0 mT |
|---|---|
| Max. Supply current/voltage: | 50 mA |
| Operating Temperature: | -40°C ~ +125°C, -40°C~ +150°C |
| Operation Point: | 1.0 mT ~ 4.5 mT |
| Package/Size: | SOT23/2.9x1.8x1.1mm, SOT89/4.5x2.45x1.5mm, TO92/4.0x3.1x1.5mm |
| Power Supply: | 3.8V ~ 24V DC |
| Release Point: | -4.5mT ~ -1.0mT |
Manufacturer:
Company name: ChenYang Technologies GmbH & Co.KG
Address: Markt Schwabener Str. 8; 85464 Finsing; Deutschland
E-Mail: info@chenyang.de
Phone: +49 8121 2574100
Similar Items
Serial: CYD502
Operating point:
2.5mT
Release Point:
-2.5mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD72X
Operating point:
2.5mT
Release Point:
-2.5mT
Supply Voltage:
2.4V ~ 16V
Operating temperature:
-20°C ~ +100°C
Package/Size:
SIP-3L/4.1x3.05x1.5mm
Serial: CYD8945
Operating point:
2.5mT~18.5mT
Release Point:
-18.5mT~-2.5mT
Supply Voltage:
3.8V ~ 60V
Operating temperature:
-50°C ~ +150°C
Package/Size:
UA/4x1.52x2.45
Serial: CYD3172X
Operating point:
1mT ~ 7mT
Release Point:
-7mT ~ -1mT
Supply Voltage:
4.5V ~ 24V
Operating temperature:
-40°C ~ +85°C
Package/Size:
TO-92UA/4.06x3.1x1.5mm
Serial: CYD402F
Operating point:
1.0mT ~ 4.0mT
Release Point:
-4.0mT ~ -1.0mT
Supply Voltage:
3.8V ~ 60V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD41
Operating point:
4mT
Release Point:
-4mT
Supply Voltage:
4.5V ~ 24V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO-92UA/4.06x3.1x1.5mm
Serial: CYD9802A
Operating point:
1.0mT~3.5mT
Release Point:
-3.5mT~-1.0mT
Supply Voltage:
2.5V ~ 18V
Operating temperature:
-40°C ~ +125°C
Package/Size:
SOT-23
Serial: CYD277
Operating point:
8mT
Release Point:
-8mT
Supply Voltage:
4.5V ~ 20V
Operating temperature:
-20°C ~ +85°C
Package/Size:
SIP/5.13x3.6x1.6mm
Serial: CYD512
Operating point:
1mT ~ 6mT
Release Point:
-6mT ~ -1mT
Supply Voltage:
4.5V ~ 18V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO-92T/4.5x4.0x2.0mm
Serial: CYD501
Operating point:
0.9mT
Release Point:
-0.9mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYDF41
Operating point:
6mT ~ 8.5mT
Release Point:
-8.5mT ~ -6mT
Supply Voltage:
3.0V ~ 28V
Operating temperature:
-40°C ~ +125°C
Package/Size:
SIP-3L/4.1x3.05x1.5mm
Serial: CYD513
Operating point:
4mT
Release Point:
-4mT
Supply Voltage:
4.5V ~ 24V
Operating temperature:
-40°C ~ +150°C
Package/Size:
SOT-89/4.5x2.5x1.5mm
Serial: CYD3601
Operating point:
3.0mT
Release Point:
-3.0mT
Supply Voltage:
2.5V ~ 18V
Operating temperature:
-40°C ~ +125°C
Package/Size:
SOT23-3L or TO92-3L
Serial: CYD505
Operating point:
13.5mT
Release Point:
-13.5mT
Supply Voltage:
2.7V ~ 30V
Operating temperature:
-40°C ~ +150°C
Package/Size:
TO92S or SOT23-3L
Serial: CYD9801A
Operating point:
1.0mT~3.5mT
Release Point:
-3.5mT~-1.0mT
Supply Voltage:
2.5V ~ 18V
Operating temperature:
-40°C ~ +125°C
Package/Size:
SOT-23
